Custom Power module 3.3v 5v 12v Multiple output voltage conversion module DC-DC 12V to 3.3v 5v 12v

DC-DC12V to 3.3v 5v 12v Multi-Channel Output Voltage Conversion Module Power Module

Description:High stability, high cost performance, support 100-240V voltage input, output 12V1A

Double panel design
Beautiful and generous layout
Input and output use multiple row pins, convenient for use and connection
It is widely used in communication equipment, industrial control motherboard, toys, aircraft models, home appliances, vehicle power supplies, etc.

Product parameters:
modular:
One input: DC 6V-12 (the input voltage must be more than 1V higher than the output voltage)
Three-way output: 3V (± 0.2 error),
5.0V (± 0.2 error)
Current: 800MA (load current cannot exceed 800MA),
Input: 12V (12V direct to output)
Double panel design, beautiful and generous layout;
Multiple rows of pins are used for input and output, which is convenient for use and connection;
With power indicator (red)

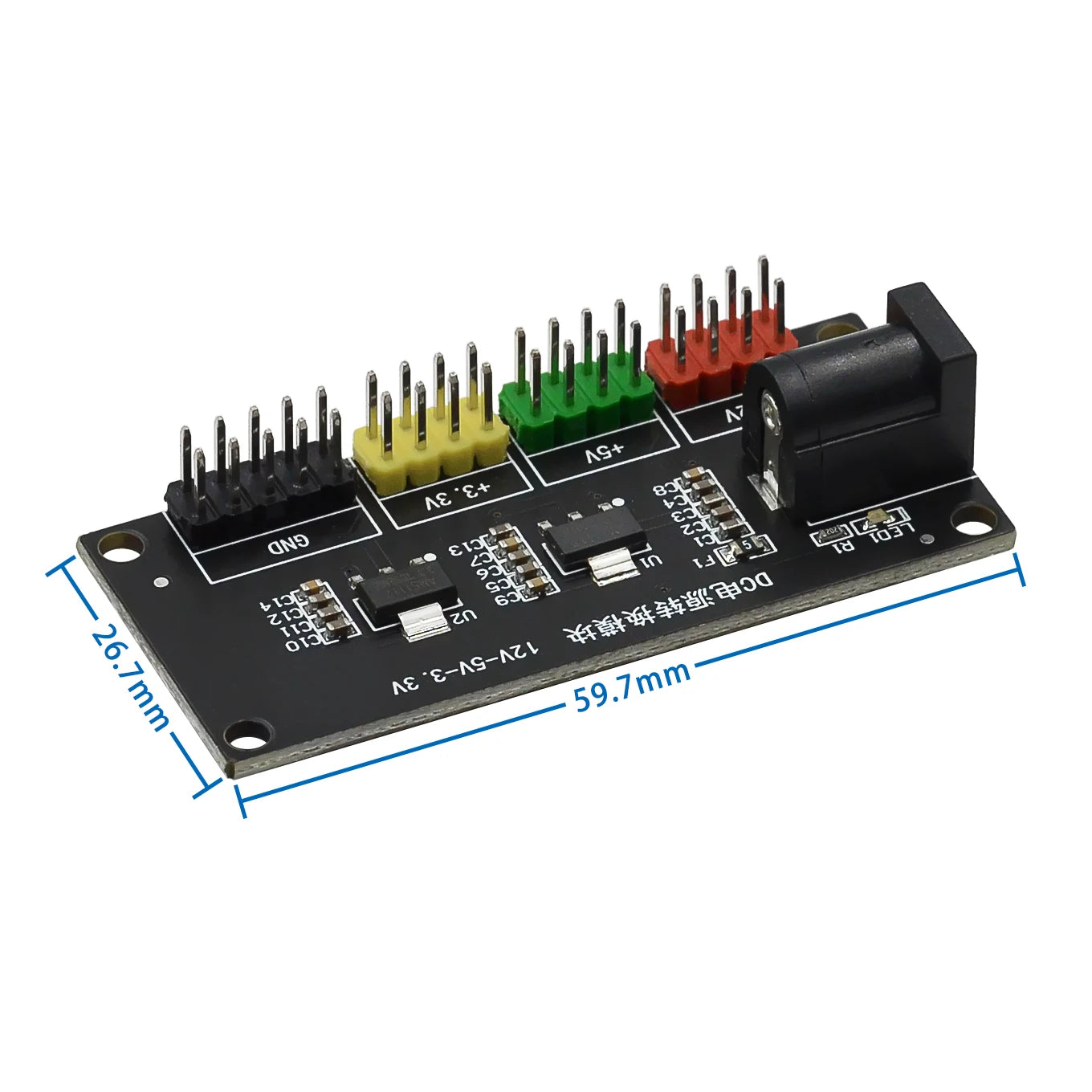

PCB board size: 59.5MM * 26.5MM
DC interface: 5.5 * 2.1MM
