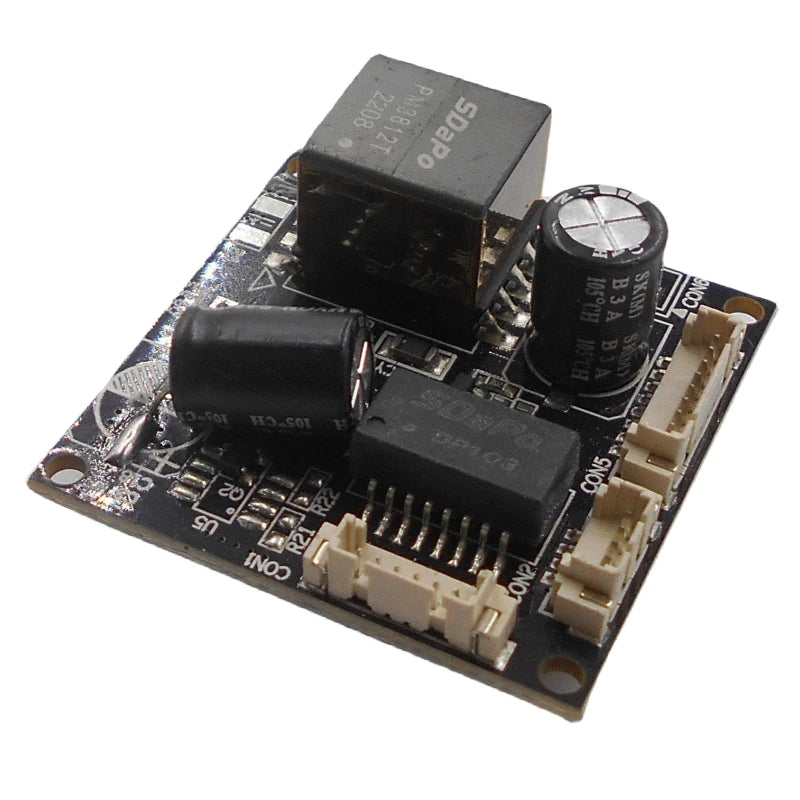

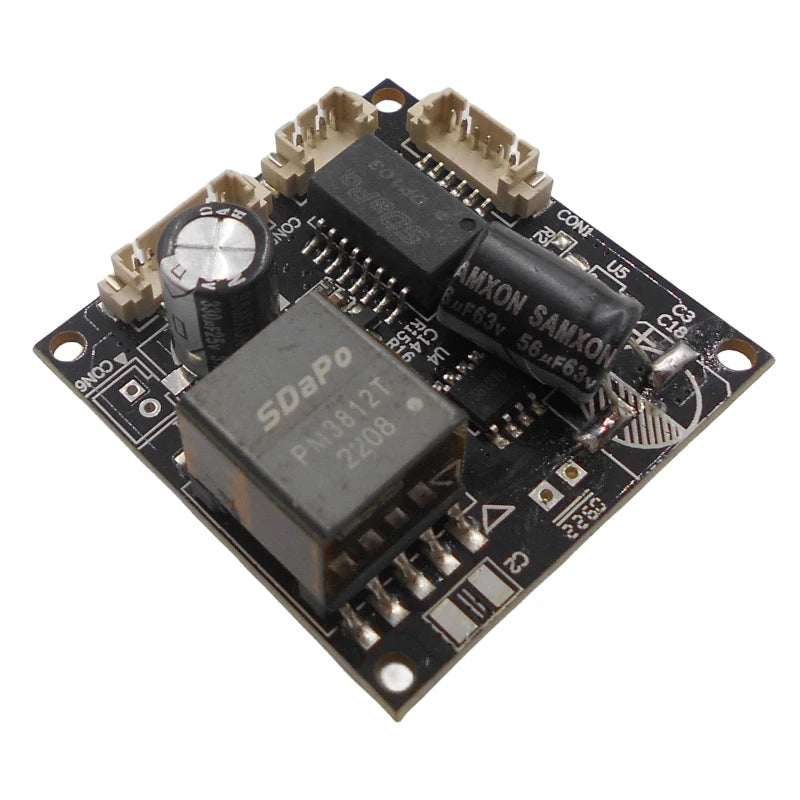

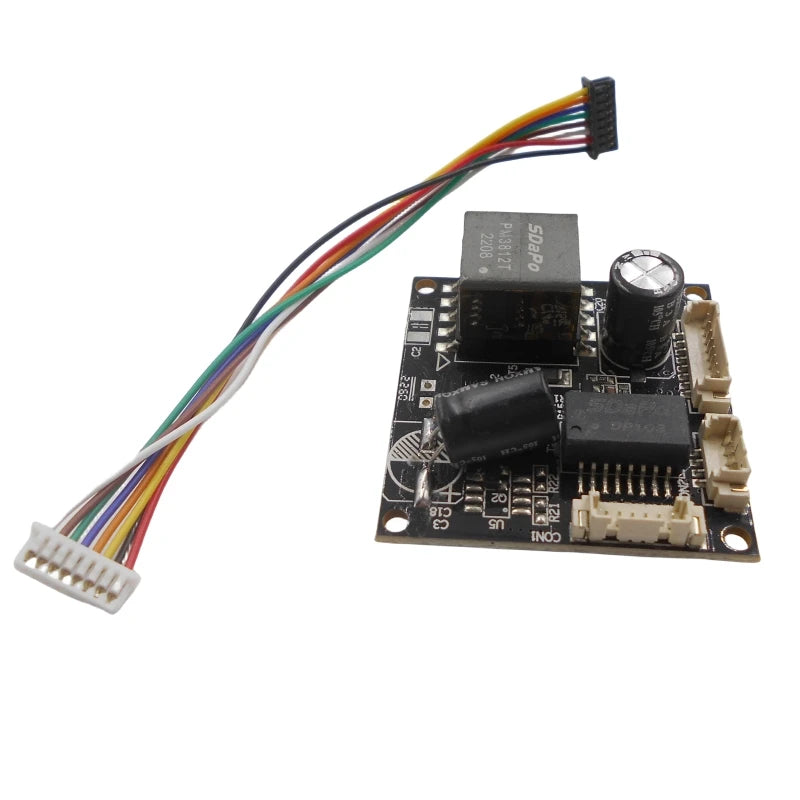

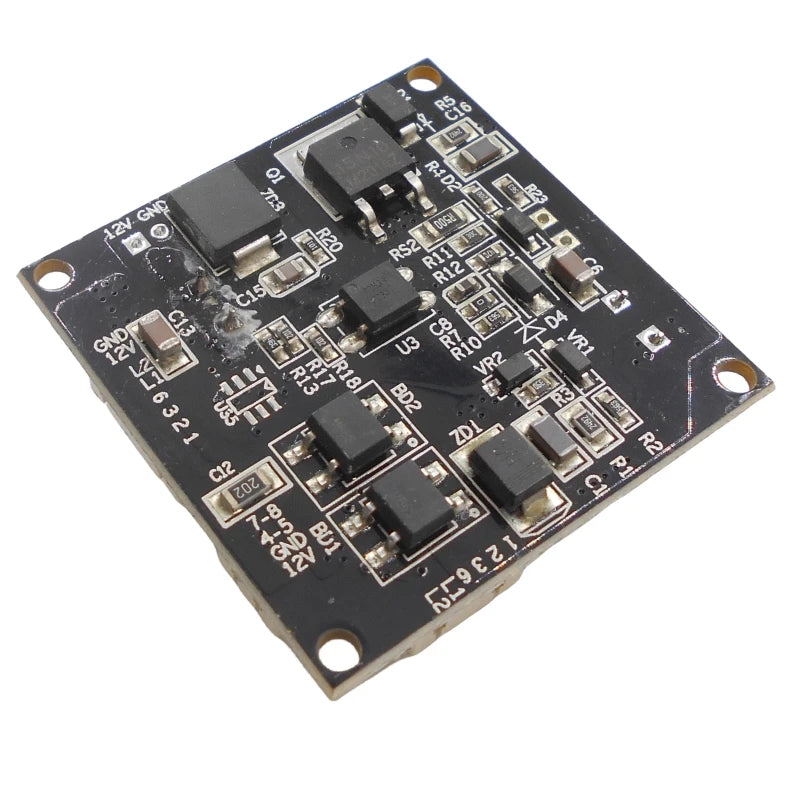

Custom PM3812T V7S Foot 1A Isolation Industrial Grade Temperature and Lightning Protection POE Module

1、 Product characteristics:

1. Specification: Meets the. 3af standard, graded as class 0

2. Safety: Equipped with complete short-circuit protection circuit and 1500V high-voltage isolation

3. Size: 38 * 38mm, suitable for IPC internal integration design

4. Integrated network filter, suitable for all IPC modules

5. Compatibility: Supports two power supply modes: (1,2+/3,6-) and (4,5+/7,8-)

6. Wide temperature operation: stable operation from -40 ° to 85 ° C

7. 4KV lightning protection and surge protection differential mode 4KV 10/700uS

2、 Application field:

Suitable for IPC solutions such as Xiongmai, Tianshitong, Zhongwei/Shangwei, Jiu'an, Julong, Jiegao, Apsida, etc.

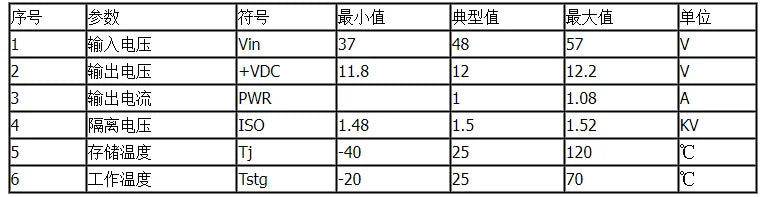

3、 Main parameters:

(1) The typical value is 25 ℃, measured in a 48V power supply environment, only for reference design purposes.

(2) It is recommended that the load value should not exceed 950mA (including switching) in Af mode to adapt to different environments
