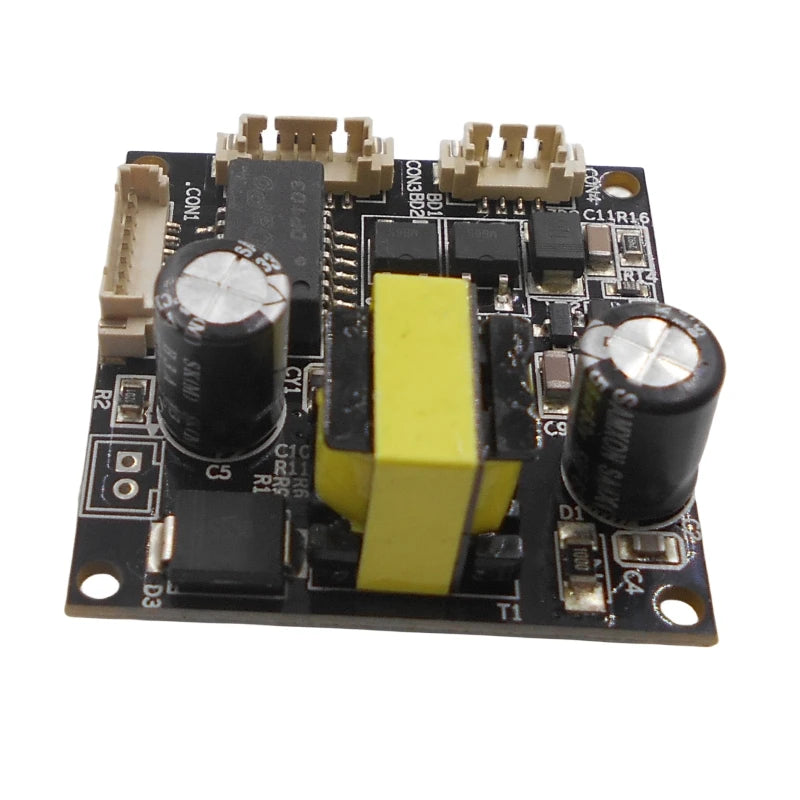

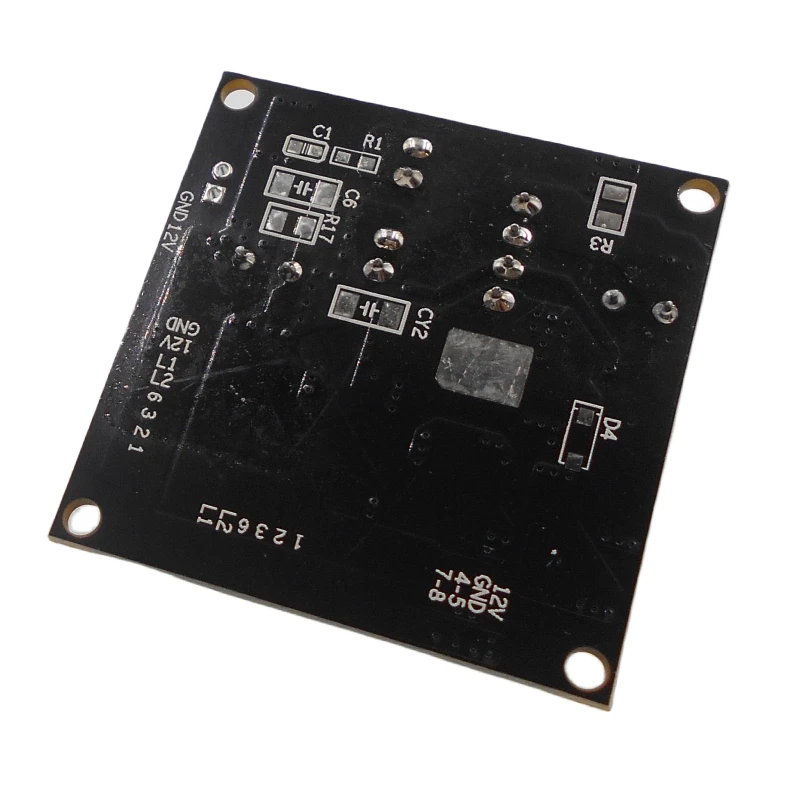

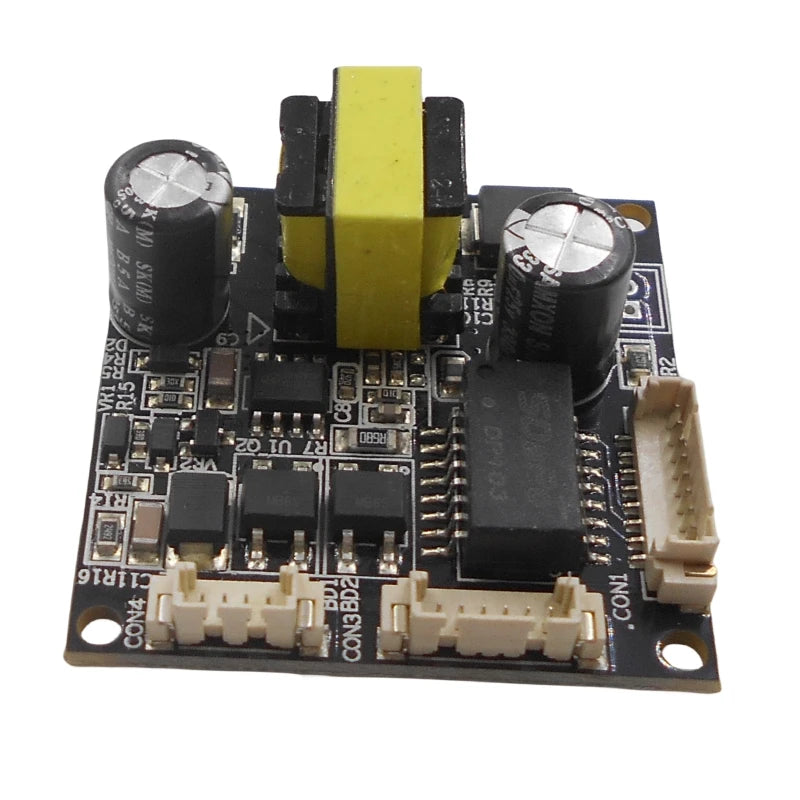

Custom PM3812RCL National standard 12V1A isolated POE module

1、 Product characteristics:

1. Specification: Fully compliant with. 3af standard, class 0 classification

2. Safety: With input overvoltage/undervoltage, output short circuit, overcurrent, and chip over temperature protection functions

3. Size: 38 * 38mm, designed specifically for the embedded structure of network cameras

4. Compatibility: Integrated network filter, supporting both intermediate and end bridging methods

5. 1500V high-voltage isolation (input to output);

6. Wide temperature operation: stable operation from -20 ° to 70 ° C

2、 Application field:

Suitable for all IPC solutions such as Xiongmai, Tianshitong, Zhongwei/Shangwei, Jiu'an, Julong, Jiegao, Apsida, etc.

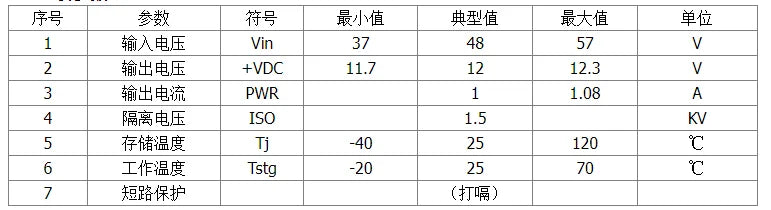

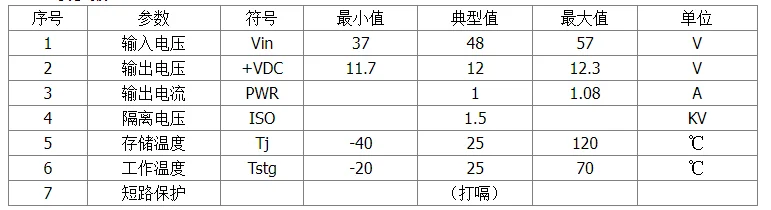

3、 Main parameters:

(1) The typical value is 25 ℃, measured in a 48V power supply environment, only for reference design purposes. Both 1A and 2A are designed with industrial grade POE modules, with operating temperatures ranging from -40 ℃ to 85 ℃.

(2) It is recommended that the load value should not exceed 800mA (including switching) in Af mode to adapt to different environments
