Custom PM3812AT 2A isolated industrial grade temperature resistant POE module 25.5W

1、 Product characteristics:

1. Specification: Fully compliant with. 3af/at standard, class 4 classification

2. Safety: Equipped with complete short-circuit protection circuit and 1500V high-voltage isolation

3. Size: 38 * 38mm, suitable for IPC internal integration design

4. Integrated network filter, suitable for all IPC modules

5. Compatibility: Supports two power supply modes: (1,2+/3,6-) and (4,5+/7,8-)

6. Wide temperature operation: stable operation from -35 ° to 75 ° C

2、 Application field:

Suitable for Xiongmai, Tianshitong, Zhongwei/Shangwei, Jiu'an, Apsida, and Jiegao IPC solutions.

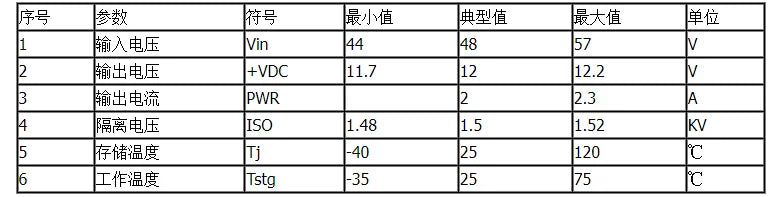

3、 Main parameters:

(1) The typical value is 25 ℃, measured in a 48V power supply environment, only for reference design purposes

(2) It is recommended that the load value should not exceed 1600mA (including switching) in AT mode to adapt to different environments

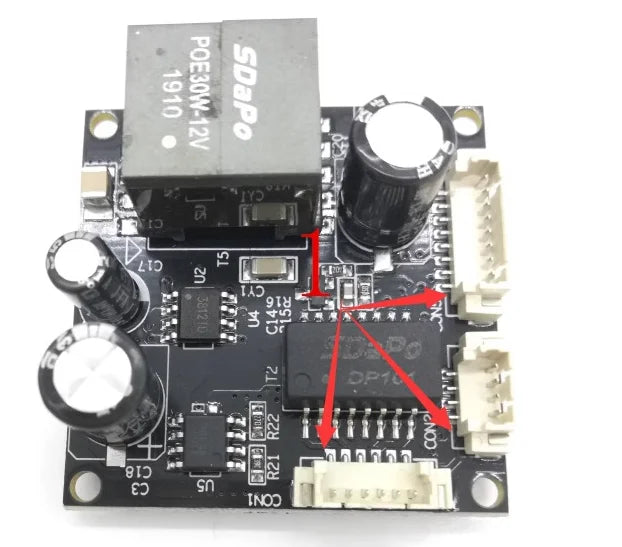

4： Interface definition:
