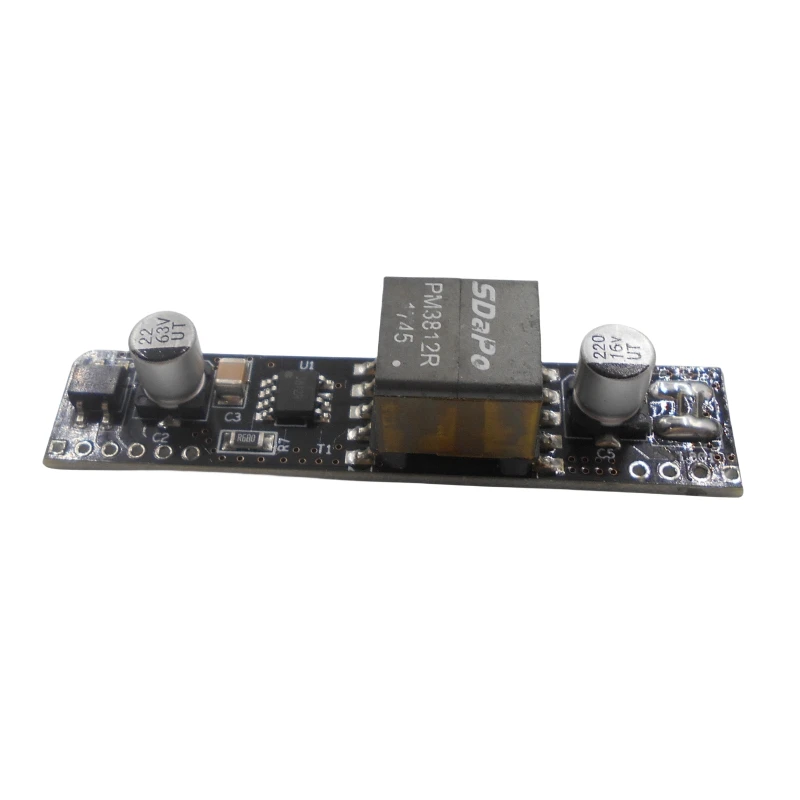

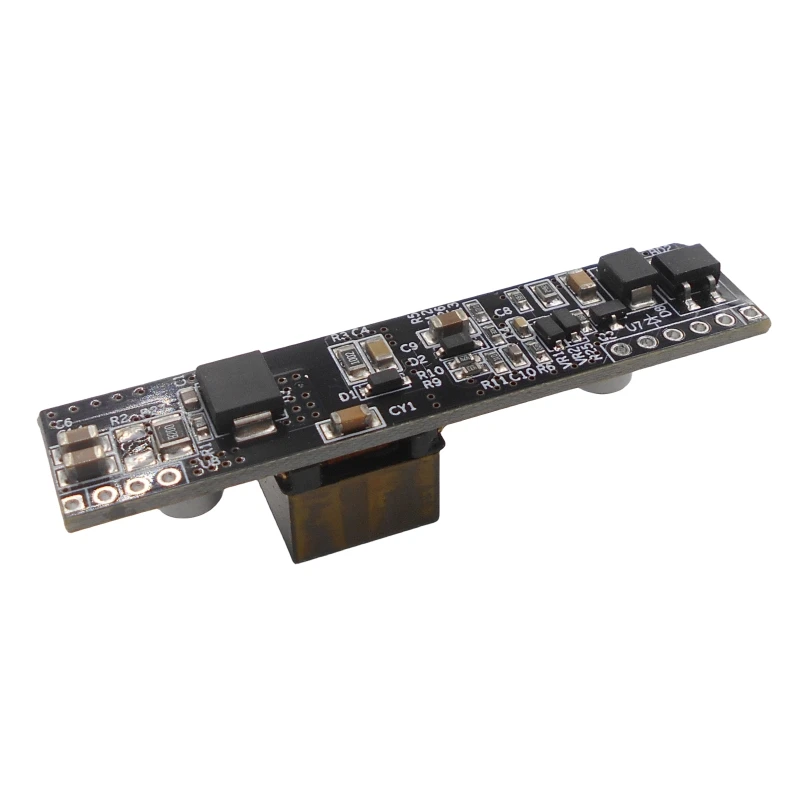

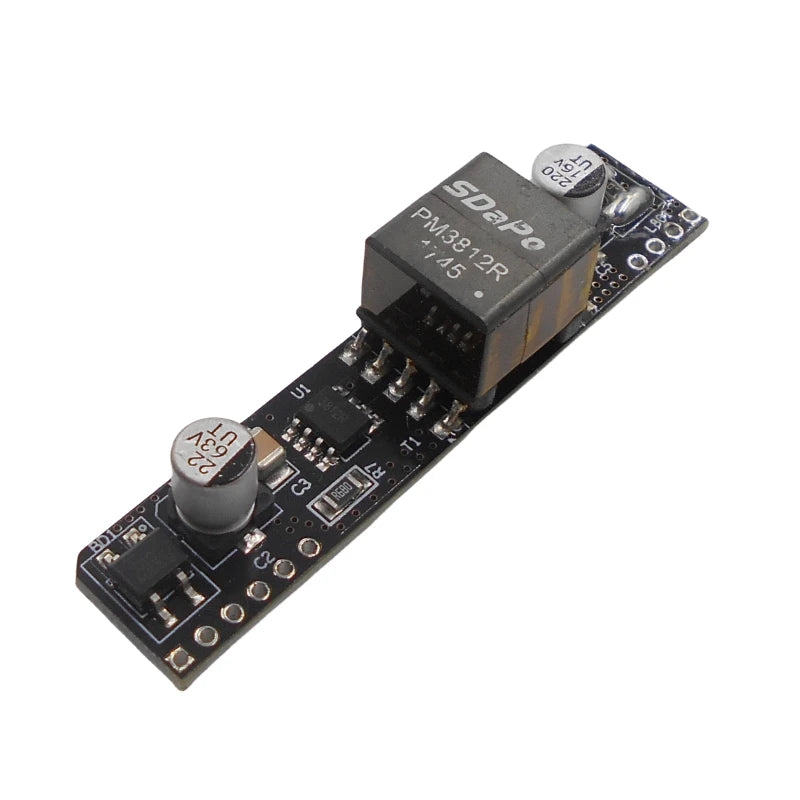

PD Module
PM1201 12V1A
DESCRIPTION
12V13WPD(Powered Device)IntegratedModule(IsolationType)
FEATURES
- Fully supports IEEE?7?9 Std. 802.3af-2003
- Input Voltage Range 37V to 57V
- Short Circuit Protection
- In-rush Current Limit
- Protection
- ( :Class 0)
- High Efficiency
- Easy Installation and Low Cost (Isolation Type, Minimum External Devices required)
- Low Output and Noise
- Adjustable Output Voltage
- 1500Vrms Isolation ()
PIN ASSIGNMENT
Pin # |
Name |
Description |
1，2 |
NC |
Do Not Connect. |
3 |
VA1 |

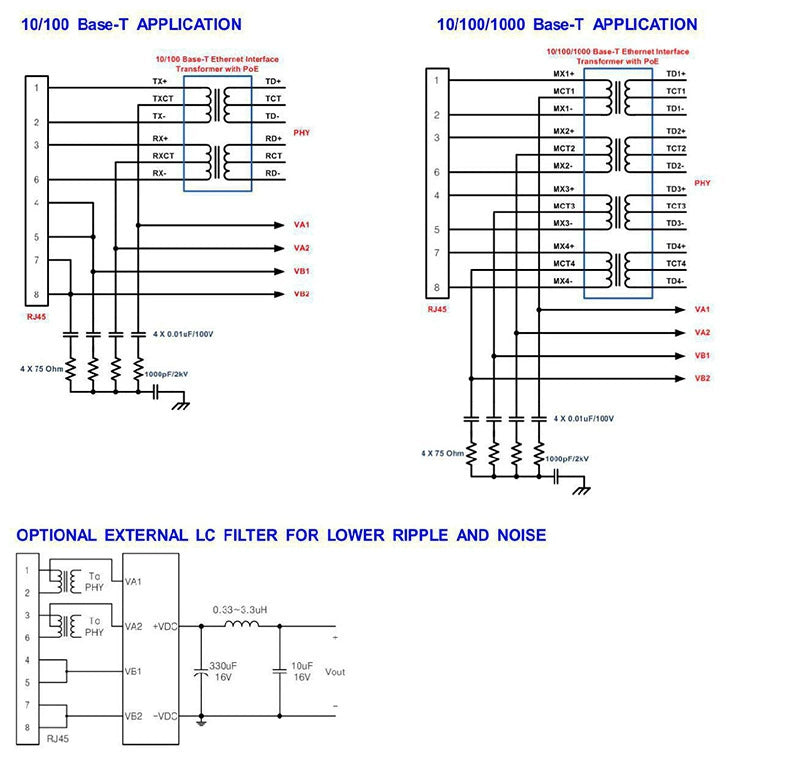

Input (1). This input pin connects to the centre tap of the transformer to pins 1&2 of the RJ45 connector. It is not polarity sensitive. |
4 |
VA2 |
Input (2). This input pin connects to the centre tap of the transformer to pins 3&6 of the RJ45 connector. It is not polarity sensitive. |
5 |
VB1 |
Direct Input (1). This input pin connects to pin 4&5 of the RJ45 connector(or centretap of 4&5). It is not polarity sensitive. |
6 |
VB2 |
Direct Input (2). This input pin connects to pin 7&8 of the RJ45 connector(or centretap of 7&8). It is not polarity sensitive. |
7，8 |
-VDC |
Negative DC Output. This pin provides the -VDC output. |
9，10 |
+VDC |
Positive DC Output. This pin provides the +VDC output |
ELECTRICAL SPECIFICATIONS
No |
Item |
Specification |
1 |
Input Voltage |
37~57V |
2 |
Output Voltage |
12V Typ. |
3 |
Output Current (Vin=56V) |
1.3A Max. |
4 |
Line Regulation |
2% |
5 |
Load Regulation |
2% |
6 |
& Noise |
200mVp-p max. |
7 |
Efficiency |
85% min. |
8 |
Input to Output Isolation |
1500 Vrms |
9 |
Type of DC/DC Converter |
Flyback Type |
10 |
Operating Temperature |
-20 ~ +50℃ |
12VPD ModulePN :
