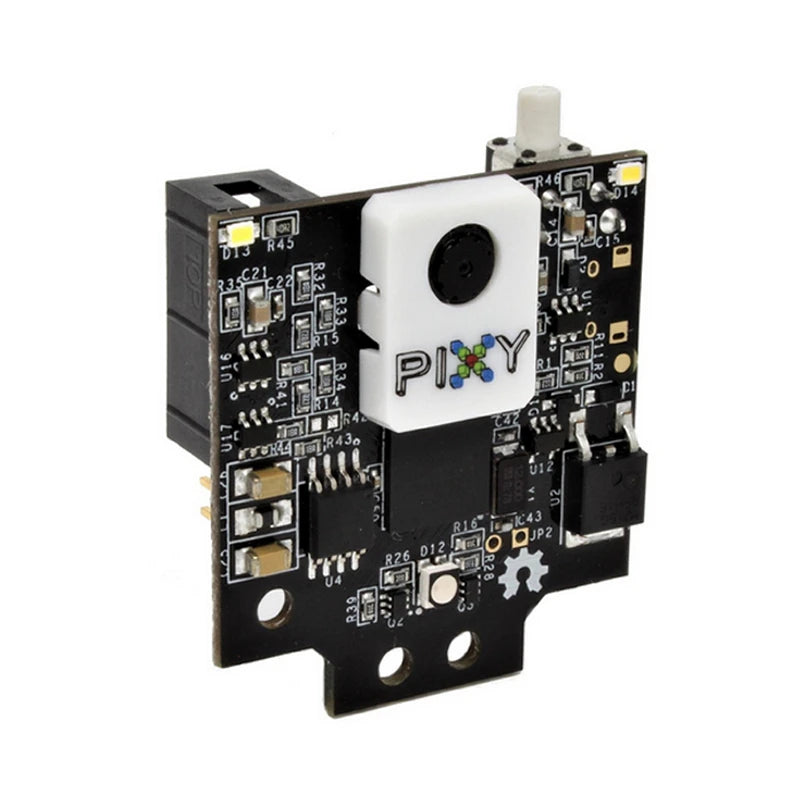

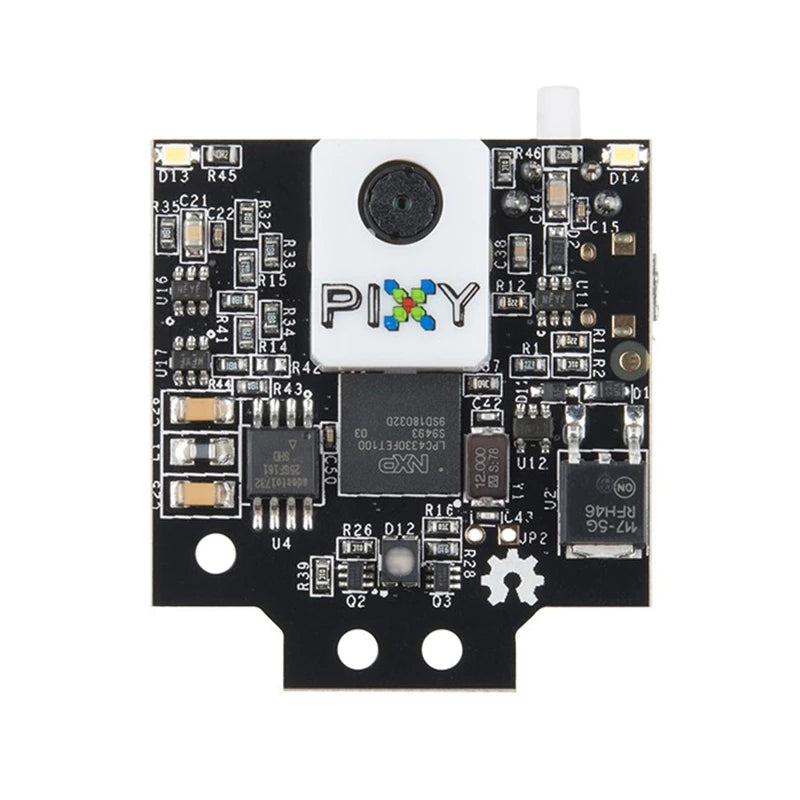

Custom Pixy2 CMUcam5 Smart Vision Sensor Can Make A Directly Connection For Raspberry pi Custom PCB intelligent home pcba Manufacturer

Custom Pixy2 CMUcam5 Smart Vision Sensor Can Make A Directly Connection For Raspberry pi Custom PCB intelligent home pcba Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

Pixy2 is the second version of Pixy. It's faster, smaller and more capable than the original Pixy, adding line tracking/following algorithms as well as other features.

Here's what we've added to Pixy2:

  • Pixy2 detects lines, intersections and small barcodes, intended for line-following robots

  • Improved framerate – 60 frames-per-second

  • Tracking algorithms have been added to color-based object detection

  • Improved and simplified libraries for Ard, Raspberry Pi and other controllers

  • Integrated light source

  • 123

  • 4

  • And of course, Pixy2 does everything that the original Pixy can do:

    • Small, fast, easy-to-use, low-cost, readily-available vision system

    • Learns to detect objects that you teach it

    • Connects to Ard with included cable. Also works with Raspberry Pi, BeagleBone and similar controllers

    • All libraries for Ard, Raspberry Pi, etc. are provided

    • C/C++ and Python are supported

    • Communicates via one of several interfaces: SPI, I2C, UART, USB or analog/digital output

    • Configuration utility runs on Windows, MacOS and Linux

    • All software/firmware is open-source GNU-licensed

    • All hardware documentation including schematics, bill of materials, PCB layout, etc. are provided

    Typical Functions Overview

    • Seven color signatures

    • Hundreds of objects

    • Teach it the objects you’re interested in

    • Pixy2 "tracks" each object it detects

    • color code

    • Detecting and tracking lines

    • Detecting Intersections and "branching"

    Give Me More Info

    PIXY2 IS SUPERVISION FOR ARDOR RASPBERRY PI

    Technical Details

    Dimensions 42mm x 38mm x 15mm
    Weight G.W 20g     N.W 10g
    Battery Exclude
    Processor NXP LPC4330, 204 MHz, dual-core
    Image sensor Aptina MT9M114, 1296×976 resolution with integrated image flow processor
    Lens field-of-view 60 degrees horizontal, 40 degrees vertical
    Power consumption 140 mA typical
    Power input USB input (5V) or unregulated input (6V to 10V)
    RAM 264K bytes
    Flash 2M bytes
    Available data outputs UART serial, SPI, I2C, USB, digital, analog
    The integrated light source, approximately 20 lumens

    Part List

    Pixy 2 CMUcam5 Image Sensor 1
    FC-10P to FC-6P Cable 1
    Screw Package 1
