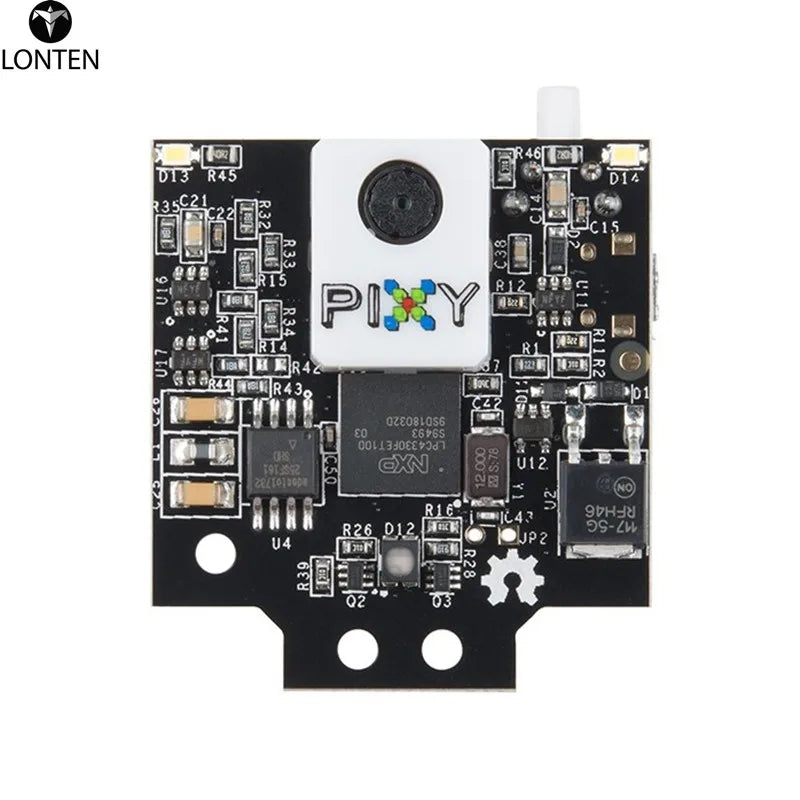

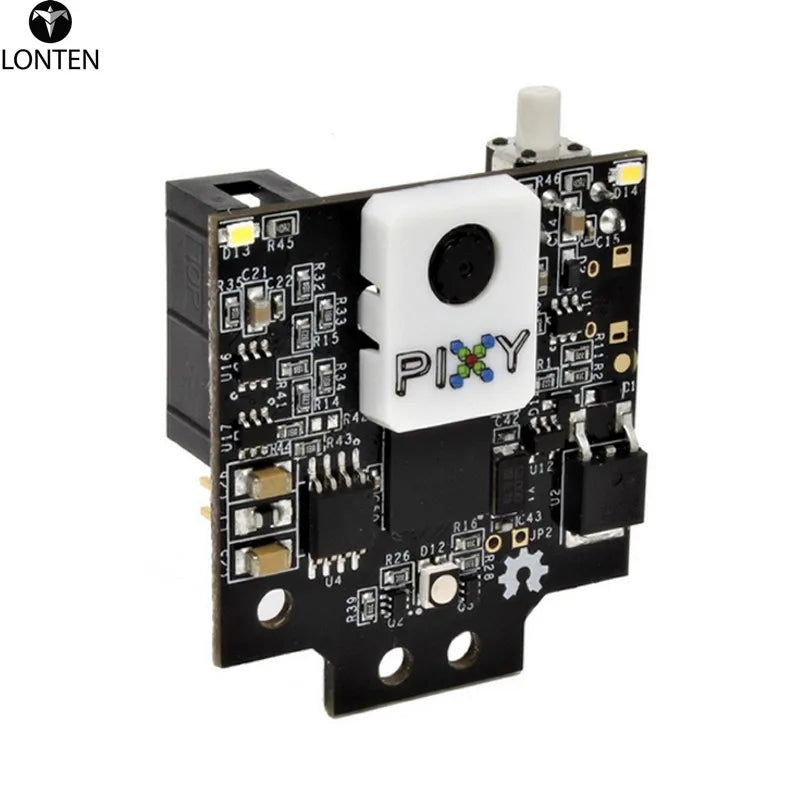

Custom Pixy2 CMUcam5 Smart Vision Sensor Can Make A Directly Connection For arduinos Raspberry pi Manufacturer

Pixy2 is the second version of Pixy. It's faster, smaller and more capable than the original Pixy, adding line tracking/following algorithms as well as other features.

Here's what we've added to Pixy2:

• Pixy2 detects lines, intersections and small barcodes, intended for line-following robots

• Improved framerate – 60 frames-per-second

• Tracking algorithms have been added to color-based object detection

• Improved and simplified libraries for , Raspberry Pi and other controllers

• Integrated light source

•

•

• ​And of course, Pixy2 does everything that the original Pixy can do:

  • Small, fast, easy-to-use, low-cost, readily-available vision system

  • Learns to detect objects that you teach it

  • Connects to with included cable. Also works with Raspberry Pi, BeagleBone and similar controllers

  • All libraries for , Raspberry Pi, etc. are provided

  • C/C++ and Python are supported

  • Communicates via one of several interfaces: SPI, I2C, UART, USB or analog/digital output

  • Configuration utility runs on Windows, MacOS and Linux

  • All software/firmware is open-source GNU-licensed

  • All hardware documentation including schematics, bill of materials, PCB layout, etc. are provided

  Typical Functions Overview

  • Seven color signatures

  • Hundreds of objects

  • Teach it the objects you’re interested in

  • Pixy2 "tracks" each object it detects

  • color code

  • Detecting and tracking lines

  • Detecting Intersections and "branching"

  Give Me More Info

  PIXY2 IS SUPERVISION FOR OR RASPBERRY PI

  Technical Details

  Dimensions	42mm x 38mm x 15mm
  Weight	G.W 20g     N.W 10g
  Battery	Exclude
  Processor	NXP LPC4330, 204 MHz, dual-core
  Image sensor	Aptina MT9M114, 1296×976 resolution with integrated image flow processor
  Lens field-of-view	60 degrees horizontal, 40 degrees vertical
  Power consumption	140 mA typical
  Power input	USB input (5V) or unregulated input (6V to 10V)
  RAM	264K bytes
  Flash	2M bytes
  Available data outputs	UART serial, SPI, I2C, USB, digital, analog
  The integrated light source, approximately 20 lumens

  Part List

  Pixy 2 CMUcam5 Image Sensor	1
  FC-10P to FC-6P Cable	1
  Screw Package	1
