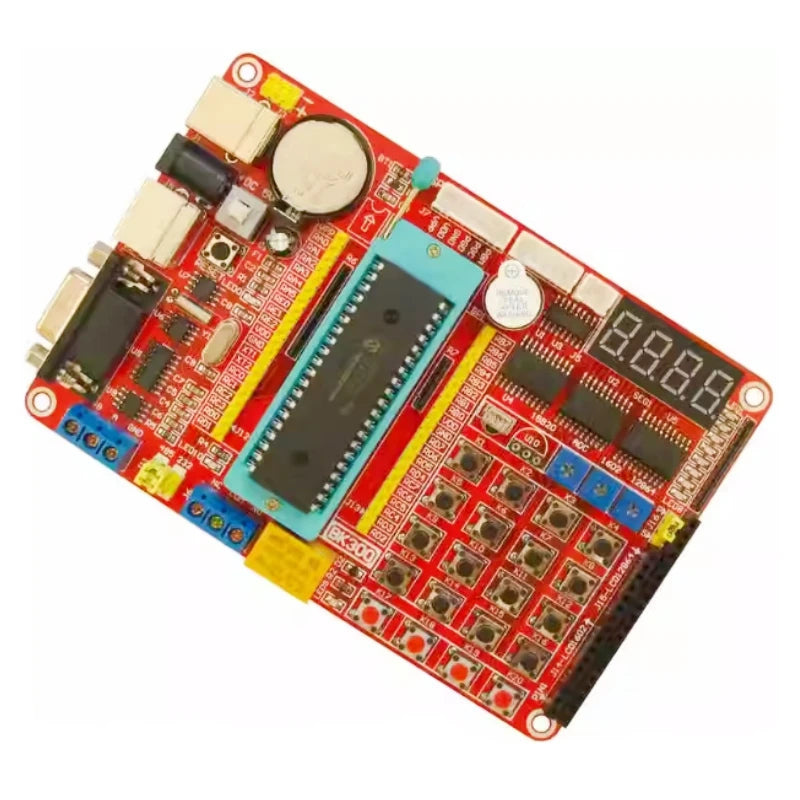

Custom PIC16F877A PIC development board, microcontroller learning experimental board

Product Introduction:

BK300 is a cost-effective PIC microcontroller development board with abundant hardware resources and complete supporting routines. You can use the delivered USB power cord to save on the cost of purchasing additional power supplies. If you need an external power supply, we also have an external 5V DC power interface and an ICSP simulation programming interface (note: you need to purchase an additional programmer or simulator to download programs for the development board). Use PIC simulators (PICkit2, PICkit3, ICD2, ICD3, etc.) or programmers (K150, etc.) to facilitate program simulation and programming.

In addition to the abundant peripheral circuits already included on the board, the development of BK300 PIC allows users to freely expand peripheral circuits through DuPont wires and conduct various experiments by clearly marking the pins of the microcontroller through pin arrangement.

If you want to learn PIC microcontrollers and are struggling with the lack of a suitable learning board and supporting routine resources, we recommend that you purchase this BK300 PIC learning board. As a newcomer, you will have a deep understanding. Therefore, we have launched this PIC microcontroller development board, which is of good quality and affordable price, with stable performance, abundant resources, and complete routines.

The BK300 PIC Learning Board is mainly designed for beginners and electronics enthusiasts of PIC microcontrollers. It is the choice for beginners to learn PIC microcontrollers step by step through matching routines to deeply understand the internal resources and development software of PIC, thereby achieving a comprehensive understanding of PIC and improving programming skills.

Introduction to BK300 PIC Development Board Functions:

◆ Equipped with a PIC16F877A chip along with the development board

◆ ZIF40 active IC holder for easy removal and reuse of PIC microcontroller

◆ 8 LED light-emitting diodes (for the marquee experiment)

◆ 4-digit common anode digital tube

1 * 4 independent buttons

◆ 4 * 4 matrix buttons

DS1302 clock chip (electronic clock experiment)

DS18B20 temperature sensor (temperature detection and display)

◆ AT24C02 I2C External Memory

Internal EEPROM reading and writing

◆ Buzzer (microcontroller produces sound and plays music)

◆ SP232 chip RS232 communication (same as upper computer communication)

◆ ADC potentiometer input conversion (AD conversion experiment)

◆ 1602 LCD interface (character display)

12864 LCD interface (Chinese character display, image display, human-machine interface)

◆ USB power interface

◆ DC motor interface (PWM for speed control)

Step motor interface

◆ Infrared receiver head

◆ 1 relay

PS2 keyboard interface

External reset circuit

ICSP simulation programming interface (requires purchasing an additional simulator or programmer)

◆ All IO port pins are led out and clearly labeled (convenient for users to expand)

Shipping list:

◆ One BK300 PIC development board

PIC16F877A chip 1 piece

◆ One infrared remote control

◆ One high-quality USB 2.0 data cable (for power supply)

◆ One 9-pin serial data cable

◆ Send 10 DuPont cables as gifts

◆ 1 CD of supporting materials

(The CD contains a complete set of experimental routines, development software, PDF data manuals for all chips on the board, PDF format circuit diagrams, software tutorial learning materials, etc.)
