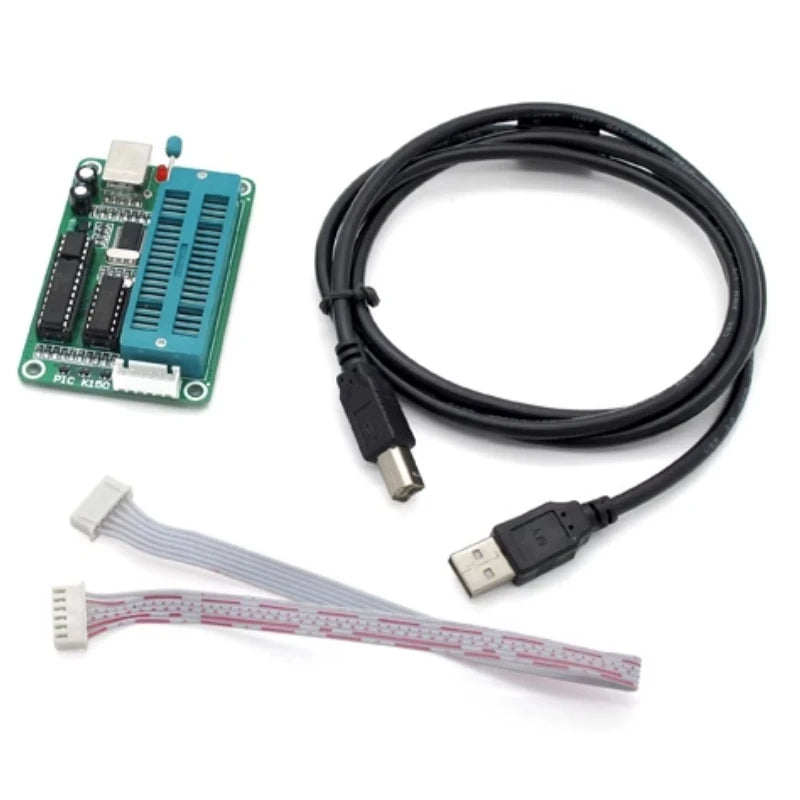

Custom PIC K150 Microcontroller Programming Download Burner

Product Introduction:

K150 is a cost-effective PIC programmer that supports functions such as burning, reading, and encryption for many commonly used PIC chips.

Using high-speed USB communication method, fast writing speed, stable and reliable writing quality (The average speed is 3-5 times that of PICSTART+) Fully automatic burn write verification.

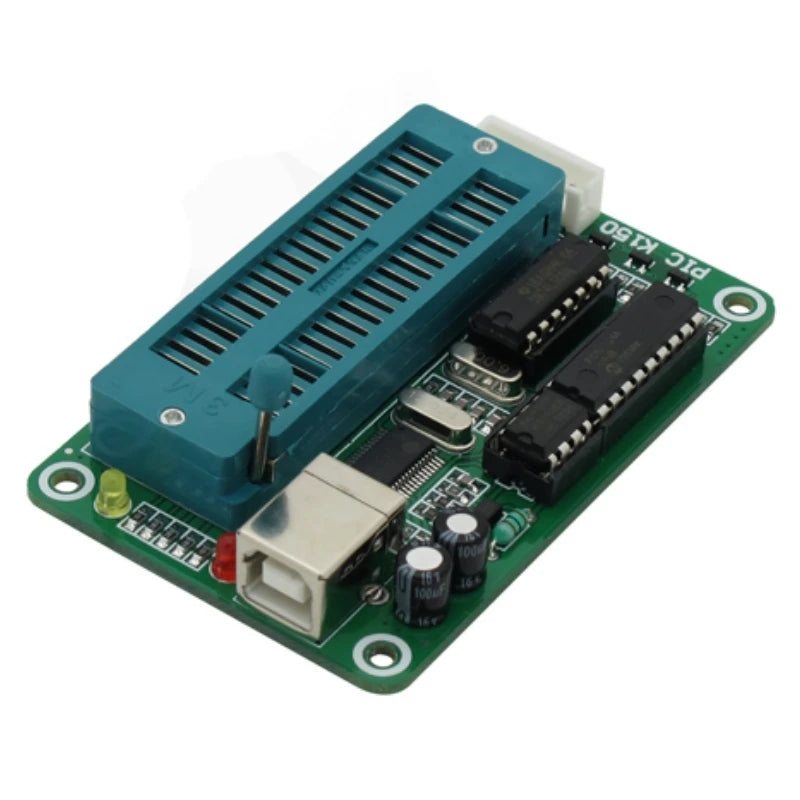

Equipped with a 40 pin DIP writing socket, the 8-40 pin conventional pin arrangement of the direct insertion PIC chip can directly write; Chips other than 8-40 pins and models marked with * can be downloaded online through the onboard ICSP interface.

◆ The software is compatible with the Windows XP/Windows 7 operating system; The software will continue to be upgraded with the new devices released by PIC. The main control chip retains DIP packaging and is equipped with a socket.

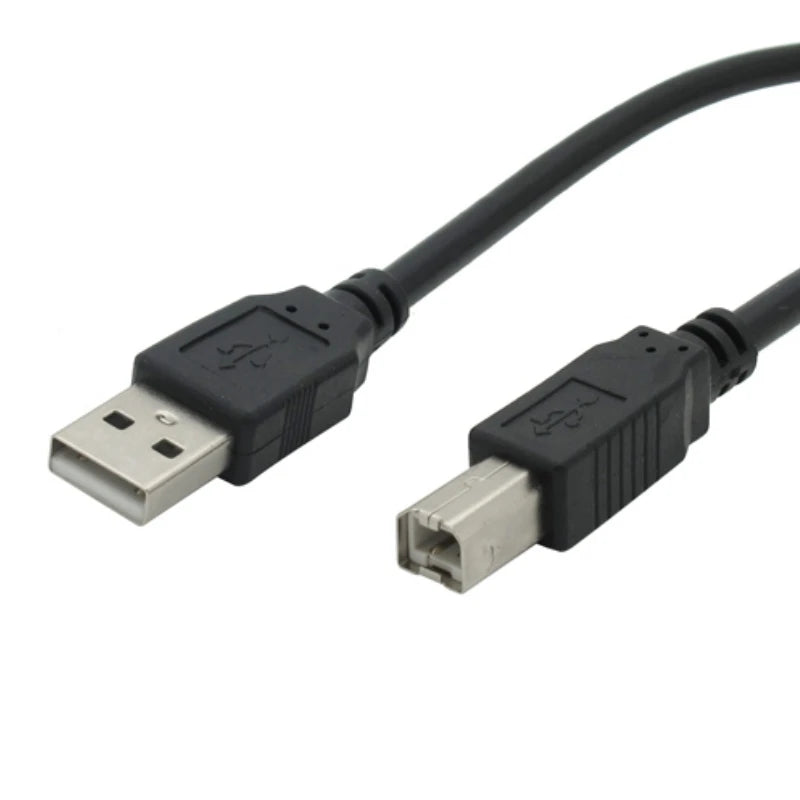

No external power supply is required, communication and power supply are only completed by plugging a USB printing cable into the computer USB.

The programmer is equipped with an ICSP interface, which facilitates online burning without frequent chip retrieval.

Added a self recovery fuse to fully protect the programmer hardware and your computer

Equipped with power indicator light and programming status indicator light

Burning software is simple and easy to use, providing software, drivers, and user instructions

◆ We use machines for mass production to ensure stable quality, and each item is tested and shipped before shipment, ensuring quality assurance.

The following are the PIC microcontroller models supported by this programmer. Before purchasing, please check if they include the microcontroller model you are using: the model marked with * is written online using the ICSP interface

10 series:

PIC10F200*    PIC10F202*    PIC10F204*    PIC10F206*
 PIC10F220*    PIC10F222*

12C series:

PIC12C508     PIC12C508A   PIC12C509     PIC12C509A
 PIC12C671     PIC12C672     PIC12CE518    PIC12CE519
 PIC12CE673   PIC12CE674

12F series:

PIC12F509      PIC12F629      PIC12F675     PIC12F683

16C series:

 PIC16C505      PIC16C554     PIC16C558     PIC16C61
 PIC16C62        PIC16C62A     PIC16C62B    PIC16C63
 PIC16C63A     PIC16C64        PIC16C64A    PIC16C65
 PIC16C65A     PIC16C65B      PIC16C66      PIC16C67

 PIC16C620     PIC16C620A    PIC16C621    PIC16C621A

 PIC16C622     PIC16C622A    PIC16C71      PIC16C71A

 PIC16C72       PIC16C72A      PIC16C73      PIC16C73A

 PIC16C73B     PIC16C74        PIC16C74A    PIC16C74B

 PIC16C76       PIC16C77        PIC16C710     PIC16C711

 PIC16C712     PIC16C716      PIC16C745     PIC16C765

 PIC16C773     PIC16C774      PIC16C84

16F series:

PIC16F54        PIC16F57*      PIC16F59*      PIC16F627

 PIC16F627A   PIC16F630      PIC16F631      PIC16F648A

 PIC16F676     PIC16F677      PIC16F684      PIC16F685*
 PIC16F687*   PIC16F688      PIC16F689*     PIC16F690*

 PIC16F72       PIC16F73        PIC16F76        PIC16F77

 PIC16F737     PIC16F747      PIC16F767      PIC16F777

 PIC16F83       PIC16F84        PIC16F84A      PIC16F87

 PIC16F88       PIC16F818      PIC16F819      PIC16F870

 PIC16F871     PIC16F872      PIC16F873      PIC16F873A

 PIC16F874     PIC16F874A    PIC16F876      PIC16F876A

 PIC16F877     PIC16F877A    PIC16F913      PIC16F914

 PIC16F917

18 series:

PIC18F242     PIC18F248     PIC18F252     PIC18F258

PIC18F442     PIC18F448     PIC18F452     PIC18F458

PIC18F1220   PIC18F1320   PIC18F2220   PIC18F2320
PIC18F2321   PIC18F2410   PIC18F2331   PIC18F2450

PIC18F2455   PIC18F2480   PIC18F2510   PIC18F2520

PIC18F2550   PIC18F2580   PIC18F2431   PIC18F2585

PIC18F2610   PIC18F2620   PIC18F2680   PIC18F4220

PIC18F4320   PIC18F6525   PIC18F6621   PIC18F8525

PIC18F8621   PIC18F2331   PIC18F2431   PIC18F4331

PIC18F4431   PIC18F2455   PIC18F2550   PIC18F4455

PIC18F4580   PIC18F2580   PIC18F2420   PIC18F2520

PIC18F2620   PIC18F6520   PIC18F6620   PIC18F6720

PIC18F6585   ……
