Custom Pi UPS HAT with 8-Cell 18650 Battery Holder, X728 with X708-A1 for Pi5/4B/3B+/3B
Custom Pi UPS HAT with 8-Cell 18650 Battery Holder, X728 with X708-A1 for Pi5/4B/3B+/3B
Couldn't load pickup availability
[Important Note]
Not include Raspberry Pi board.
Must install the 18650 batteries before plug in the power supply of X728, otherwise the board will be burnt out.
[Overview]

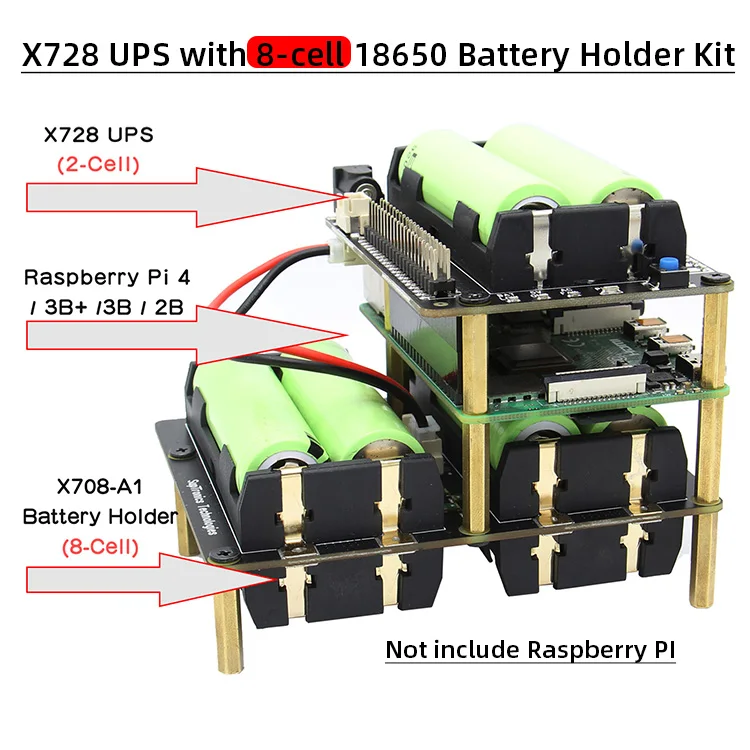

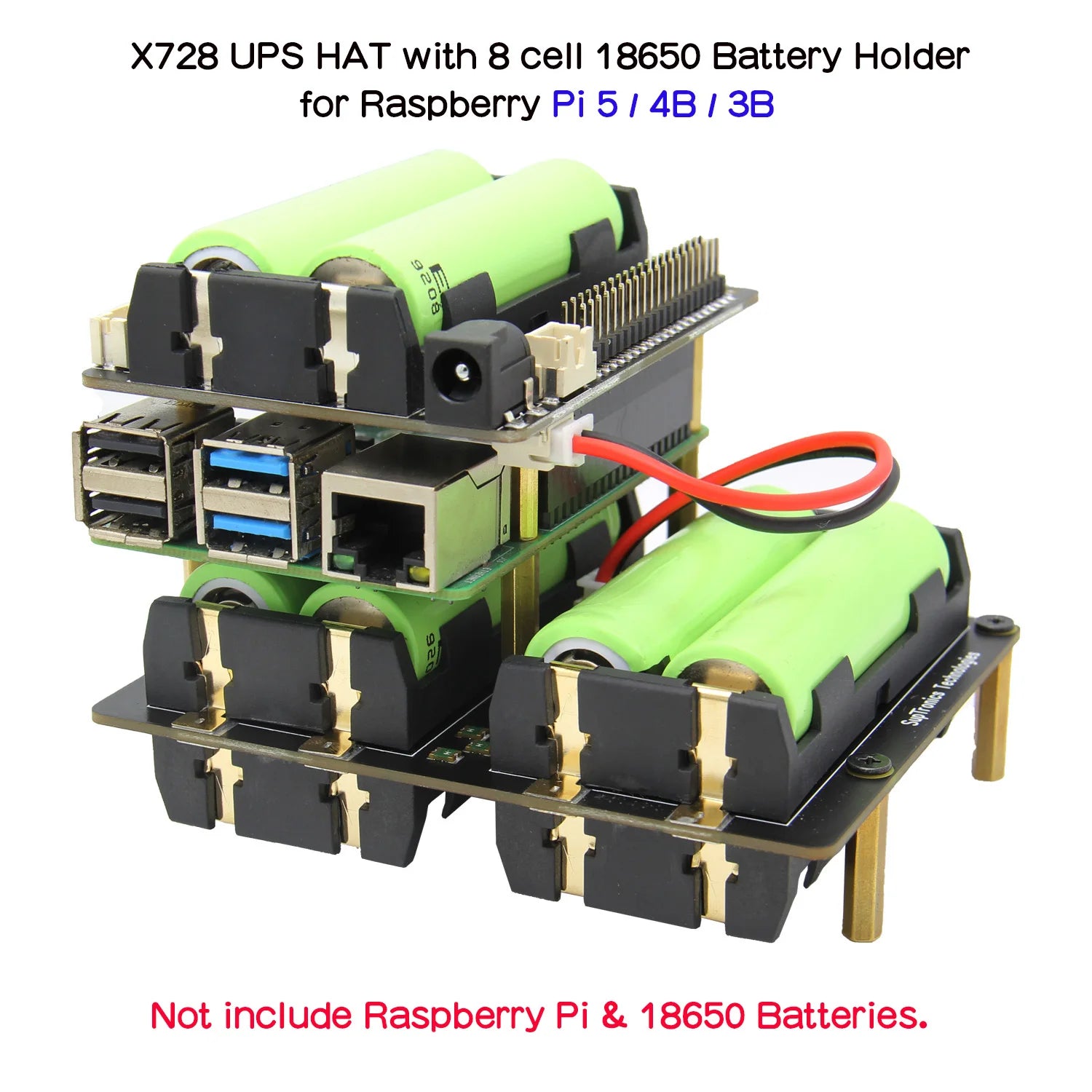

- This is X728 UPS HAT with X708-A1 8-cell 18650 Battery Holder for Raspberry Pi 5/4B/3B+/3B.
[User Manual]
X708-A1: raspberrypiwiki.com/X708-A1
X728: raspberrypiwiki.com/X728
[Packing List]
1 x X728 Expansion Board
1 x X708-A1 8-cell 18650 Battery Holder
1 x Screw pack
[Details of X728]

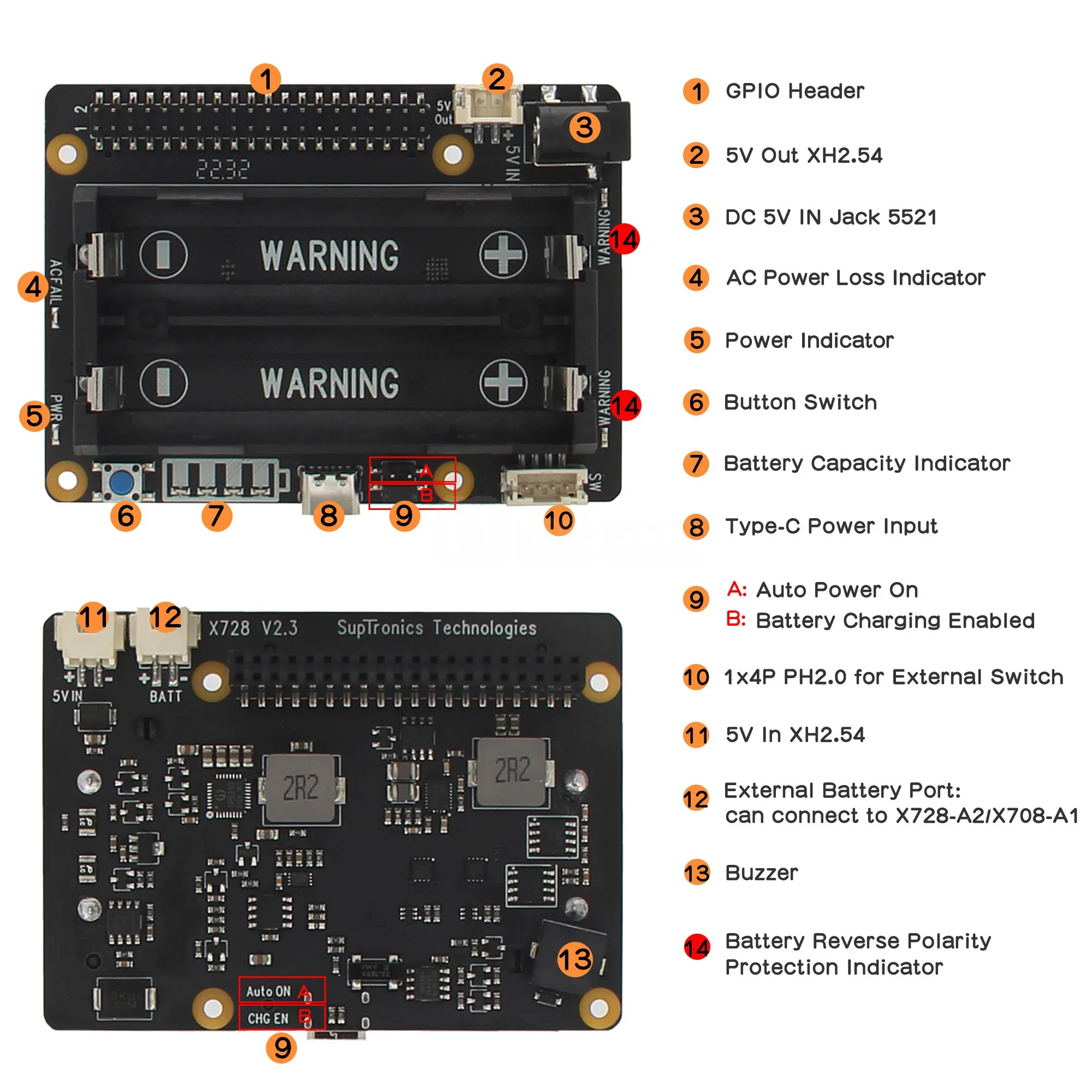

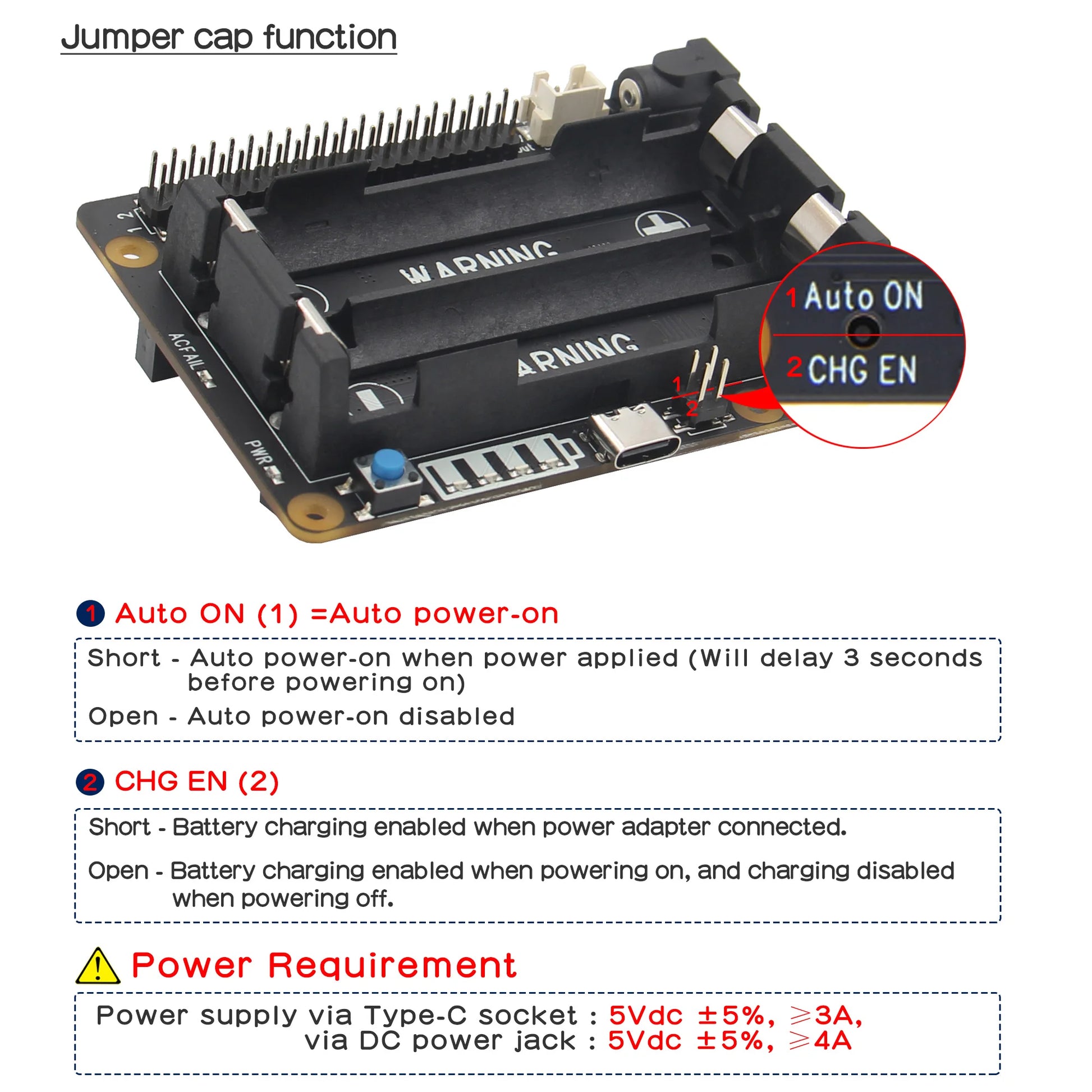

X728 is an advanced uninterruptible power supply expansion board for all current models of the Raspberry Pi using a 40 pin header. It can provides max. 5.1V 6000mA Power Backup for even the most demanding Raspberry Pi set ups, intelligent and safe power management, safe shutdown,auto power-on, full poweroff from software, battery reverse polarity protection circuit,and a real- time clock.
