Custom Pi 5 Passive Cooler H509 Heatsink

[Overview]

As a product expert, the Raspberry Pi 5 aluminum alloy PassiveCooler (H509) offers efficient and noiseless cooling. Its wave-shaped fins increase cooling area while its 6W thermal pad ensures optimal heat transfer. The easy installation and compatibility with stress tests make it a reliable addition to your Raspberry Pi 5 setup.

[Features]

• Model: H509

• Net weight: 44 g

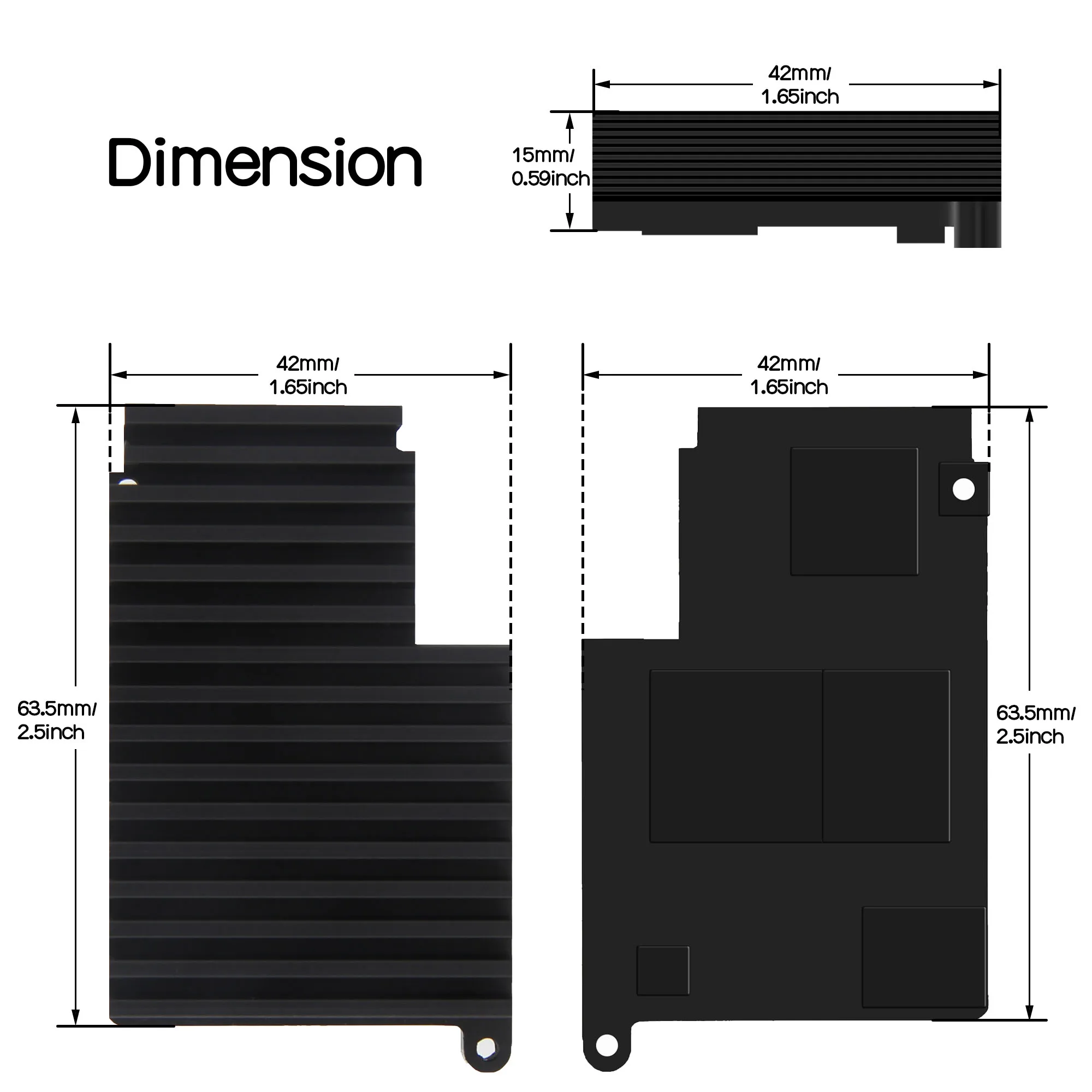

• Size: 63.5 x 42 x 15 mm

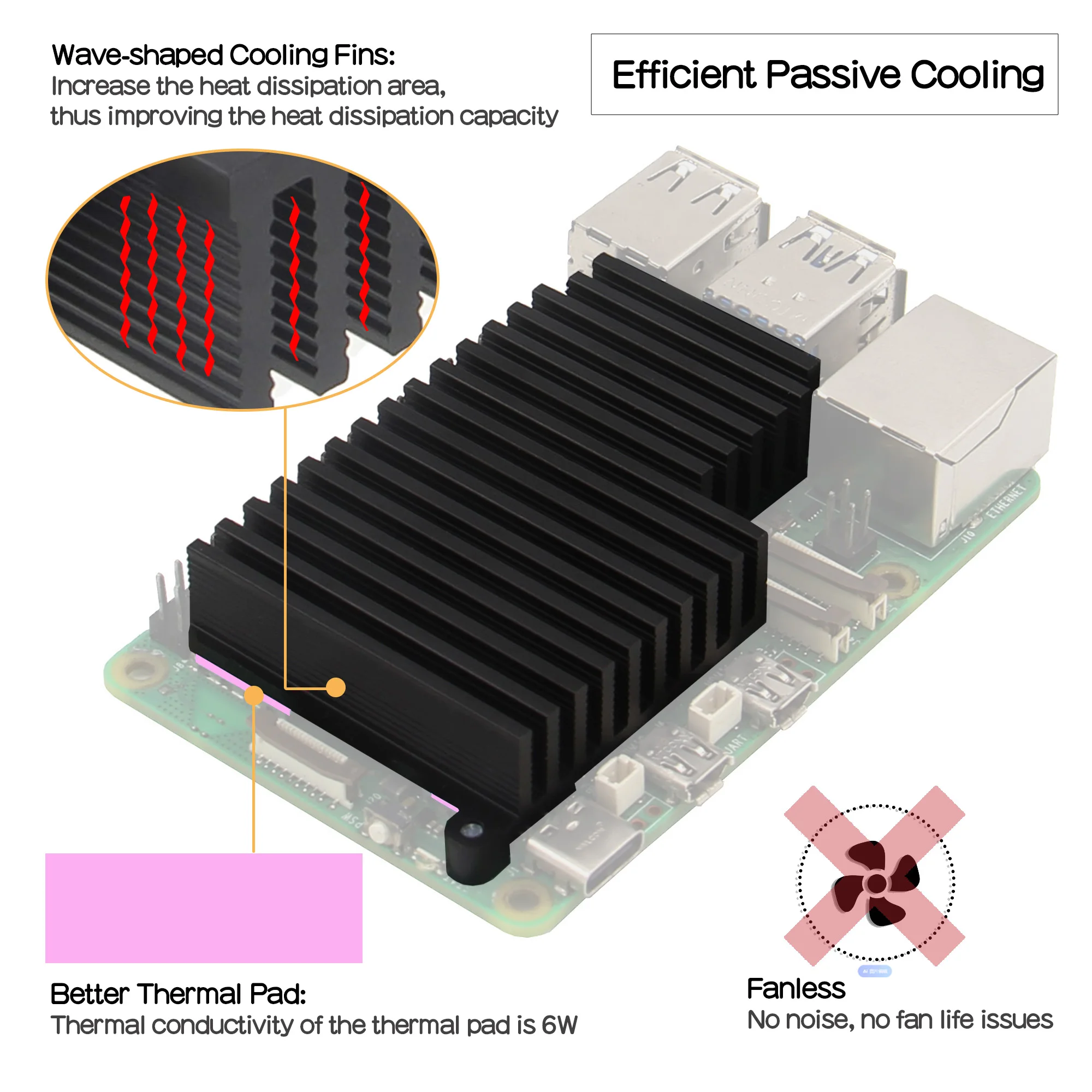

• Wave-shaped heat sink fins: Increase the heat dissipation area, thereby improving the heat dissipation capacity.

• No noise: No need to install a fan, completely 0 noise;

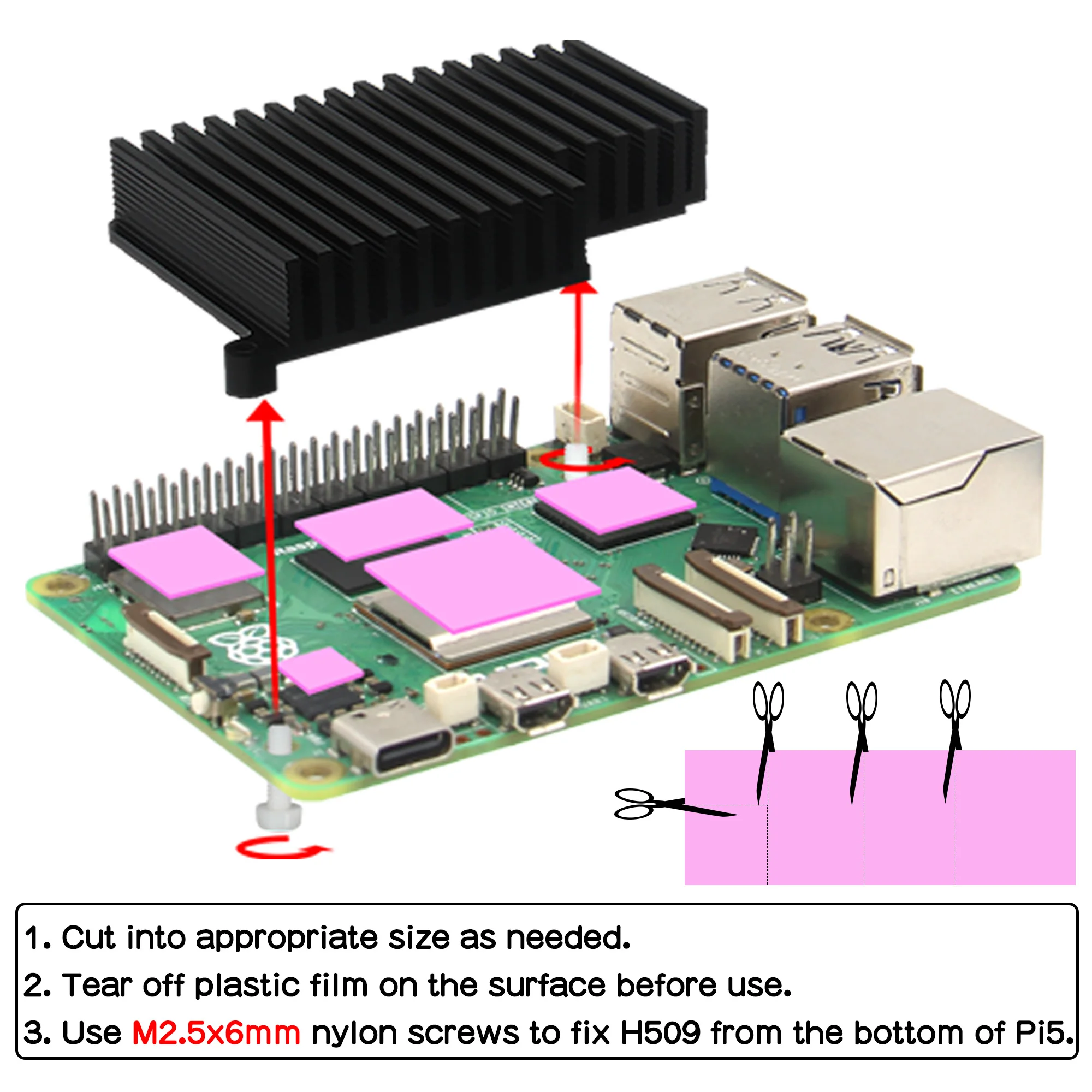

• Simple installation: Use M2.5*6mm nylon screws to fix from the bottom, easy to install and remove.

• Good heat dissipation: The stress test can meet the full-load stress test of the Raspberry Pi 5 3-core (room temperature 22 degrees, test time 20 minutes), which is a supplement to the active radiator and can meet most usage scenarios.

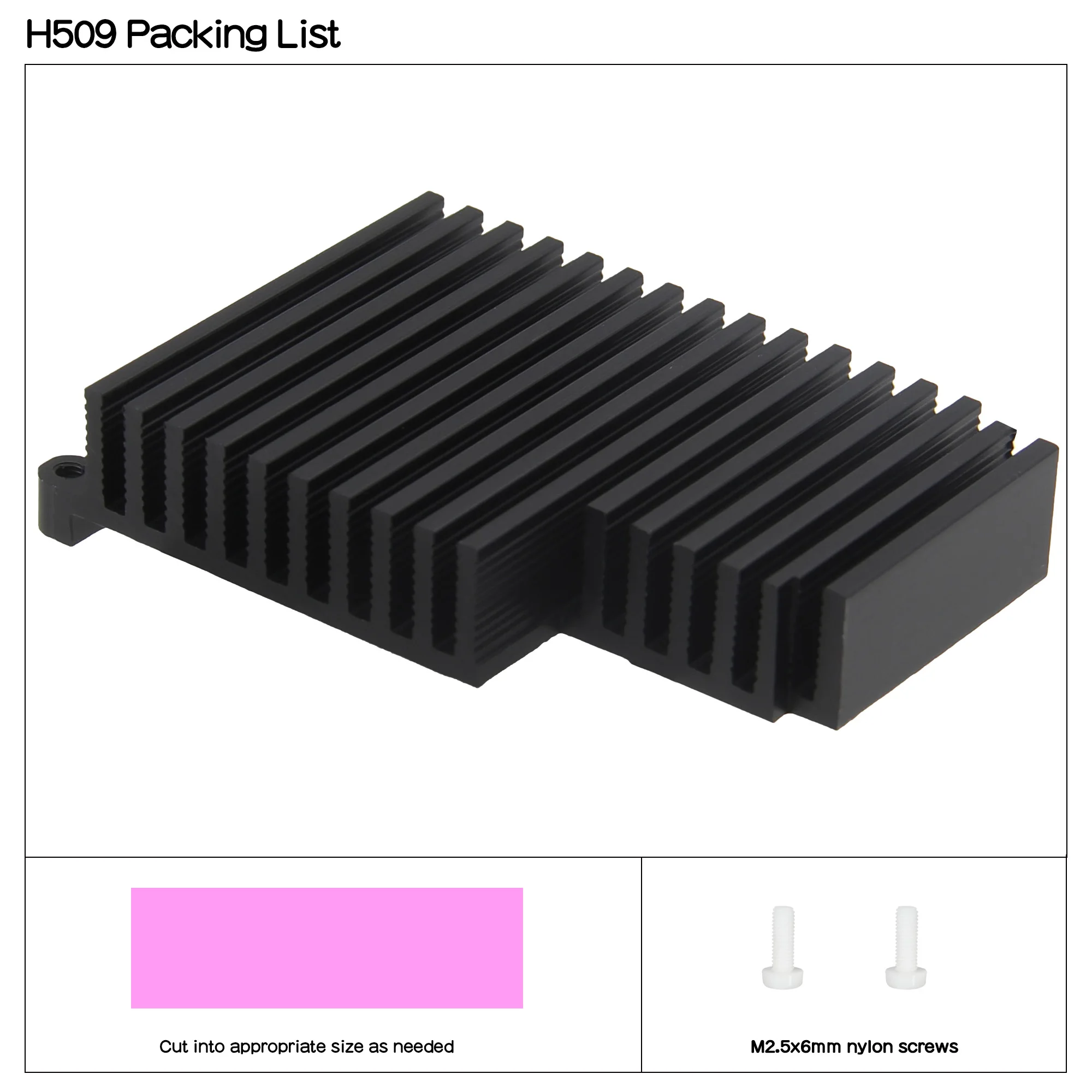

[Packing List]

• 1 x Passive Cooler

• 1 x Thermal Pad

• 2 x M2.5 * 6 mm Screw
