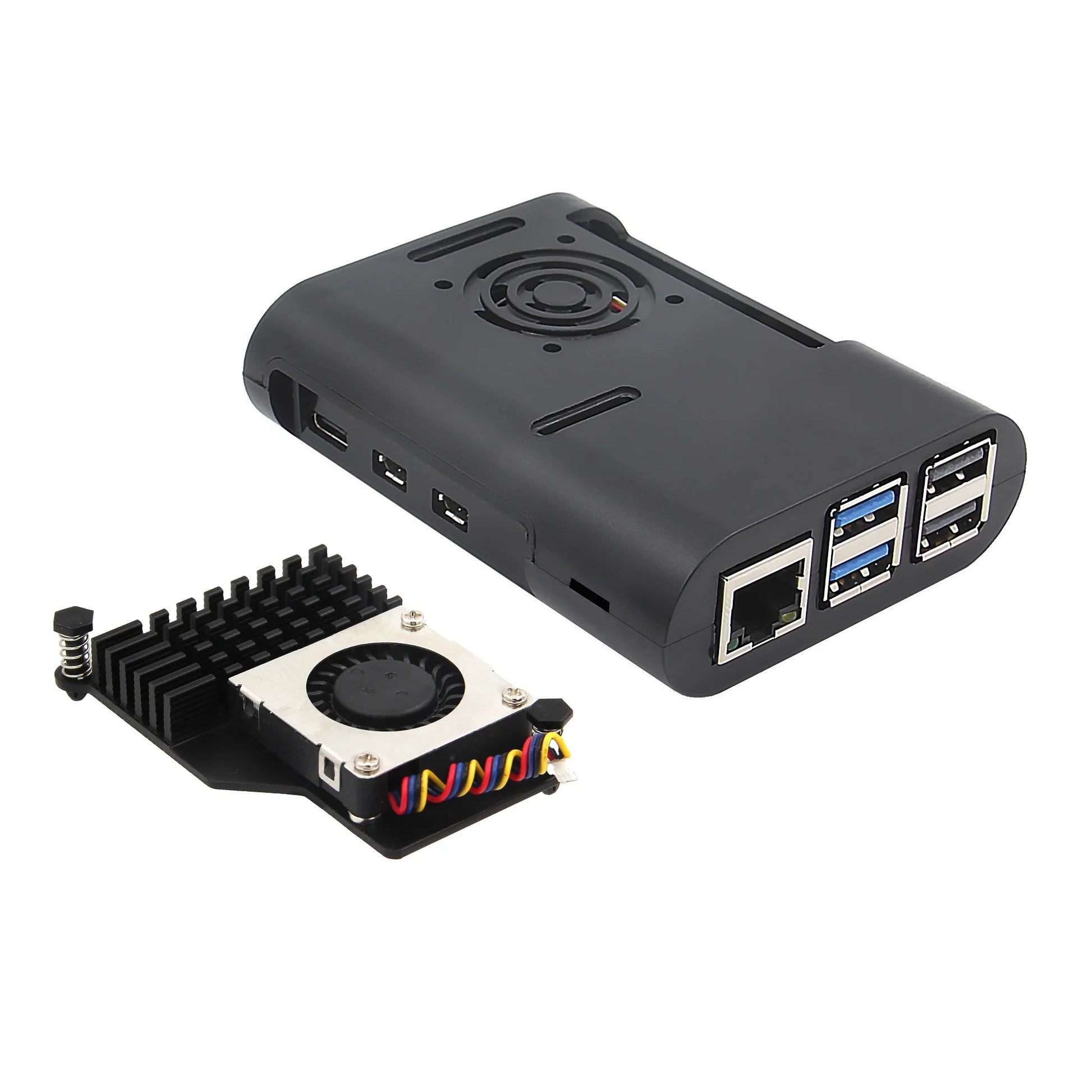

Custom Pi 5 Case | ABS Shell with H501 Active Cooler

[Note]

• The rasberry pi 5 Board is not included in the packing list.

[Overview]

This is a new design ABS case to protect your Raspberry Pi 5 Board , and it is only comepatible with Raspberry Pi 5 , not support other versions. It also supports install a dc 5v cooling fan. The GPIO pin interface is available and all ports and slots reserverd for Raspberry Pi 5.

[Features]

• Model: P502

• material: ABS

• Easy to install

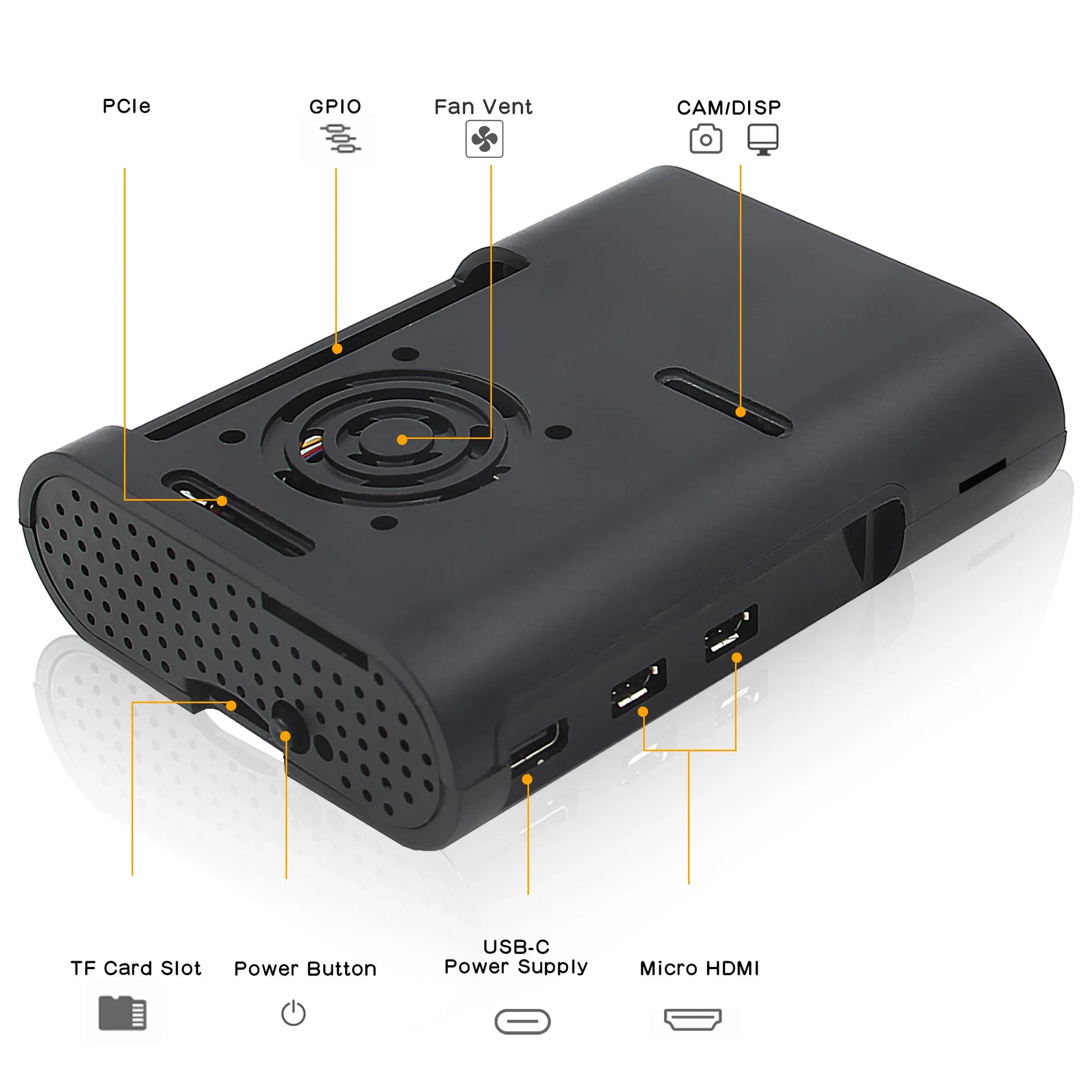

• All ports and slots of the case can match with Raspberry Pi 5 well

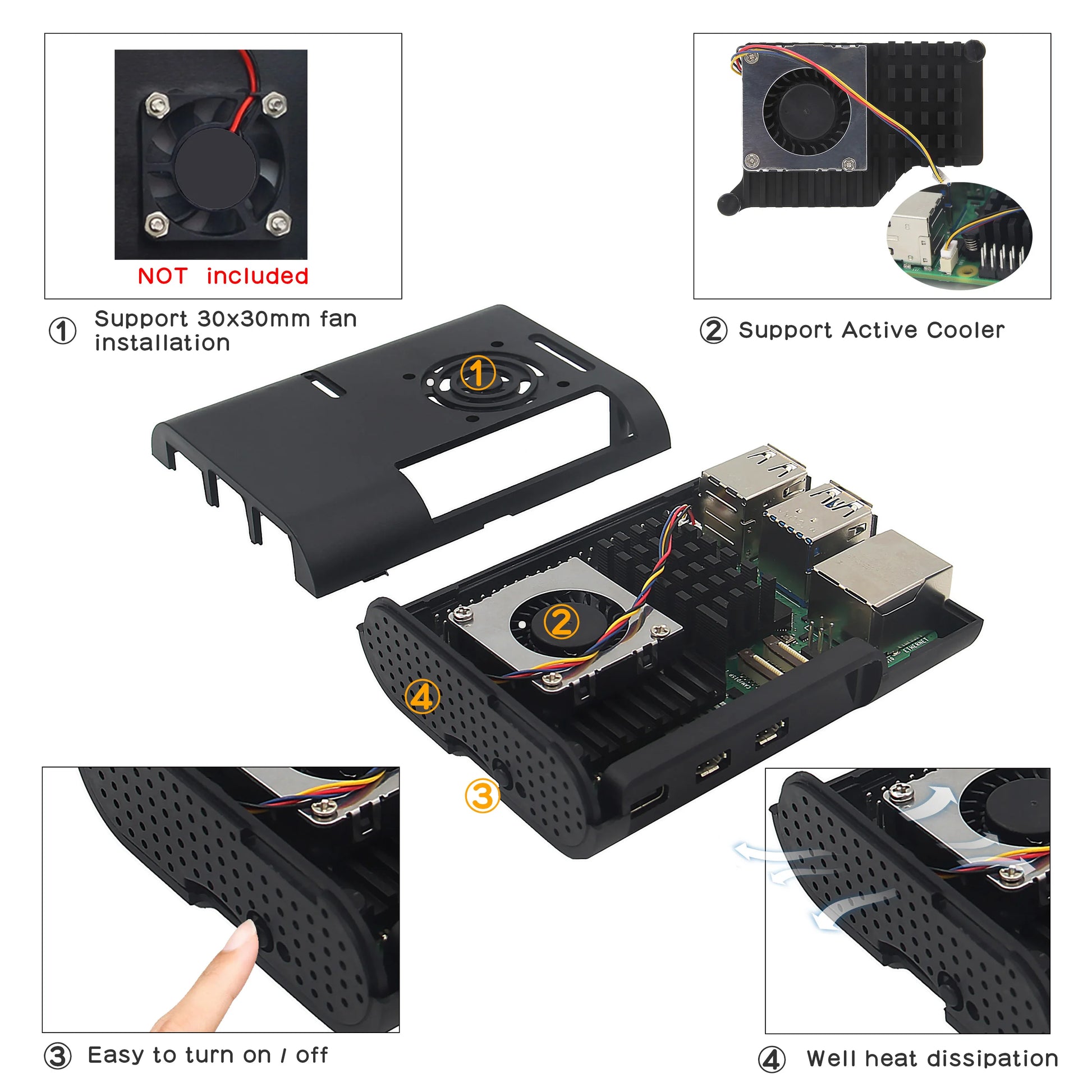

• Support install a DC 5v cooling fan (supports 3007 cooling fan )

• Weight:31g

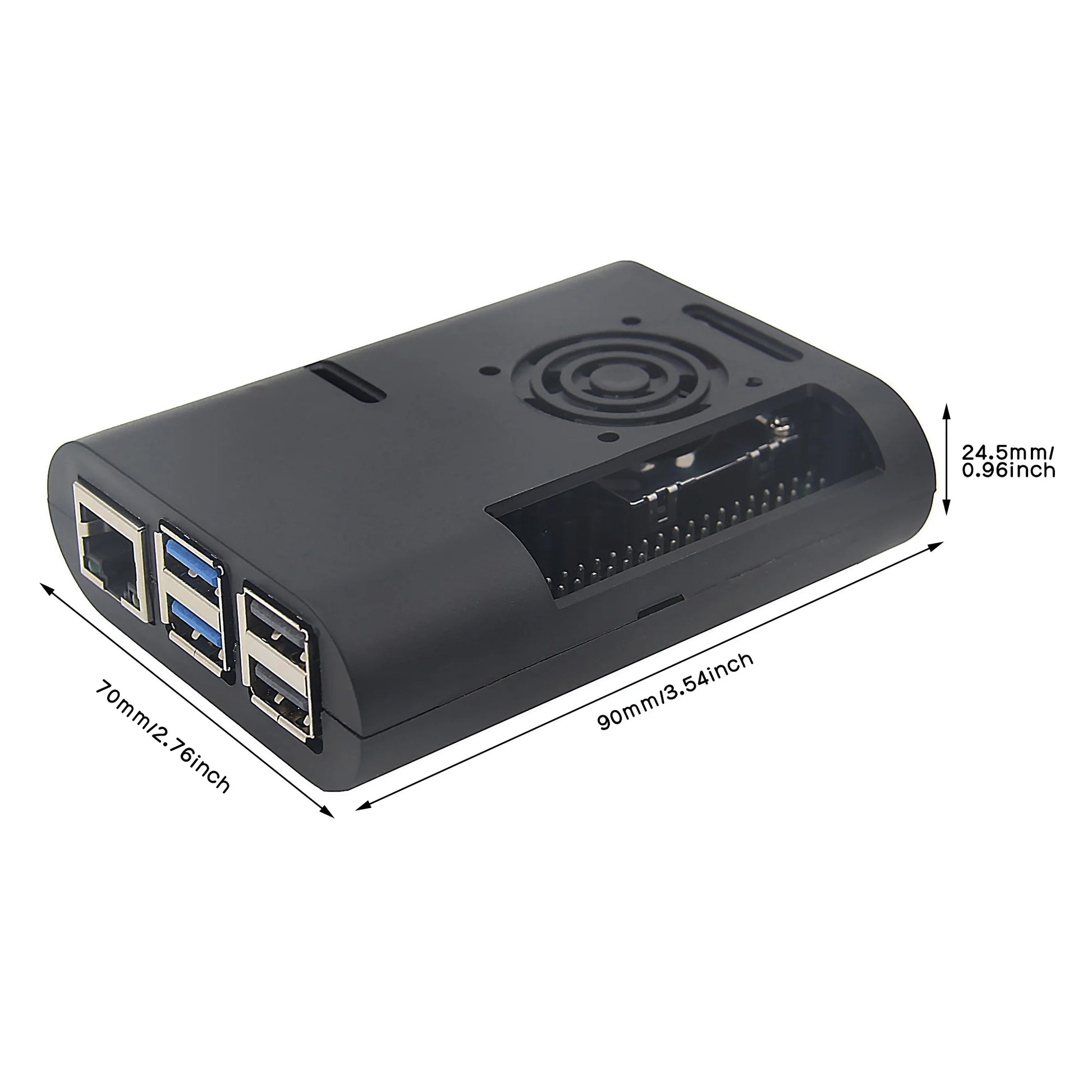

• Size: 8.9*7*2.5cm

[Fan Specifications]

• Fan speed control: Pulse width modulation control with tachometer

• Bearing type：Rifle

• Rated voltage：5V

• Starting voltage：<3V supplied via four-pin fan header on Raspberry Pi 5

• Current: 0.1A

• Maximum fan speed: 7500 RPM +/- 15%

• Maximum airflow: 1.1 CFM

• Noise: 26.5 dBA

• Size：30*30*7mm

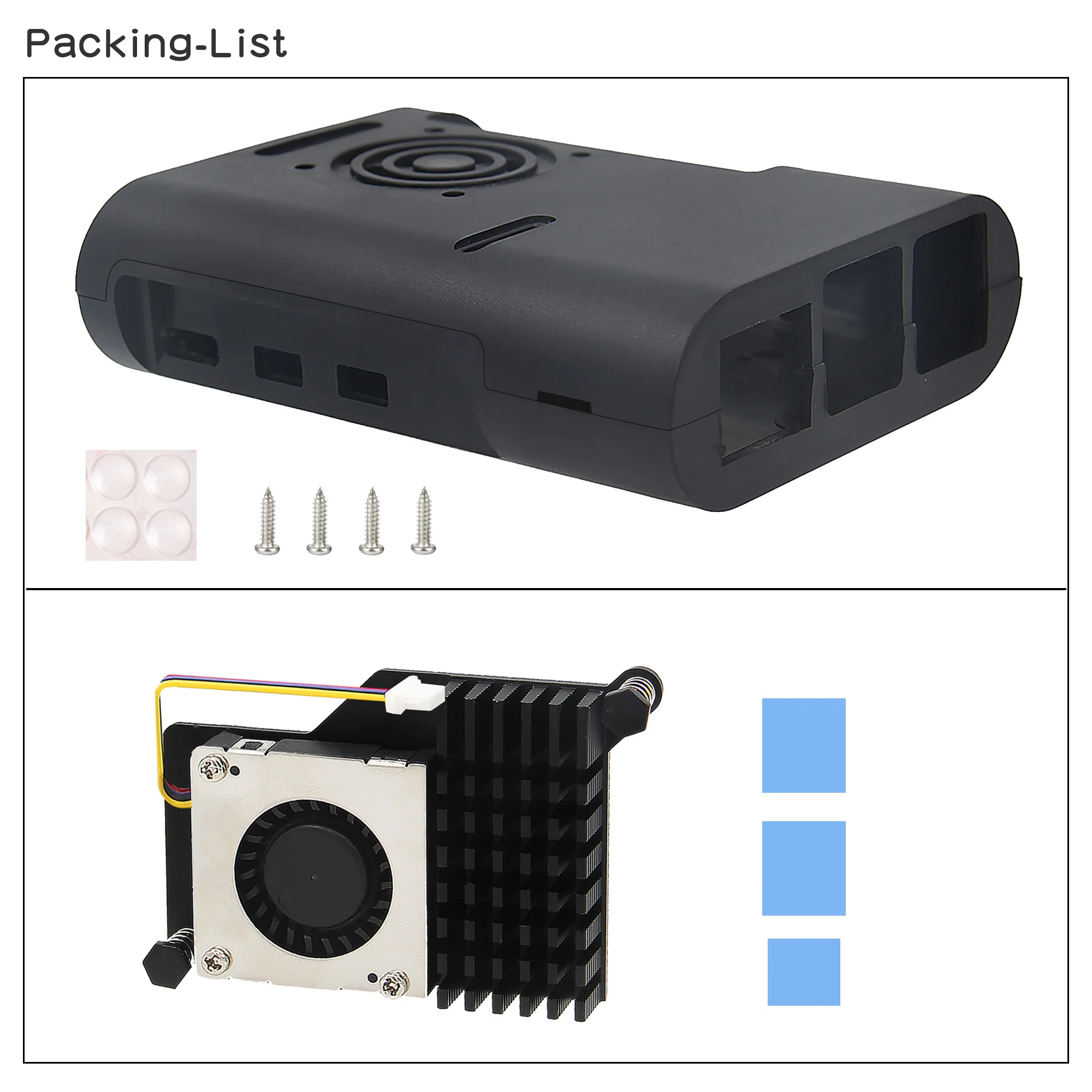

[Packing List]

• 1 x ABS Case for Raspberry Pi 5

• 1 x H501 Active Cooler

• 4 x Rubber Pads

• 1 x Screw packs
