Raspberry Pi 5 Camera IMX219 Sensor 8MP 77° Cameras Module for RPI 5 Jetson Nano 4GB 2GB + 15cm FFC
Introduction

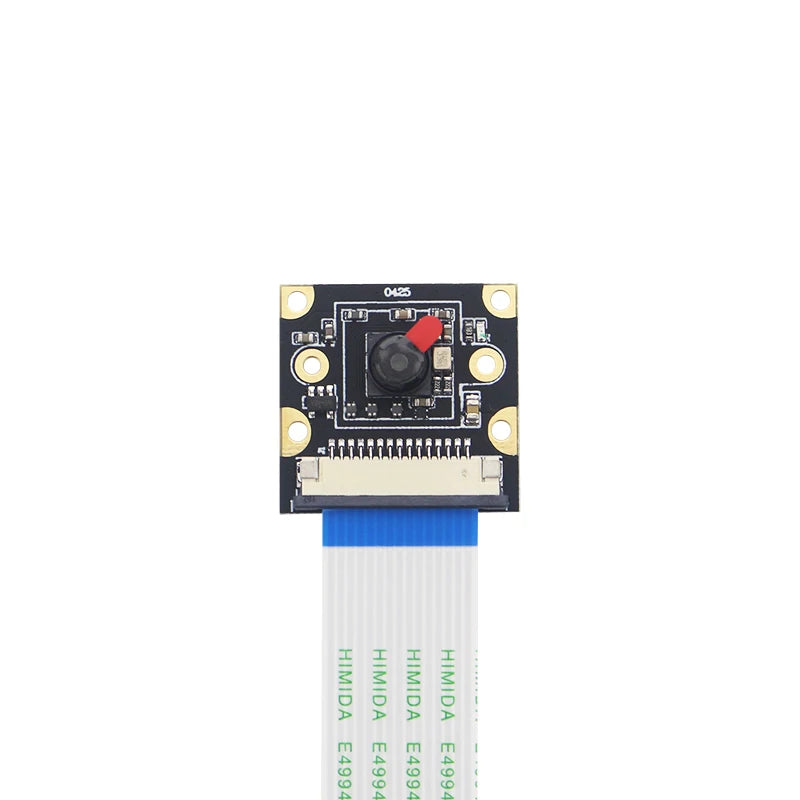

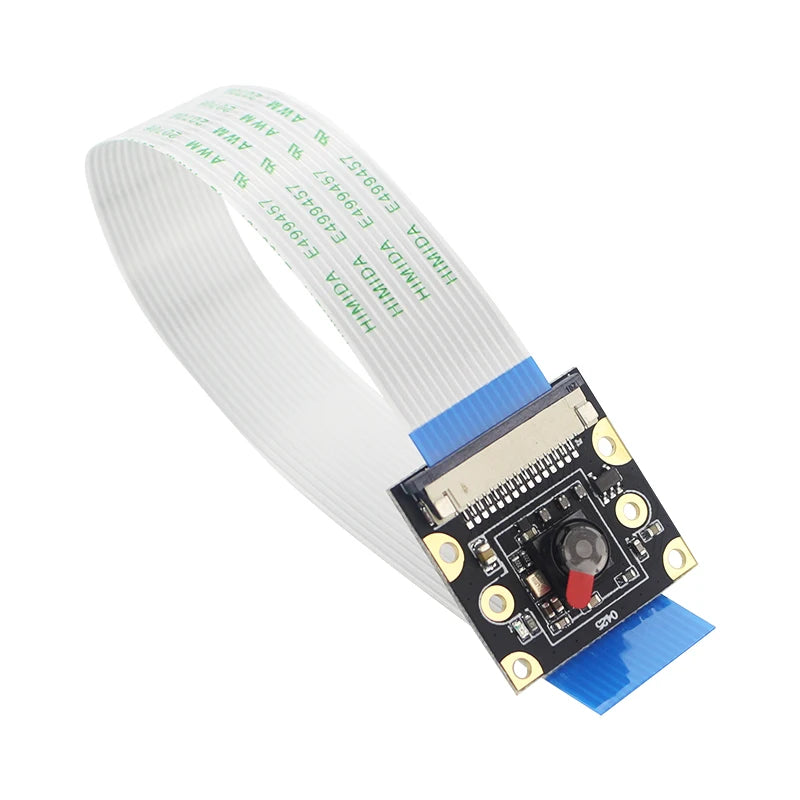

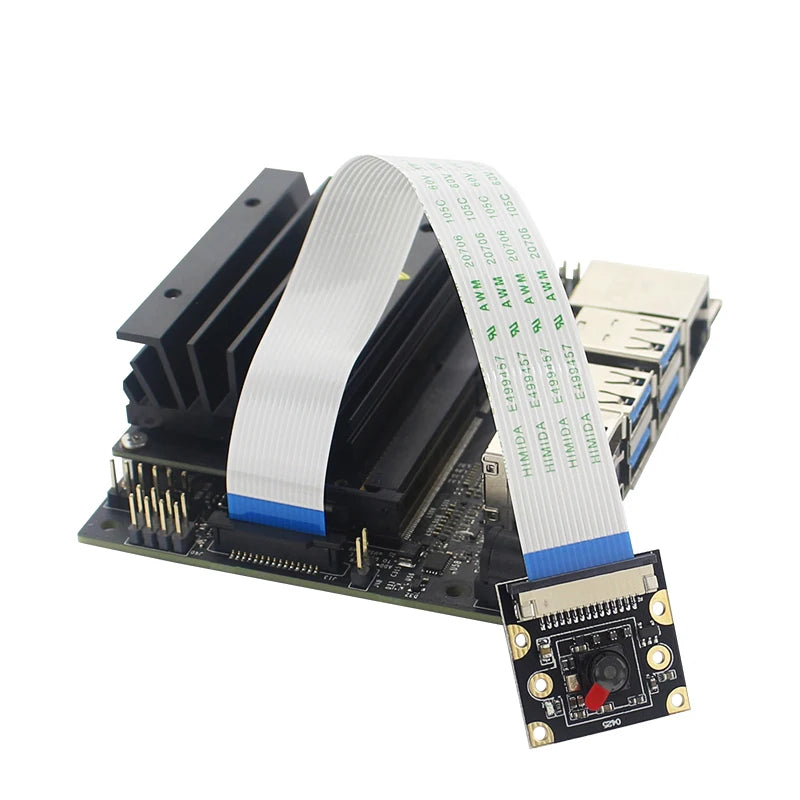

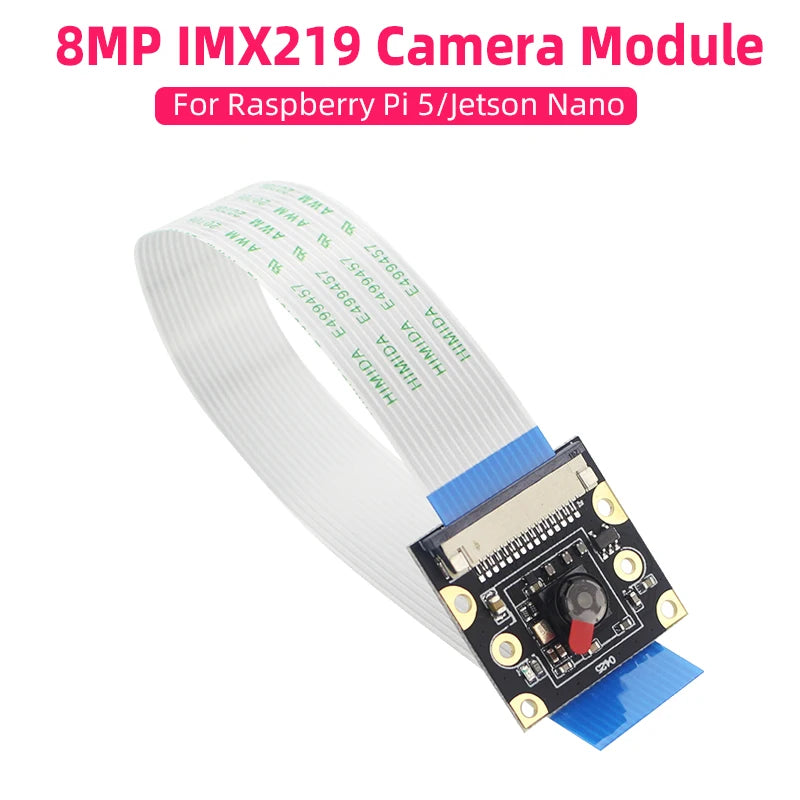

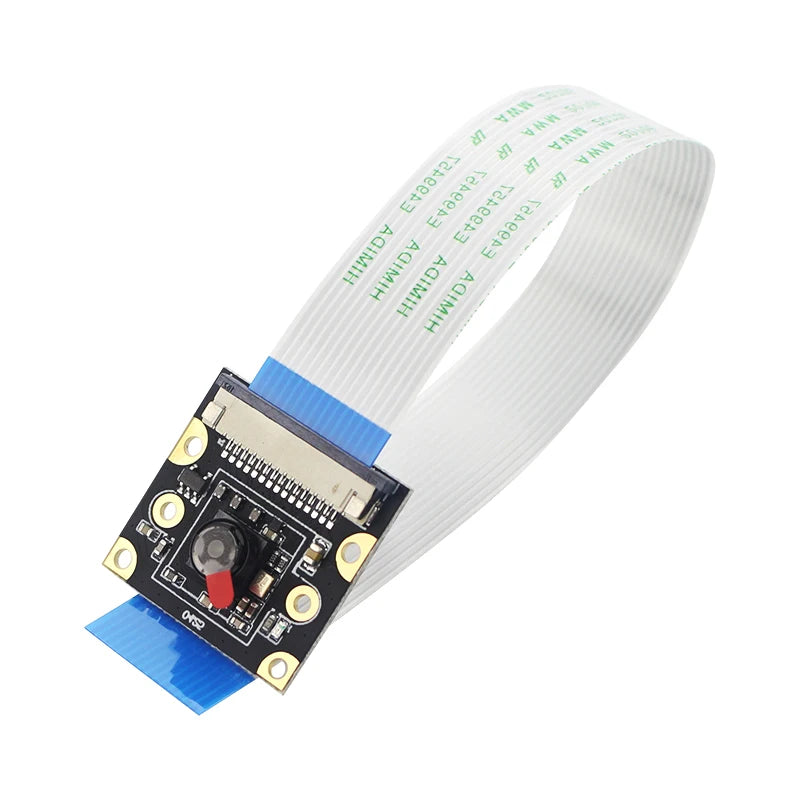

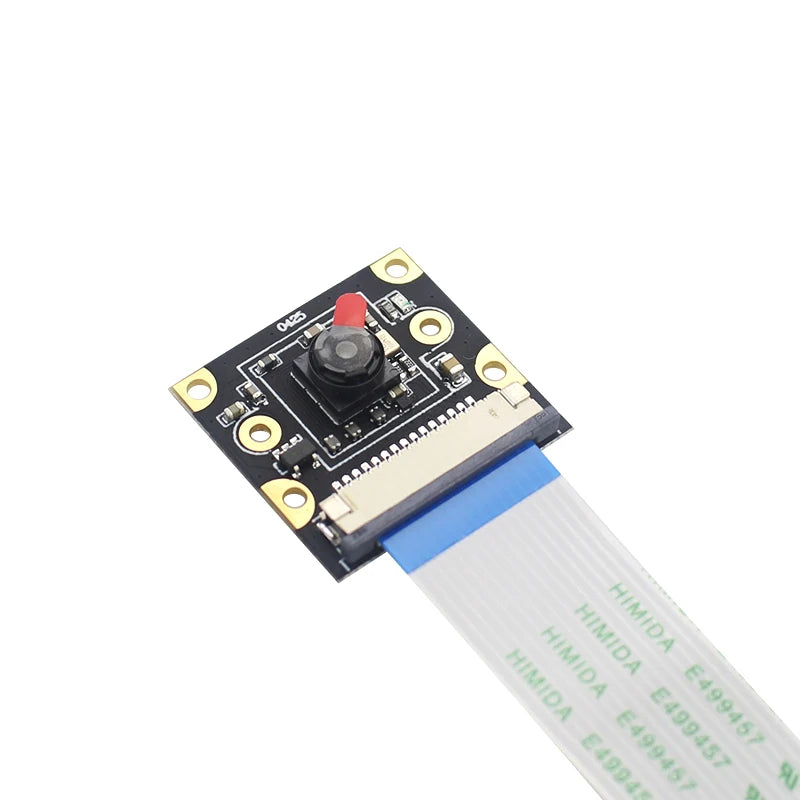

This is the camera moudle for Raspberry Pi 5 or Nvidia Jetson Nano , connected to CSI interface. It is IMX219 sensor , with 8 million pixel. And the Diagonal field angle is about 77 degree , suitable for normal situation using.
Specification
• 8 million pixels
• Photosensitive chip: Sony IMX219
• Resolution: 3280 × 2464
• Camera parameters:
• CMOS size: 1/4 inch
• Aperture (F): 2.0
• Focal Length: 2.96mm
• Diagonal angle: 77 degrees
• Distortion: <1%

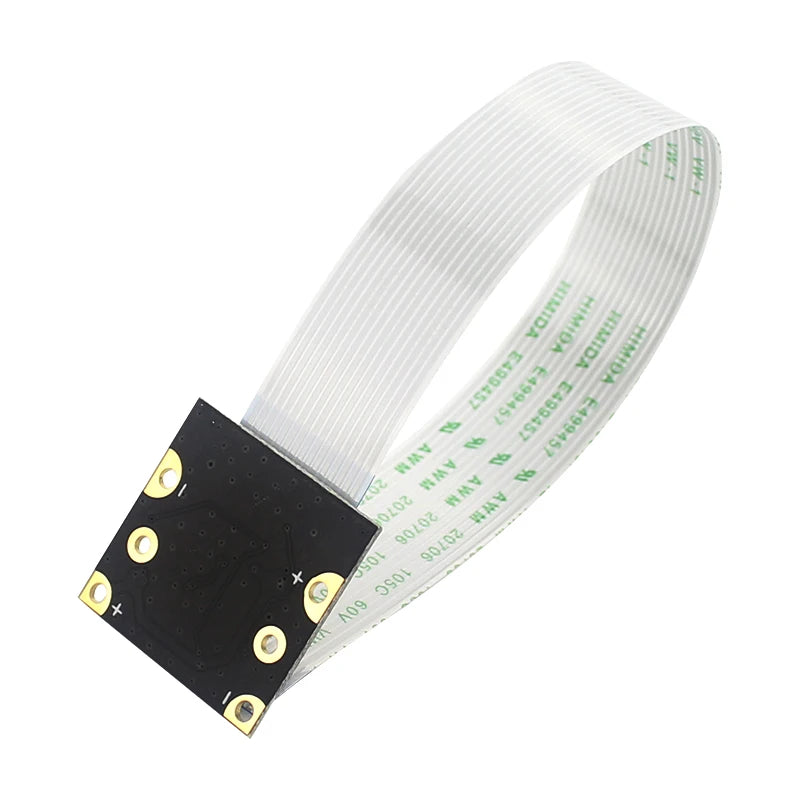

• 4 screw holes: can be used for fixed position & at the same time with its own power interface & support 3.3V external power supply
• Size: 25mm × 24mm × 6mm
Feature
• Support 1080p30, 720p60 and 640 × 480p90 video recording
• Application scenarios: AI intelligent recognition, face recognition, road identification line recognition, license plate recognition, and other scene recognition and judgment. . .
If the camera shooting effect is red, you can follow the steps below
1. Download the camera-override.isp file and extract it to a specific folder
run:
wget http://www.waveshare.net/w/upload/e/eb/Camera_overrides.tar.gz
tar zxvf Camera_overrides.tar.gz
sudo cp camera_overrides.isp / var / nvidia / nvcam / settings /
2. Installation files:
run:
sudo chmod 664 /var/nvidia/nvcam/settings/camera_overrides.isp
sudo chown root: root /var/nvidia/nvcam/settings/camera_overrides.is
Package list :
