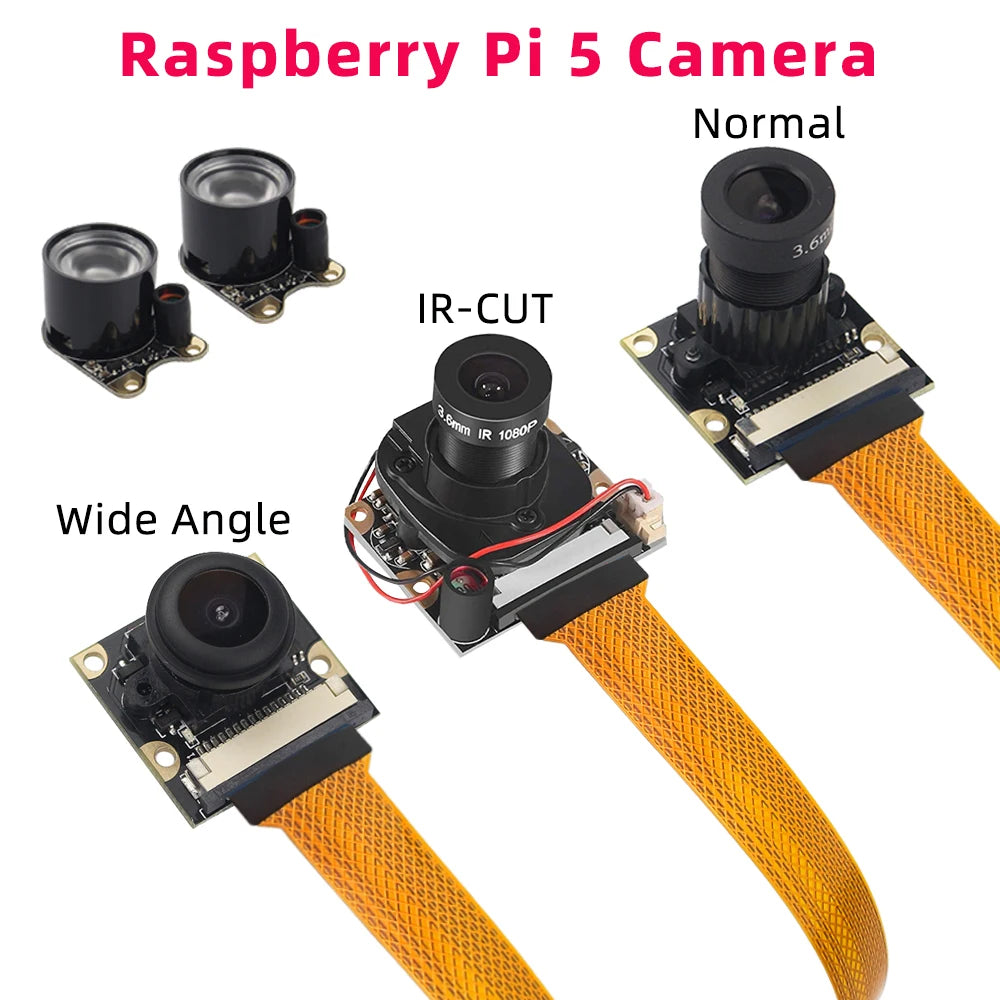

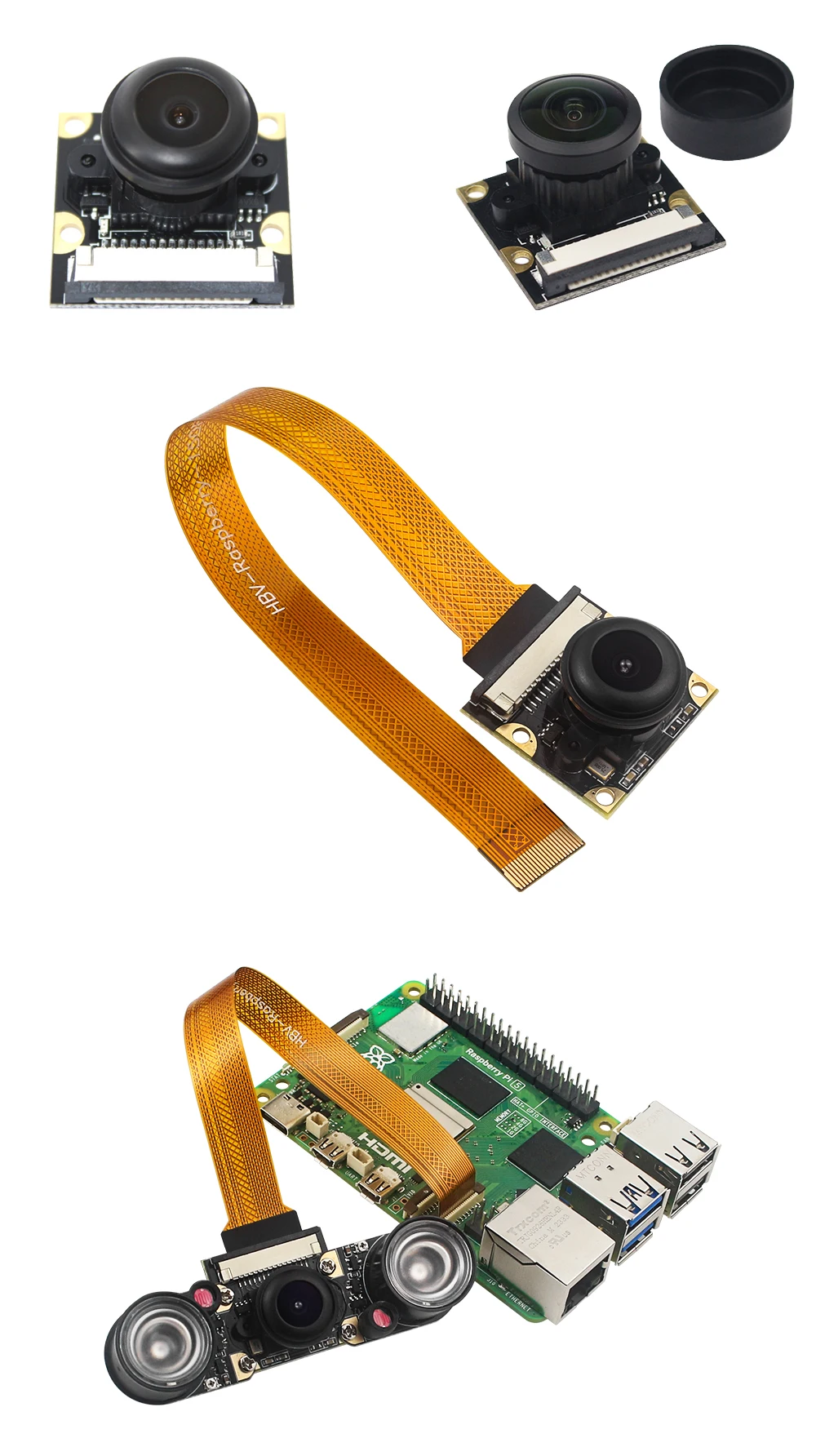

Custom Pi 5 Camera 5MP 1080P Optional Night Vision Wide Angle IR-CUT FF AF Cameras for RPI 5 Pi5 Zero

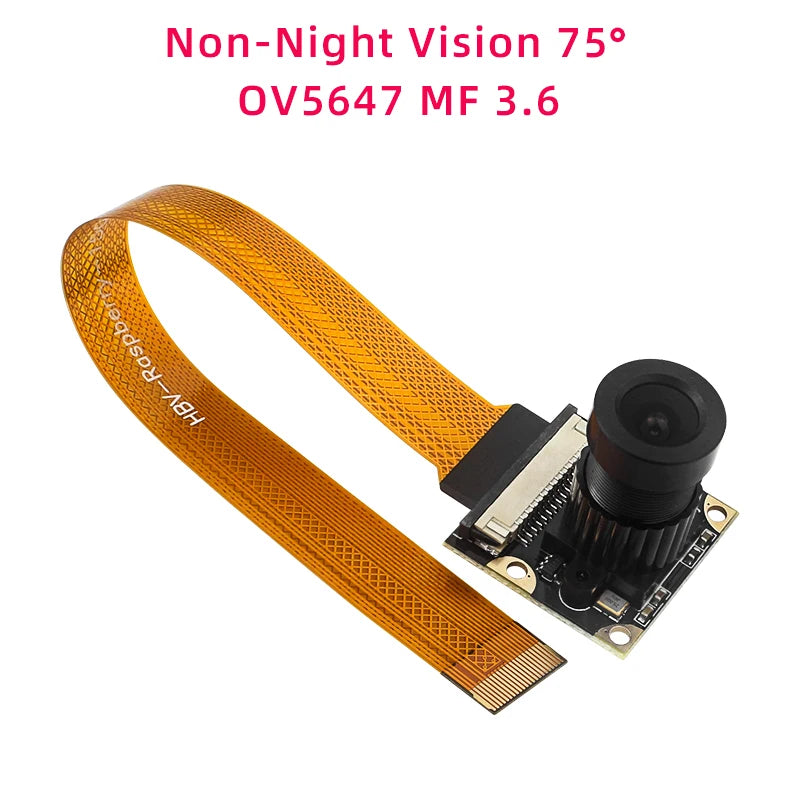

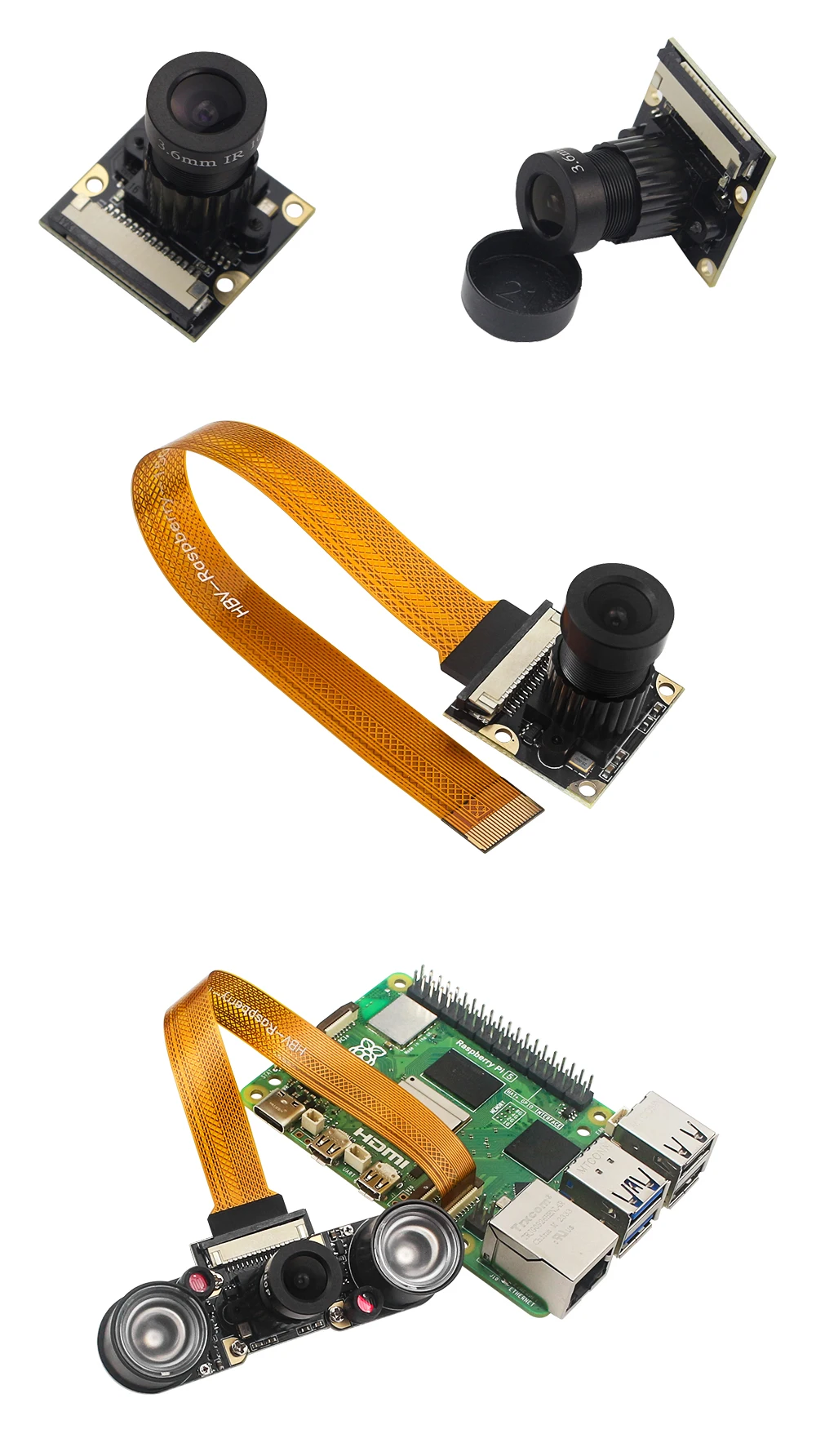

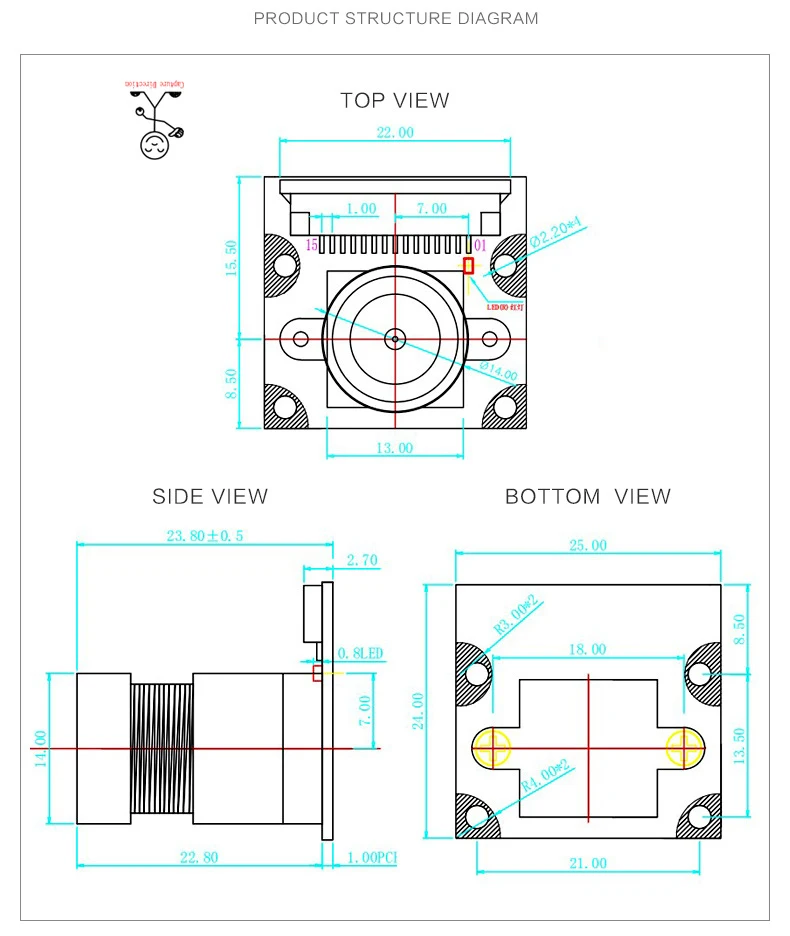

MF 75° Non Night Vision

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.8
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 23.8mm
11. Resolution: 2592x1944
12. Do not support night vision

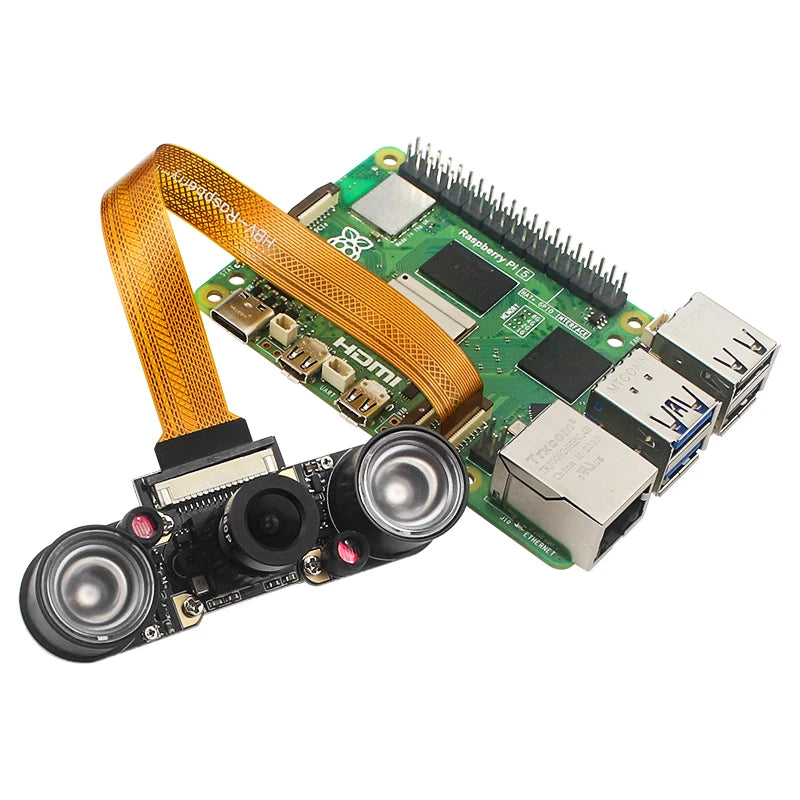

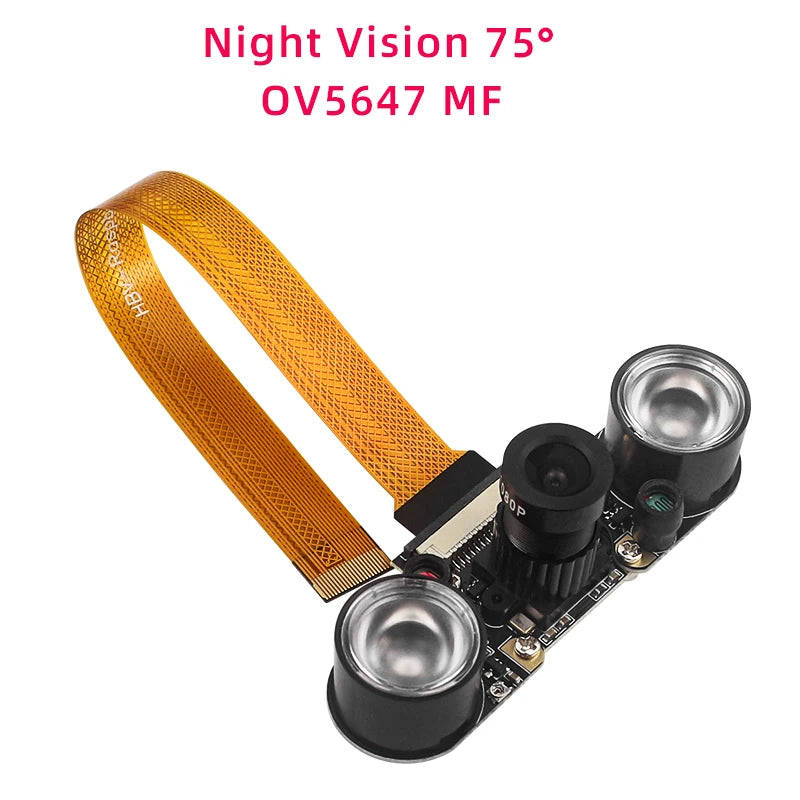

MF 75° Night Vision

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.8
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 23.8mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.

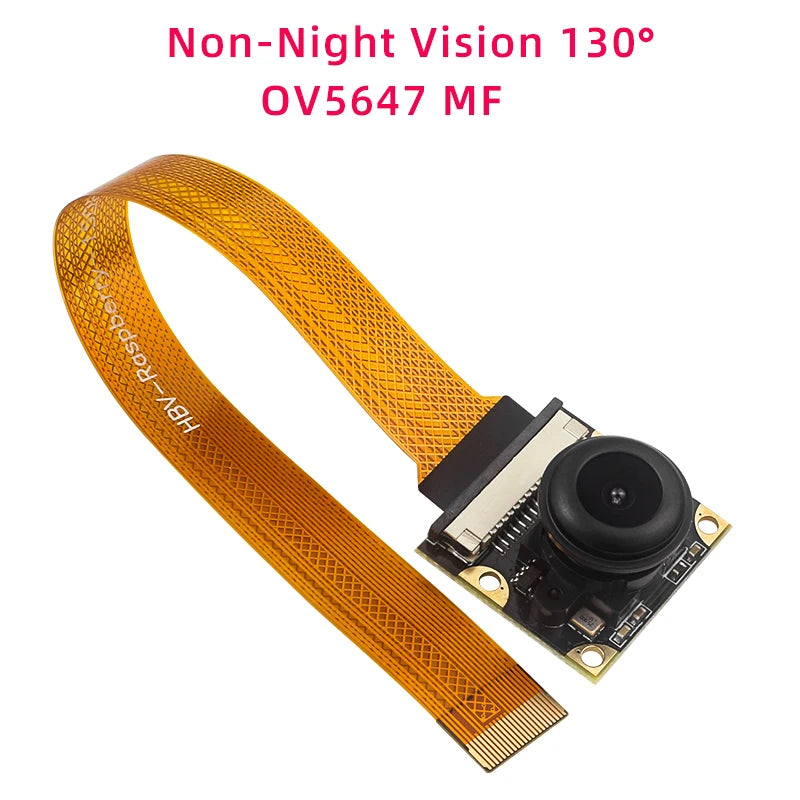

MF 130° Non Night Vision

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 1.85mm adjustable
6. Diagonal angle: 130 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 17mm
11. Resolution: 2592x1944
12. Do not support night vision

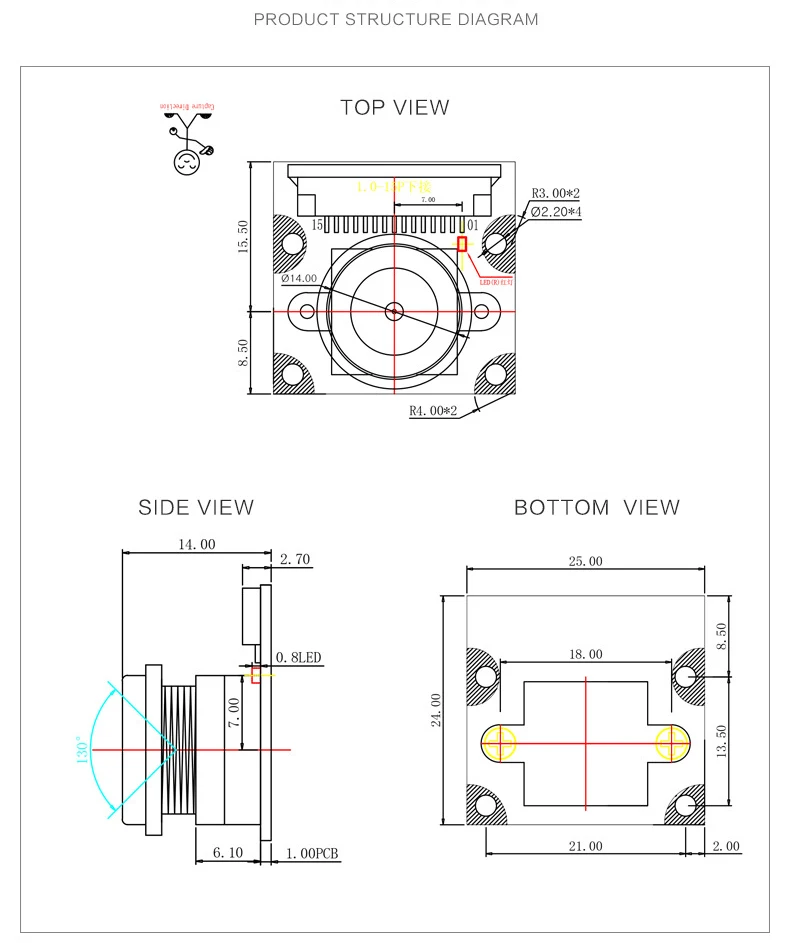

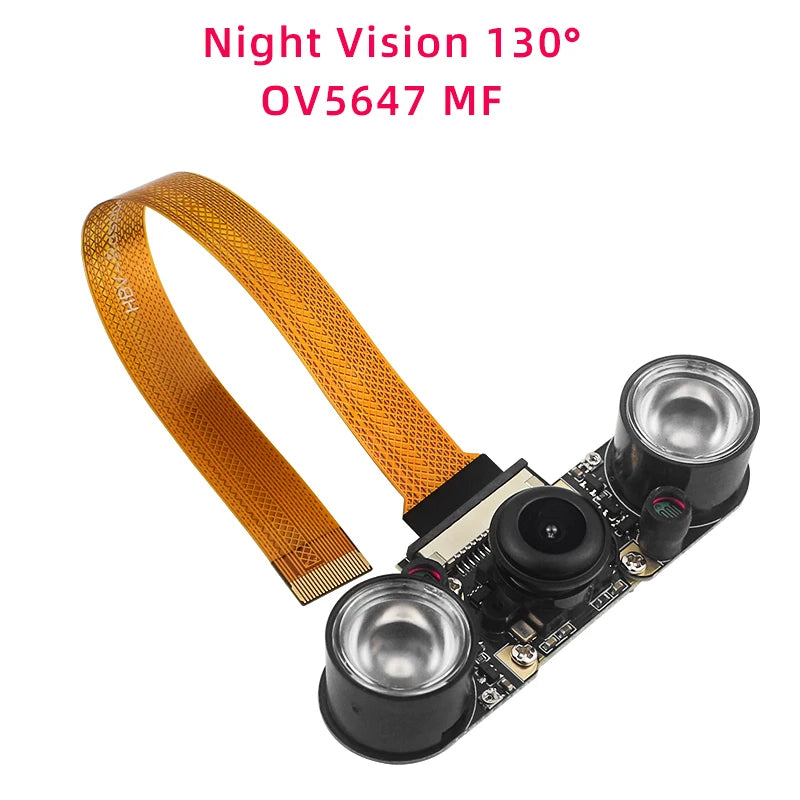

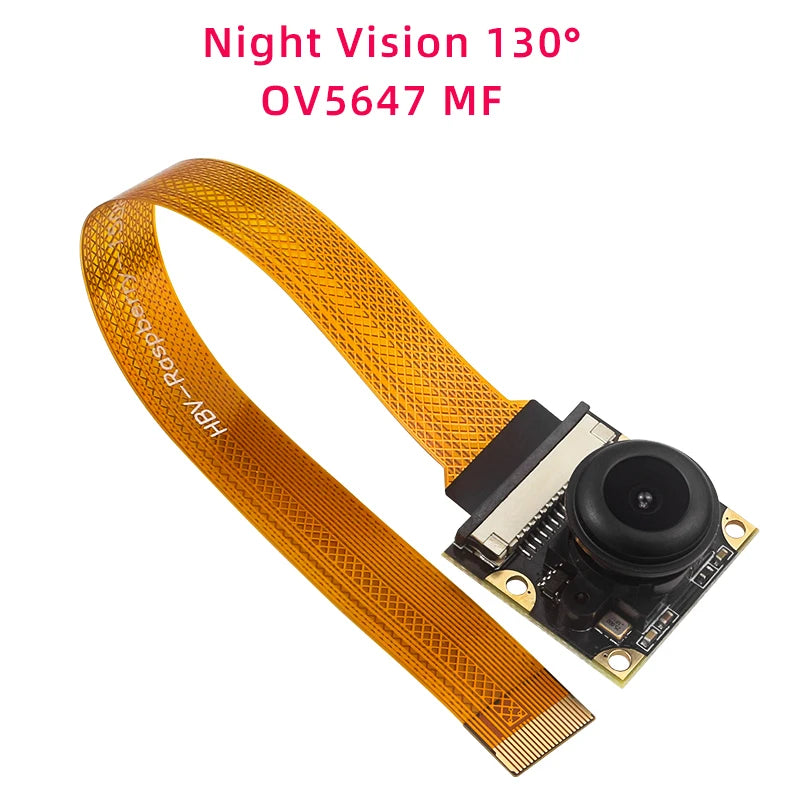

MF 130° Night Vision

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 1.85mm adjustable
6. Diagonal angle: 130 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 17mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.

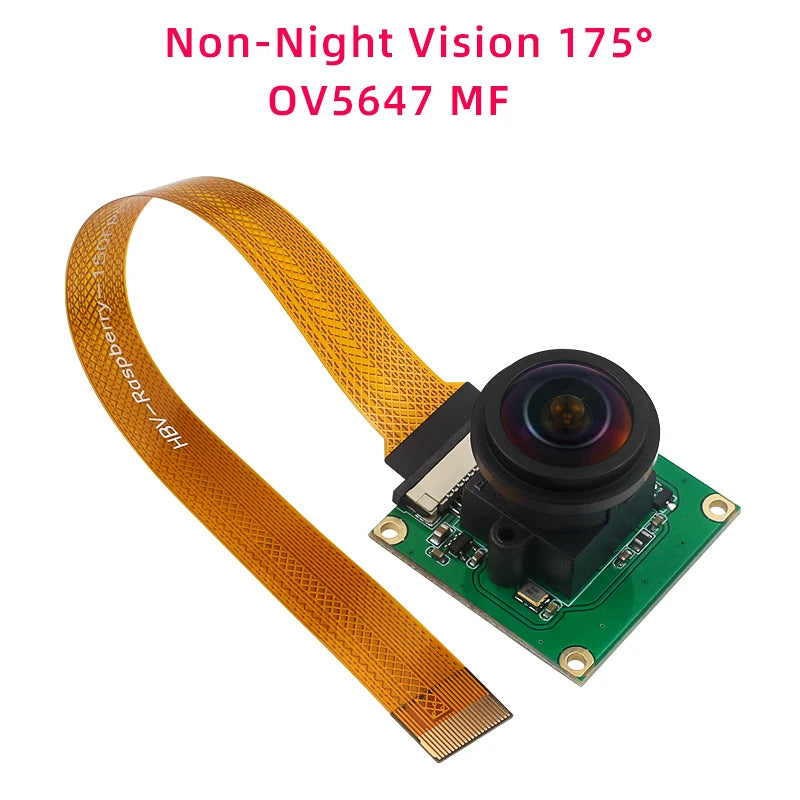

MF 175° Non Night Vision

1. Sensor: OV5647
2. Pixel: 5 million
3. Field of view: 175 degree (Diagonal)
4. CMOS Size: 1/4 Inch
5. Aperture (F): 2.0
6. Focal Length: 3.6mm (adjustable)
7. Sensor Pixel: 1080P
8. Resolution: 2592x1944
9. Do not support night vision

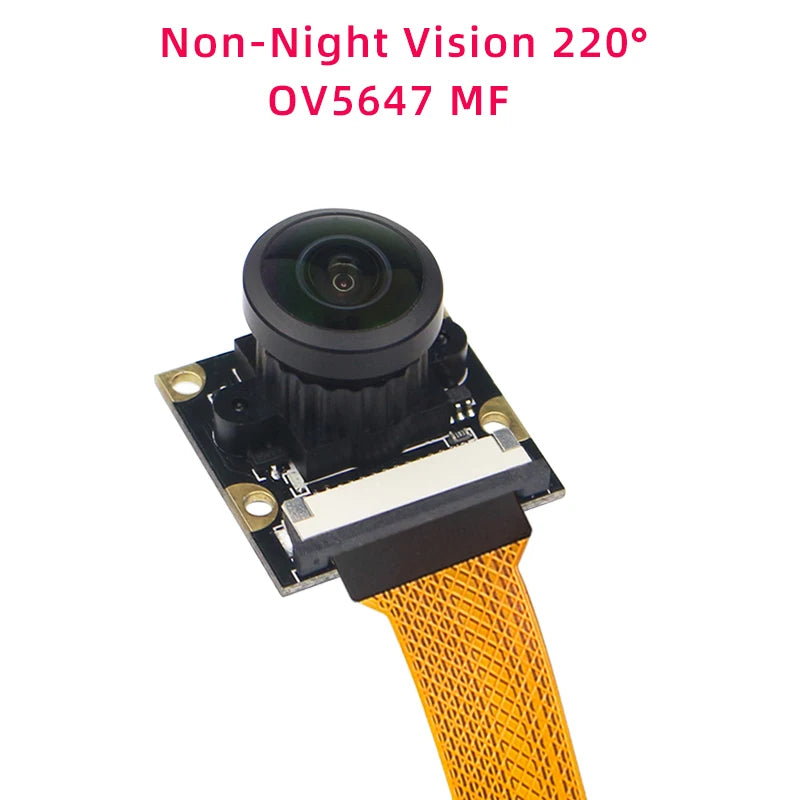

MF 220° Non Night Vision

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 0.76 mm adjustable
6. Diagonal angle: 220 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 26.5mm x 16mm
11. Resolution: 2592x1944
12. Do not support night vision

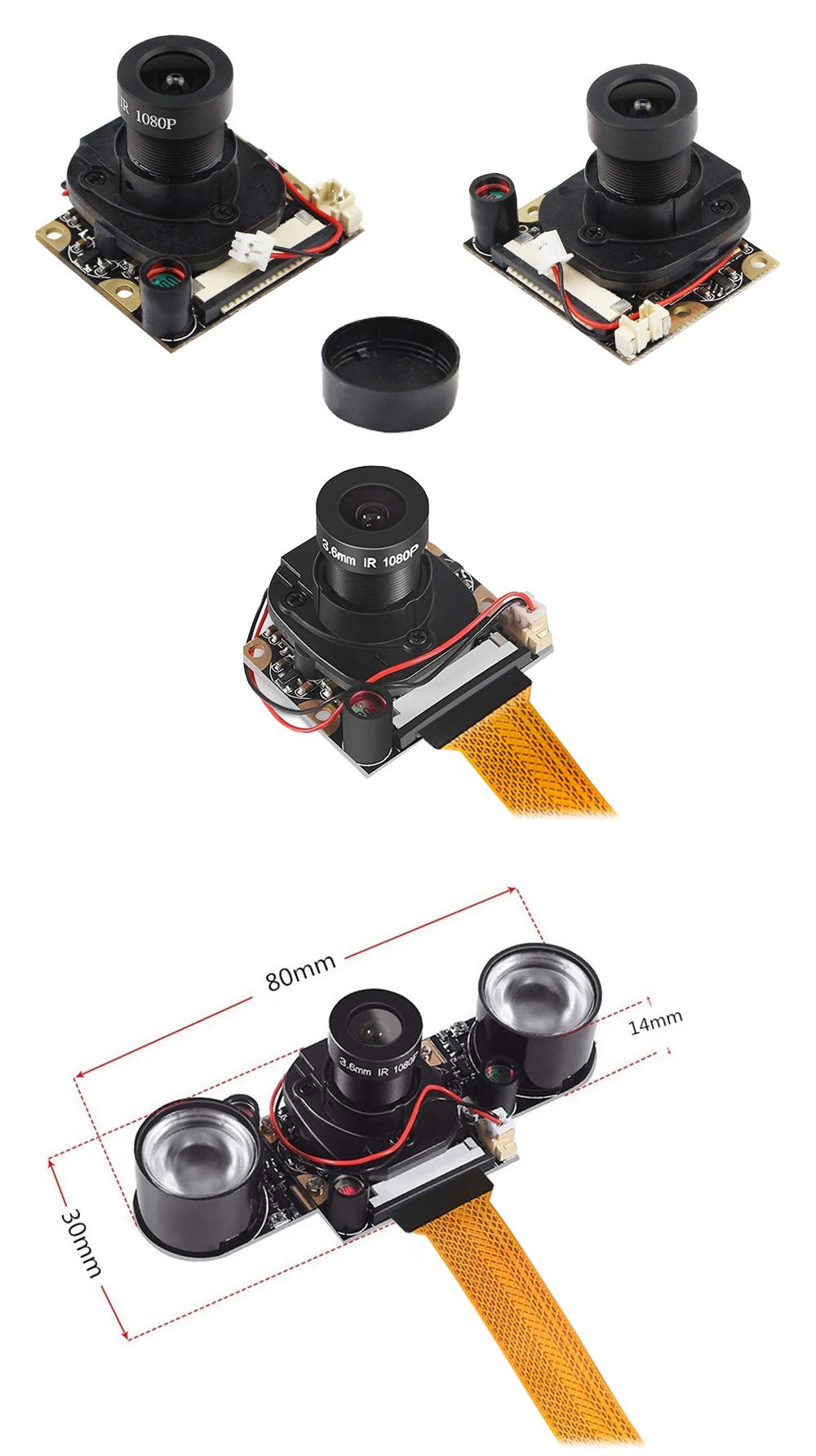

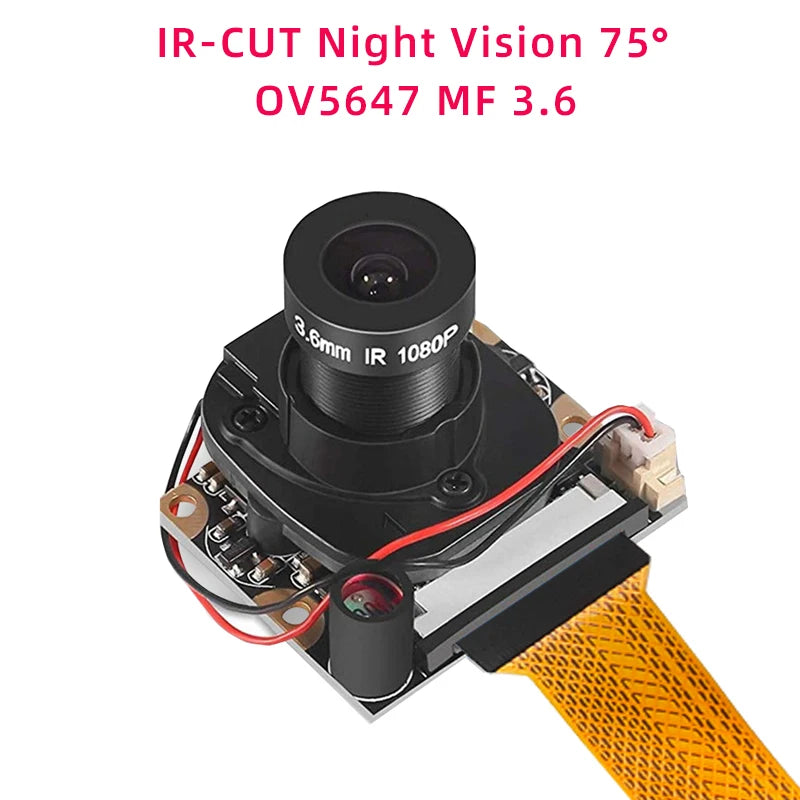

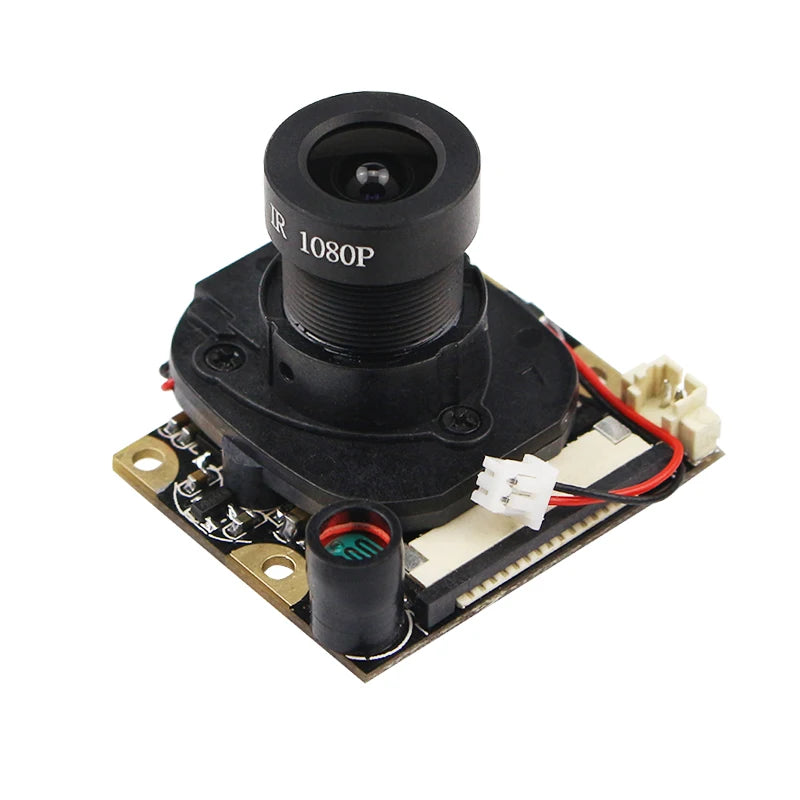

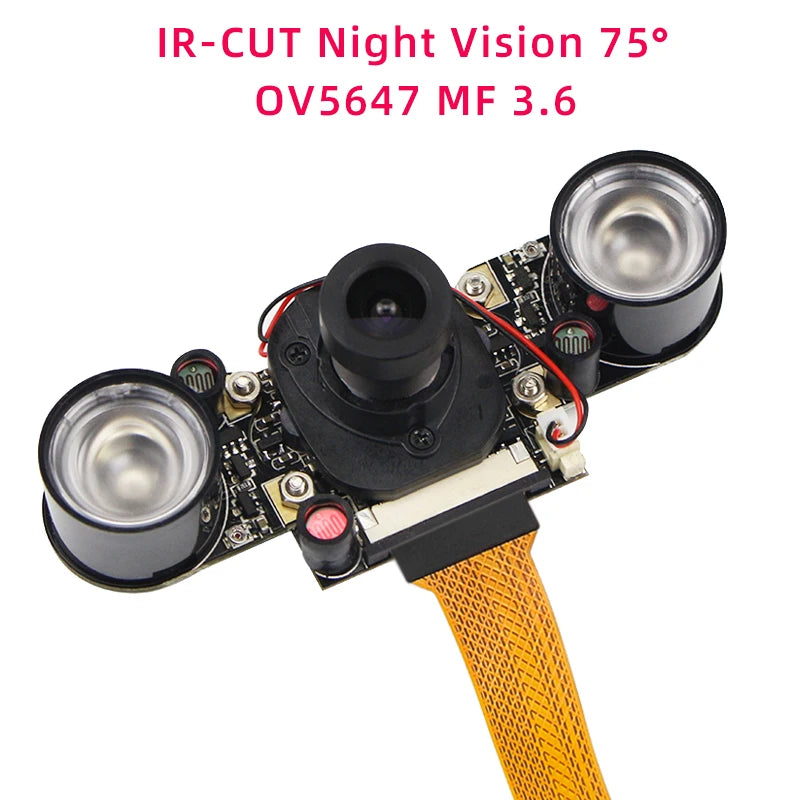

MF 75° Night Vision IR-CUT

IR-CUT dual filter refers to a set of filters built into the camera lens group. When the infrared sensing point outside the lens detects the intensity change of the light, the built-in IR-CUT automatically switches the filter to be able to change the filter automatically according to the external light. The intensity of the image is automatically switched to make the image achieve the best effect

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.2
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 26.5mm x 32mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.
13. IRCUT: Auto switch (Automatically switch
according to the light intensity of day and
night)

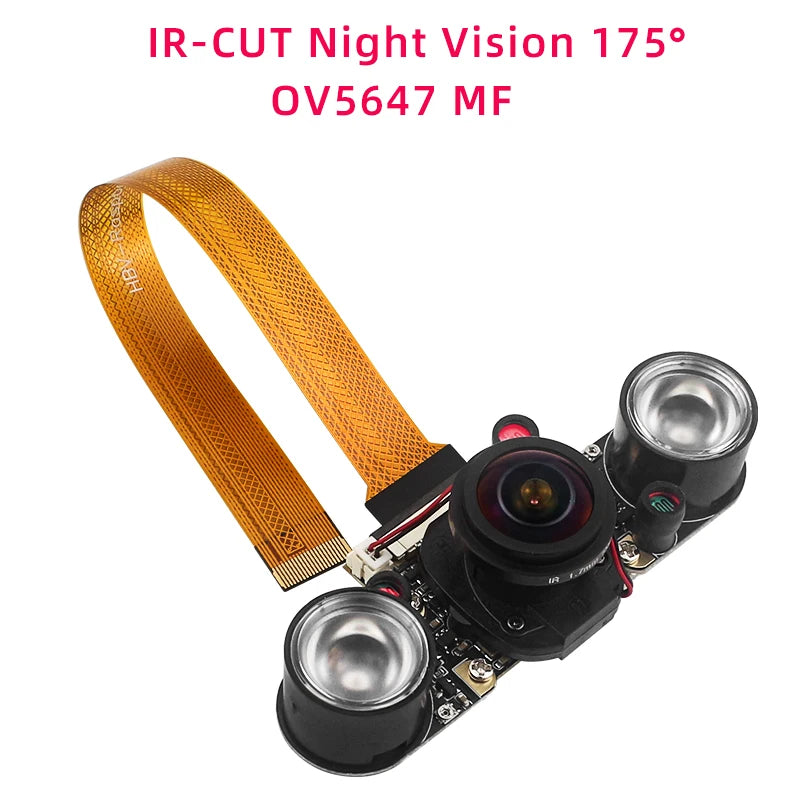

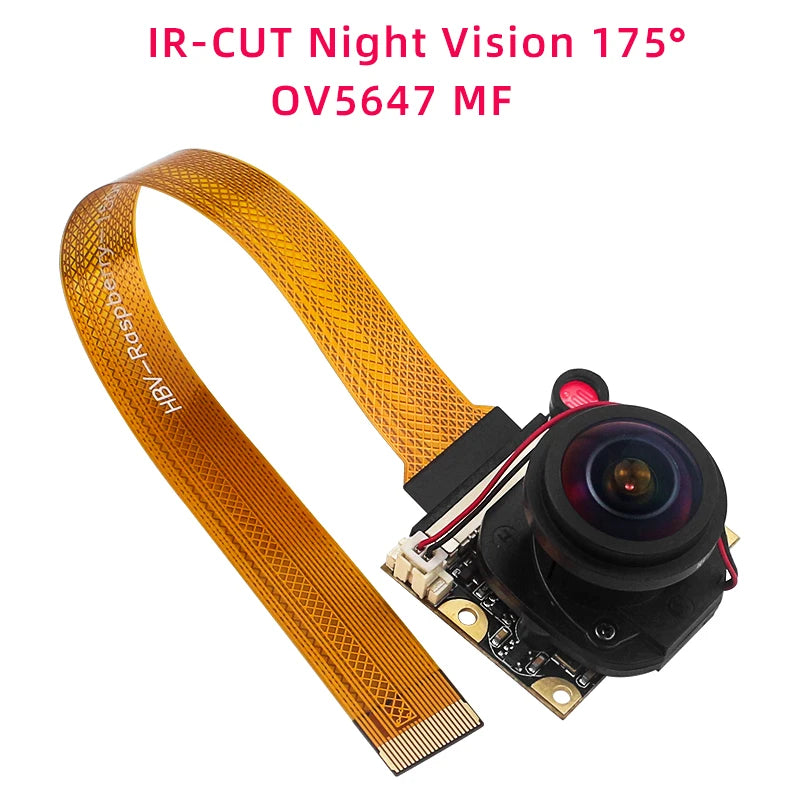

MF 175° Night Vision IR-CUT

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 1.2mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 26.5mm x 24mm
11. Resolution: 2592x1944
12. Night vision: Support night vision, need to
use with IR light.
13. IRCUT: Auto switch (Automatically switch
according to the light intensity of day and
night)

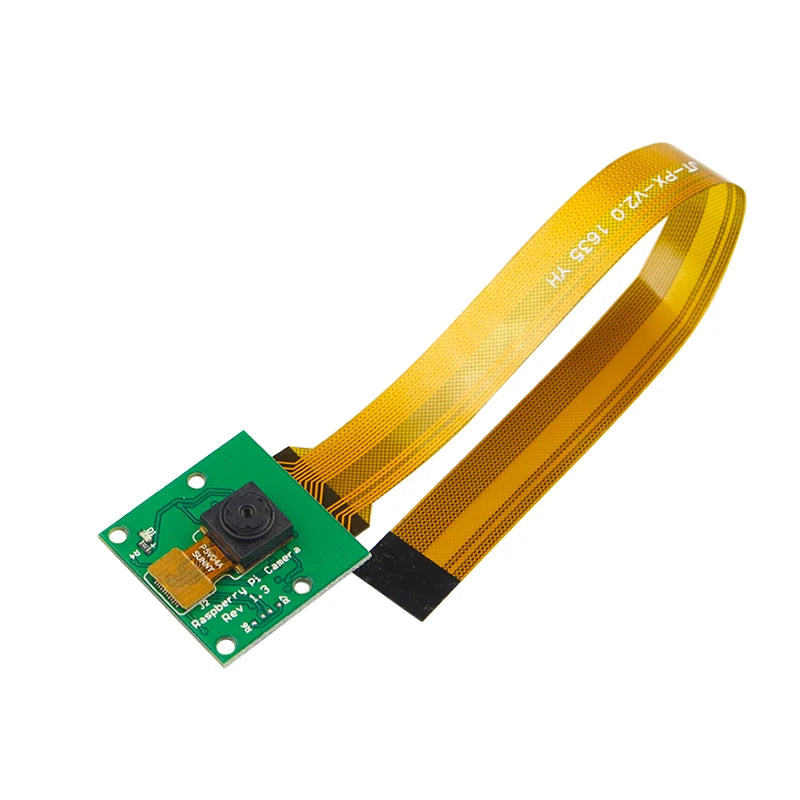

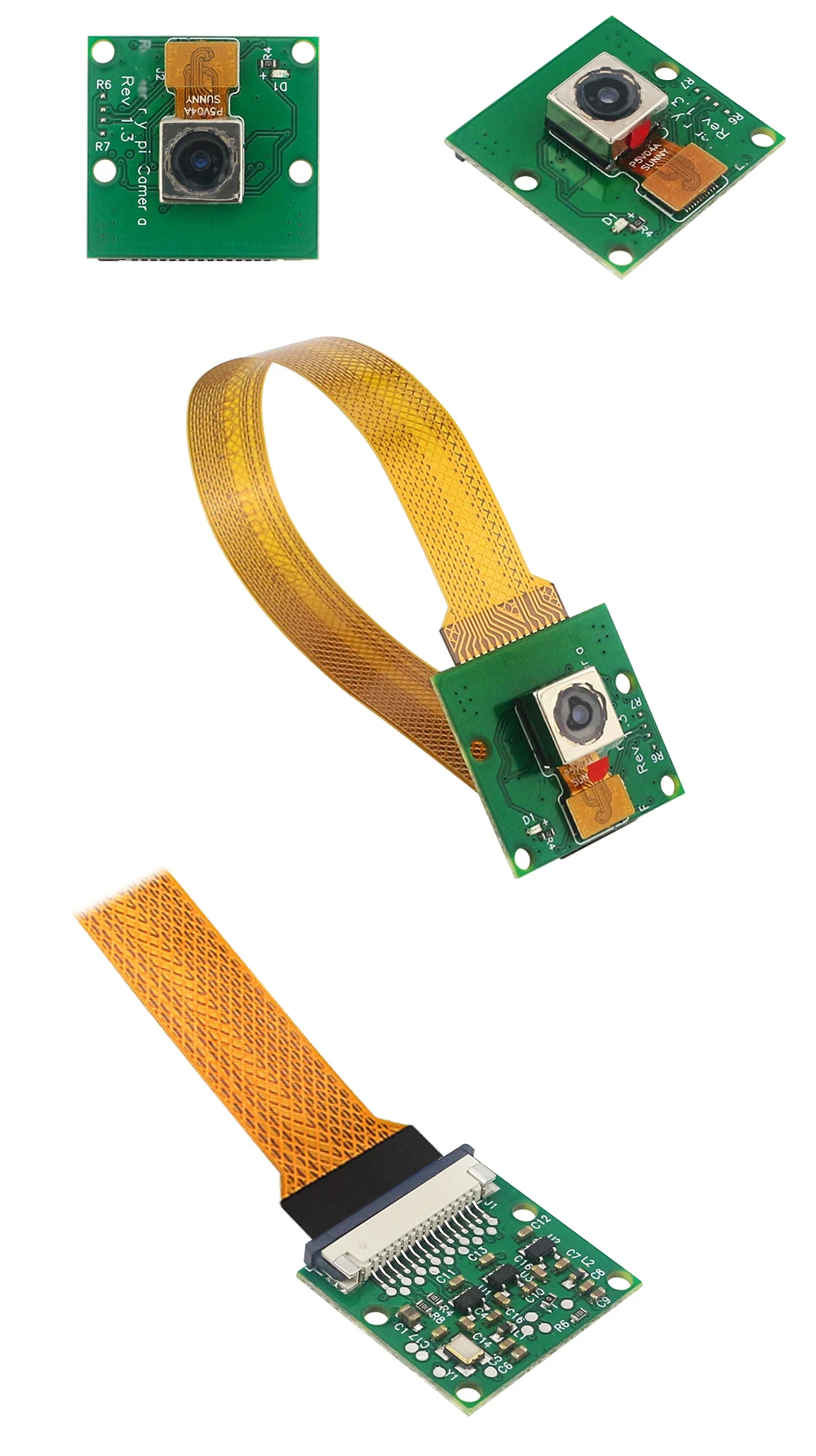

MF 69° Non Night Vision

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.8
5. Focal Length: 3.4 mm
6. Diagonal angle: 69 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position
10. Dimension: 25mm x 24mmx6.4mm
11. Resolution: 2592x1944

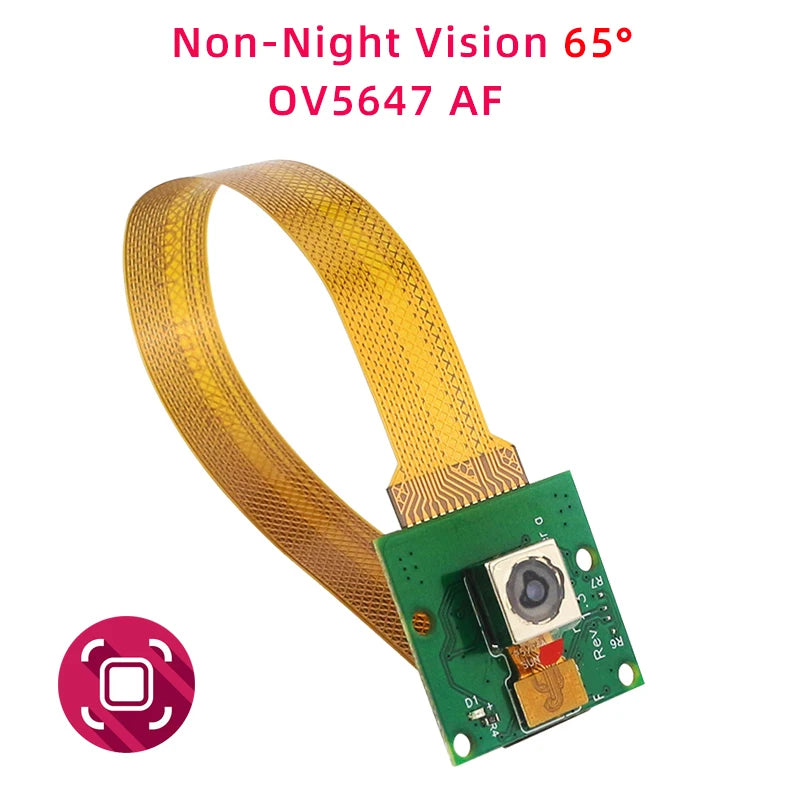

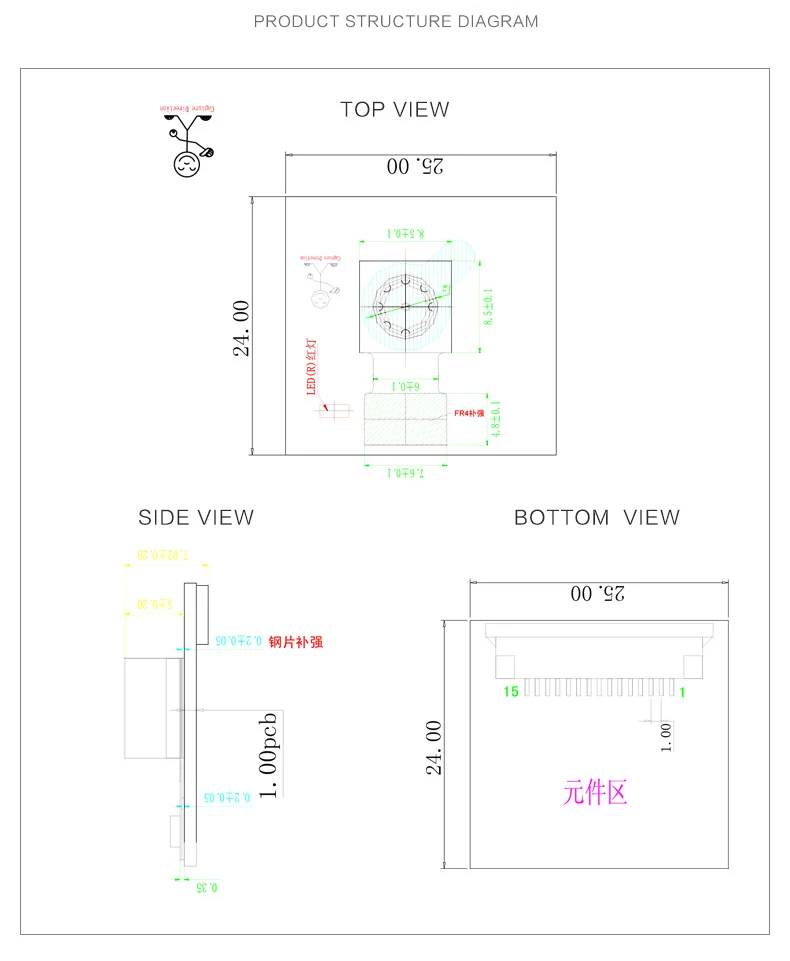

AF 65° Non Night Vision

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. Focal : Auto
4. Diagonal angle: 65 degree
5. Sensor best resolution: 1080p
6. 4 screw holes : Used for fixing position
7. Resolution: 2592x1944

How to Use

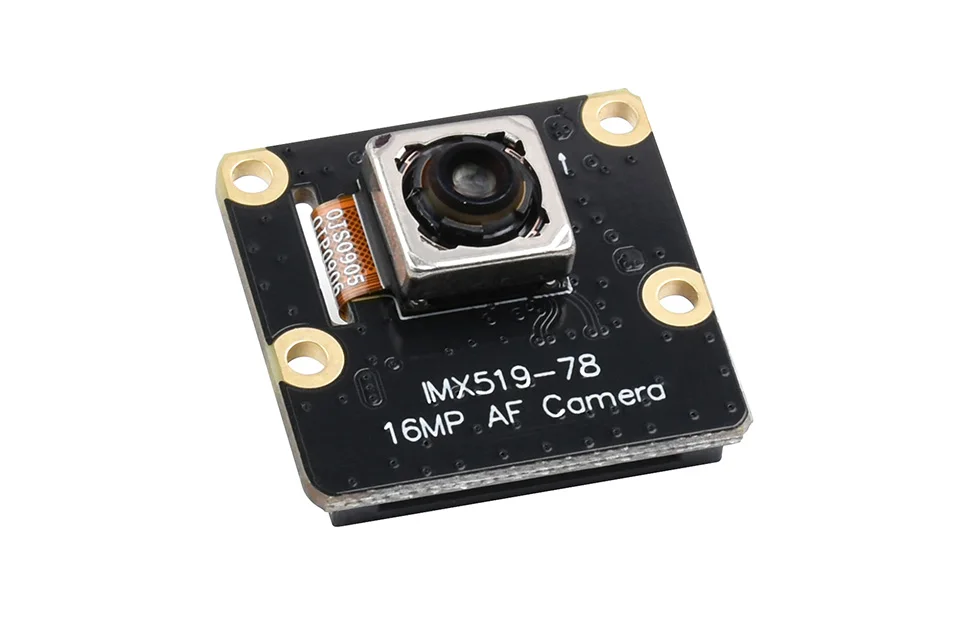

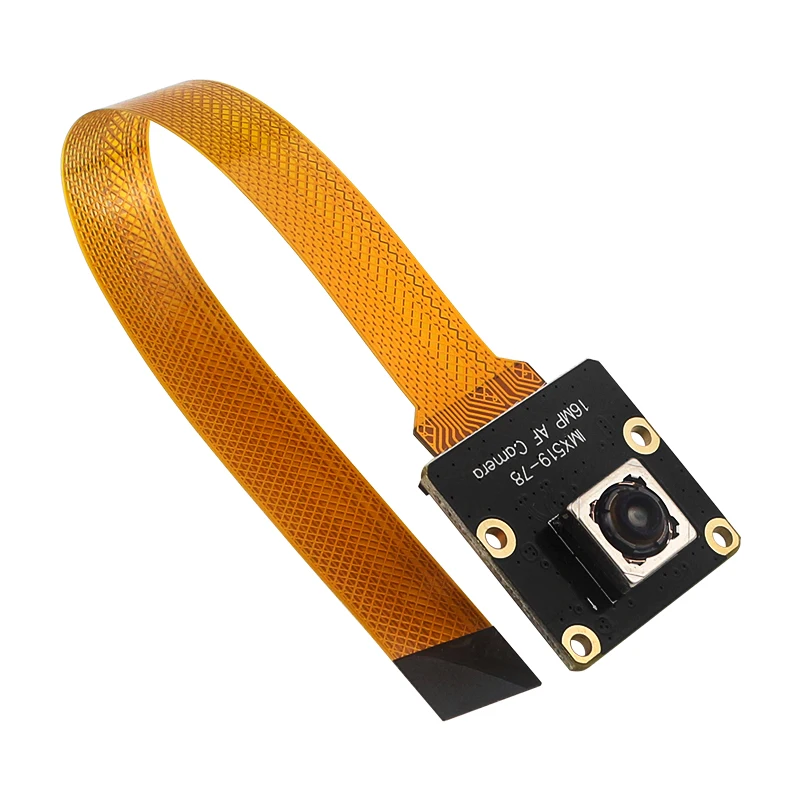

https://www.waveshare.com/wiki/IMX519-78_16MP_AF_Camera?spm=a2g0o.detail.1000023.16.4a5eT6QPT6QPAC
