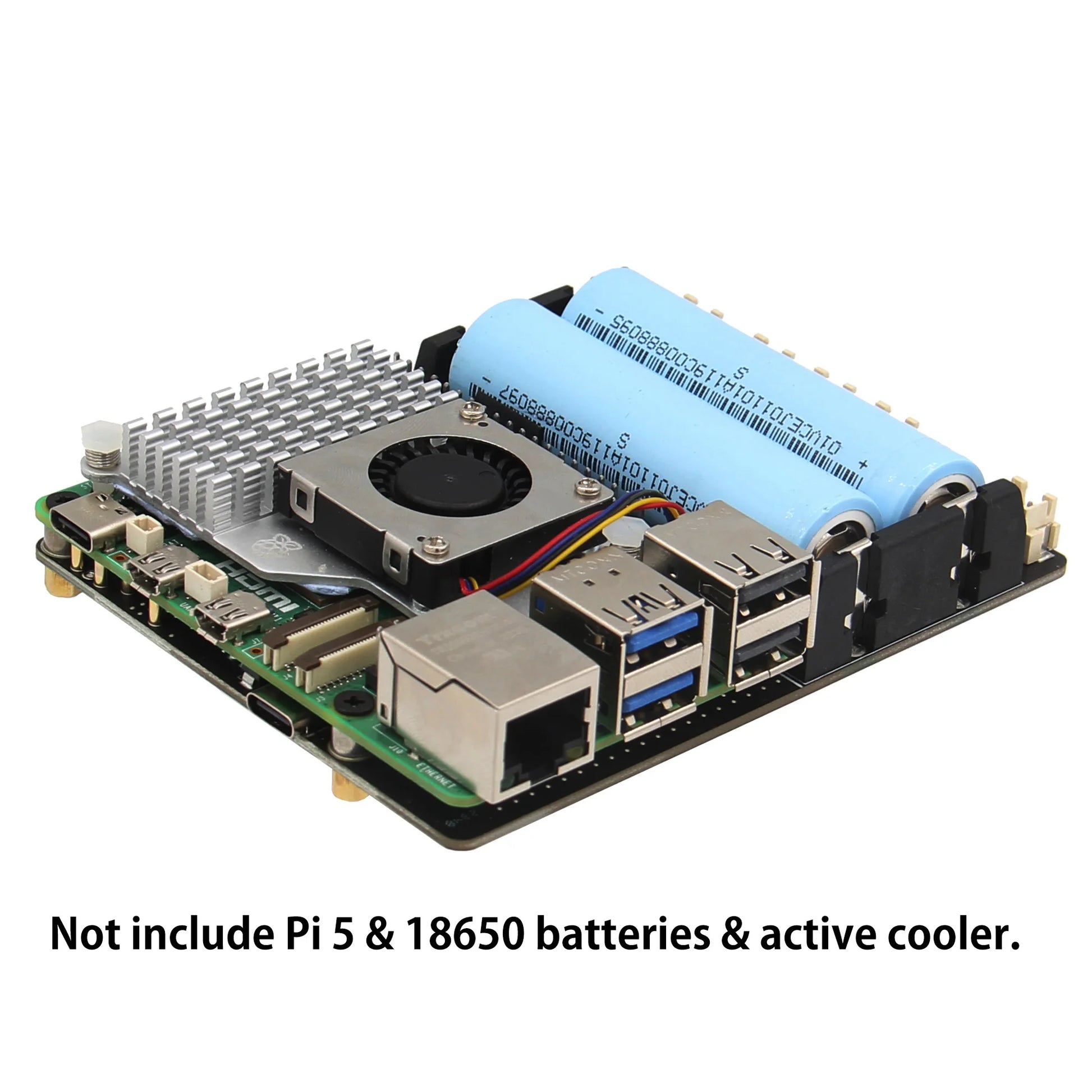

NOTE: Not include Raspberry Pi 5 & 18650 Batteries & cooler!!!

[Manual]

https://wiki.geekworm.com/X1201

[Matching Case]

https://es.aliexpress.com/item/1005007054005781.html

[Overview]

• X1201 is an innovative uninterruptible power supply (UPS) expansion board designed specifically for the Raspberry Pi 5B. With its advanced features and robust power backup capabilities, the X1201 is perfect for even the most demanding Raspberry Pi setups.

• Reliable Power Backup: The X1201 provides a stable 5.1V 5000mA power backup, ensuring uninterrupted operation of your Raspberry Pi. Whether you are running resource-intensive applications or powering multiple peripherals, the X1201 delivers reliable and consistent power supply.

• Enhanced Power Management: One of the standout features of the X1201 is its enhanced power management system. It intelligently monitors the power status of the Raspberry Pi and automatically cuts off power when the Pi is shut down. This helps optimize battery life by entering an ultra-low standby power consumption mode. It ensures efficient operation and maximizes the lifespan of the UPS battery.

• Seamless Power Switching: Equipped with AC power loss and power adapter failure detection, the X1201 seamlessly switches to backup power in the event of a power outage or power adapter failure. This feature guarantees that your Raspberry Pi remains operational and protected from unexpected power disruptions.

• Convenient Features: The X1201 offers convenient features such as auto power-on, enabling your Raspberry Pi to automatically boot up when power is restored. It also supports full power-off from software, allowing you to safely shut down your Raspberry Pi without manual intervention.

• Fast Charging: With fast charging capabilities of up to 3000mA, the X1201 ensures quick recharging of the UPS, making it ready to provide backup power whenever needed.

• Versatile Design: The X1201 is designed to be attached on bottom and don't use the 40-pin header, enabling easy stacking with other Raspberry Pi accessory boards. This versatility allows you to expand the functionality of your Raspberry Pi and create enhanced applications tailored to your specific needs.

• Seamless Data Backup: The X1201 is compatible with our range of storage products, providing seamless integration for safe and reliable data backup. Your valuable data remains protected, even in the event of a power failure.

• Enhance the reliability and performance of your Raspberry Pi 5B with the X1201 UPS expansion board. Experience peace of mind with its advanced features and robust power backup capabilities. Trust the X1201 to ensure uninterrupted operation and safeguard your valuable data.

[Features]

Battery Charging

• Supports fast battery charging with a capacity of 3000mA

• Battery charging control can be managed via GPIO

• Provides protection against battery overcurrent and overvoltage

• Built-in protection against reverse connection of battery cells

• Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over i2c

• On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%

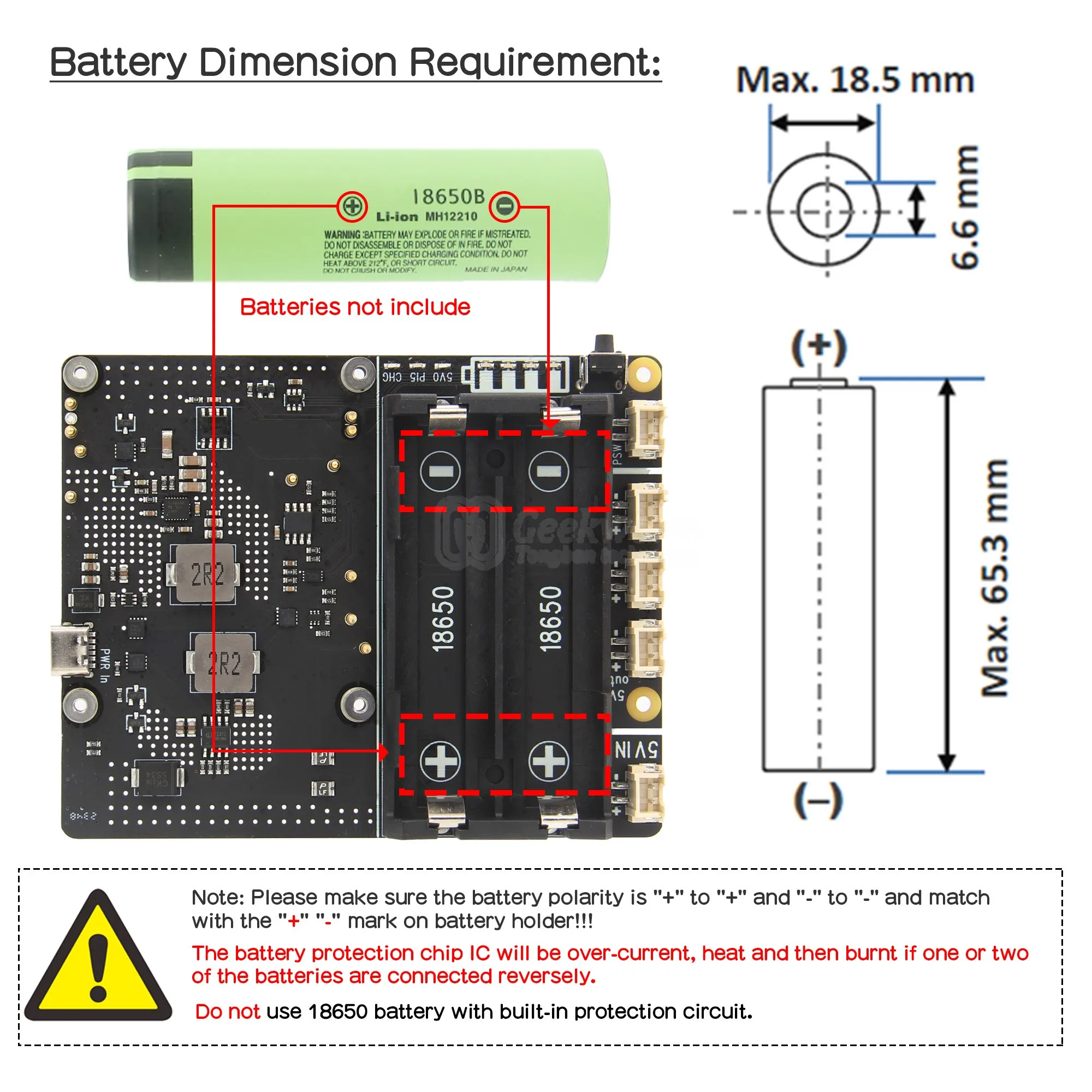

• Features a 2-cell 18650 battery holder


Enhanced Power Management

• Seamless power switching between backup power and power adapter

• On-board push button performs the same actions as the Pi's power button

• Automatically cuts off power when the Pi is shut down

• On-board LED indicates power status and Pi detection

• AC power loss and power adapter failure detection via GPIO

• Auto power-on when power is applied or restored

• Automatic safe shutdown when battery voltage is low (programmable)

• Ultra-low standby power consumption to maximize battery life

• Advanced system power-path management to minimize frequent charging and discharging of batteries

[Parameter]

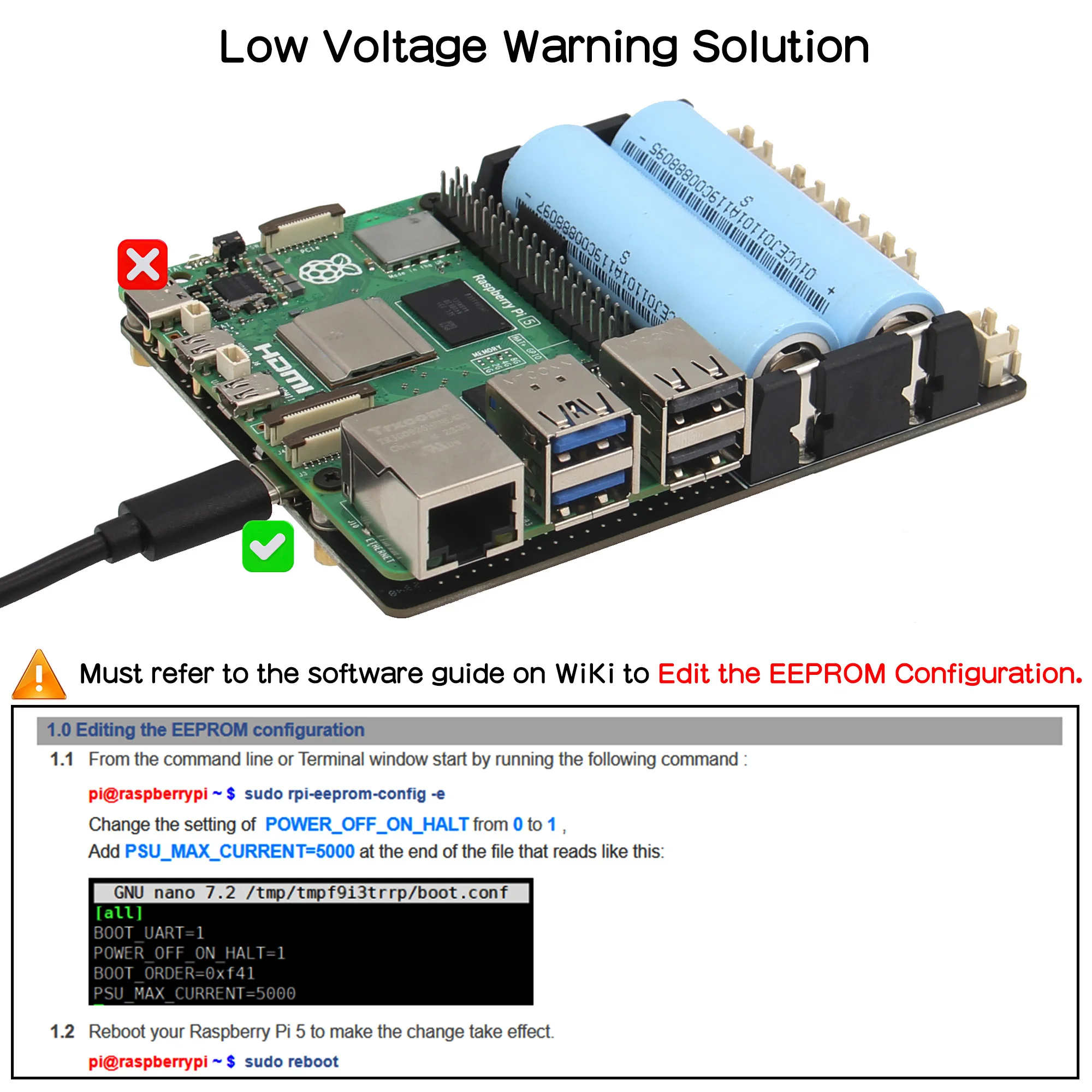

Power input: 5Vdc 5A via USB Type-C / XH2.54-2P connector

UPS output: 5.1V ±5% Max 5A

Battery charging current: Max 2.3-3.2A

Terminal Battery Voltage: 4.23V

Battery Recharge Threshold: 4.1V

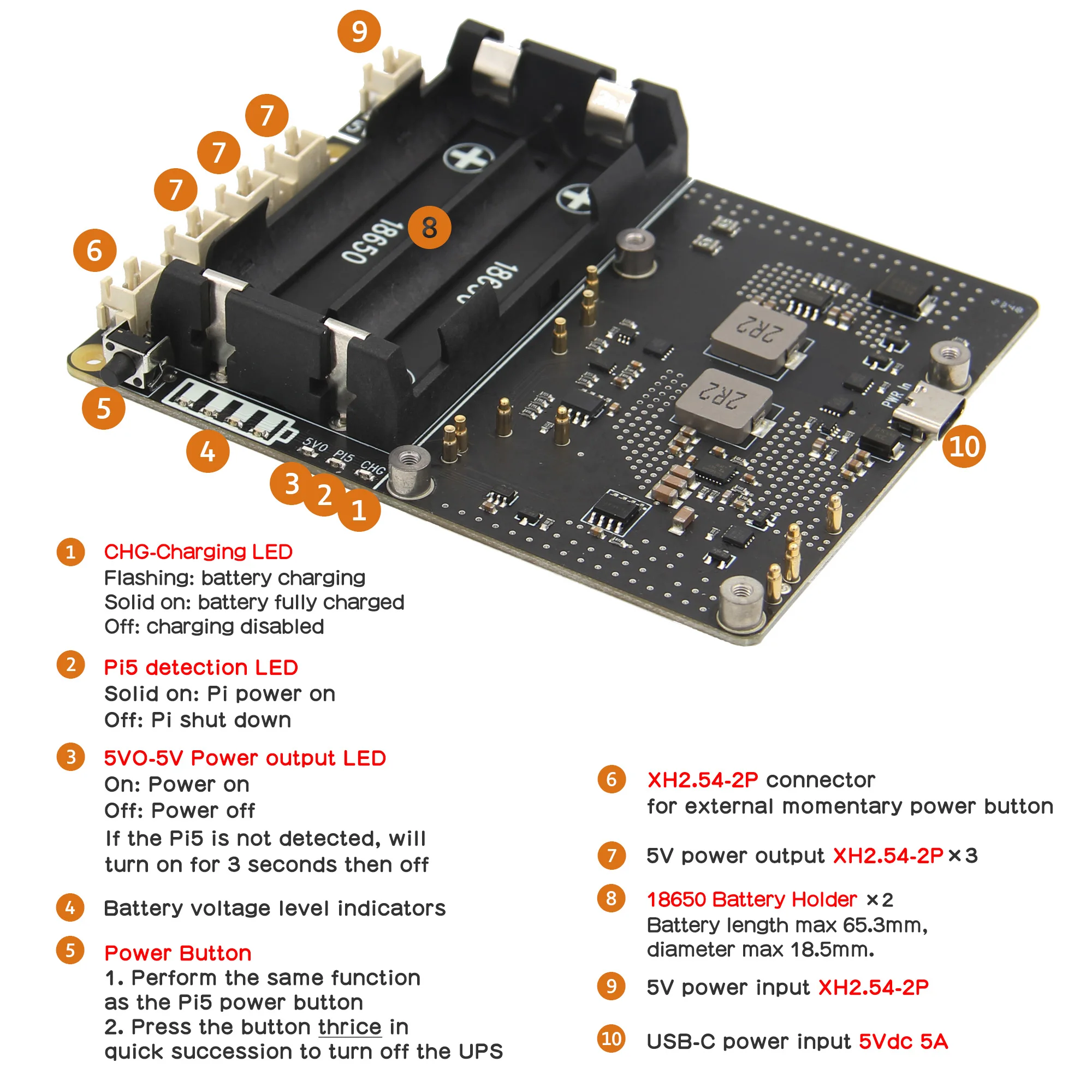

Ports & Connectors:

USB Type-C socket

18650 battery socket x2

5V Power output connector x2 - XH2.54 2-pin

External power button connector x1 - XH2.54-2P

PCB Size: 106.6mm x 85mm

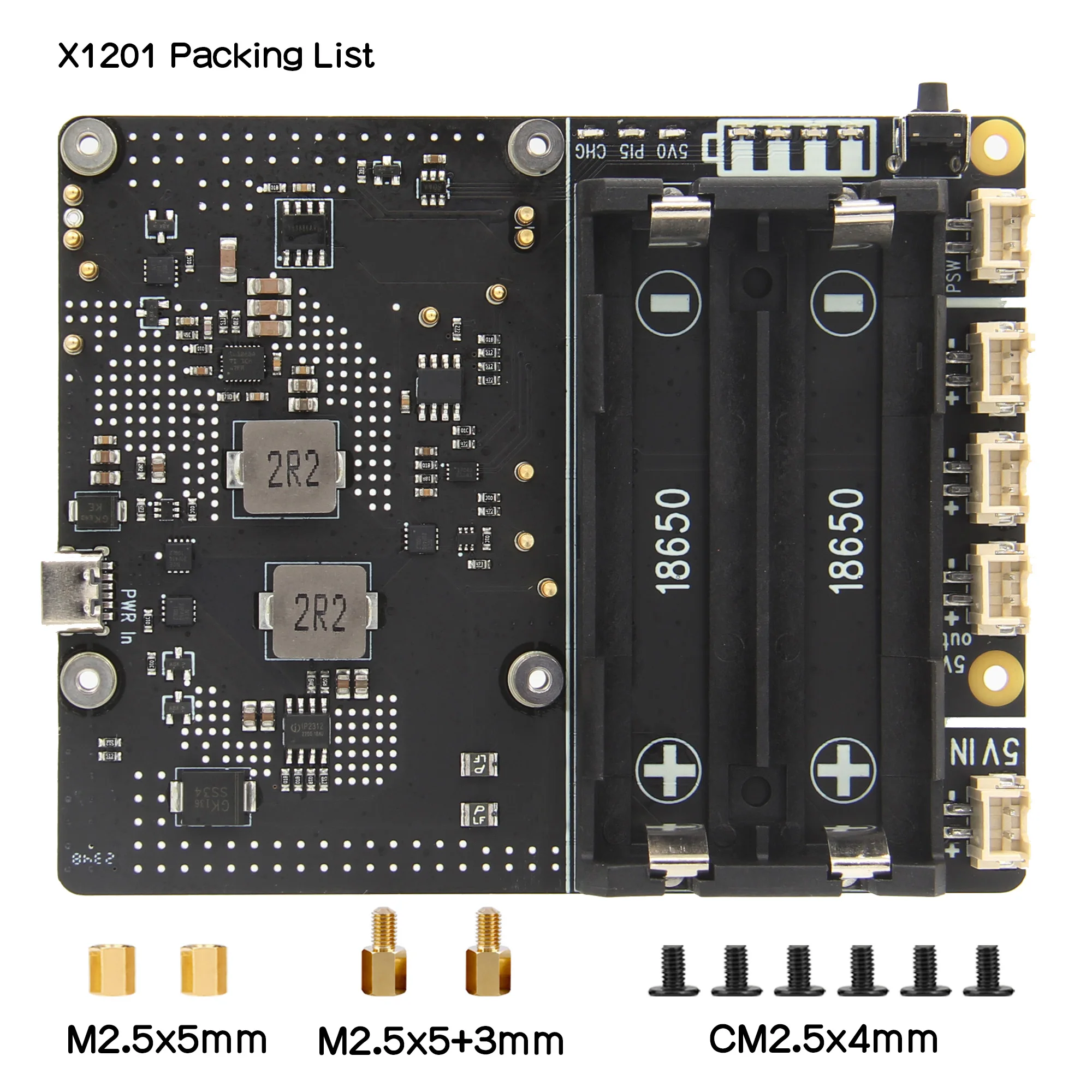

[Packing List]

1 x X1201 UPS shield

1 x M2.5x5mm Spacers

1 x M2.5x5+5mm Spacer

1 x M2.5X5mm Screws

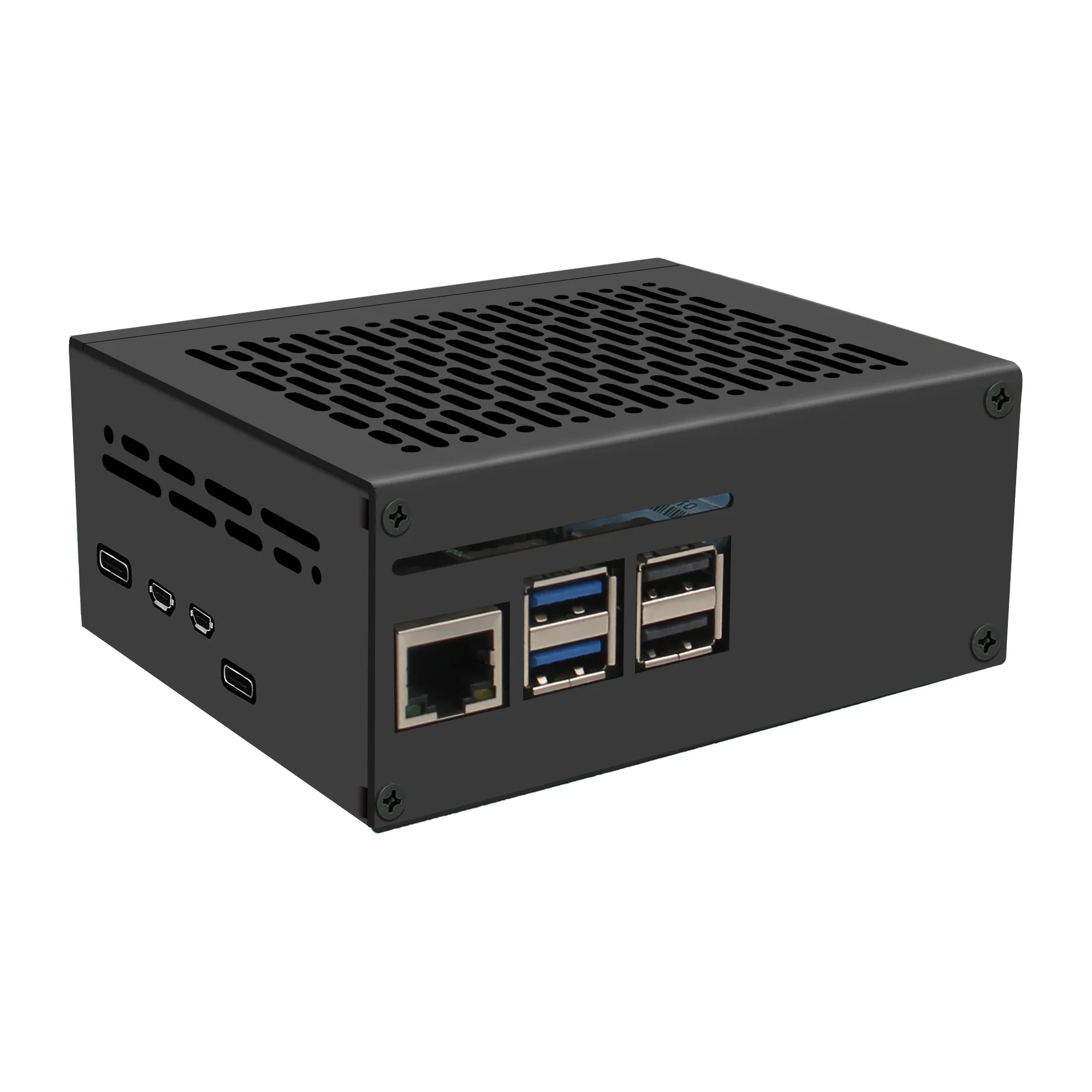

[Matching Case X1201-C1 (not include)]

Please refer to: https://es.aliexpress.com/item/1005007054005781.html
