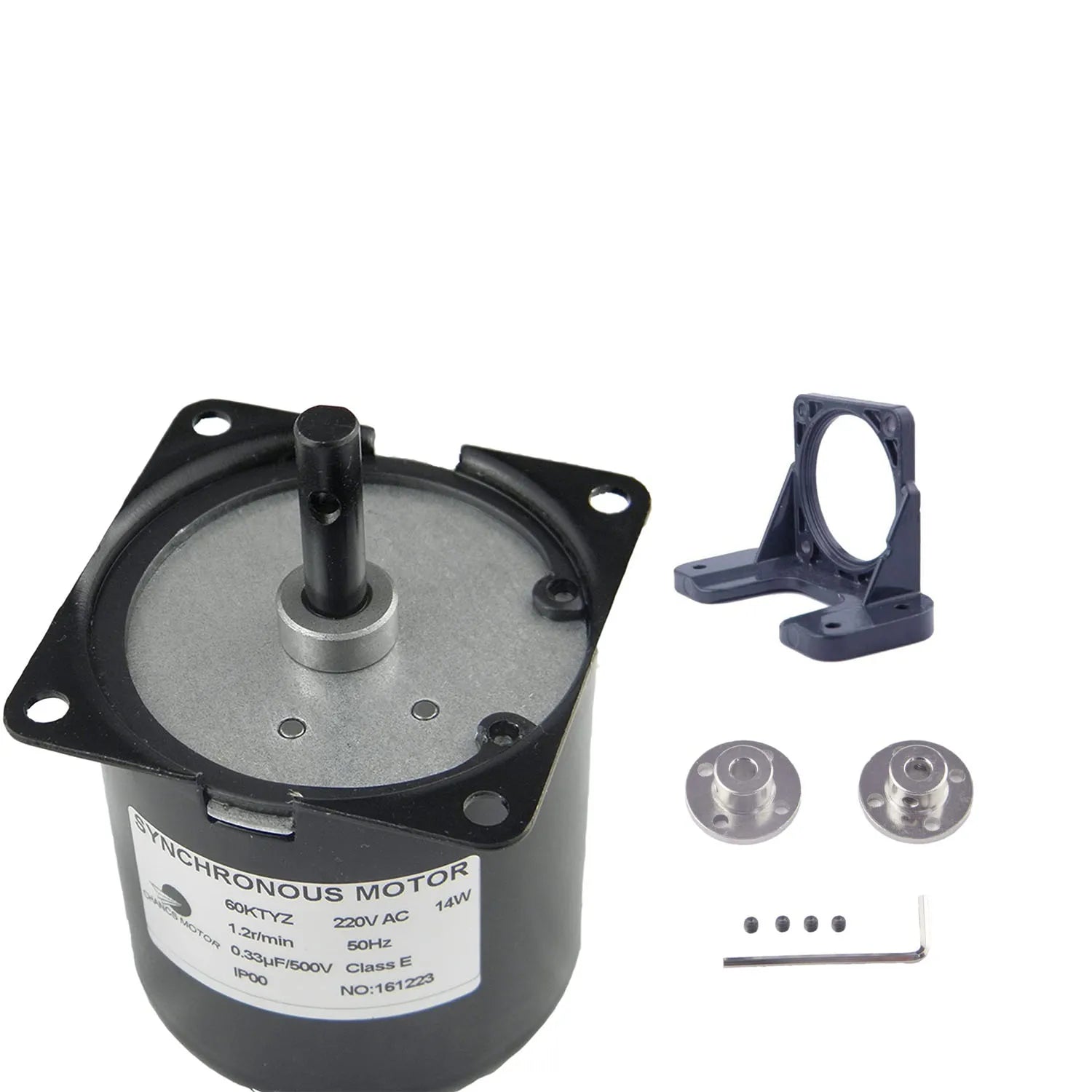

Custom Permanent Magnet Synchronous Gear Motor 220V 1.2RPM CW/CCW With Fixed Bracket and Flange Coupling Manufacturer

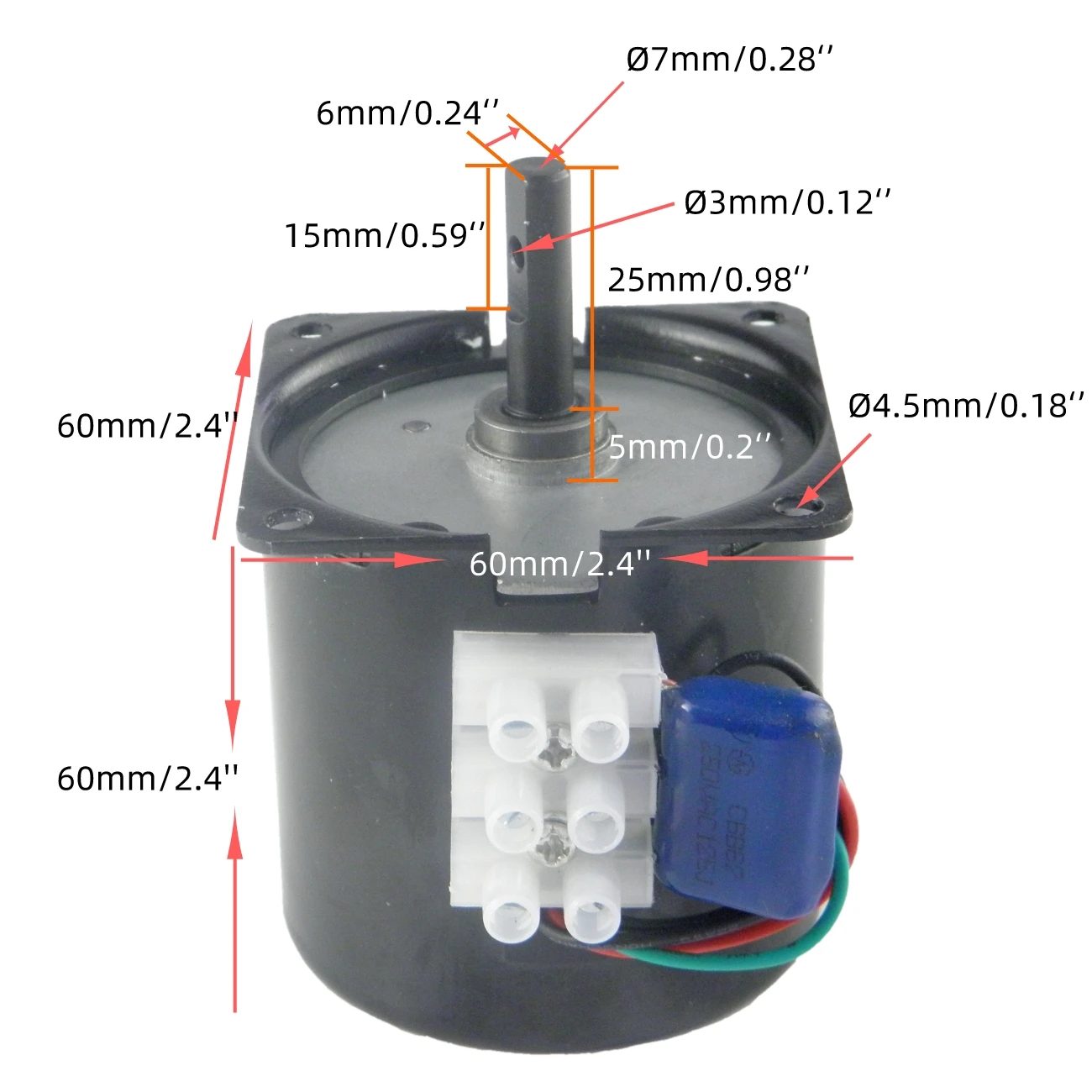

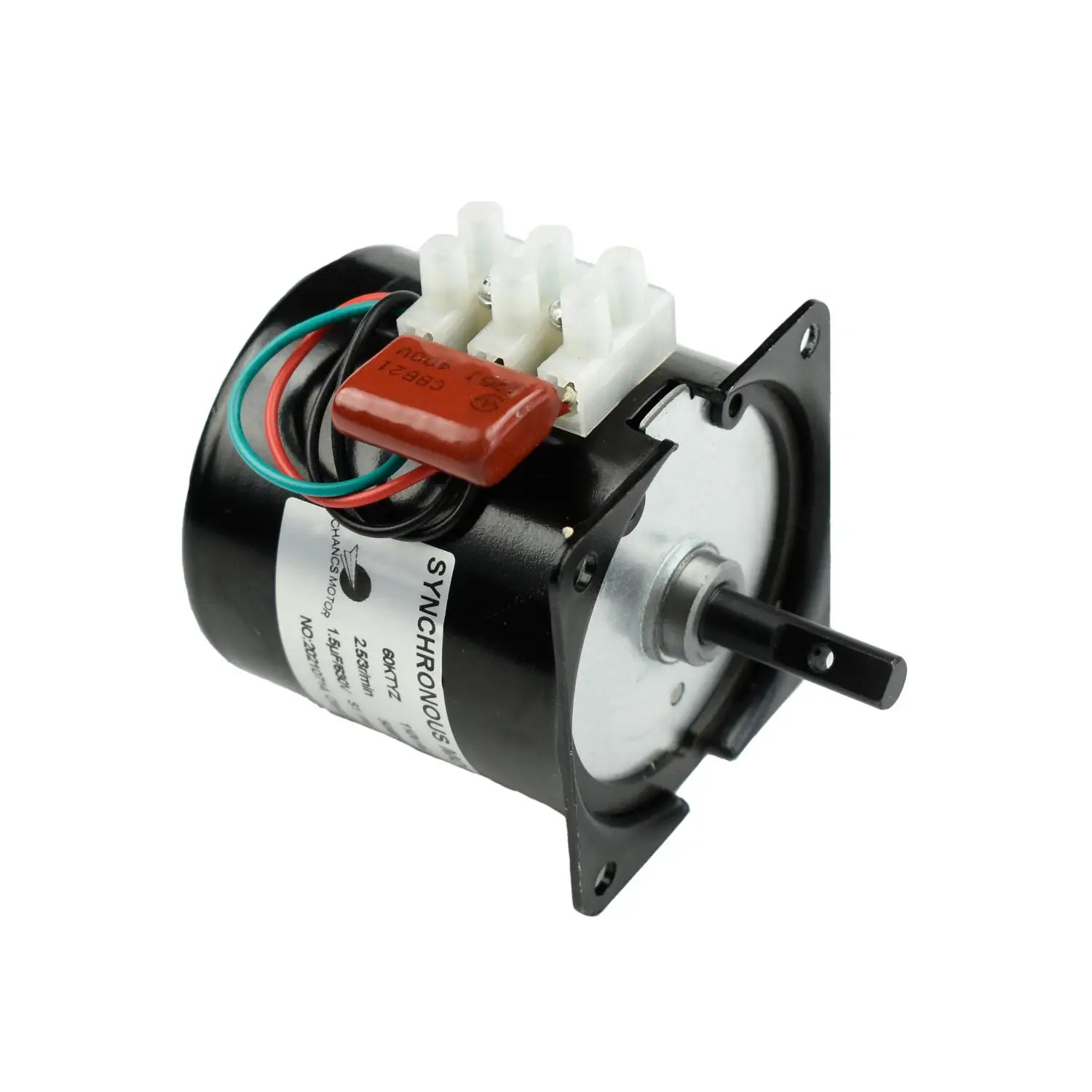

This is a combination of 60KTYZ motor, bracket and flange coupling, this product is a claw-pole permanent magnet synchronous motor with built-in gear reduction mechanism that can control forward and reverse operation. The bracket can fixed motors in a firm way, convenient to use.

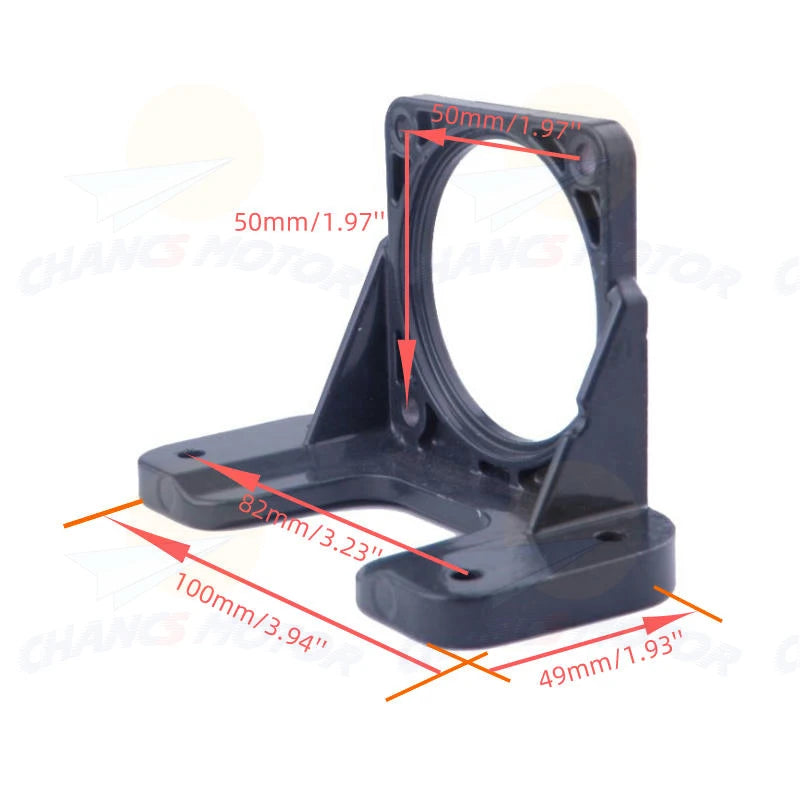

[Specification of Bracket:]

Type: U-Shape/Standard; Surface: Electroplating; Materials: High Strength Steel; Vertical Plane: thickness 6mm/0.24inch, height 69mm/2.72in; Baseboard: app.61mmx68mm/2.4in x 2.68in; Motor mounting hole: 5.5mm;

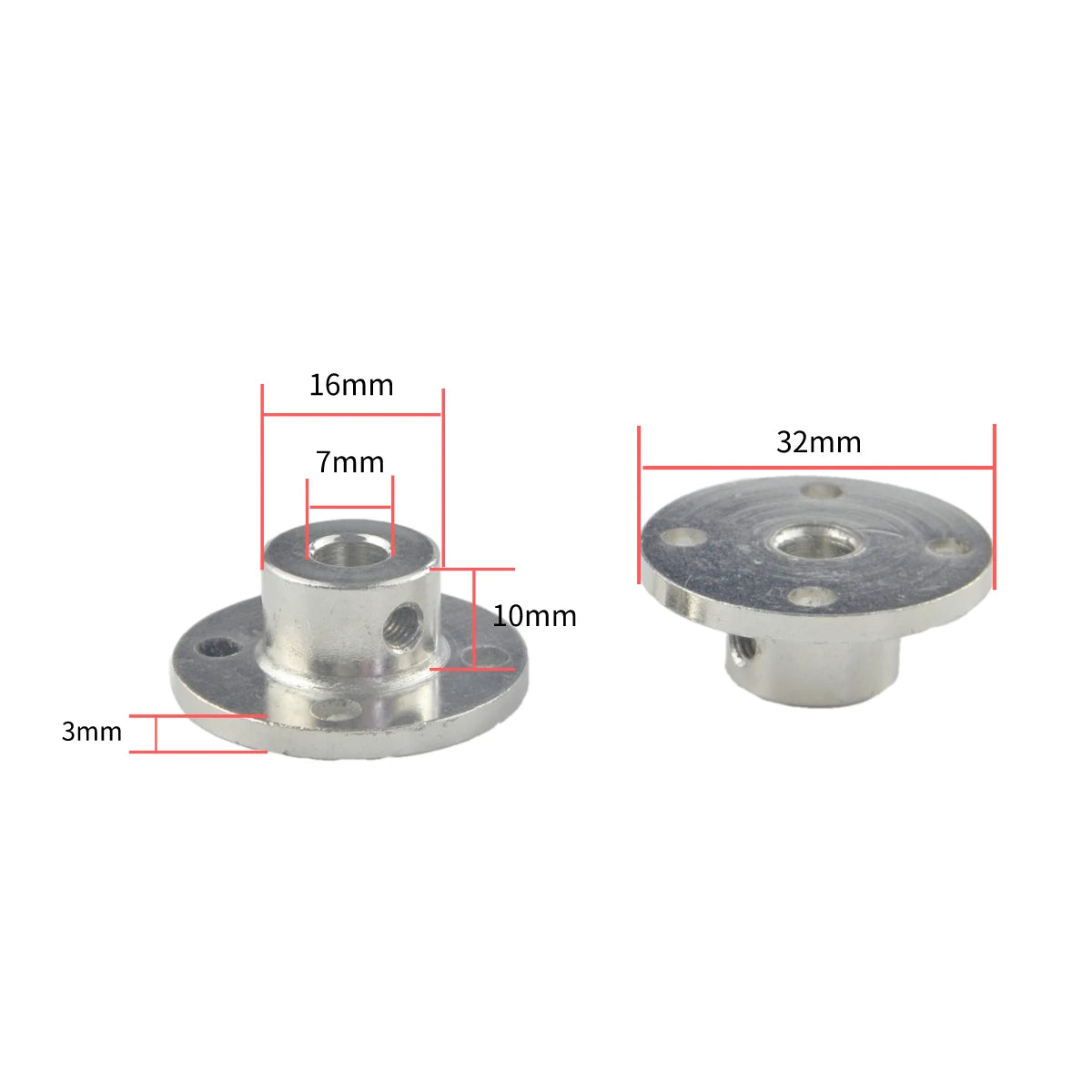

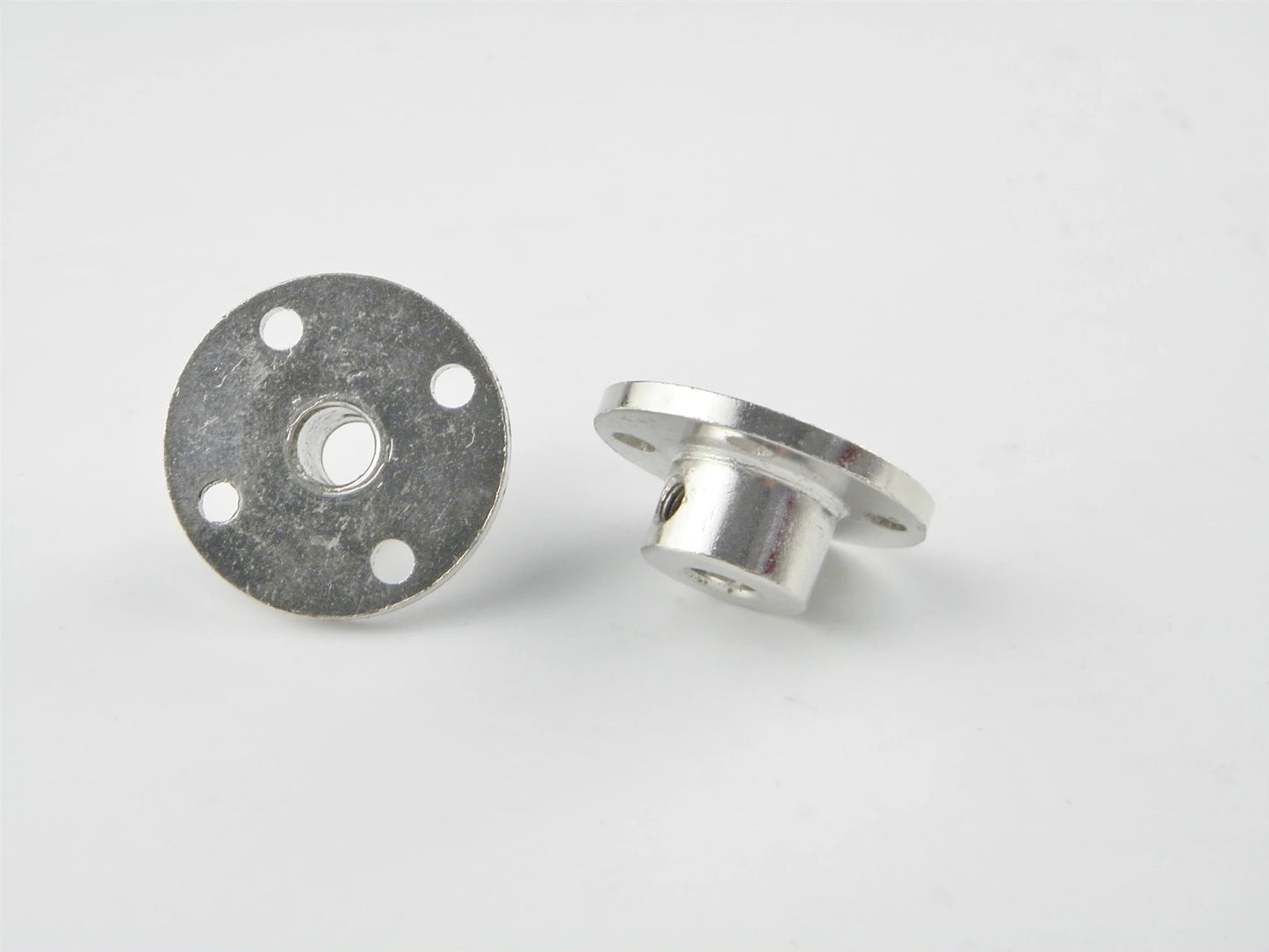

[Specification of Flange Coupling:]

Cylinder Outer Diameter: 16mm; Inner Diameter: 7mm; Cylinder Height: 10mm; Base Diameter: 32mm; Thickness of the base:3mm; Fastening Screw Hole: M4; Base Fixing Screw Hole: M4.

*It is normal the motor get hot when working. The surface temperature will up to 70-90℃(158-194℉). That will NOT influence motor’s service life.

*Please use the voltage within the rated torque of the motor. If you use more than the rated torque of the motor, the shaft will rotate unsteadily and the motor may be damaged.
