Overview:

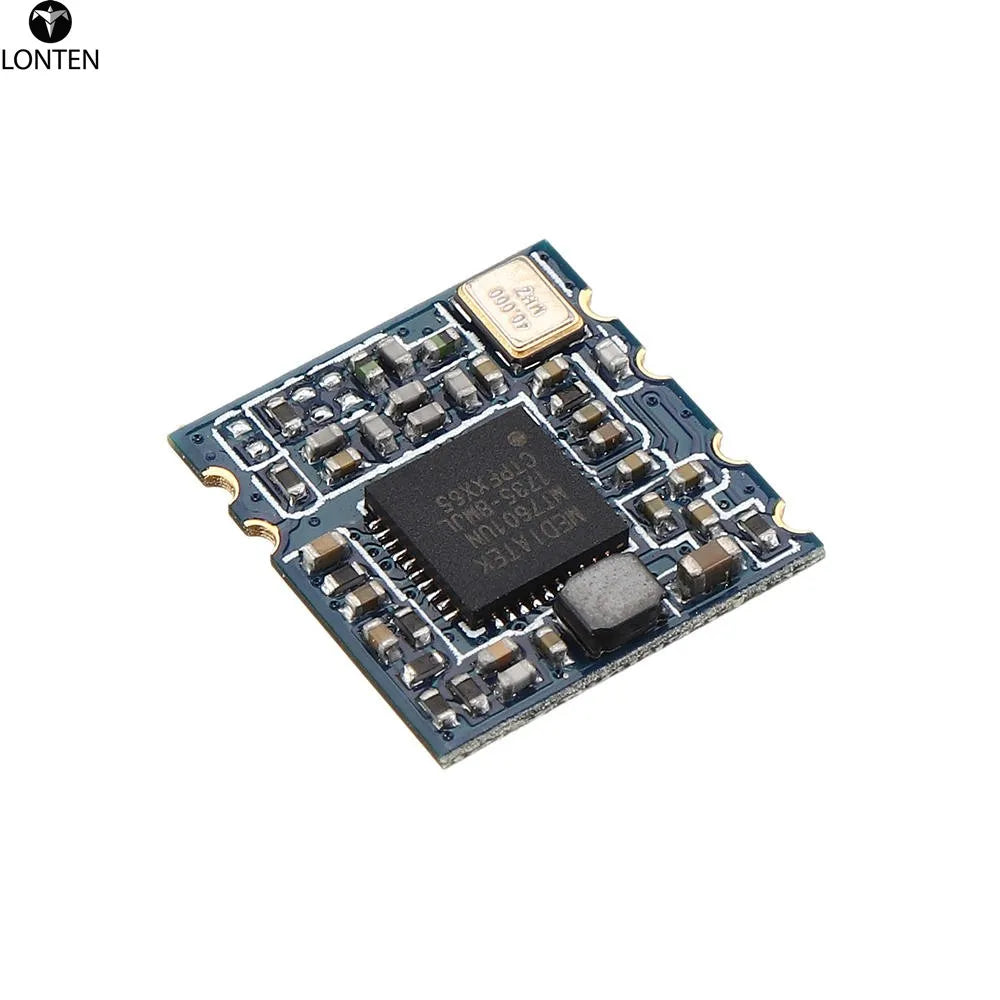

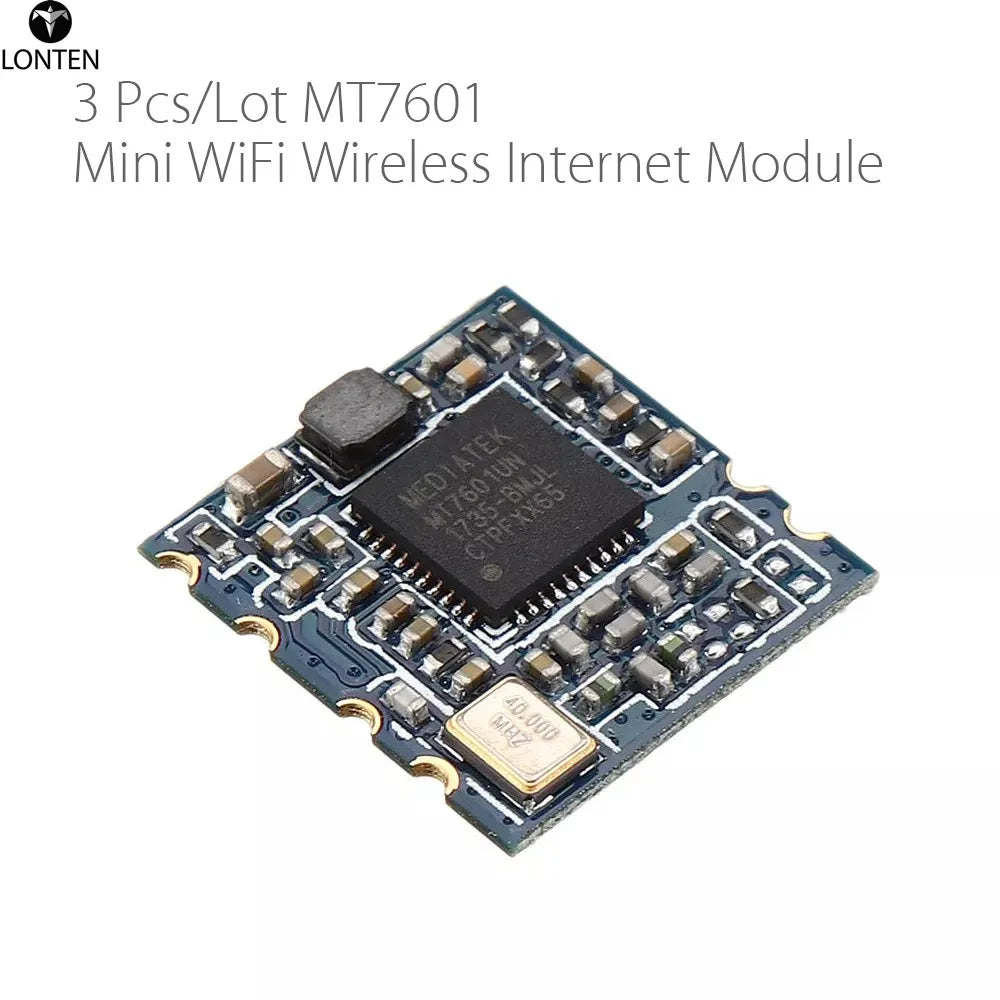

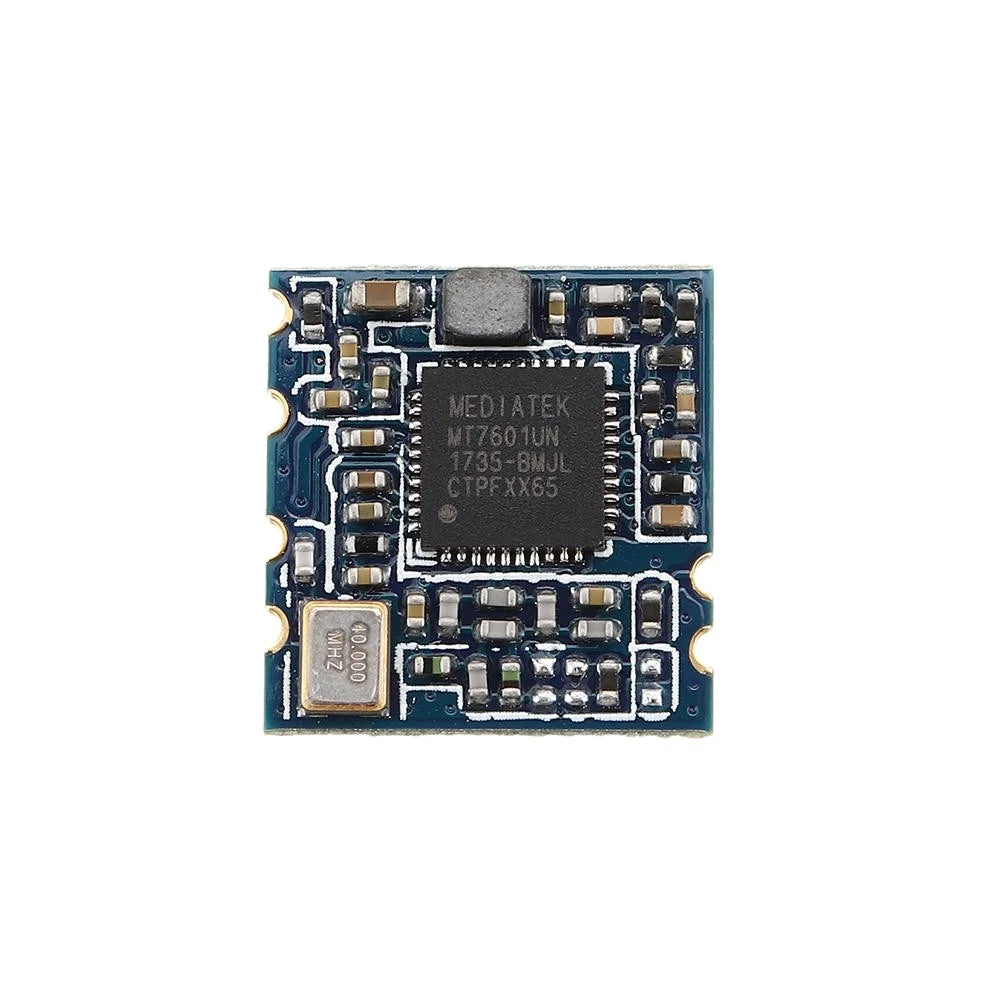

The MT7601U is a highly integrated Wi-Fi single chip which supports 150 Mbps PHY rate. It fully complies with IEEE 802.11n and
IEEE 802.11 b/g standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective
throughput from an extended distance.Optimized RF architecture and baseband algorithms provide superb performance and low power
consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads
the host processor.The MT7601U is designed to support standard based features in the areas of security, quality of service and
international regulations, giving end users the greatest performance any time and in any circumstance.

Features:

IEEE 802.11 b/g/n client
Embedded high-performance 32-bit RISC microprocessor
Highly integrated RF with 55nm CMOS technology
1T1R mode with support of 150Mbps PHY rate
Integrate high efficiency switching regulator
Best-in-class power consumption performance

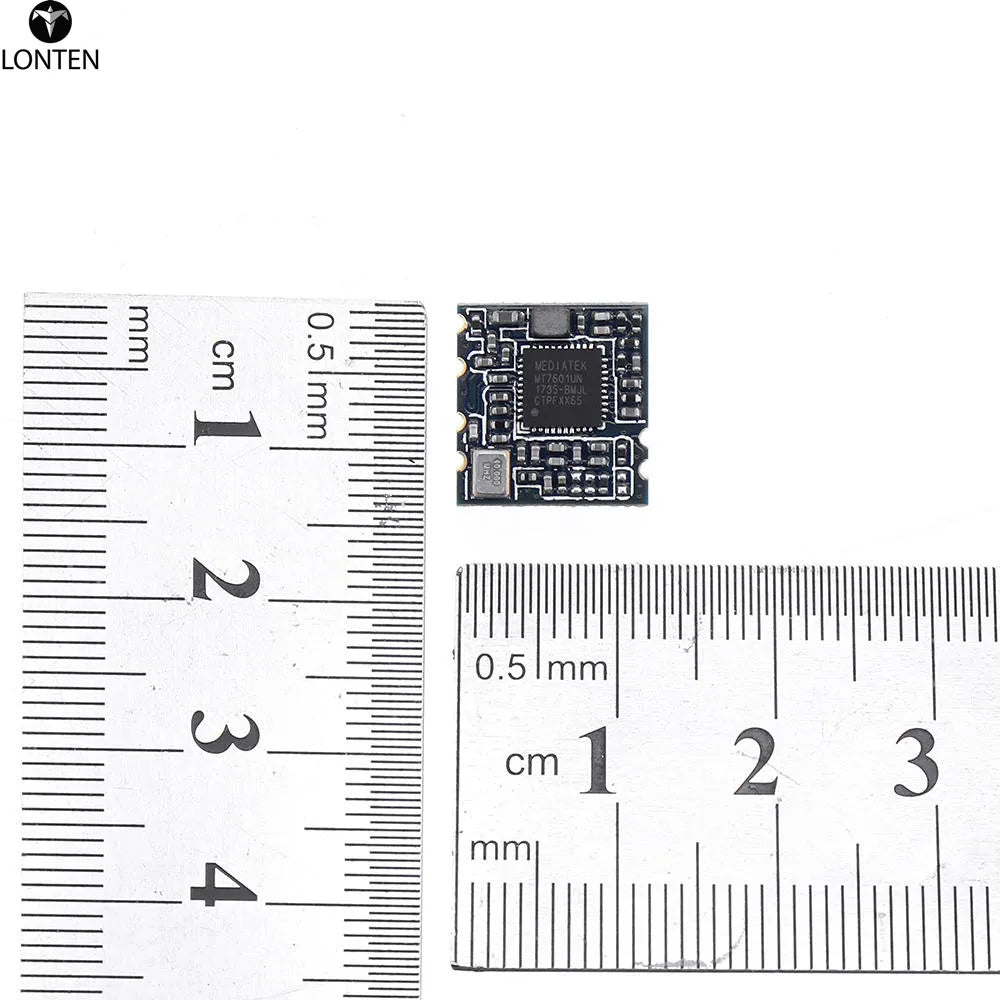

Compact 5mm x 5mm QFN40L package
1/2/3/4-wire PTA Wi-Fi / Bluetooth coexistence support
802.11 d/h/k compliant
Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI
Supports 802.11w protected managed frames
QoS support of WFA WMM, WMM PS
Supports Wi-Fi Direct
Fully compliance with USB v2.0 High-speed mode
Per packet transmit power control
Antenna diversity
Auto-calibration
