Lonten Tech

Custom PCBA STEMlab 125-14 X-Channel System Development BoardsManufacturer

Custom PCBA STEMlab 125-14 X-Channel System Development BoardsManufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out


STEMlab 125-14 X-Channel System is designed for applications that require multi-channel RF signal acquisition and generation.

It enables the user to stream analog and digital signals from/to client’s PC.

X-Channel System consists of multiple STEMlab 125-14 devices that are modified and come with synchronization cables and software that supports multi-channel streaming of RF analog and digital, input and output signals from/to client PC.

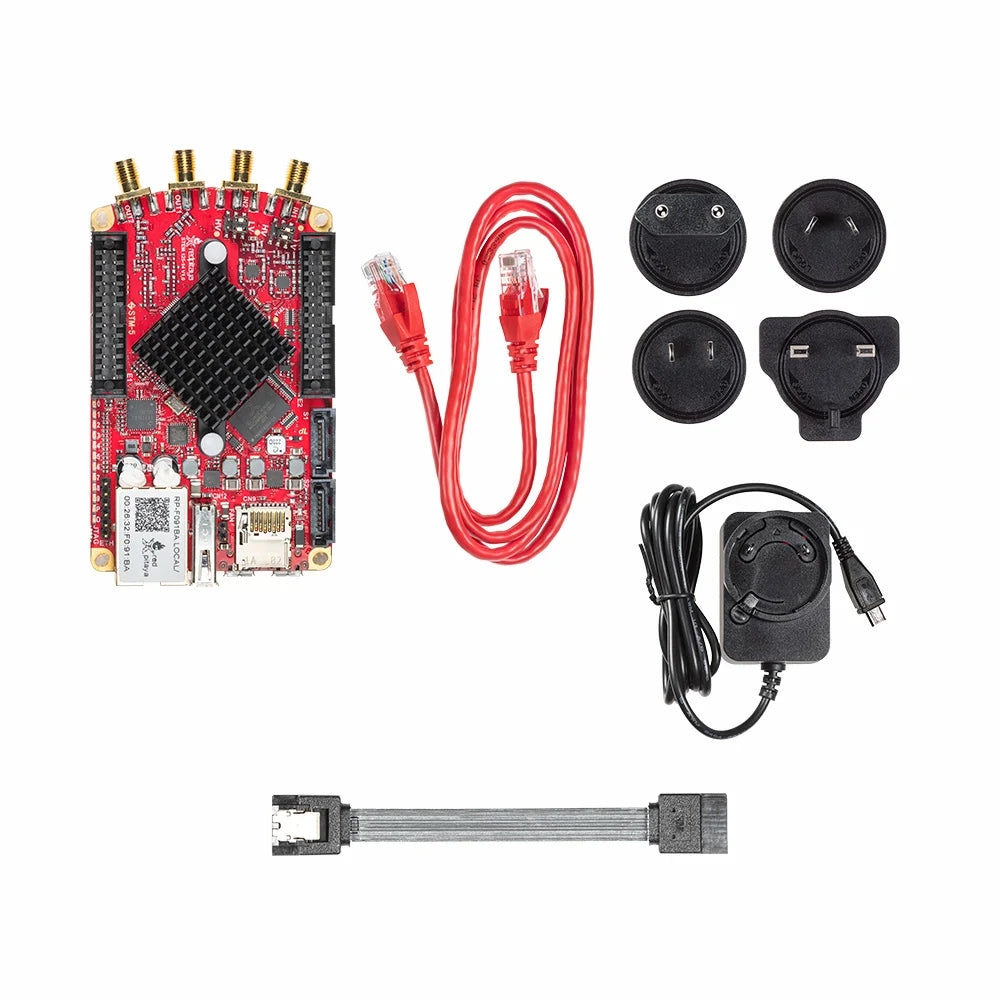

What is in the box:

– One Red Pitaya STEMlab 125-14 Low Noise (MASTER device)

– One or more** Red Pitaya STEMlab 125-14 Low Noise SLAVE devices that come with SATA synchronization cable

– Each device in the kit comes with its own:

  • SD card (16GB, class 10)

  • Ethernet cable (1m)

  • Power supply (5V, 2A)

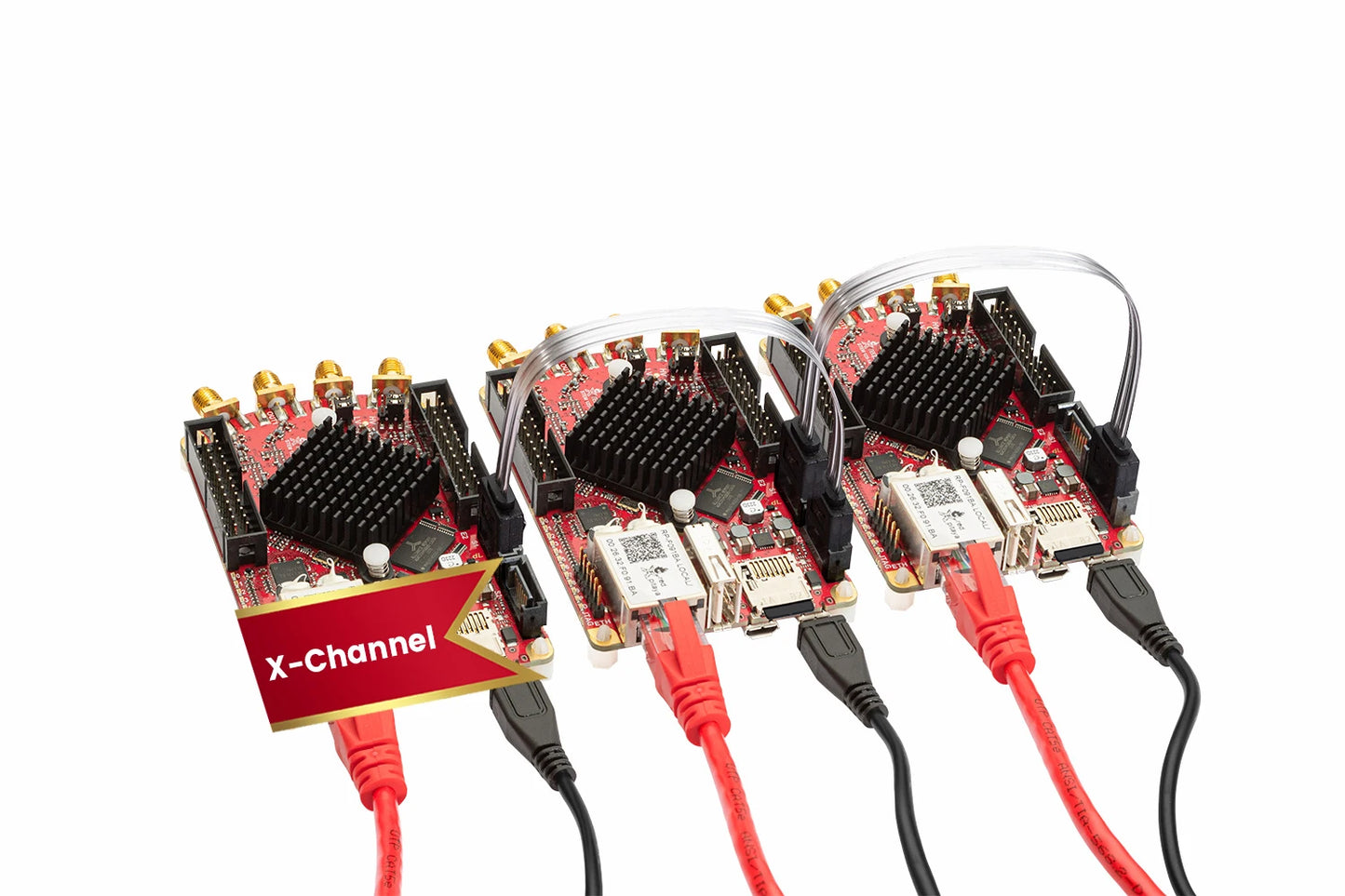

STEMlab 125-14 X-Channel System consists of multiple Red Pitaya STEMlab 125-14 devices (one MASTER and one or multiple SLAVEs), that are synchronized using SATA cables and software that supports multi-channel RF signal acquisition and generation.

MASTER STEMlab 125-14 provides clock and triggers to SLAVE STEMlab 125-14 devices over SATA cable. With each added STEMlab 125-14 SLAVE device system gains two additional RF inputs and two additional RF outputs.

X-Channel streaming software provides the ability to stream RF analog and digital input and output signals from/to client PC and configure it completely remotely.




Basic

Processor

Dual-Core ARM Cortex-A9 MPCore

FPGA

Xilinx Zynq 7010

RAM

512MB (4Gb)

System memory

Micro SD up to 32GB

Connectivity

Ethernet

1 Gbit

USB

USB 2.0

WIFI

Using Wi-Fi dongle

RF inputs

Channels

2

Sample rate

125MS/s

ADC resolution

14 bit

Full scale voltage range

± 1V / ± 20V

Input Coupling

DC

Bandwidth

DC-60MHz

Input impedance

1M Ω

RF outputs

Channels

2

Sample rate

125MS/s

DAC resolution

14 bit

Full scale voltage range

± 1V

Load impendance

50 Ω

Shortcut protection

Yes

Typical raising/falling time

2V / 10ns

Bandwidth

DC-60MHz

Extension connector

Digital IOs

16

Analog inputs

4 channels 0-3.5V 12bit

Analog outputs

4 channels 0-1.8V 12bit

Communication interfaces

I2C, SPI, UART

Available voltages

– 4V, + 3.3V, + 5V

Synchronisation

Trigger input

Through extension connector

Daisy chain connection

Over SATA connection

Ref. clock input

N/A

More

Use case

Industry

Option

4 Ch IN+4 Ch OUT, 6 Ch IN+6 Ch OUT, 8 Ch IN+8 Ch OUT, 10 Ch IN+10 Ch OUT

Weight

0.5 kg

Dimensions

52 × 22 × 13 cm


 Welcome Customize Order!
