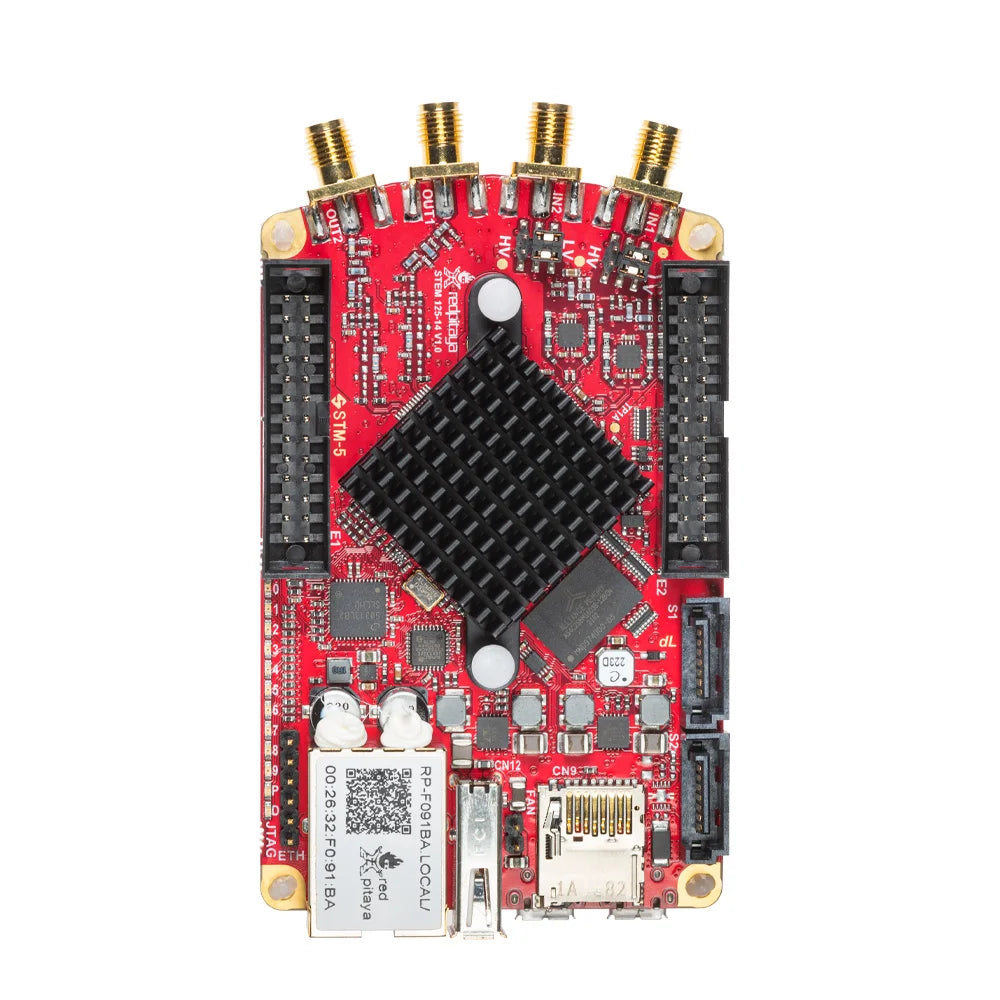

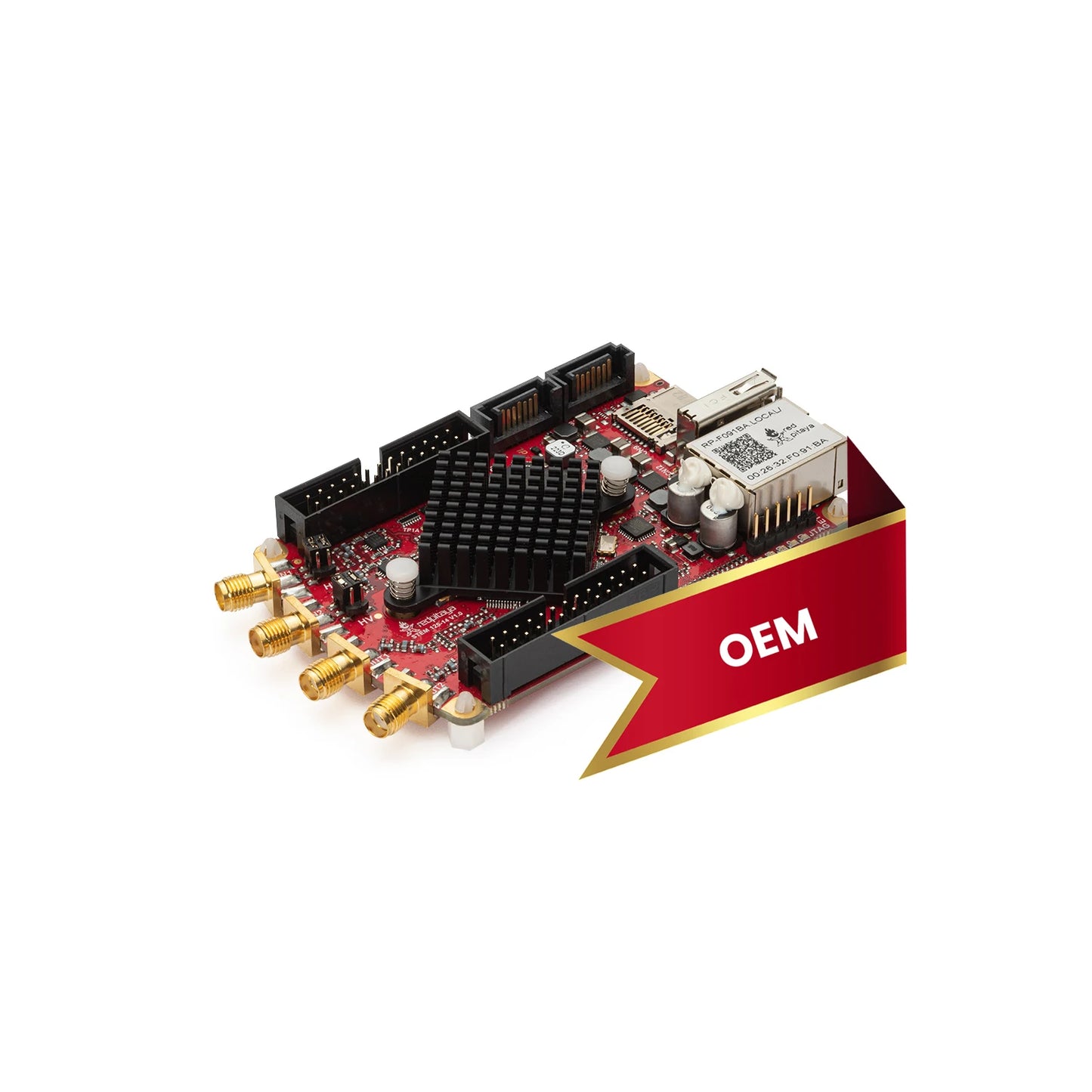

STEMlab 125-14 Board for OEM partners



We are setting the industry standard in product quality and customer support, our STEMlab OEM boards are easy to integrate and available in multiple hardware and software configurations.




Product description

We are setting the industry standard in product quality and customer support, our STEMlab OEM boards are easy to integrate and available in multiple hardware and software configurations.




Basic

Processor

Dual-Core ARM Cortex-A9 MPCore

FPGA

Xilinx Zynq 7010

RAM

512MB (4Gb)

System memory

Micro SD up to 32GB

Connectivity

Ethernet

1 Gbit

USB

USB 2.0

WIFI

Using Wi-Fi dongle

RF inputs

Channels

2

Sample rate

125MS/s

ADC resolution

14 bit

Full scale voltage range

± 1V / ± 20V

Input Coupling

DC

Bandwidth

DC-60MHz

Input impedance

1M Ω

RF outputs

Channels

2

Sample rate

125MS/s

ADC resolution

14 bit

Full scale voltage range

± 1V

Load impendance

50 Ω

Shortcut protection

Yes

Typical raising/falling time

2V / 10ns

Bandwidth

DC-60MHz

Extension connector

Digital IOs

16

Analog inputs

4 channels 0-3.5V 12bit

Analog outputs

4 channels 0-1.8V 12bit

Communication interfaces

I2C, SPI, UART

Available voltages

– 4V, + 3.3V, + 5V

Synchronisation

Trigger input

Through extension connector

Daisy chain connection

Over SATA connection

Ref. clock input

N/A
