SDRlab 122-16 External clock Standard kit
CAUTION: This board needs an external clock signal 122.88MHz in order to function!
What is in the box
SDRlab 122-16 External clock is based on the SDRlab 122-16 model that is modified to be used with an external clock oscillator, which is important especially for RF applications that operate at other frequencies, require better quality clock or clock synchronization.
With this modification, users can provide their own clock for the Red Pitaya device through the E2 extension connector.

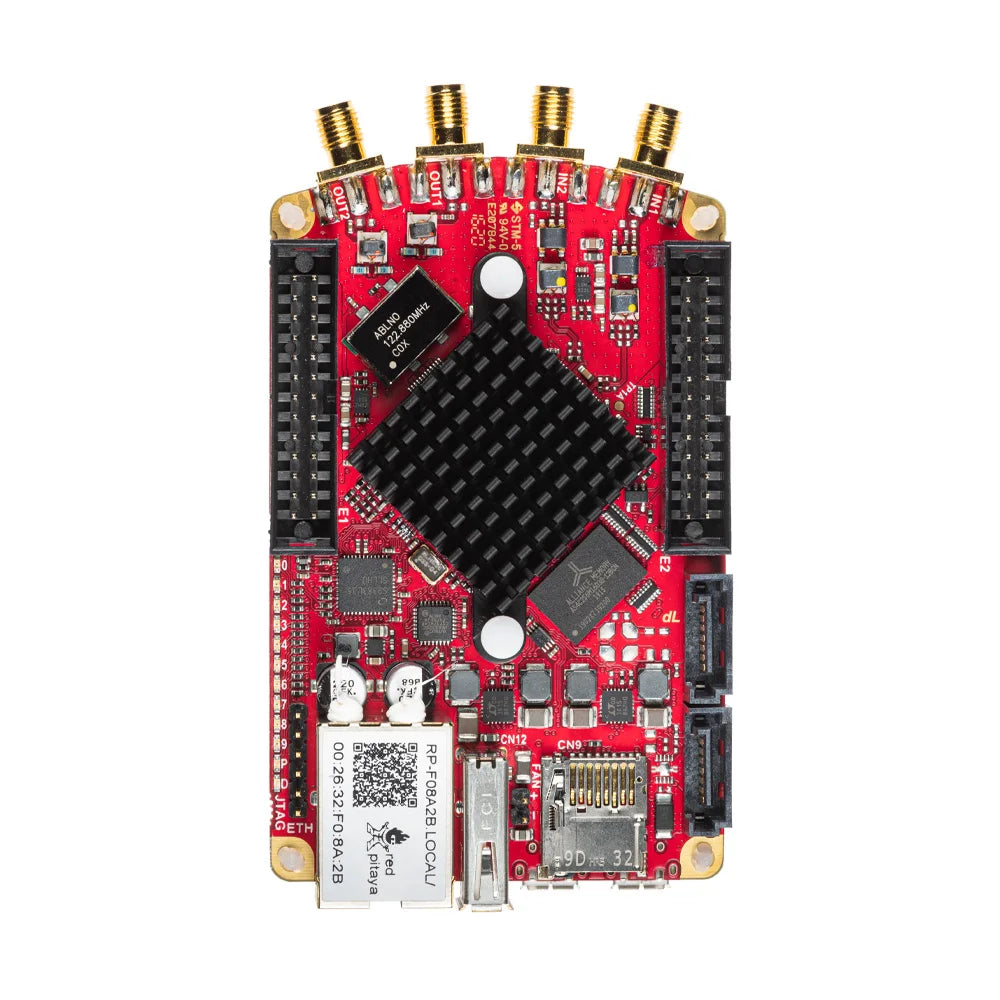

– Red Pitaya SDRlab 122-16 board

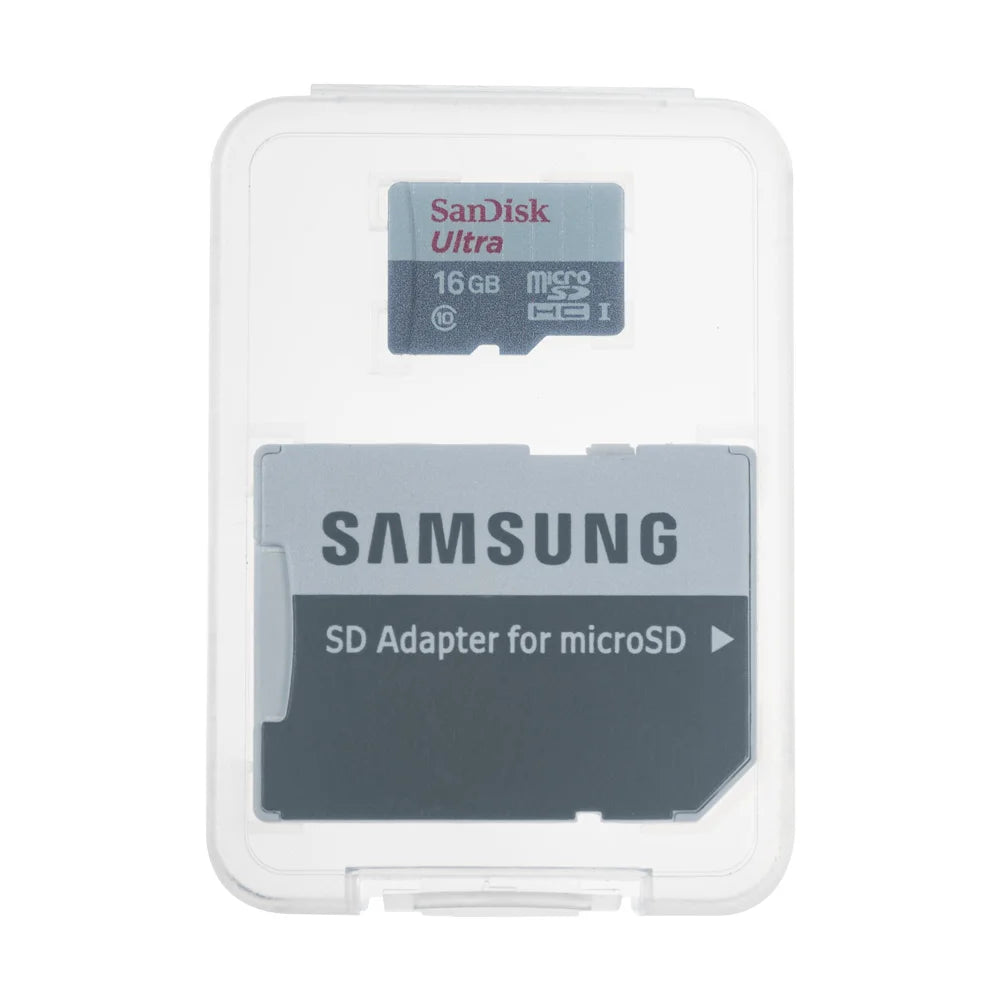

– SD card (16GB, class 10)

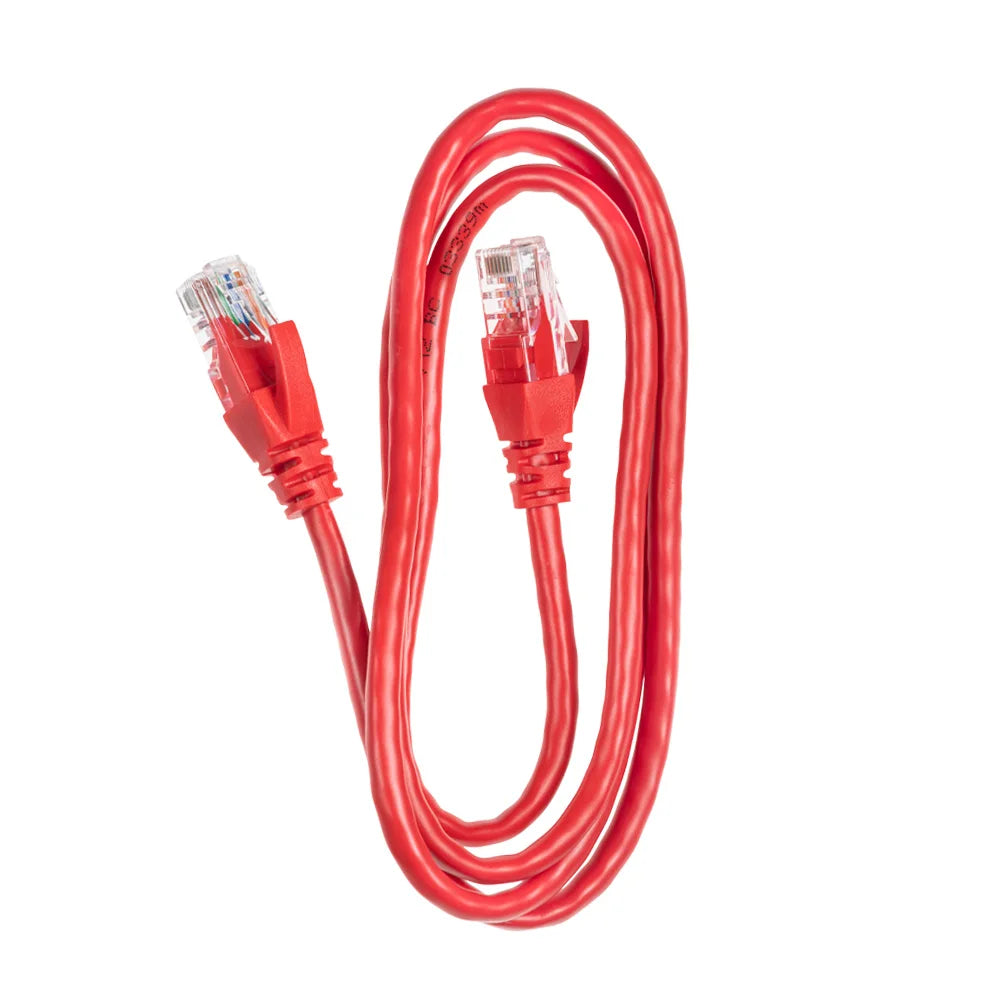

– Ethernet cable (1m)

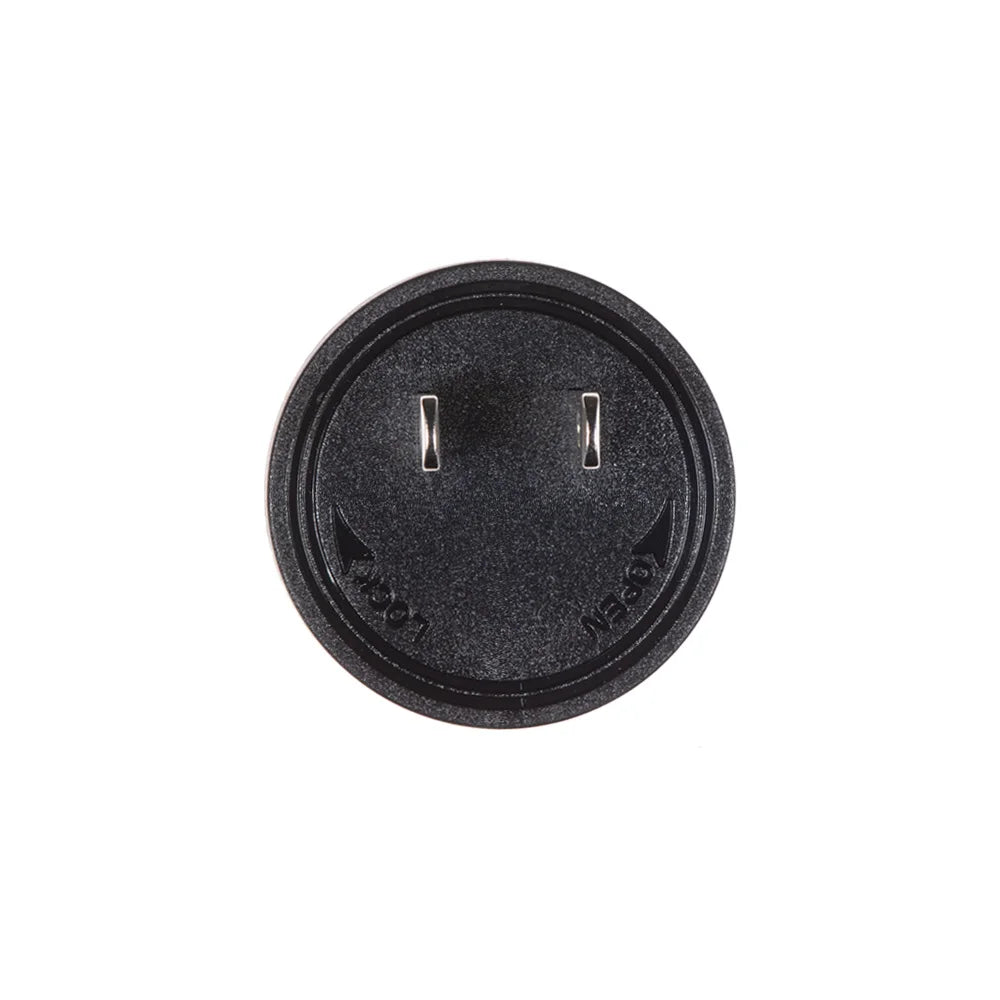

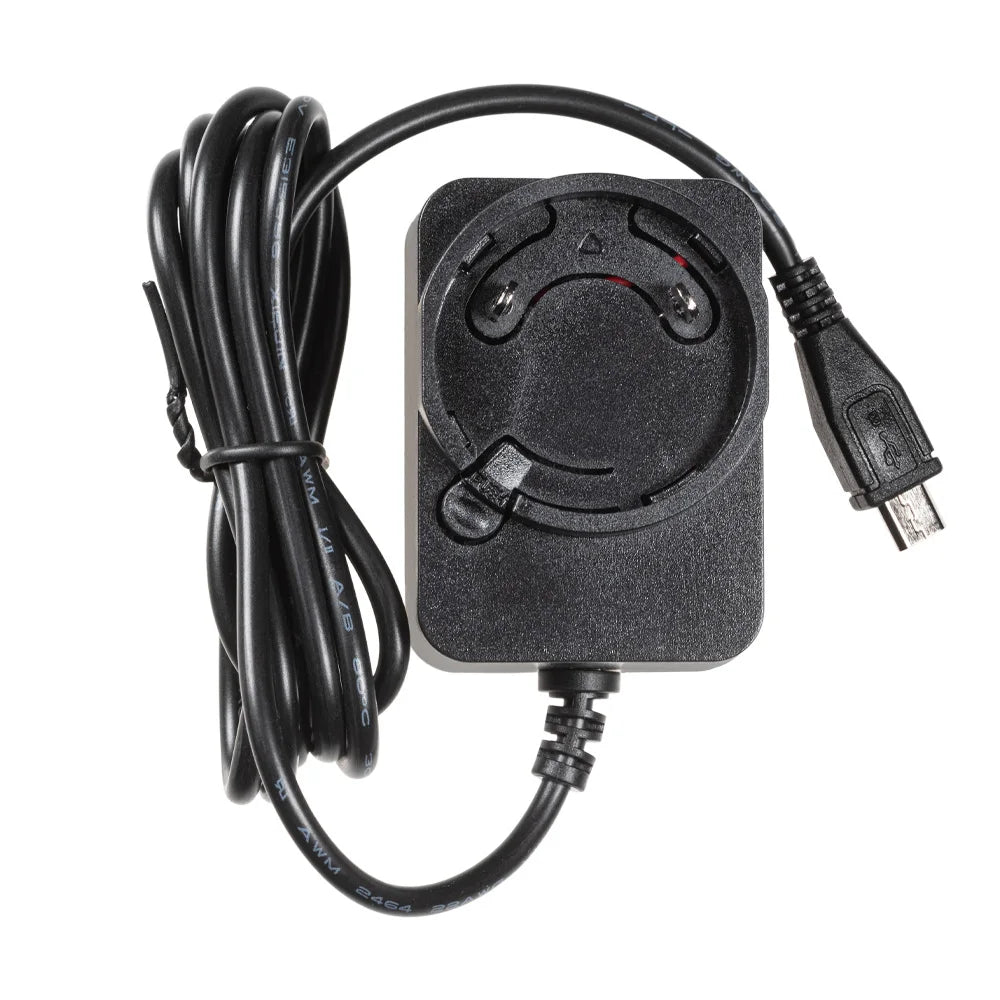

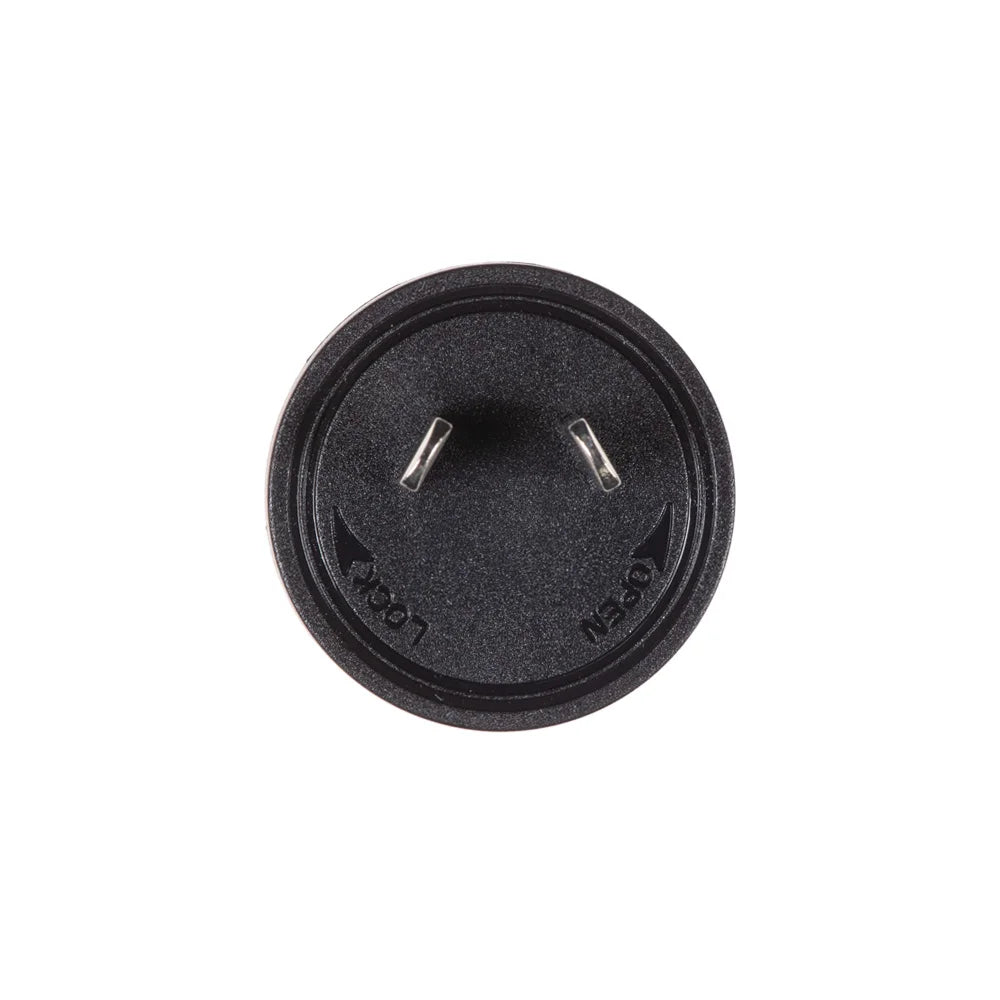

– Power supply (5V, 2A)
– Tailored for SDR & other RF applications, HF and 50MHz bands
– No DC coupling ! minimum RF Input frequency (-3dB): 300kHz
– Comes with two 16 bit ADCs 50 ohm inputs; 14 bit DACs 50 ohm outputs
– Three times bigger dual core ARM Cortex A9 + Xilinx Zynq 7020 FPGA
– Bigger FPGA provides more real-time processing capabilities
– Hardware compatible with HPSDR
– Improved distortions, dynamic range, sensitivity, noise & crosstalk
SDRLAB 122-16 External clock is based on the SDRlab 122-16 model that is modified to be used with an external clock oscillator, which is important specifically for RF application that operate at other frequencies, require better clock or clock synchronization.
With this modification, users can provide their own clock for the Red Pitaya device through the E2 extension connector.
CAUTION: This board needs an external clock signal 122.88MHz in order to function !
