RK3588 SoM System Computer on Module CPU Board

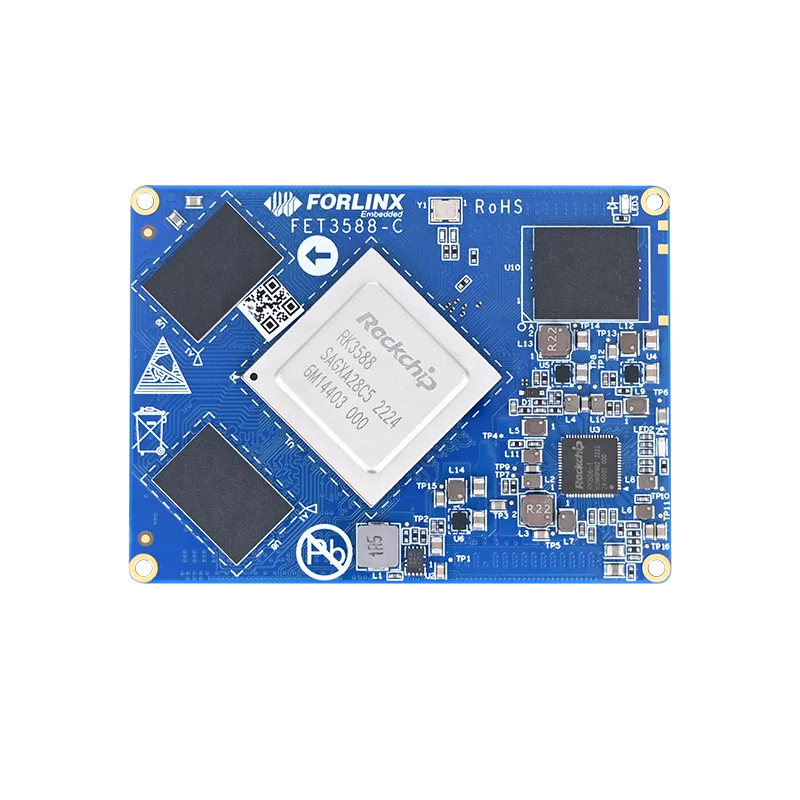

FET3588-C System on Module (SoM) carries Rockchip’s advanced hybrid processor RK3588 contains quad-core Cortex-A76 and
Cortex-A55 cores, A76 core runs up to 2.4GHz, and A55 core clock up to 1.8GHz. It has a super advanced engine can support up to 8K output, quad-screen with different content output; The SoM has been subjected to rigorous ambient temperature testing, which approve that it could be a trusted and best option for your high-end applications and products.



New Generation Advanced AIoT Processor
As a universal 8K supported SoC, RK3588 is outstanding in integer operations, floating-point arithmetic, RAM, low-power and even the outline. Advanced 8nm processing, Big& Little core structure and L3 cache, which are all have been greatly improved its computing capability.



Triple-core NPU up to 6 TOPS
RK3588 processor contains a triple-core NPU, supports co-work and work independently; Supports supports INT4/INT8/INT16/FP16 hybrid operation and computing power is up to 6TOPs. MAC utilization improved by more than 28% together with 2.0 RKNN TOOLkit2 can meet most demand for edge computing.



8K Encoder/ Decoder Exploring
RK4588 supports 8K display output, supports H.265 and VP9 decoder by 8K@60fps, H.264 decoder by 8K@30fps, and AV1 decoder by 4K@60fps. It’s a user friendly platform for massive video playing, completely compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.

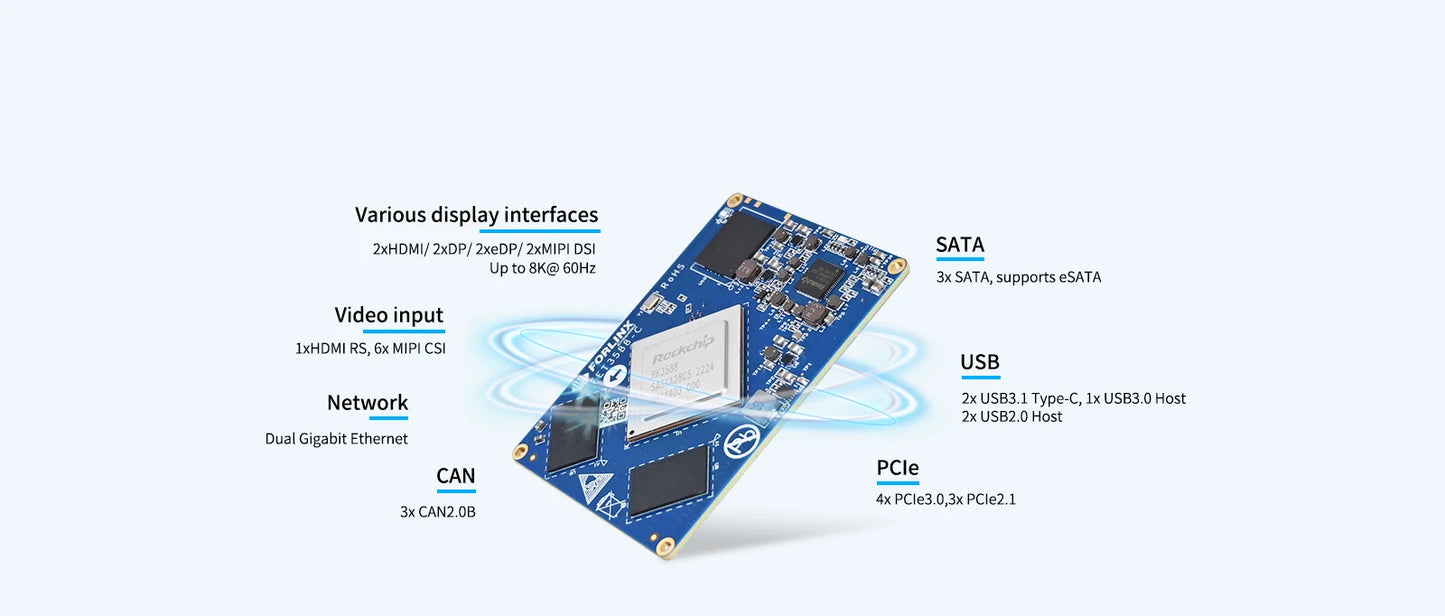

Various display interfaces, supports quad-screen playing with different content
Various display interfaces such as 2x HDMI 2.1, 2x eDP 1.3, 2x DP 1.4, 2x MIPI-DSI and BT.1120 are available. Can support quad-screen playing together but with different content, up to 7680x4320@60Hz output, will take users fantastic visual experience.



New generation ISP, meeting the demand for image quality improving.
RK3588 introduces a new generation totally hardware-based maximum 48-Megapixel ISP3.0. It implements a lot of algorithm accelerators, such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, dehaze, fisheye correction, gamma correction and so on.



Rich ready-to-use peripheral source




OK3588-C Carrier Board Pin Diagram

OK3588-C single board computer consists of SoM FET3588-C and carrier board, it could be a nice evaluation kit for testing purpose.



Multiplied isolation circuits, make the board a trusted platform.




User friendly reference files support and efficient after-sale technical support.




Supported OS

FET3588-C System on Module Hardware Features

CPU
Rockchip RK3588
CPU: quad-core Cortex-A76@2.4GHz+ quad-core Cortex-A55@1.8GHz
NPU: 6TOPS, supports INT4/INT8/INT16/FP16 mixed operating;
GPU:
• Mail-G610 MP4
• OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2, Vulkan1.2
VPU:
Decode:
• H.265, VP9: up to 8K@60fps
• H.264 up to 8K@30fps
• AV1 up to 4K@60fps
Encode:
• H.265/HEVC, H.264/AVC: up to 8K@30fps
RAM
4GB/8GB LPDDR4x
Flash
32GB/64GB eMMC
Power input
DC 12V
Operating temp
0℃ ~ +80℃
Package
Board-to-board connector(4*100-pin, 0.4mm pitch, combined height 1.5mm)
Interface
Type
QTY
Spec.

Video input
MIPI DC
PHY(DPHY/CPHY)
2
• Supports DPHY or CPHY;
• 4-lane MIPI DPHY V2.0m, each line up to 4.5Gbps;
• 3-lane MIPI CPHY V1.1, each line up to 2.5Gsps;
Supported MIPI-CSI combo:
2 MIPI DCPHY+ 4 x 2-lane MIPI CSI DPHY
2 MIPI DCPHY+1 x 4-lane MIPI CSI DPHY
2 MIPI DCPHY+2 x 4-lane MIPI CSI DPHY

MIPI CSI DPHY
4
• 2-lane MIPI DPHY V1.2, each line up to 2.5Gsps;
• two 2-lane DPHY can be combined to a 4-lane DPHY


DVP
1
• 8/10/12/16-bit standard DVP up to 150MHz input;
• Supports BT.601/BT.656 and BT.1120 VI


HDMI RX
1
• Supports 3.4Gbps~6Gbps HDMI 2.0;
• Supports 250Mbps~3.4Gbps HDMI 1.4b;
• Supports HDCP2.3 and HDCP1.4

Video output
HDMI/eDP TX
≤2
• HDMI/eDP TX are multiplexed, each interface supports x1, x2 and x4;
• HDMI up to 7680x4320@60Hz, supports 3, 6, 8, 10, 12Gbps band widths, supports HDCP2.3;
• eDP is up to 4K@60Hz, supports 1.62Gbps, 2.7Gbps and 5.4Gbps band widths, supports HDCP1.3


DP TX
2
• Supports 2 DP TX 1.4a, which is available for USB3.1 Gen1, supports 1/ 2/ 4 lanes;
• Up to 8192x4320@30Hz;
• Supports HDCP2.3, HDCP 1.3


MIPI DSI
2
• Supports 2 MIPI DPHY2.0 or CPHY 1.1, up to 4K@60Hz;
• Supports left/ right mode dual MIPI-DSI, available for RGB/ YUV up to 10-bit ;


BT.1120
1
• Supports RGB up to 8-bit and rating up to 150MHz;
• Up to 1920x1080@60Hz ;

Audio
I2S
≤4
• 8 lanes I2S0/I2S1: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz;
• 2 lanes I2S2/I2S3: supports both TX and RX, audio resolution 16~32 bits, sampling rate up to 192KHz


SPDIF
2
• Supports 2x 16-bit data storing;
• Supports biphasic stereo output


PDM
2
• Up to 8 channels, resolution 16~24 bits, sampling rate up to 192KHz;
• Supports PDM primary receive mode


DSM PWM
1
Convert PCM data to bitstream digital directly to 1-bit data output, the output digital signal will be filtered to audio signal

Network
Ethernet
2
2x GMAC by RGMII / RMII, 10/100/1000Mbps

Others
USB3.1 Gen1
3
• USB3.1 Gen1 up to 5Gbps;
• 2 USB3.1 OTG, multiplexed with DP TX(USB3OTG_0 and USB3OTG_1), USB3OTG_o and USB3OTG_1 support USB Type-C and DP Alt;
• 1 USB3.1 Host, multiplexed with PIPE PHY2(USB3OTG_2)


USB 2.0 Host
2
2x USB 2.0 Host


PCIe 2.0
≤3
Each PCIe2.1 can support 1 lane, up to 5Gbps


PCIe 3.0
2
• supports RC and EP, up to 8Gbps;
• support 4 combinations: 1 x4, 2 x2, 4 x1, 1 x2+ 2 x1


SPI
≤5
• each controller supports two chip select output;
• Serial master mode and serial slave mode are configurable


I2C
≤9
• support 7-bit and 10-bit address mode;
• standard mode data transferring rate up to 100K bits/s, and high-speed mode up to 400K bits/s.


UART
≤10
• built-in 2 64-bit FIFO, can be used for TX and RX respectively;
• supports 5-bit, 6-bit, 7-bit and 8-bit serial data transceiving, baud rate up to 4Mbps;
• all 10 UART can support auto flow control


CAN
≤3
• 3 CAN2.0B;
• can support CAN standard frame and expanding frame transceiving


SATA
≤3
• 3 SATA3.0 controllers, PIPE PHY0/1/2 is multiplexed by PCIe and USB_HOST2;
• supports eSATA up to 6Gbps


PWM
≤16
Up to 16 on-chip PWM, supports capturing mode


ADC
≤8
8x 12-bit single-end input SAR-ADC, sampling rate up to 1MS/s

OK3588-C Carrier Board Features


Interface
QTY
Spec.
MIPI CSI
5
• 2x MIPI DPHY V2.0 4 lanes, each lane up to 4.5Gbps; Available on carrier board by 2 26-pin FPC connectors,
OV13850 is the default and recommended camera model;
• 2x MIPI DPHY V1.2 2 lanes, each lane up to 2.5Gbps; Available on carrier board by 3 26-pin FPC connectors,
OV5645 is the default and recommended camera model;
• 1 x MIPI DPHY V1.2 4 lanes, each lane up to 2.5Gbps
MIPI DSI
2
• Each MIPI-DSI supports 4 lanes output, up to 4K@60fps;
• Forlinx default option: 7’’ MIPI DSI module, 1024x 600@30FPS
HDMI RX
1
Standard HDMI connector, up to 4K@60Hz
HDMI
1
Standard HDMI connector, up to 7680x4320@60Hz
eDP TX
1
Can fit 1080p@60Hz display;
Up to 4K@60Hz
DP TX
2
• 2 DP used together with USB3.1 Gen1, available on carrier board by Type-C connector;
• up to 7680x4320@30Hz;
USB3.1 Gen1
2
• available on carrier board by Type-C connector;
• used together with DP TX, up to 5Gbps
USB2.0 Host
1
• available on carrier board by Type-A USB connector;
• supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps)
PCIe3.0
1
•1x4 lanes PCIe signal is available on carrier board by PCIe x 4 slot;
• supports 2.5Gbps(PCIe1.1), 5Gbps(PCIe2.1), 8Gbps(PCIe3.0)
PCIe2.0
1
By PCIe x 1 slot, up to 5Gbps
Ethernet
2
RJ 45 connector, 10/100/1000 Mbps
TF card slot
1
Up to 150MHz, supports SDR104 mode
Audio
1
On-board codec chip, supports earphone output, MIC input and Speaker
CAN
2
CAN2.0B
RS485
1

UART
1
Headers with pitch of 2.54mm, baud rate up to 4Mbps
4G/5G
1
M.2 4G/ 5G module
WiFi& BT
1
M.2, supports WI-FI 6 SU and MU-MIMO + BT 5.3
ADC
5
PH2.0 connector, up to 12-bit resolution and 1MS/ s sampling rate
RTC
1

FAN
1

GPIO
9
Pin headers with pitch of 2.54mm(3.3V) for 9 GPIO and power of 5V/ 3.3V/ 1.8V
