Credit-card-sized Quad Core Single Board Computer

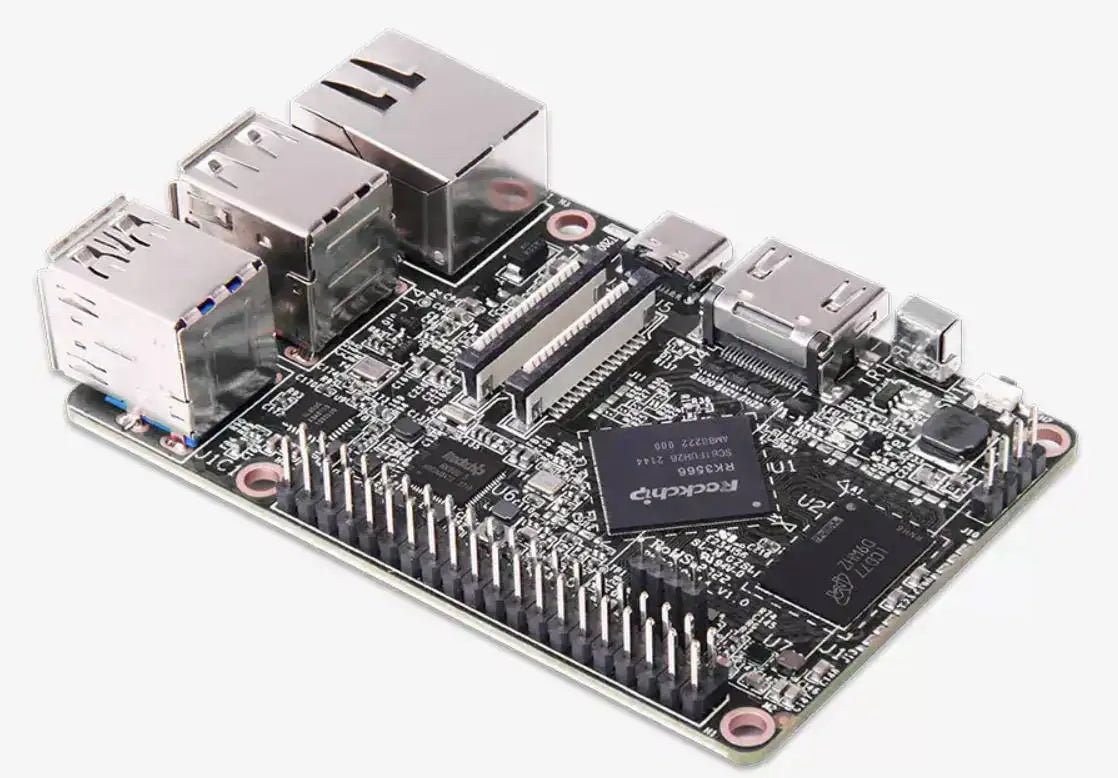

Geniatech XPI-3566 is a high-performance single-board computer that is similar to the Raspberry Pi. With an RK3566 processor, built-in 0.8T NPU, and up to 8GB of LPDDR4 RAM, it can run Linux Debian10, Android 11, or Raspbian OS emulator systems while supporting seamless migration from Raspberry Pi and its accessories. The XPI-3566 is compatible with Raspberry Pi’s 40P GPIO extension interface and can display 4K HDMI, MIPI-DSI, and MIPI-CSI. It also offers WiFi and wired network connections, making it ideal for AI, machine learning, and multimedia applications.

Compatibility and Extensibility

40 Pin header enables hardware re-use by maintaining compatible alternate pin functions like I2S, I2C, PWM, UART, and GPIO. Form-factor compatible with Raspberry Pi 3 for easy migration.

No.

Definition

No.

Definition

1

VCC_3_3V

2

VCC_5V

3

I2C4_SDA/GPIO7_C1

4

VCC_5V

5

I2C4_SCL/GPIO7_C2

6

GND

7

I2S0_MCLK

8

UART3_TX/GPIO_B0

9

GND

10

UART3_RX/GPIO7_A7

11

UART1_CTSN/GPIO5_B2

12

UART1_RTSN/GPIO5_B3

13

UART1_TX/GPIO5_B1

14

GND

15

UART1_RX/GPIO5_B0

16

UART3_CTSn/GPIO_B1

17

VCC_3_3V

18

UART3_RTSn/GPIO_B2

19

SPI0_TXD/UART4_TX/GPIO5_B6

20

GND

21

SPI0_RXD/UART4_RX/GPIO5_B7

22

TS0_ERR/GPIO5_C3

23

SPI0_CLK/UART4_CTSN/GPIO5_B4

24

SPI1_CSN0/GPIO7_B5

25

GND

26

SPI2_CSN0/SC_DET_T1/GPIO8_A7

27

I2C2_SDA_AUDIO

28

I2C2_SCL_AUDIO

29

SPI0_CSN0/UART4_RTSN/GPIO5_B5

30

GND

31

SPI0_CSN1/GPIO5_C0

32

SPI1_TXD/GPIO7_B7

33

I2S0_LRCK_RX

34

GND

35

I2S0_SCLK

36

SPI1_RXD/GPIO7_B6

37

I2S0_LRCK_TX

38

I2S0_SDI

39

GND

40

I2S0_SDO0

Specifications

Chipset

Rockchip RK3566

Software

Debian10/ Android11 / Raspbian OS

Processor

CPU

Quad-core Cortex-A55 up to 1.8GHz

GPU

Mali-G52-2EE

DDR

2G(1G/4G/8G Optional)

EMMC FLASH

16GB(8G/32G/64GB/128GB Optional)

Network

Ethernet

RJ45, 1000M

WiFi

2.4G/5G Dual Band WiFi

BT

BT4.0

Interface

TF Card Slot

TF card *1(max. 64GB)

HDMI

HDMI out*1

USB Host

USB HOST 3.0 * 1,USB Host 2.0*2,USB OTG 2.0*1

DC IN

Power IN*1 (TYPE-C, 5V / 3A)

Extension GPIO

GPIO*40

Display

MIPI-DSI, MIPI-CSI, IR

Codec

Video Decoder

4096x2304@60fps video decode (H.265,H.264,VP9/VP8,VC-1, MPEG-1/2/4)

Video Encoder

• H.264/AVC BP/MP/HP@level4.2,up to 1920x1080@60fps
• H.265/HEVC MP@level4.1, up to 1920x1080@100fps (4096x4096@10fps with TILE)
• Support YUV/RGB video source with rotation and mirror

JPEG Decoder

• Decoder size is from 48x48 to 65536x65536
• Support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444
• Support 1920x1080@120fps
• Support MJPEG

JPEG Encoder

• Baseline Non-progressive
• up to 8192x8192
• up to 90 million pixels per second

Weight

45 g

Dimensions

85 mm * 56 mm * 1.6 mm

Operating Temp

0°C to 60°C

Accessory

Power Adapter, WIFI Module
