Custom PCBA Pixhawk RPi CM4 Baseboard,PM03D Power Module Development BoardsManufacturer
Custom PCBA Pixhawk RPi CM4 Baseboard,PM03D Power Module Development BoardsManufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
/
per
Description

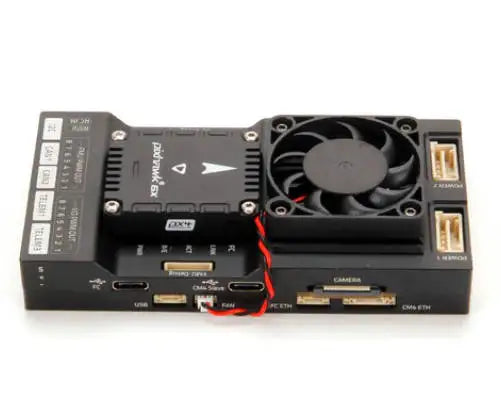

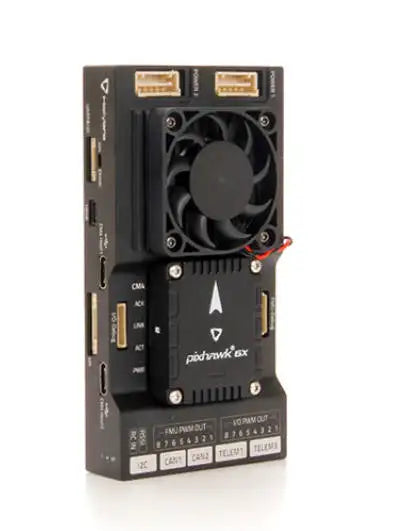

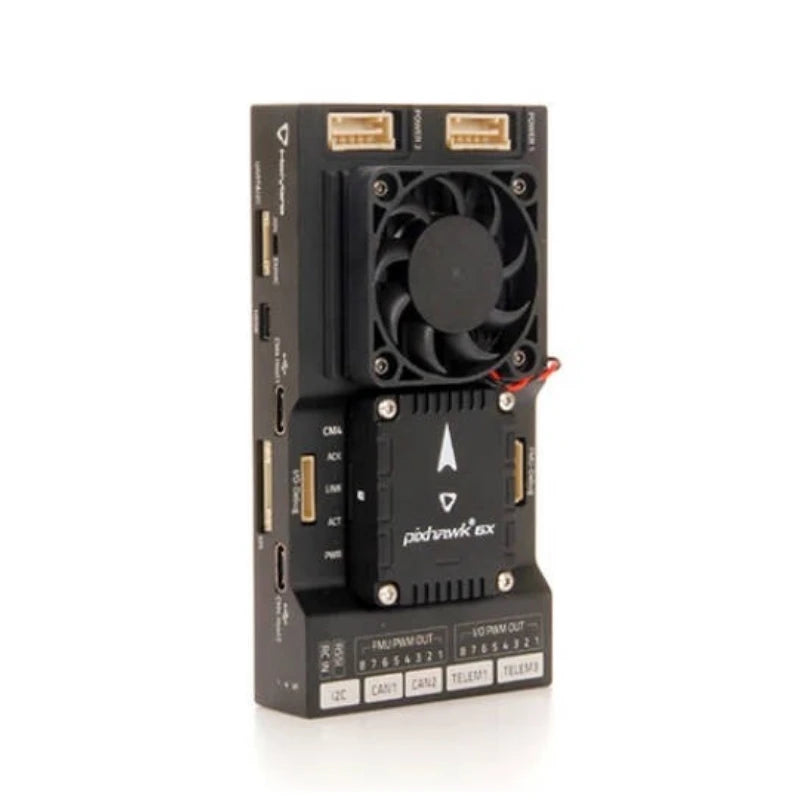

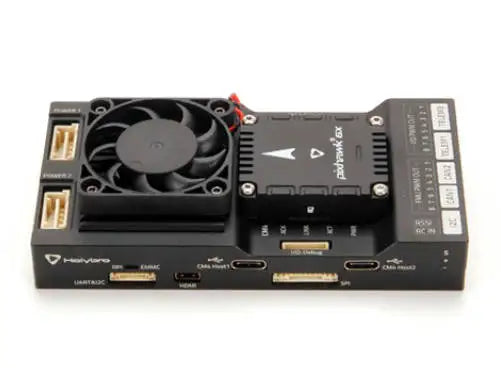

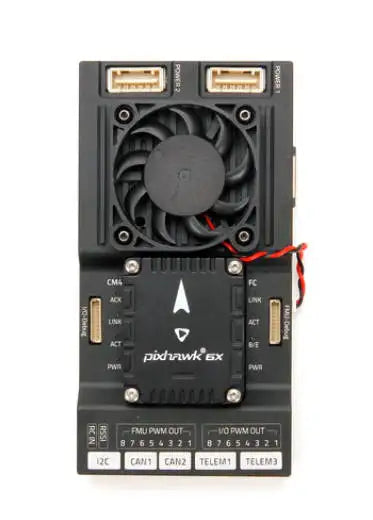

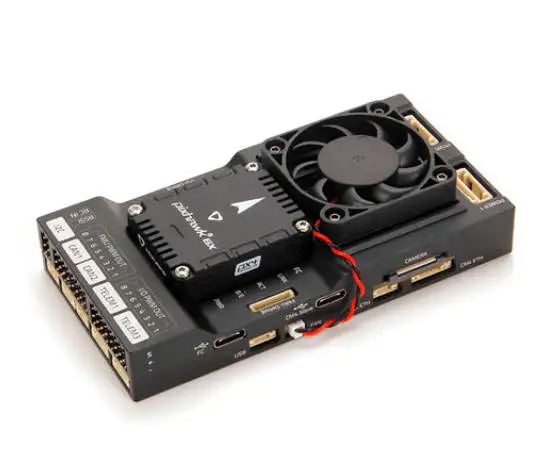

The Holybro Pixhawk RPi CM4 Baseboard combine the Pixhawk FC module with the Raspberry Pi CM4 companion computer in on compact form factor with all the connections you need for development. It follows the Pixhawk Connector and Autopilot Bus Standard, allow easy swap of FC Module with any FC that follows the Pixhawk Bus Standard. The FC Module is internally connected to RPi CM4 through TELEM2, and can also be connected via ethernet with a external cable provided. It is compatible with the Pixhawk 5X & 6X flight controller module.
User guide & other technical detail can be found on our Documentation Page Here.
SKU20188 Includes:
- Pixhawk RPi CM4 Baseboard
-
Note: Does not include Flight Controller Module & RPi CM4
-
-
Pixhawk RPi CM4 Baseboard Cable Set
SKU20189 Includes:
-
Pixhawk 6X Flight Controller Module
- Pixhawk RPi CM4 Baseboard
-
Note: Does not include RPi CM4
-
-
Pixhawk RPi CM4 Baseboard Cable Set
SKU31107 Includes:
- Rasberry Pi CM4
-
RAM: 8GB
-
eMMC: 32GB
-
Wireless: No
-
Recommend specification for RPi CM4:
-
Wireless: Yes
-
RAM: 4GB or higher
-
eMMC: 16GB or higher
