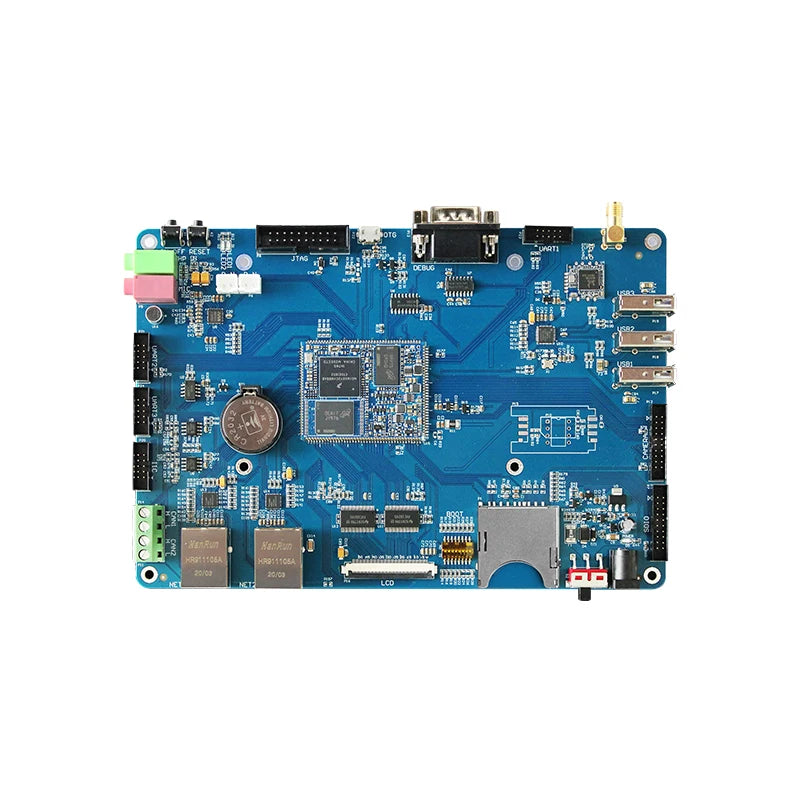

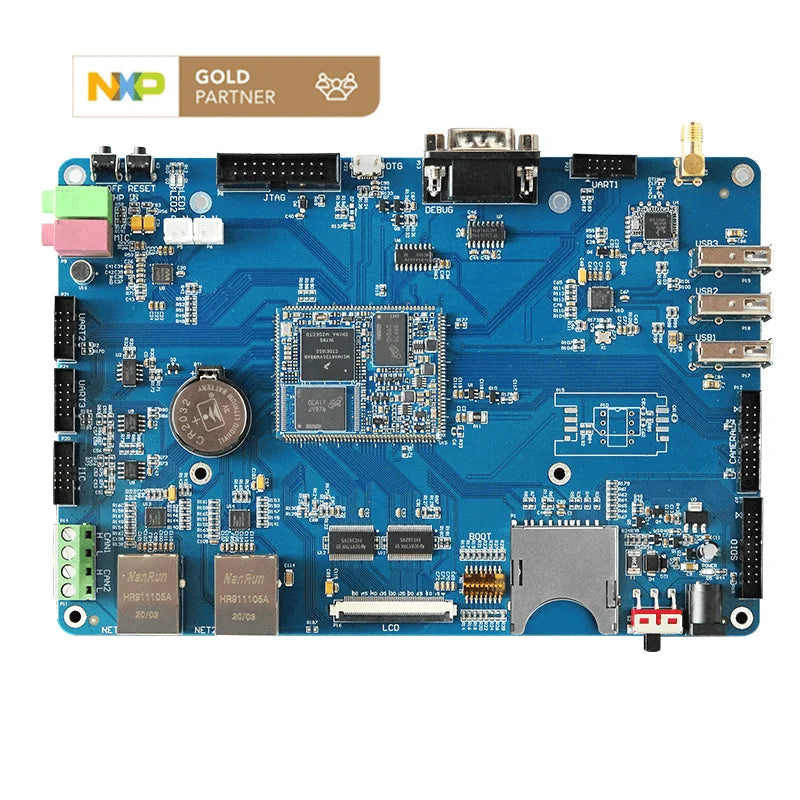

Single Board Computer OKMX6ULL-S based on NXP i.MX6ULL

OKMX6ULL-S single board computer(SBC) is based on NXP Cortex-A7 low power featuring processor i.MX6ULL @800MHz, it has two native Ethernet ports, two CAN controller and eight serial ports, both industrial grade and expanding commerce grade are optional to users, and the SoM is well supported with Linux4.1.15 with QTGUI.

i.MX6ULL based Single Board Computer Forlinx specially designed for i.MX6ULL based System on Module offers unmatched flexibility & easy upgradability and is intended to develop industry 4.0 applications such as medical, power industry , security, car electronics, rail transportation, communication, EV chasrger, smart home, commerce electronics, portable device, HMI, etc.,

i.MX6ULL Processors Features

The i.MX6ULL is a power efficient and cost-optimized applications processor family featuring an advanced implementation of a single Arm Cortex-A7 core, which operates at speeds up to 900 MHz. The i.MX6ULL applications processor includes an integrated power management module that reduces the complexity of an external power supply and simplifies power sequencing. Each processor in this family provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, BT, GPS, displays and camera sensors.

Compact size, optimized performance

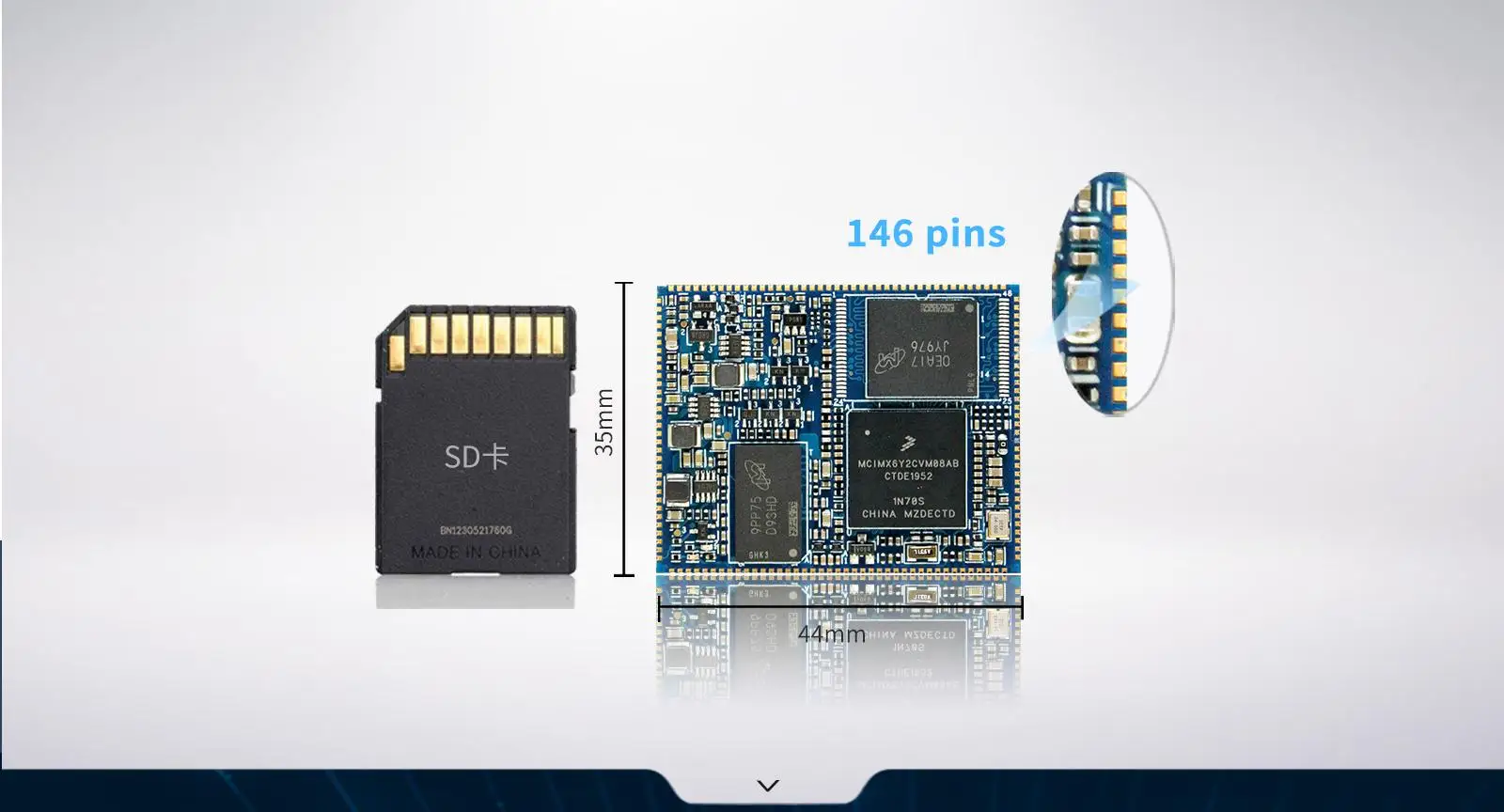

8-layer ENIG SoM PCB designing, edge soldering package, compact size by 44*35mm;

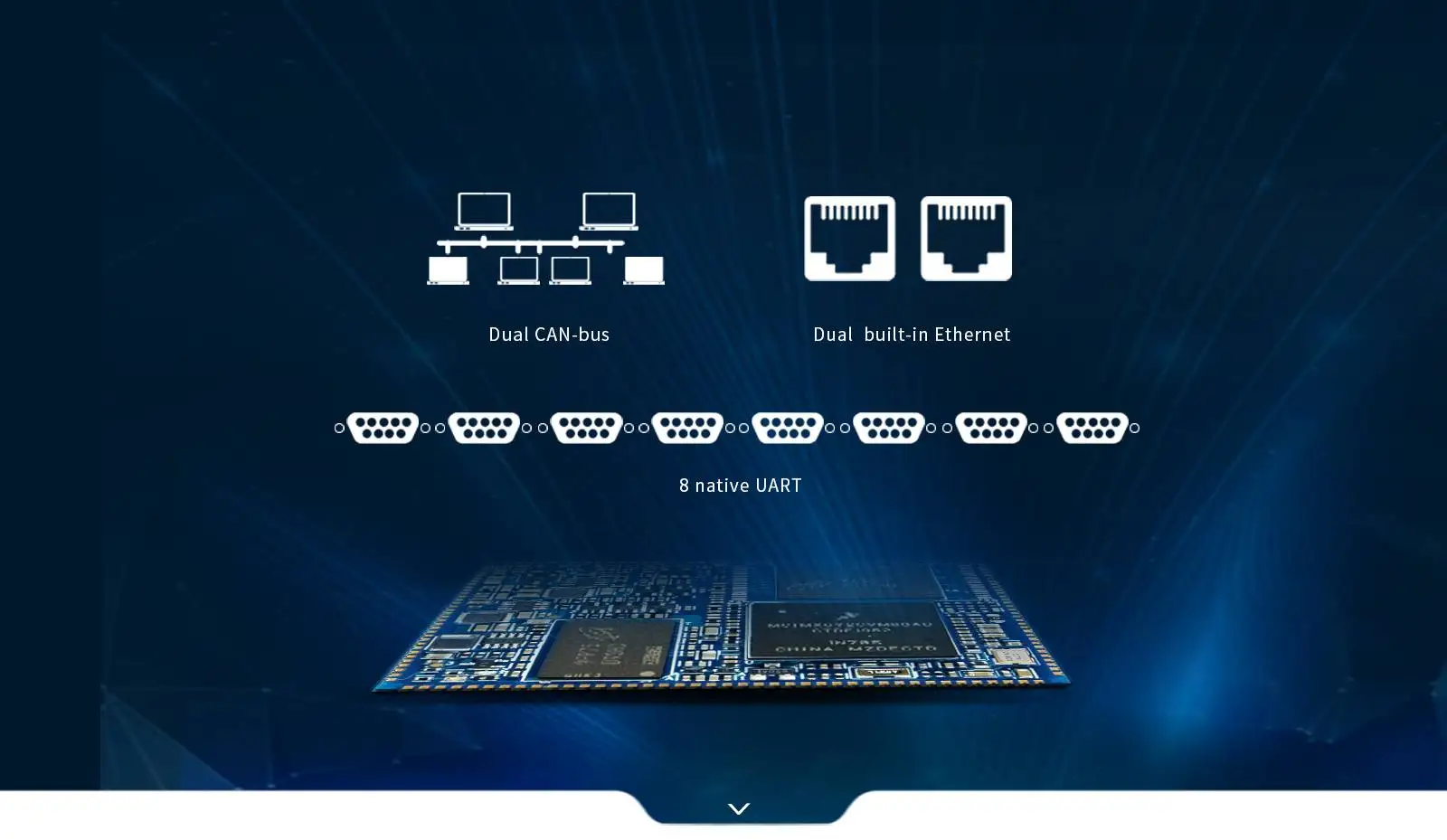

Dual Ethernemt, Dual CAN, Octa UART

CPU integraded with two real-time CAN, dual fast Ethernet ports and eight UART for multiple peripherals

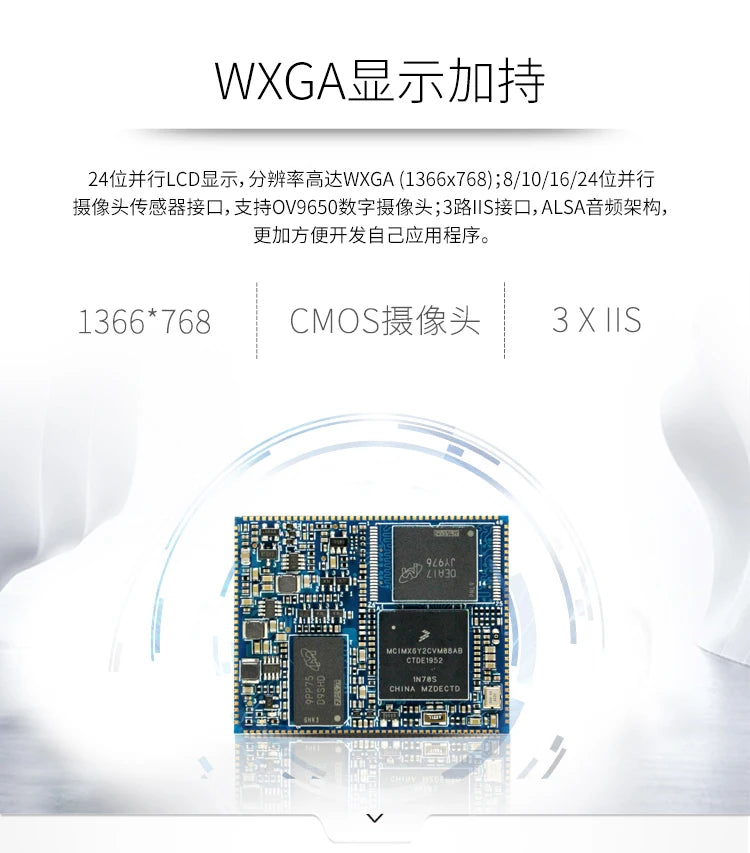

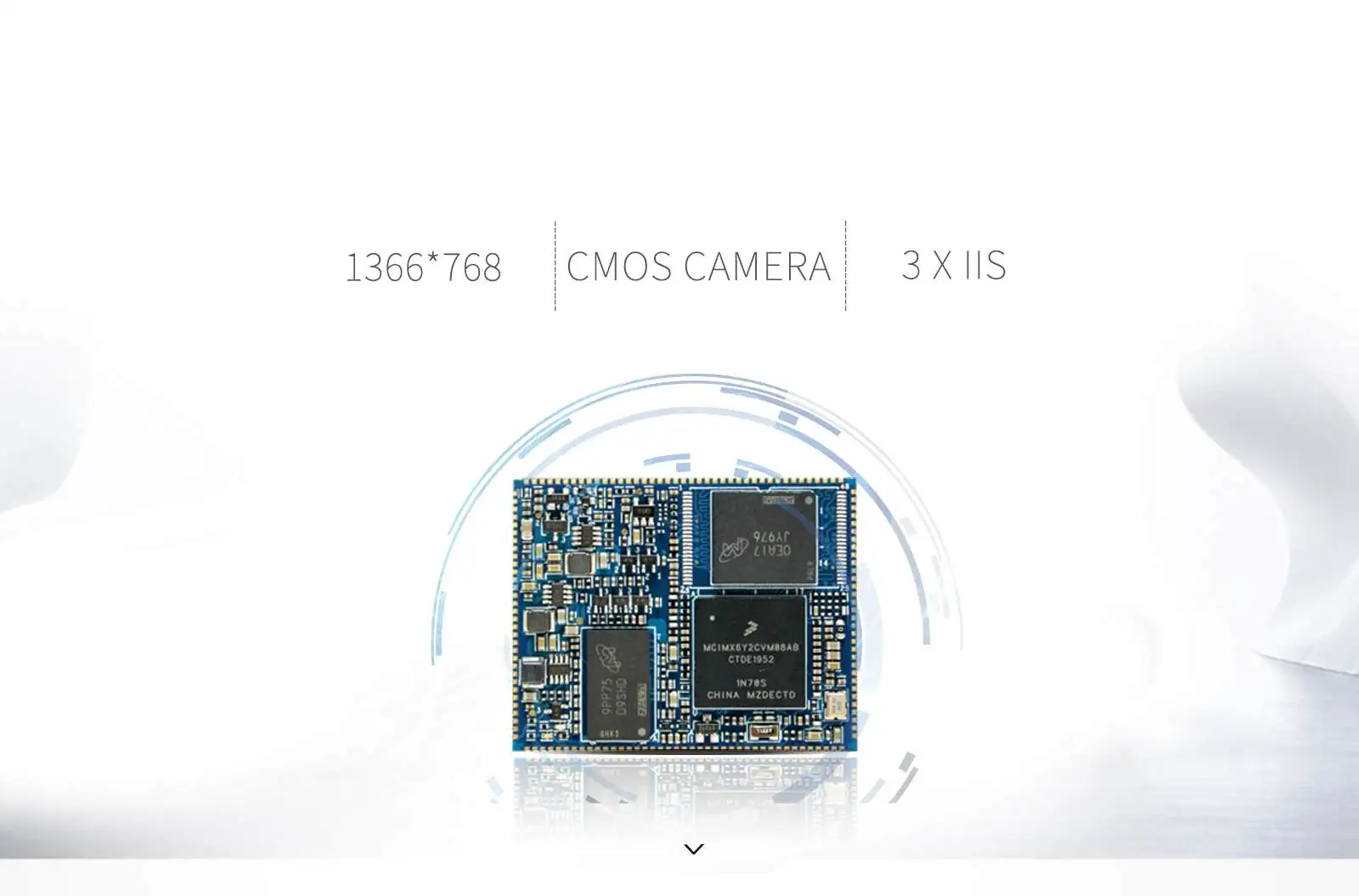

Media playing, digital camera, WXGA display

24-bit parallel LCD output up to WXGA (1366x768); 8/10/16/24-bit parallel camera sensor OV9650; three IIS interfaces, ALSA audio form

Flexible options

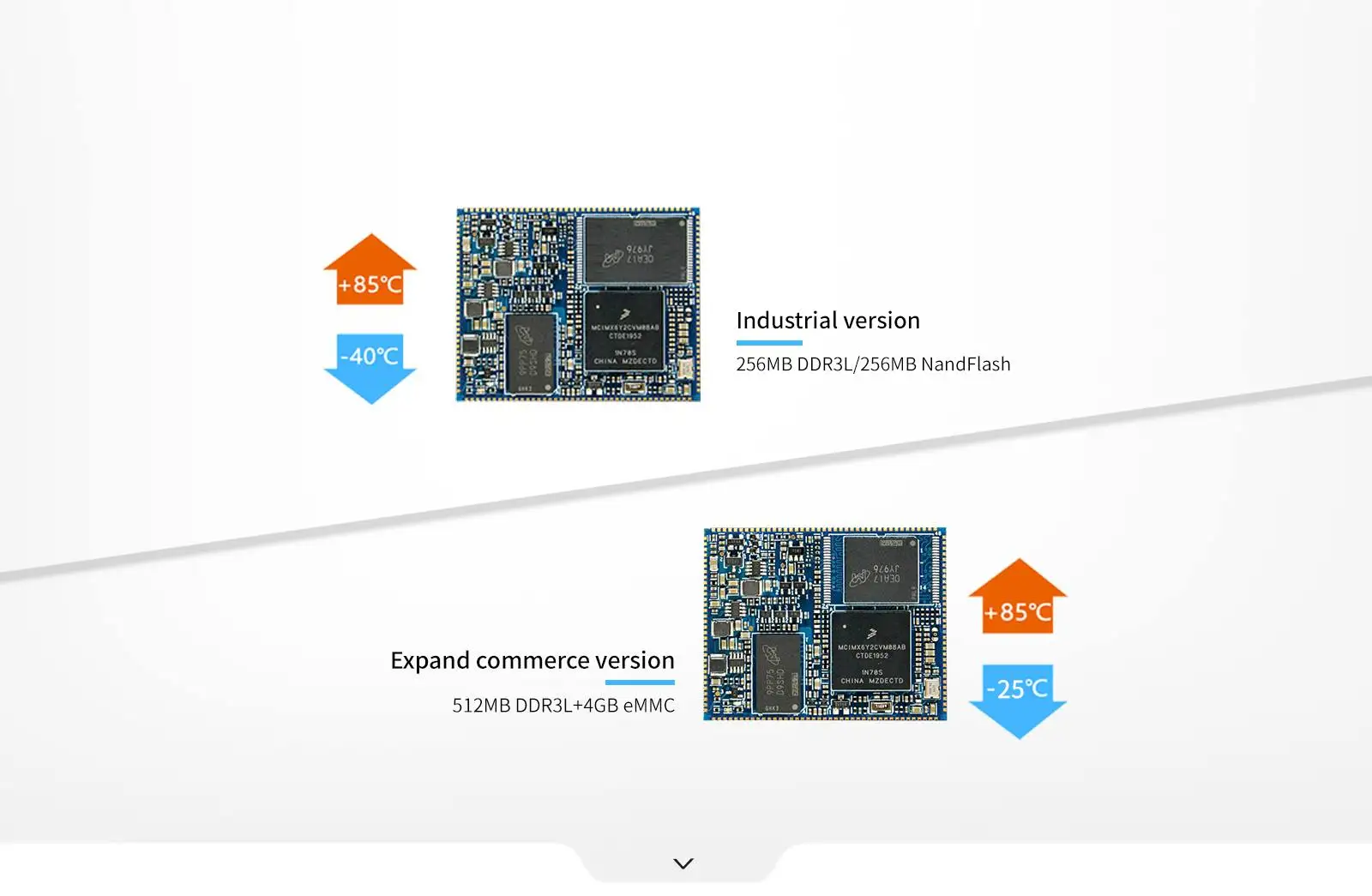

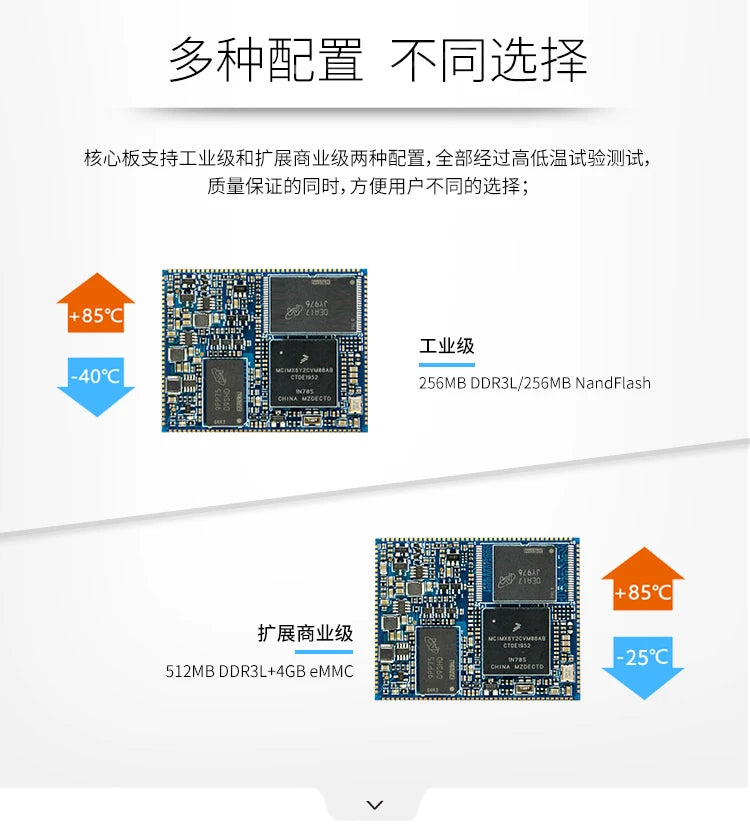

Both industrial grade and commerce grade are optional, 256MB DDR3L/512MB DDR3L RAM, 256MB NandFlash/4GB eMMC

High software accessiblity

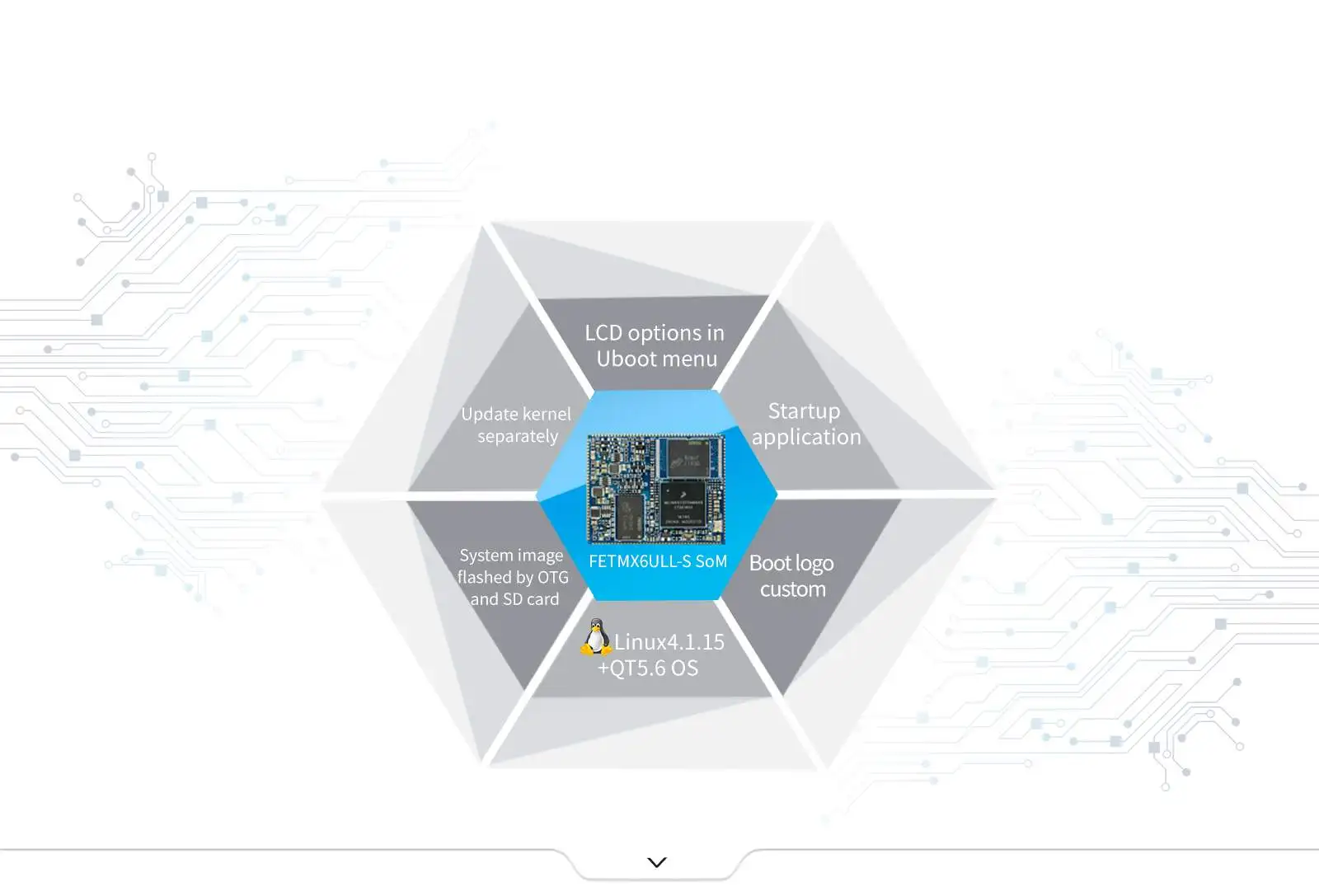

SoM supported with Linux4.1.15/ QT5.6, can support OTG, SD/ TF card flashing mode, and can support separately update kernel

▊ Technical Support

Forlinx provides software resources including kernel and driver source code, together with detailed user manual(i.MX6ULL reference manual), schematic documentations to help customer start their development rapidly.

Forlinx provides embedded hardware reference manual, embedded software reference manual, including NXP i.MX6ULL embedded software Android system reference manual, and Linux system reference manual.

For more details on solution design with i.MX6ULL SBC

▊ Accessories

Provides the modules and accessories used in Forlinx's SBC.

See here for communication modules, LCD screen, SBC expansion module and further accessories »

▊ Hardware Spec.
