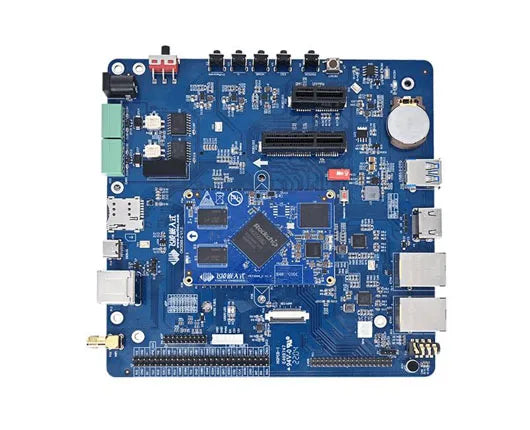

OK3568-C Single Board Computer
OK3568-C single board computer(SBC) is populated with SoM FET3568-C on carrier board by four ultra thin connectors. The carrier board ensures the SoM source fully available to achieve users' fast evaluation purpose.
Beside, the board is designed with ESC solution which simplifies designing reference to help users to shorten their product time-to-market.
Advanced and robust
FET3568-C SoM is equipped with quad-core 64-bit Cortex-A55 processor with built in NPU based on advanced 22nm processing technology,
running at up to 2.0GHz, and plenty of high-speed peripheral interfaces are available.
Built-in NPU
Neural network acceleration engine with processing performance up to 1 TOPS. Supports RKNN-Toolkit.
In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.
Various display interfaces, supports three displays with different frames
HDMI2.0, eDP, LVDS, RGB Parallel and MIPI-DSI are all well supported, besides, it supports three displays simultaneously output up to 4K,
which is preferable and applicable for PDA, cash register, multi-screen advertising machine, karaoke machine, electronic bus stop board, self-service machine, etc.
Powerful video codec performance
Support 4K resolution H.264/H.265/VP9 and other formats high-definition hard decoding,
and can support multiple video sources decoding simultaneously, support HDR10 with excellent performance in color and dynamic range;
FET3568-C SoM supports H.264 and H.265 format hardware encoding at 1080p60fps, and supports dynamic code rate, frame rate, and resolution adjustment.
High-scalability
Equipped with 3 PCIe, 4 separate USB, 3 SATA controllers, and 2 builtin GMAC can support RGMII/ SGMII/ QSGMII(2MAC) to expand dual Gigabit Ethernet ports.
OS Supporting
FET3568-C SoM supports Linux 4.19 and Android 11 operating systems that deeply optimized, which ensures high-stability for long-last running.
Industrial applicable EMC protection
OK3568-C carrier board is designed with EMC protection solution, which is applicable for industrial related scenes.
CAN and Ethernet are designed with EFT3, ESD3 and Surge3; HDMI and USB are designed with ESD3.
User-friendly designing
Multiple pins are multiplexed on OK3568-C carrier board, user friendly and easy to go.
Diverse networking connectivity
Dual native Gigabit Ethernet, dual-band WiFi and 4G/ 5G modem slot are all available on OK3568-C carrier board for networking requirement.
Target Applications
The SoM could be widely used in medical, industrial, transportation, cloud terminal, streaming media, security, AI application, energy management and other related applications.
▊ Specs
FET3568-C SoM Basic Parameters | |||
CPU | Rockchip RK3568 quad-core Cortex-A55@2.0GHz | ||
GPU | • Mali-G52-2EE | ||
NPU | 1TOPS, Support INT8/INT16/FP16/BFP16 mixed operation. | ||
VPU | Decode: | Encode: | |
RAM | 2GB/4GB/8GB DDR4(Standard 2GB) | ROM | 16GB eMMC |
OS | Linux4.19+Qt5.12, Android11 | Voltage input | DC5V |
Package | board to board connector(4*80pin Spacing 0.5mm) | ||
Working temperature width | 0℃ ~ 70℃ / -40~85℃ | Dimensions | 45x70mm |
|
