Custom New LCD TV motherboard DD 3663LUA.A81 PALUA36A81 DVB-T2 DVB-TManufacturer

Name: Custom New LCD TV motherboard DD 3663LUA.A81 PALUA36A81 DVB-T2 DVB-TManufacturer
Brand: Lonten Tech
Price: 100.00 USD
Availability: InStock

$100.00 USD

~~$0.00 USD~~ $100.00 USD

Sale Sold out

Quantity

Please note: if you are not a professional, we do not recommend you to buy,

Do not buy back anything will not use, you know the application dispute, for such customers, please stay away from us.

Product Description:

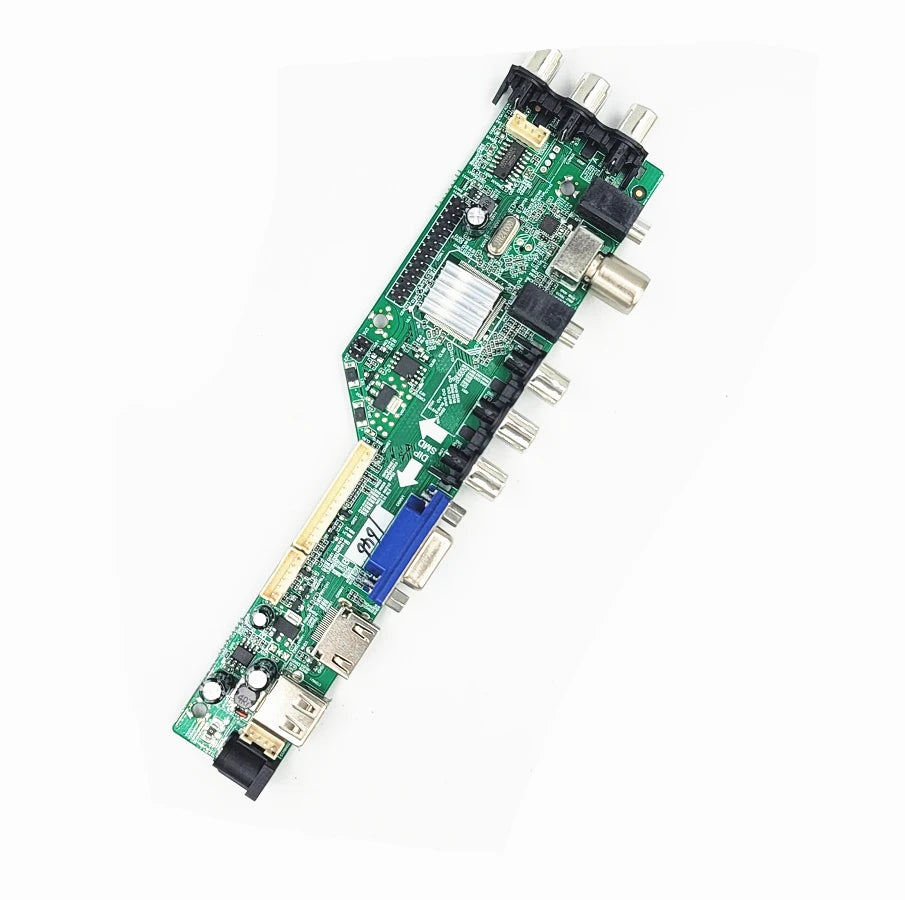

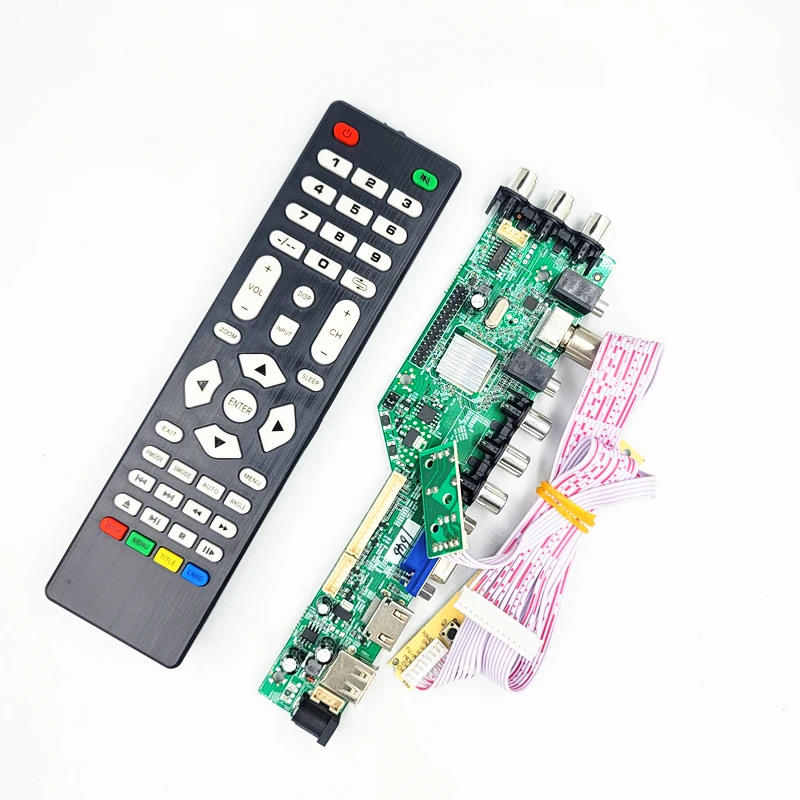

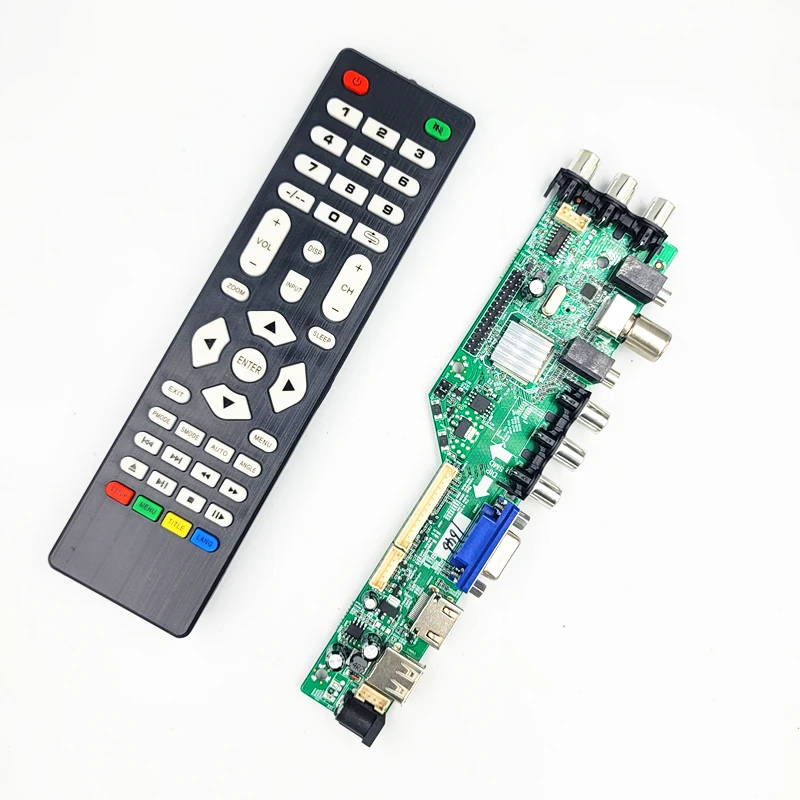

This model is universal Controller 3663 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor.

Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip.

Suitable for :

Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.

Feature:
Support Digital Signal and Russian

Controller chip: LUA63A82
TV tuner chip: R842
OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video)
Power Input: DC 12V 4A
Audio output power: 2x8W
Consumption: operating mode -> = 6W
simple - <0.3W
Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)
HDMI
VGA
AV IN
YPbPr

Additional inputs outputs: audio mini jack 3.5mm USB

USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG.

How to know if your panel suitable for this board?

Step 1: Find your LCD model's resolution (you can check the resolution from thislink:http://www.panelook.com/index.php)

Supported resolutions:

1024 X 600 6 bit 1 channel
1024 X 768 6-bit 2 channel

1024 X 768 8-bit 2 channel

1024 X 768 6-bit 1 channel

1024 X 768 8-bit 1 channel

1280 X 768 8-bit 1 channel

1280 X 800 6-bit 1 channel

1280 X 1024 8-bit 2 channel

1366 X 768 8-bit 2 channel
1366 X 768 8-bit 1 channel
