Overview

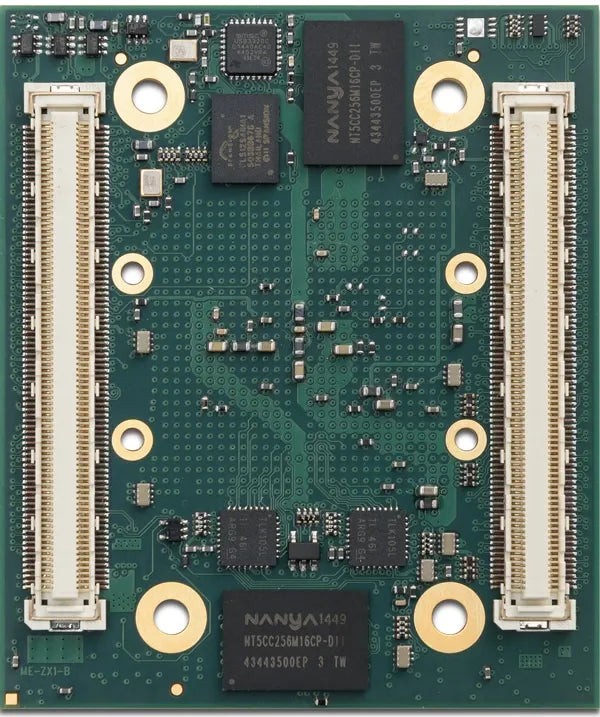

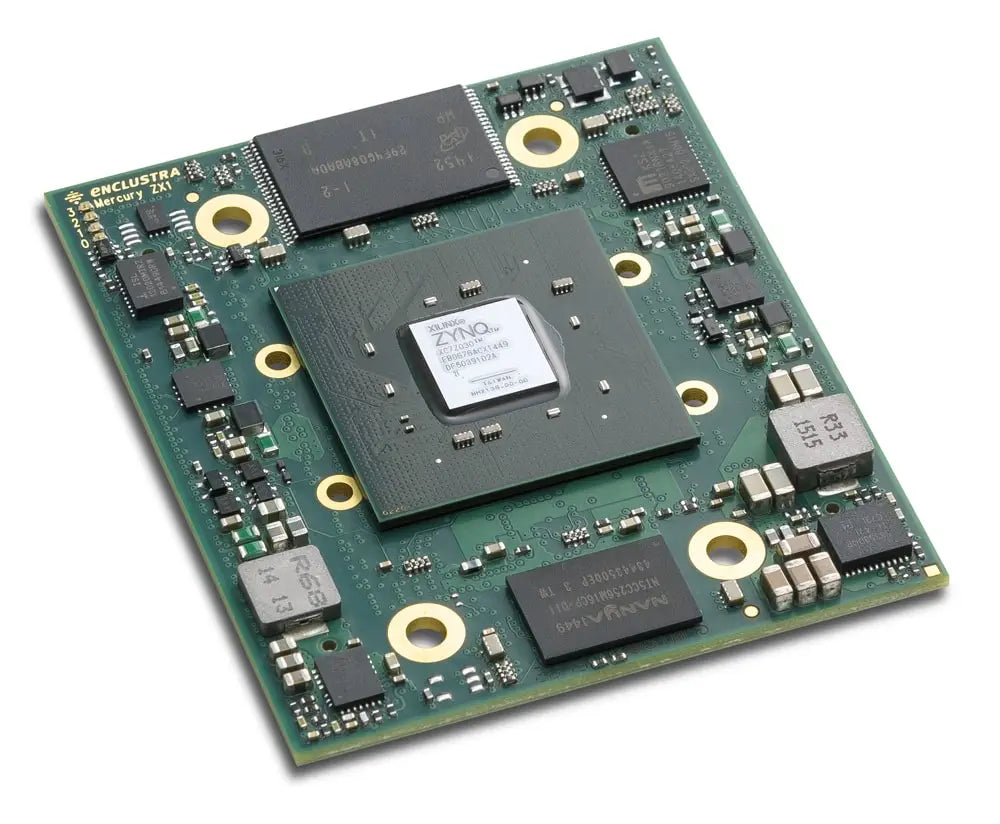

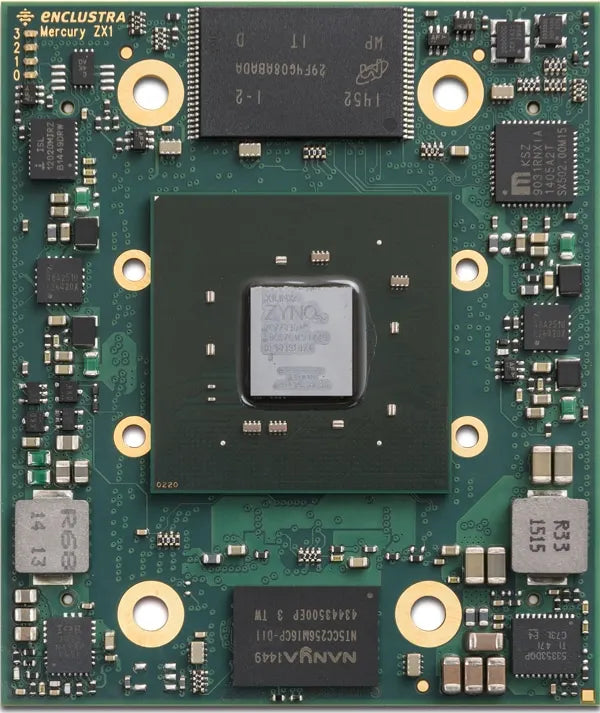

The Mercury ZX1 system-on-chip (SoC) module combines Xilinx's Zynq-7000-series All Programmable SoC device with fast DDR3 SDRAM, NAND flash, quad SPI flash, a Gigabit Ethernet PHY, dual Fast Ethernet PHY and an RTC and thus forms a complete and powerful embedded processing system.

Highlights

• Built around Xilinx's Zynq-7000 All Programmable SoC

• Combines the flexibility of a CPU system with the parallel processing power and real-time capabilities of an FPGA system

• Offers PCIe® Gen2 x8, USB 2.0, and Gigabit Ethernet interfaces

• Dual Fast Ethernet for Industrial Ethernet like PROFINET, EtherCAT, POWERLINK or Ethernet/IP

• Available in industrial temperature range

• 64 × 54 mm form factor with dual 168-pin Hirose FX10 connectors has minimal footprint

• Linux BSP and tool chain available

• Powerful and compact FPGA board

Benefits

• High-bandwidth memory - independent PS and PL channels are ideal for most applications

• High-bandwidth data transfer

• A powerful PCIe Gen2 x8 interface, and a high number of available LVDS pairs provide high-speed data I/O at low integration cost

• Low-latency networking Gigabit Ethernet interface provides fast networking capabilities

• Dual Fast Ethernet PHY for Industrial Ethernet

• Support for Linux and VxWorks operating systems

• Lowest power consumption due to the high-efficiency DC/DC converters

Features

• Xilinx Zynq-7000-series SoC FPGA

  • ARM® dual-core Cortex™-A9
    (32 bit, up to 800 MHz)

  • Xilinx Kintex®-7 28nm FPGA fabric

• Zynq-7030:
  • 170 total user I/Os

    • 12 ARM peripheral I/Os (SPI, SDIO, CAN, I2C, UART) ) shared with FPGA I/Os

    • 138 FPGA I/Os (single-ended or differential)

    • 20 MGT signals (clock and data)

• Zynq-7035/45:
  • 178 total user I/Os

    • 12 ARM peripheral I/Os (SPI, SDIO, CAN, I2C, UART) shared with FPGA I/Os

    • 126 FPGA I/Os (single-ended or differential)

    • 40 MGT signals (clock and data)

• 1 GByte DDR3L SDRAM (PS)

• 256 MByte DDR3L SDRAM (PL)

• PCIe Gen2 x8

• 4 × 6.6 Gbps MGTs (Zynq-7030)

• 8 × 6.6 Gbps MGTs (Zynq-7035)

• 8 × 10.3125 Gbps MGTs (Zynq-7045)

• 512 MB NAND flash

• 64 MB quad SPI flash

• Gigabit Ethernet and USB 2.0 OTG

• Two Fast Ethernet PHYs

• 5 to 15V supply voltage
