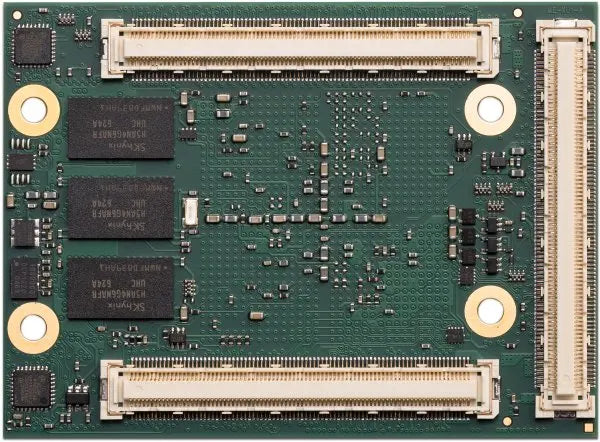

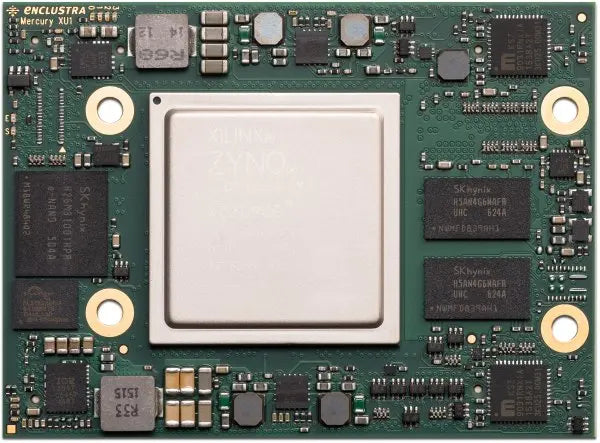

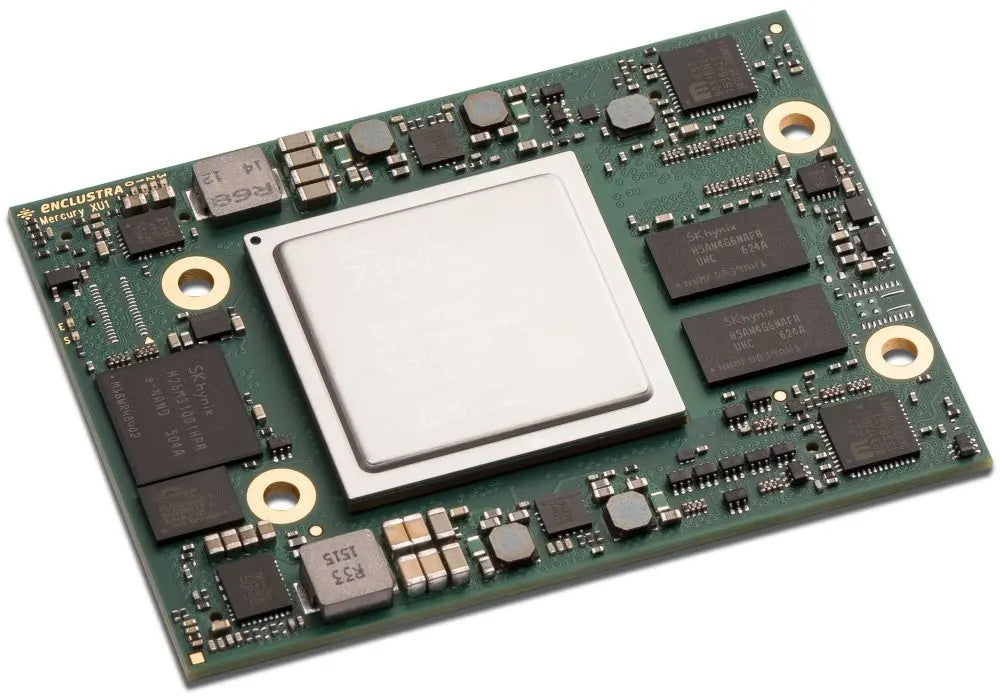

Custom PCBA Mercury+ XU1 Xilinx Zynq UltraScale+ MPSoC Module Development BoardsManufacturer

Custom PCBA Mercury+ XU1 Xilinx Zynq UltraScale+ MPSoC Module Development BoardsManufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out


Overview

The Mercury+ XU1 system-on-chip (SoC) module combines Xilinx's Zynq UltraScale+™ MPSoC-series device with fast DDR4 ECC SDRAM, eMMC flash, quad SPI flash, dual Gigabit Ethernet PHY, dual USB 3.0 and thus forms a complete and powerful embedded processing system.



Highlights

  • Built around Xilinx's Zynq Ultrascale+™ MPSoC

  • DDR4 SDRAM with Error Correction Code (ECC)

  • 19.2 GByte/sec memory bandwidth

  • Offers PCIe® Gen2 x4, 2x USB 3.0 and 2x Gigabit Ethernet interfaces

  • Available in industrial temperature range

  • Three 168-pin Hirose FX10 connectors with 294 user I/Os

  • Linux BSP and tool chain available

  • Powerful and compact FPGA board



Benefits

  • A complete and powerful embedded processing system in a compact, space-saving form factor

  • Large, high-bandwidth memory, with up to 8 GByte of DDR4 ECC SDRAM

  • High-bandwidth data transfer: PCIe® Gen2 x4 interface, and a high number of available LVDS pairs provide high-speed data I/O at low integration cost

  • Lowest power consumption due to the high-efficiency DC/DC converters

  • Support for Linux operating system



Features

  • Xilinx® Zynq Ultrascale+™ MPSoC
    • ARM® dual-/quad-core Cortex™-A53
      (64 bit, up to 1500 MHz)

    • ARM dual-core Cortex™-R5
      (32 bit, up to 600 MHz)

    • Mali-400MP2 GPU

    • 16nm FinFET+ FPGA fabric

  • Up to 8 GB DDR4 ECC SDRAM

  • 64 MB QSPI flash

  • 16 GB eMMC flash

  • PCIe® Gen2 ×4

  • Up to 20 × 6/12.5/15 Gbit/sec MGT

  • 2 × Gigabit Ethernet

  • 2 × USB 3.0

  • 2 × USB 2.0 (host & host/device)

  • Up to 747,000 LUT4-eq

  • 294 user I/Os
    • 14 ARM peripherals

    • Up to 200 FPGA I/Os

    • Up to 100 MGT signals (clock and data)

  • 5 to 15 V single supply

  • Small form factor (74 × 54 mm)
