Custom PCBA Mars XU3 Xilinx Zynq UltraScale+ MPSoC ModuleManufacturer

Overview

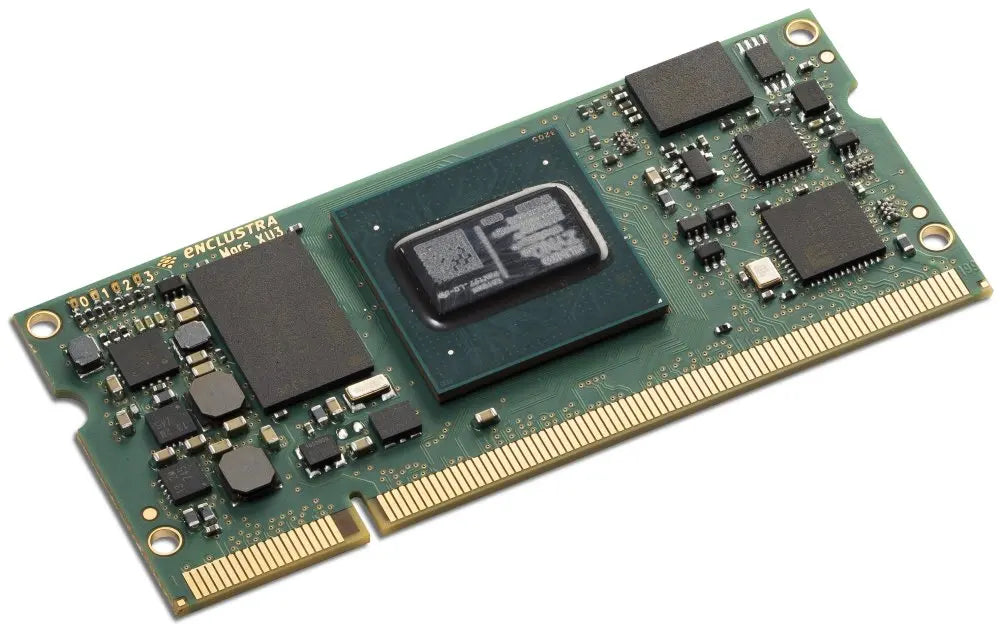

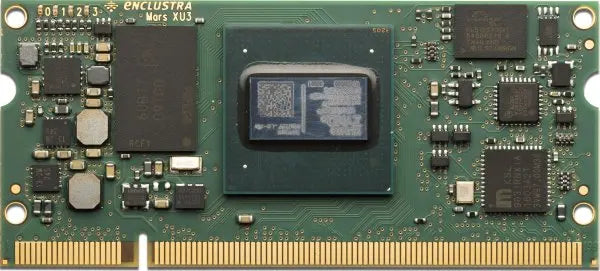

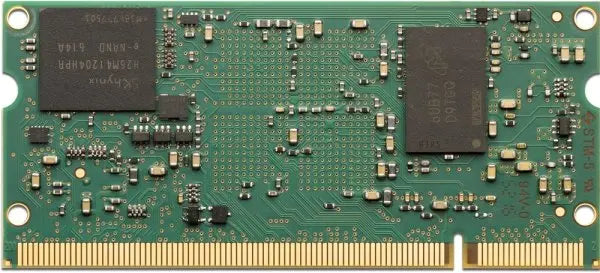

The Mars XU3 system-on-chip (SoC) module combines Xilinx's Zynq UltraScale+ MPSoC device with fast DDR4 SDRAM, eMMC flash, quad SPI flash and a Gigabit Ethernet PHY, USB 3.0 and thus forms a complete and powerful embedded processing system.

The SO-DIMM form factor allows space-saving hardware designs as well as quick and simple integration of the module into the target application.

The Mars XU3 SoC module reduces development effort, redesign risk and improves time-to-market for your embedded system.

Highlights

• Built around Xilinx's Zynq UltraScale+ MPSoC

• Combines the flexibility of a CPU system with the parallel processing power and real-time capabilities of an FPGA system

• Fast DDR4 SDRAM

• Supports analog differential inputs

• Available in industrial temperature range

• Supports USB 3.0, CAN, Gigabit Ethernet and PCIe® Gen2 x4

• Linux BSP and tool chain available

Benefits

• A complete and powerful embedded processing system in the industry-standard SO-DIMM form factor

• Simple, low cost and yet rugged assembly

• Simple and low-cost integration due to the on-board standard interfaces (USB, Ethernet, CAN)

• High-bandwidth program and data memory due to the high-performance hard-macro memory controller

• Lowest power consumption due to the high-efficiency DC/DC converters

Features

• Xilinx® Zynq Ultrascale+™ MPSoC

  • ARM® quad-/dual-core Cortex™-A53
    (64 bit, up to 1333 MHz)

  • ARM dual-core Cortex™-R5
    (32 bit, up to 533 MHz)

  • 16nm FinFET+ FPGA fabric

• Mali-400MP2 GPU
  (only EG models)

• Up to 4 GB DDR4 SDRAM

• 64 MB QSPI flash

• 16 GB eMMC flash

• Gigabit Ethernet

• USB 3.0

• USB 2.0 OTG PHY

• PCIe® Gen2 ×4

• 4 × 5 Gbit/sec MGT

• Up to 154,000 LUT4-eq

• 108 user I/Os

  • 12 ARM peripherals

  • 76 FPGA I/Os

  • 20 MGT signals (clock and data)

• 67.6 × 30 mm SO-DIMM
