Custom PCBA Mars MA3 Intel Cyclone V SoC Module Development Boards Manufacturer

Overview

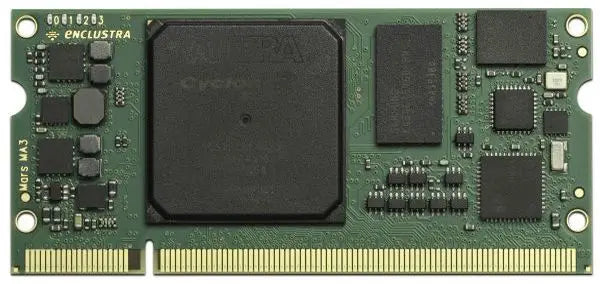

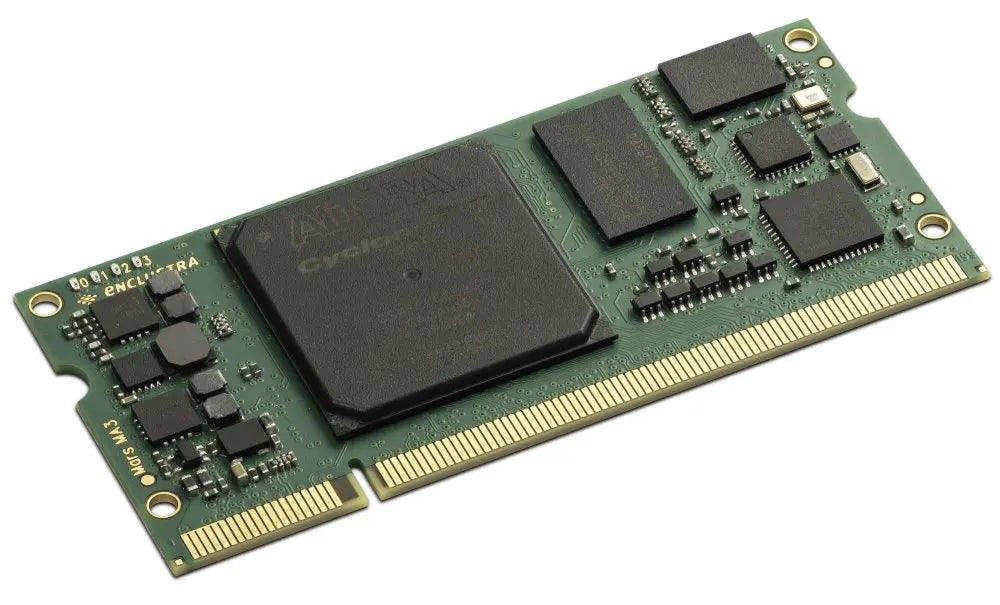

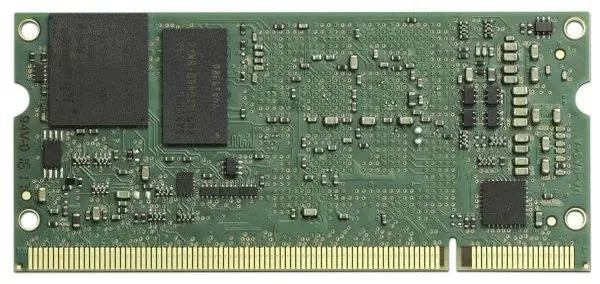

The Mars MA3 system-on-chip (SoC) module combines Intel's Cyclone V SoC device with fast DDR3L SDRAM, quad SPI flash, a Gigabit Ethernet and a Fast Ethernet PHY as well as an RTC and thus forms a complete and powerful embedded processing system.

The SO-DIMM form factor allows space-saving hardware designs as well as quick and simple integration of the module into the target application.

The Mars MA3 SoC module reduces development effort, redesign risk and improves time-to-market for your embedded system.

Highlights

• Built around Intel's Cyclone V SoC

• Combines the flexibility of a CPU system with the parallel processing power and real-time capabilities of an FPGA system

• Available in industrial temperature range

• Supports USB 2.0, CAN and Gigabit Ethernet

• Linux BSP and tool chain available

• Powerful and compact FPGA board

Benefits

• A complete and powerful embedded processing system in the industry-standard SO-DIMM form factor

• Simple, low cost and yet rugged assembly

• Simple and low-cost integration due to the on-board standard interfaces (USB, Ethernet, CAN)

• High-bandwidth program and data memory due to the high-performance hard-macro memory controller

• Lowest power consumption due to the high-efficiency DC/DC converters

Features

• Intel Cyclone V SoC

  • ARM® dual-core Cortex™-A9
    (32 bit, up to 800 MHz)

  • Intel Cyclone V 28nm FPGA fabric

• SO-DIMM form factor (67.6 x 30 mm, 200 pins)

• 104 user I/Os

  • 16 ARM peripherals (SPI, SDIO, CAN, I2C, UART) from which 14 pins shared with FPGA I/Os

  • 76 FPGA I/Os (single-ended or differential)

  • 12 MGT signals (clock and data) for SX devices or 4 additional FPGA I/Os for SE devices

• Gigabit Ethernet and USB 2.0 OTG PHYs

• Fast Ethernet PHY

• Up to 2 × 3.125 Gbps MGTs

• Up to 2 GB DDR3L SDRAM

• 64 MB quad SPI flash

• 16 GB eMMC flash

• Single 3.3 V supply voltage
