DESCRIPTION
The New B01 Revision Released At Early 2020 By NVIDIA, Upgraded Functionality
NVIDIA Jetson Nano Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. All in an easy-to-use platform that runs in as little as 5 watts.
Jetson Nano delivers 472 GFLOPS for running modern AI algorithms fast, with a quad-core 64-bit ARM CPU, a 128-core integrated NVIDIA GPU, as well as 4GB LPDDR4 memory. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously.
Jetson Nano is also supported by NVIDIA JetPack, which includes a board support package (BSP), CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The SDK also includes the ability to natively install popular open source Machine Learning (ML) frameworks such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, enables the developers to integrate their favorite AI model / AI framework into products fast and easily.
Upgraded 2-Lanes CSI, Instead Of The Previous 1-Lane, Easily Play Around With Binocular Vision

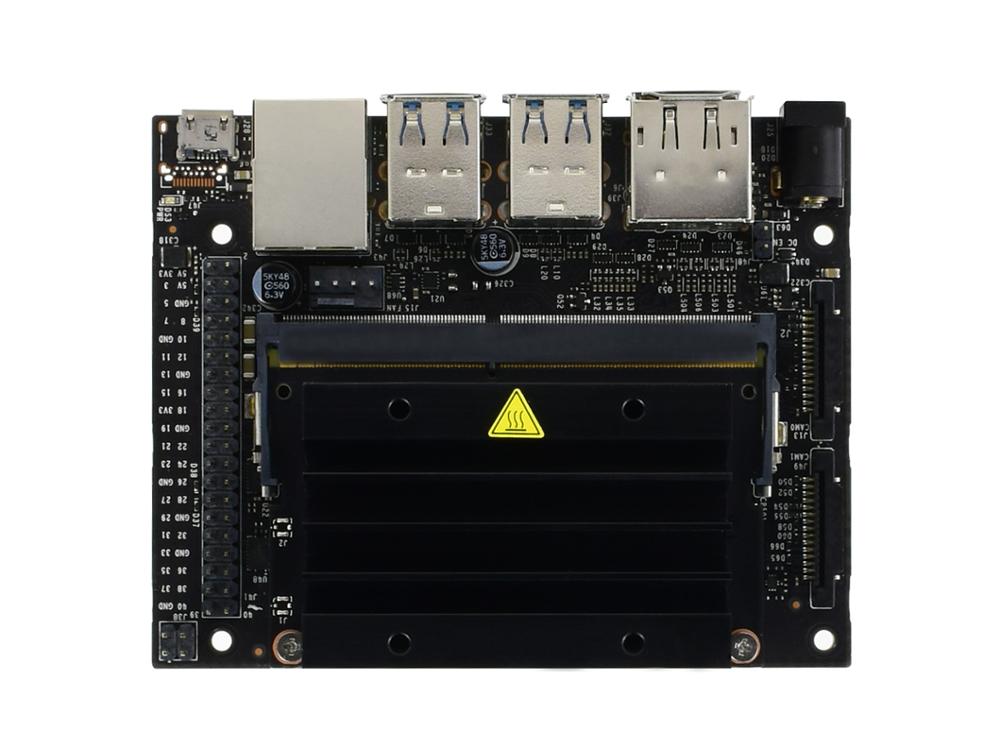

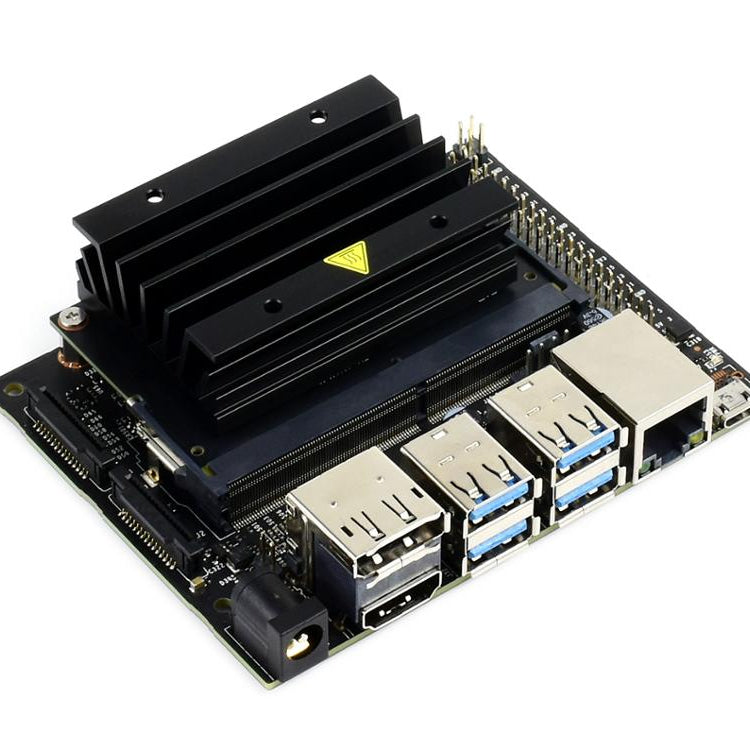

The New Designed Carrier Board Is Compatible With
EitherJetson NanoORJetson Xavier NX
Convenient For Hardware Upgrading
-
Micro SD card slot:insert a 16GB or larger TF card for main storage and writing system image
-
40-pin expansion header
-
Micro USB port:for 5V power input or for USB data transmission
-
Gigabit Ethernet port:10/100/1000Base-T auto-negotiation
-
4x USB 3.0 port
-
HDM1 output port
-
DisplayPort connector
-
DC jack:for 5V power input
-
2x MIPI CSI camera connector
GPU | 128-core Maxwell |
CPU | Quad-core ARM A57 @ 1.43 GHz |
MEMORY | 4 GB 64-bit LPDDR4 25.6 GB/s |
STORAGE | micro SD card (NOT included. Recommendation:Micro SD Card 16GB) |
VIDEO ENCODER | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
VIDEO DECODER | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
CAMERA | 2x MIPI CSI-2 DPHY lanes |
CONNECTIVITY | Gigabit Ethernet, M.2 Key E expansion connector (Recommendation:AC8265 Dual-mode NIC) |
DISPLAY | HDM1 and DP |
USB | 4x USB 3.0, USB 2.0 Micro-B |
EXTENSION INTERFACES | GPIO, I2C, I2S, SPI, UART |
As An NVIDIA Official Authorized Partner, Waveshare Is Capable Of Providing Genuine Products And Reliable Tech Support
PACKAGE CONTENT
Weight:0.238 kg
-

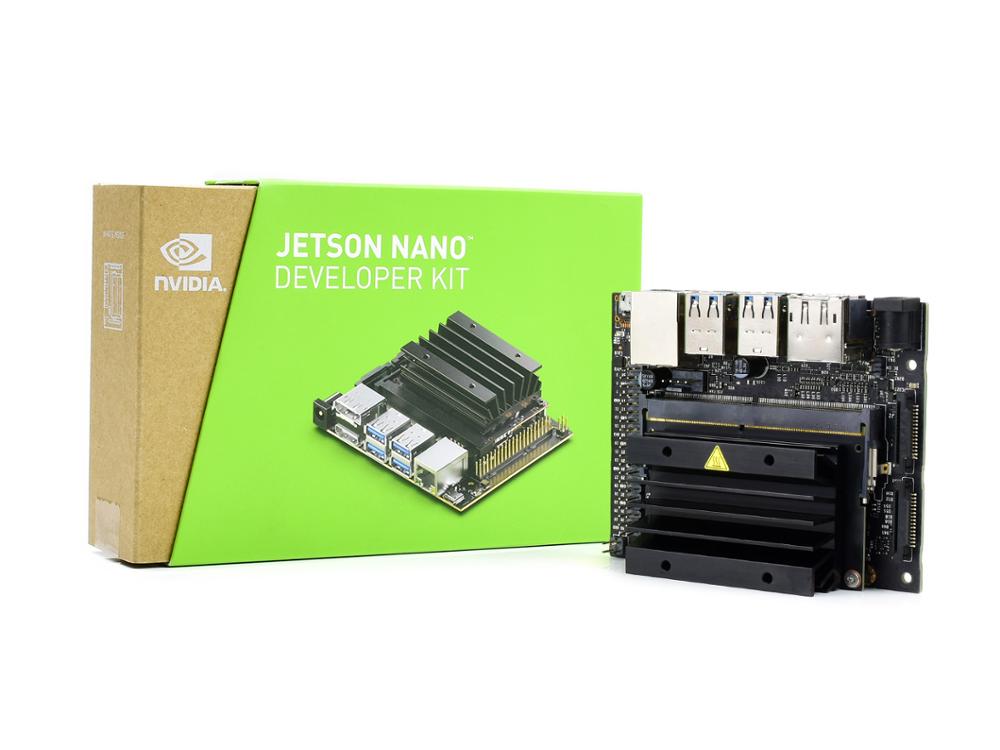

Jetson Nano Developer Kit (B01) x1
