Custom PCB mining pcba FET1061-S System on Module( i.MX RT1061 SoC) pcba blue fr4 pcba

Custom PCB mining pcba FET1061-S System on Module( i.MX RT1061 SoC) pcba blue fr4 pcba

Regular price $15.00 USD
Regular price $55.00 USD Sale price $15.00 USD
Sale Sold out



CPU: i.MXRT1061

Architecture: Cortex-M7

Frequency: 528MHz

RAM: 1MB on-chip SRAM

ROM: 4MB QSPI NorFlash(16MB optional)

System: FreeRTOS,RT-Therad,Bare Metal

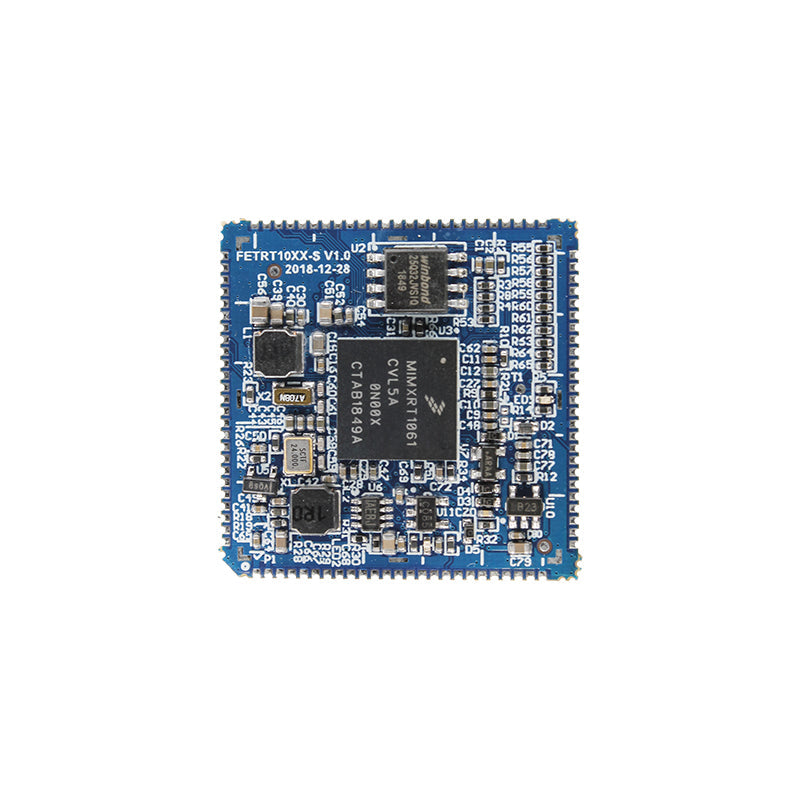

NXP i.MX RT1061 based System on Module FET1061-S

FET1061-S is a system on module designed based on NXP Cortex -M7 MCU i.MX RT1061@ 528MHz(commercial grade one 600MHz), it has on-chip SRAM up to 1MB, 512KB can be flexibly configured as TCM or general purpoes on-chip RAM, and it can support QSPI-NOR Flash with capability of 4MB.

It has a compact volume of 30x 30x 3mm with edge soldering package, 100 pins are avialbe with pitch of 1.0mm. It integrates HS_GPIO, CAN-FD and NAND/ NOR/ PSRAM controllers. The SoM temp width ranges from -40℃ to +85℃. Meanwhile, various prepherial interface such as UART, 2x Ethewrnet, USB, CAN, CAN-FD, HS_GPIO and PWM, ADC are available on carrier board. Bare metal and Free RTOS are both supported.




 Welcome Customize Order!
