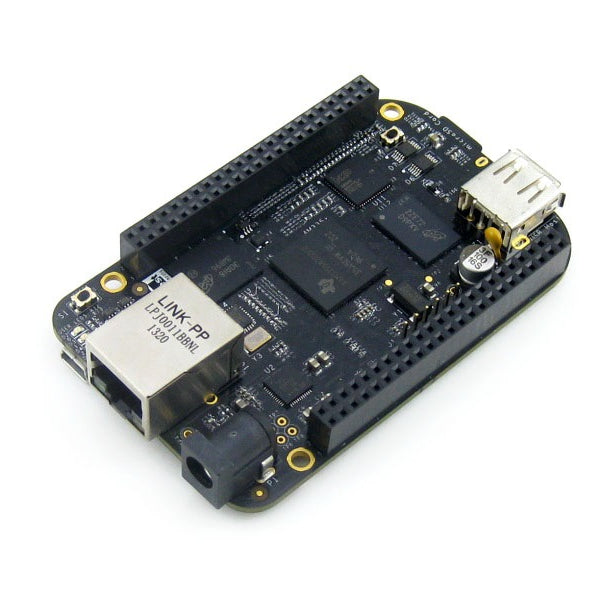

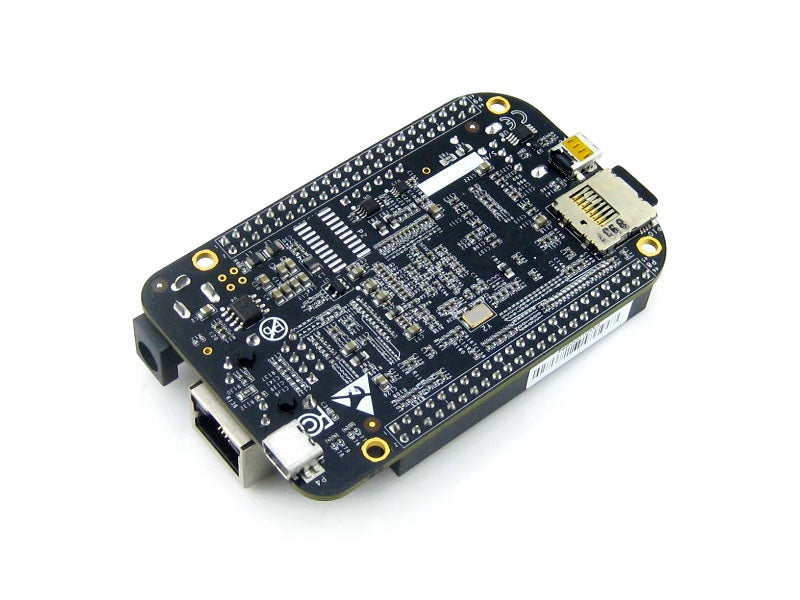

• Processor:TI Sitara AM335x, 1GHz, 2000 MIPS

  • 1 GHz ARM ® Cortex-A8

  • SGX530 Graphics Engine

  • Programmable Real-Time Unit Subsystem

• Memory

  • SDRAM: 512MB DDR3L 800MHZ

  • eMMC Flash:

    • Rev B: 2GB (discontinued)

    • Rev C: 4GB (as of 2014.05.21)

• SD / MMC Connector for microSD

• Power management:TPS65217CPMIC is used along with a separate LDO to provide power to the system

• Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header

• Power Source

  • miniUSB USB or DC Jack

  • 5VDC External Via Expansion Header

• Connectivity

  • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB

  • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS / FS / HS

  • Serial Port:. UART0 access via 6 pin 3.3V TTL Header Header is populated

  • 10/100M Ethernet (RJ45)

• User Input / Output

  • Reset Button

  • Boot Button

  • Power Button

  • LED power indicator

  • 4 user configurable LEDs

• Video / Audio Interfaces

  • HDMI D type interface

  • LCD interface

  • Stereo audio over HDMI interface

• Expansion Interfaces

  • LCD, UART, eMMC

  • ADC, I2C, SPI, PWM

• Operating Power:5V 0.35A

• Board Size:3.4 x 2.1

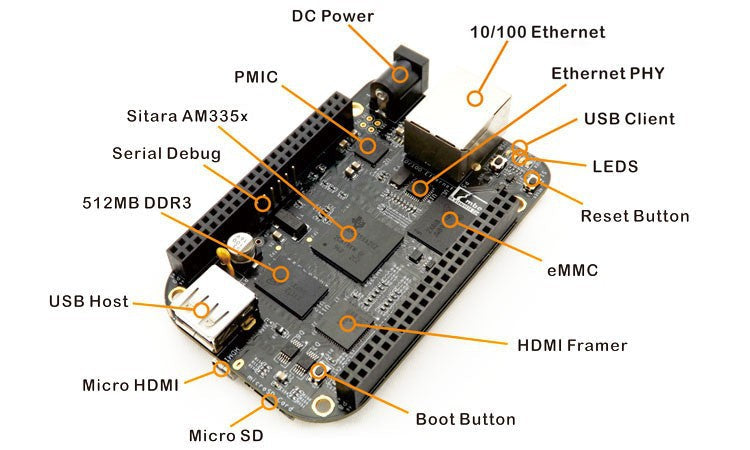

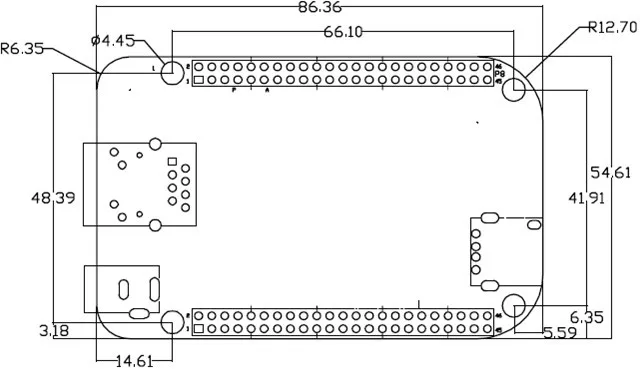

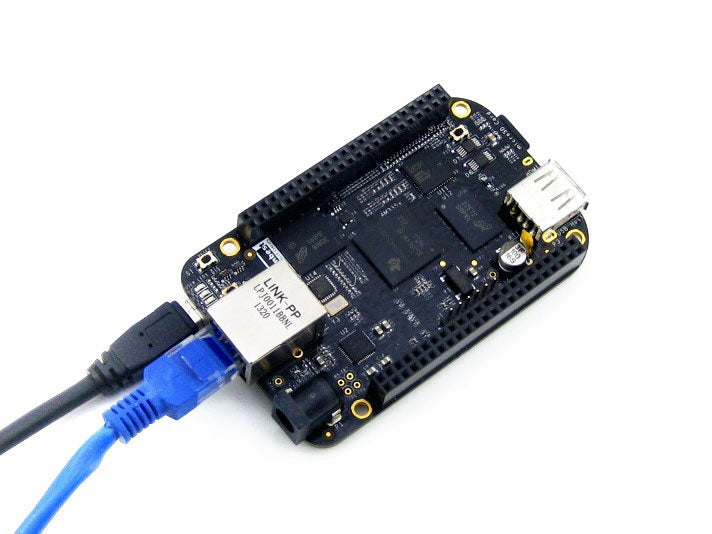

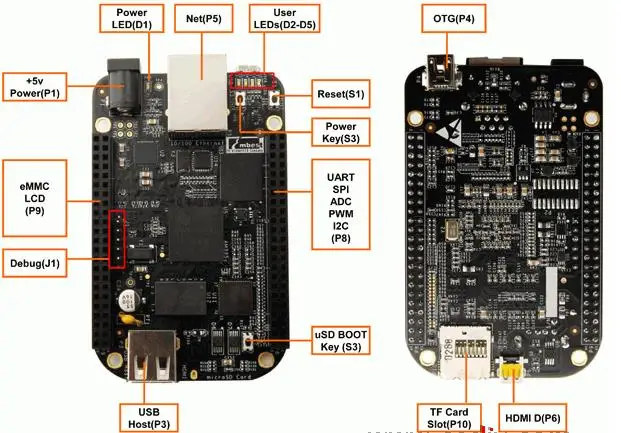

The Hardware Dimensions

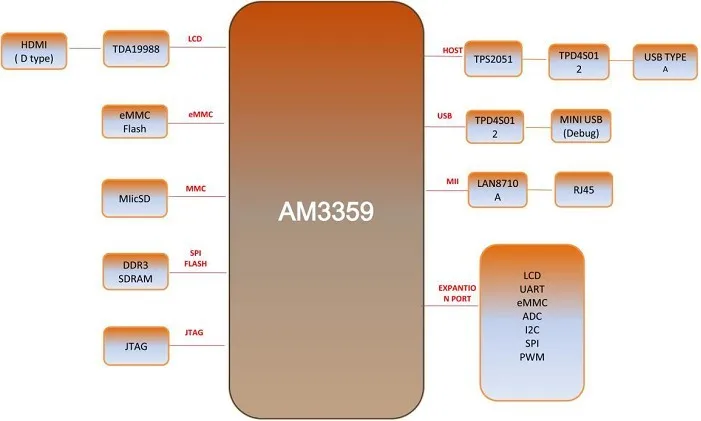

The System Block Diagram
