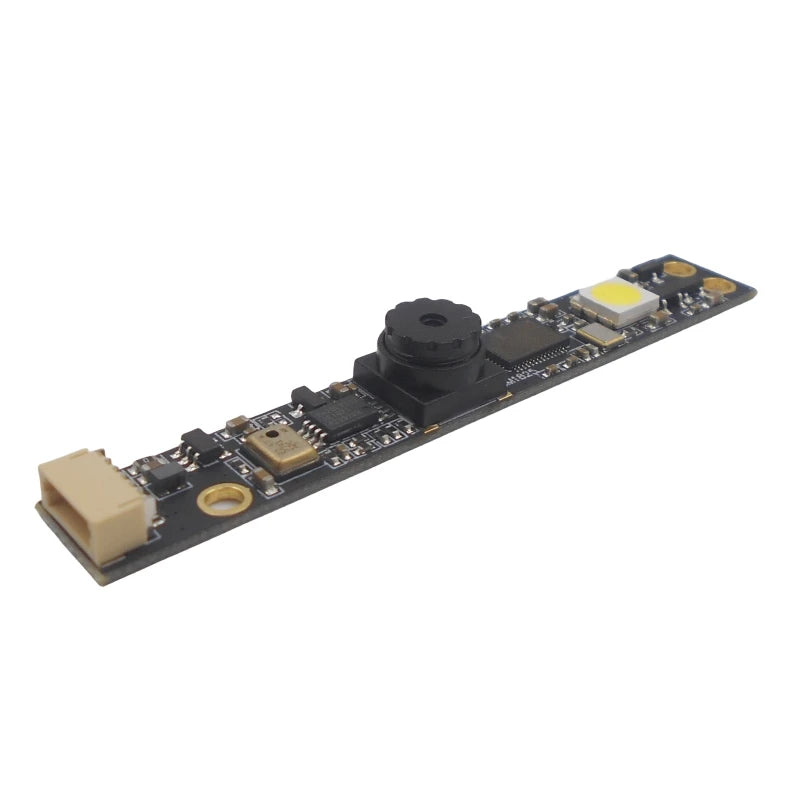

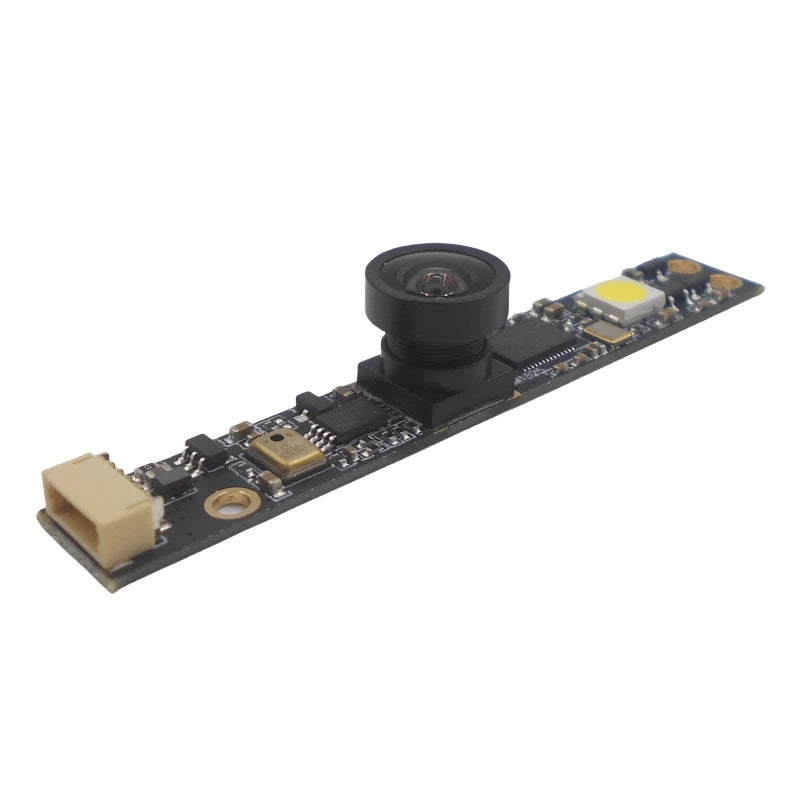

Custom OV5640 flash 5 megapixel fixed focus 60 degree camera module block laptop all-in-one UVC protocol

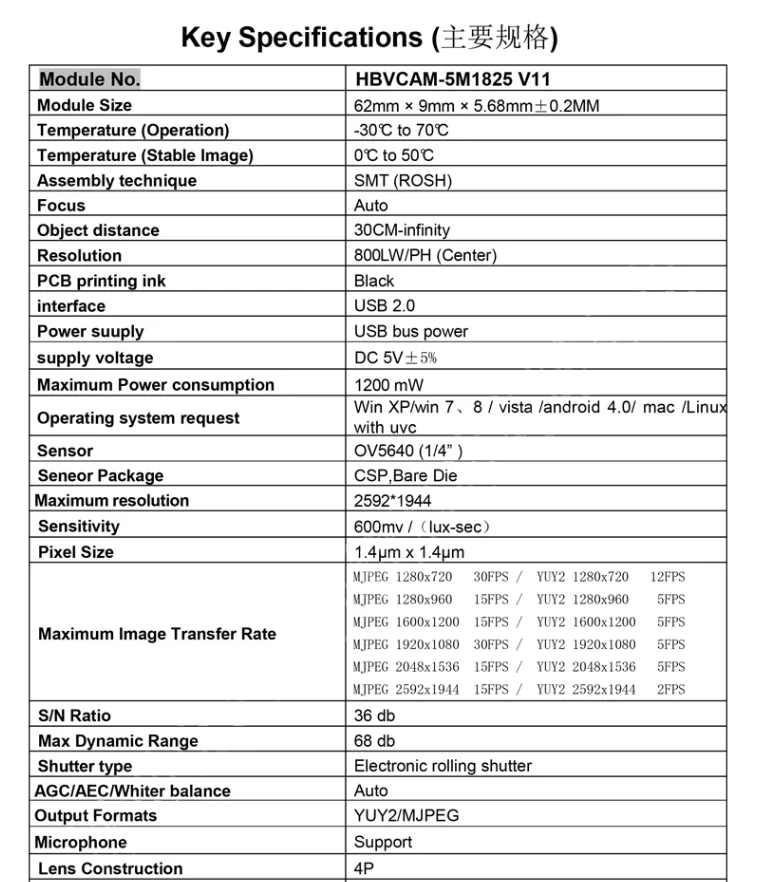

Product parameters

Product model: HBV-1825 S1.0

Pixel: 5 million pixels

Photosensitive chip: OV5640 (1/4 ") CMOS

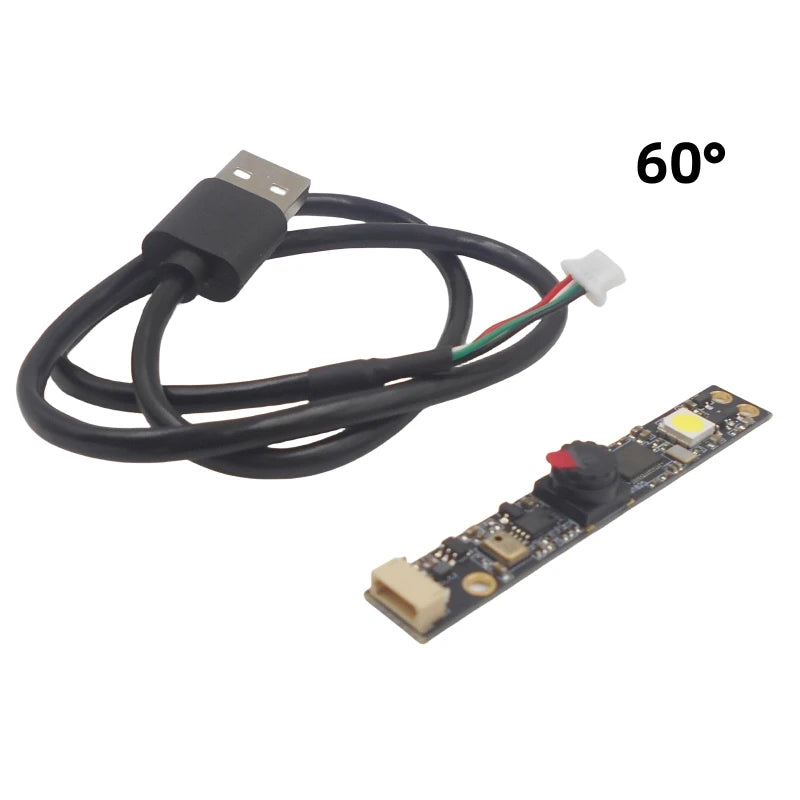

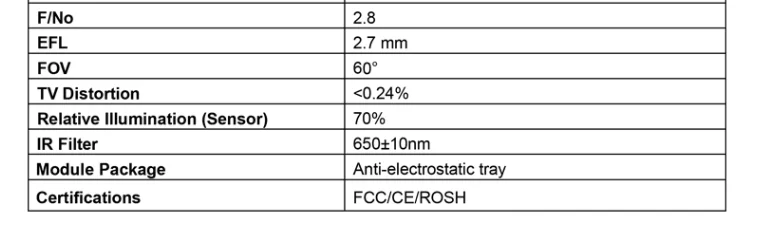

Field of view angle/focal length: 60 °/2.7mm

Format: MJPG/YUY2

Resolution: 2592x1944 15 frames/1920x1080 30 frames (MJPG)

2592x1944 2 frames/640x480 15 frames (YUY2)

Focusing method: fixed focus (default factory object distance 60cm, please contact customer service for special requirements)

Function introduction: supports OTG, standard UVC protocol, with flash, microphone, USB drive free

Output: USB 2.0

Support system: WinXP/Win7Win8/Win10/MAC OSX/Linux/Android

Wire: Standard configuration 40cm (requires 1m/2m/3m size, please contact online customer service)

Working temperature: -20 ° C~70 ° C

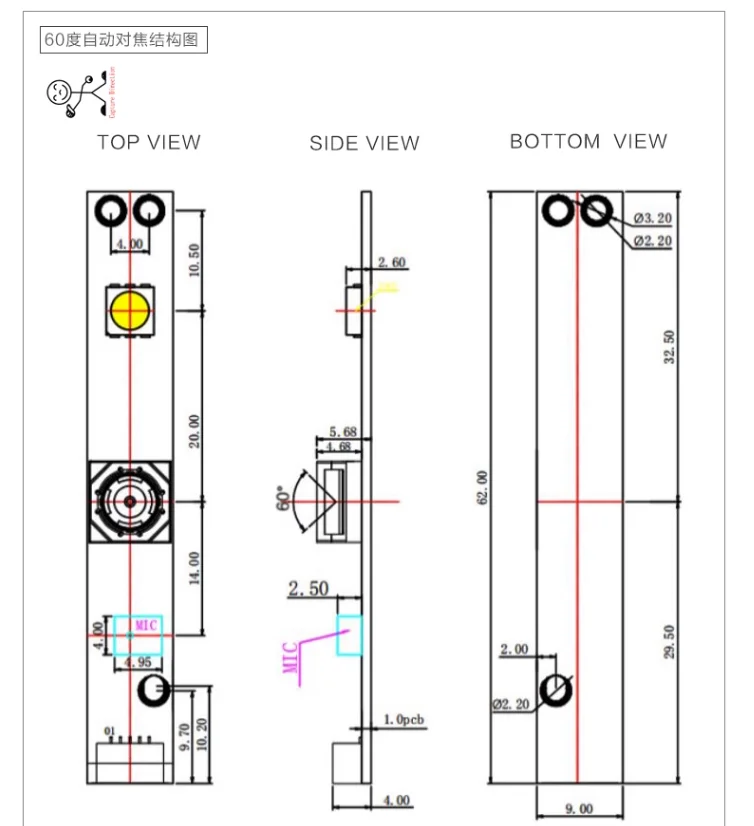

Size: 62mmx9mmx5.68mm (different lenses, different heights)

Other: Support customization
