Custom OV2640 Camera Module 2 Million Pixel CMOS Sensor Module Integrated with JPEG Compression Unit New Big Promotion Manufacturer

200W pixel OV2640 camera module STM32F4 driver source code Support JPEG output Standard camera lens focal length 3.6mm, optional other high-end megapixel lens.

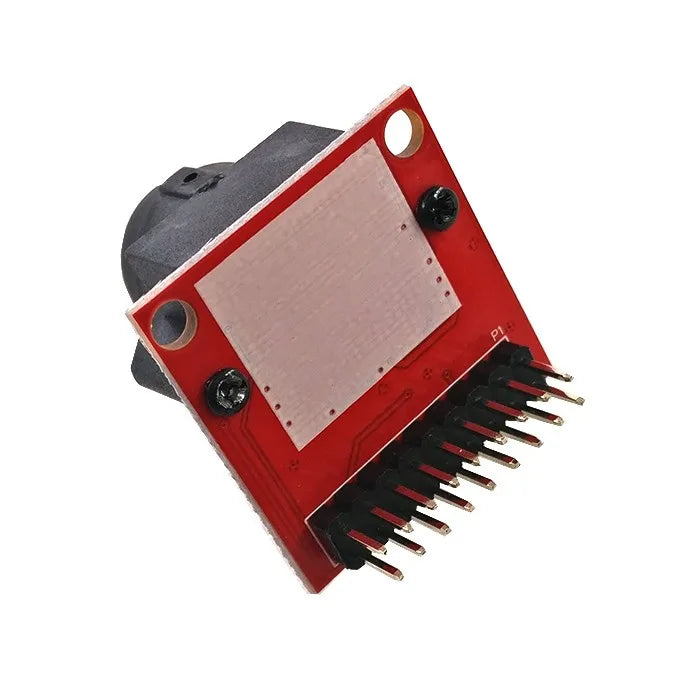

1. Introduction to the module

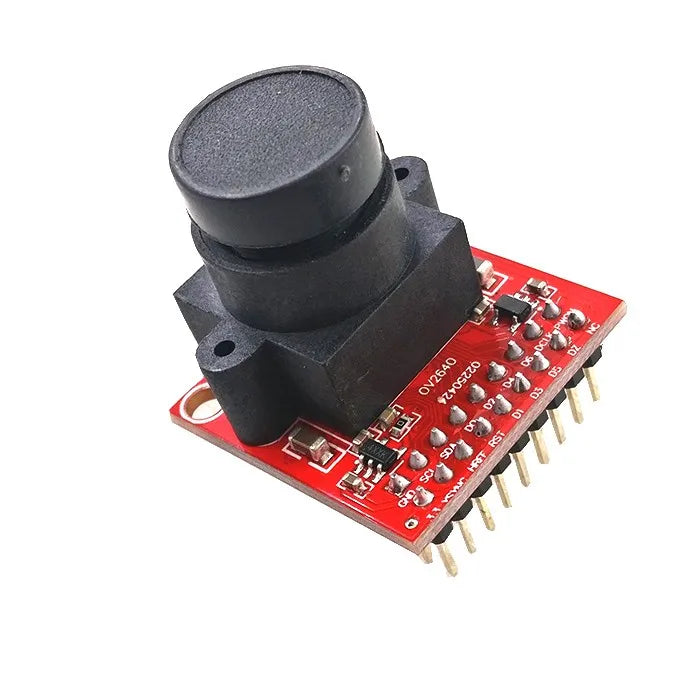

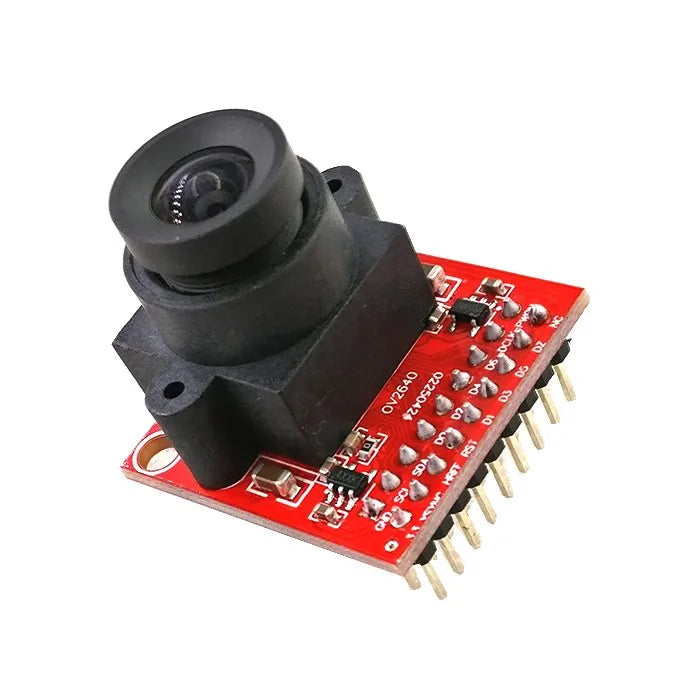

  200W pixel OV2640 camera module, made with 1/4 inch OV2640 million HD CMOS sensor. High sensitivity, high flexibility, and support for JPEG output. And can support exposure, white balance, chroma, saturation, contrast and many other parameter settings, support JPEG / RGB565 format output, can meet the needs of different occasions.

Module parameter performance:

1, sensor size: 1/4 inch.

2, pixel: 1600 * 1200 (200W).

3, the output format: RGB565 / JPEG / YUV / YCbCr and so on.

4, control interface: SCCB.

5, working voltage: 3.3V

6, module size: 27mmX27mm

With 2 million pixels (1632x1232 pixels), the OV2640 image sensor is small in size and low in operating voltage, providing all the features of a single UXGA camera and image processor. Through the SCCB bus control, it is possible to output 10-bit sample data of various resolutions such as full frame, sub-sampling, and window. Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, saturation, chrominance, etc. can be programmed via the SCCB interface. OmmiVision Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, and floating.

The product uses the OV2640 sensor as the core component, integrates the active crystal oscillator and LDO, and has a simple interface and is very convenient to use.

Module features:

● High sensitivity, low voltage for embedded applications

● Standard SCCB interface, compatible with I2C interface

● RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats

● Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30 size

● Support automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, automatic black level calibration. Image quality control including color saturation, color

Phase, gamma, sharpness, ANTI_BLOOM, etc.

● Support image zoom, pan and window settings

● Support image compression to output JPEG image data

● Comes with embedded microprocessor

● Integrated active crystal oscillator 12M, no external clock required

● Integrated LDO, only need to supply 3.3V to work properly

OV2640 camera requires a total of 15 IO port drivers
