Custom Original BPI-M1+ allner A20 Dual Core 1GB RAM on-board WiFi development board Manufacturer

Custom Original BPI-M1+ allner A20 Dual Core 1GB RAM on-board WiFi development board Manufacturer

$35.00 USD
$35.00 USD $35.00 USD
Sale Sold out
Item specifics
  • : bpi
  • Interface: 2 x USB2.0,TF Card Support,/RCA Output,SATA
  • Model Number: BPI-M1+
  • Demo Board Type: ARM
  • Procor : Allner
  • Certification: CE,FCC,Rosh
  • Shipment: DHL/FEDEX/UPS/EMS/HK
  • is_customized: Yes
  • Operating Temperature: -15~75℃
  • Dissipation Power: 5watts
  • Type: ICs
  • Application: Computer
  • Supply Voltage: 5V 2A
  • Condition: New
Product Description

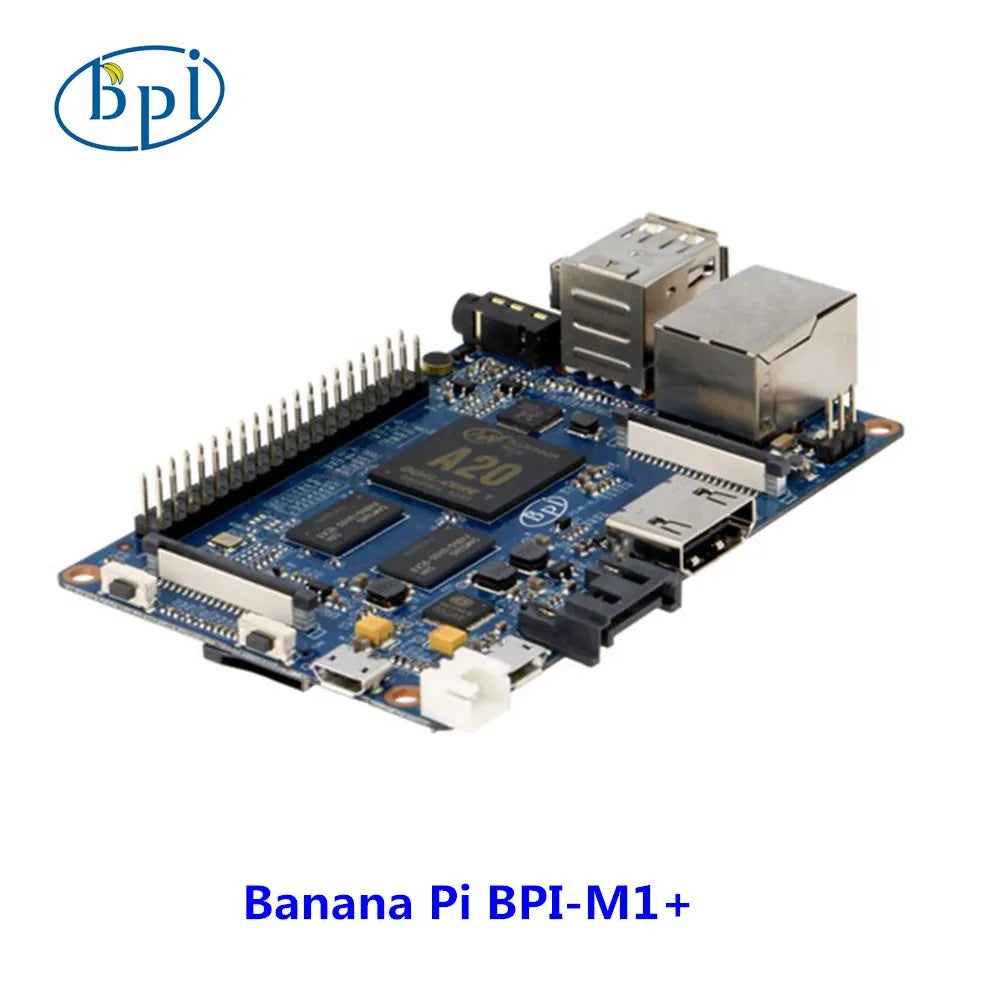

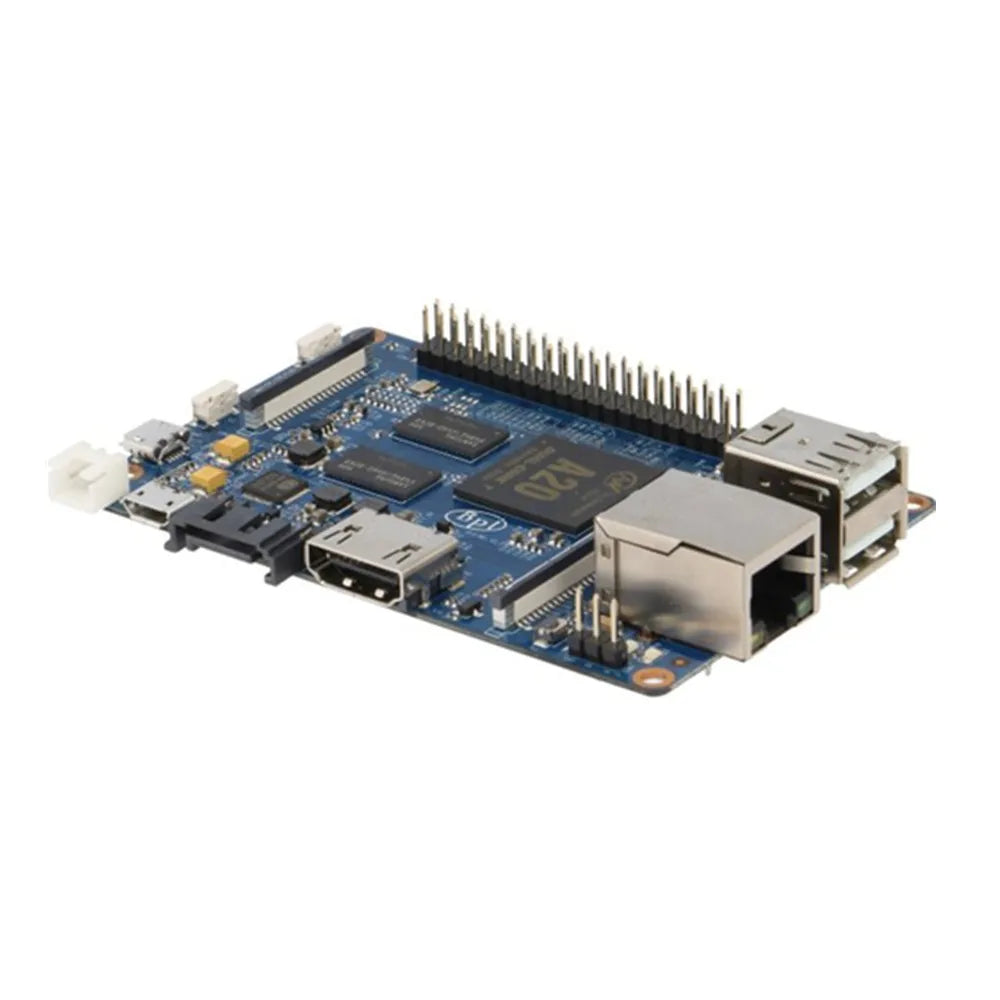

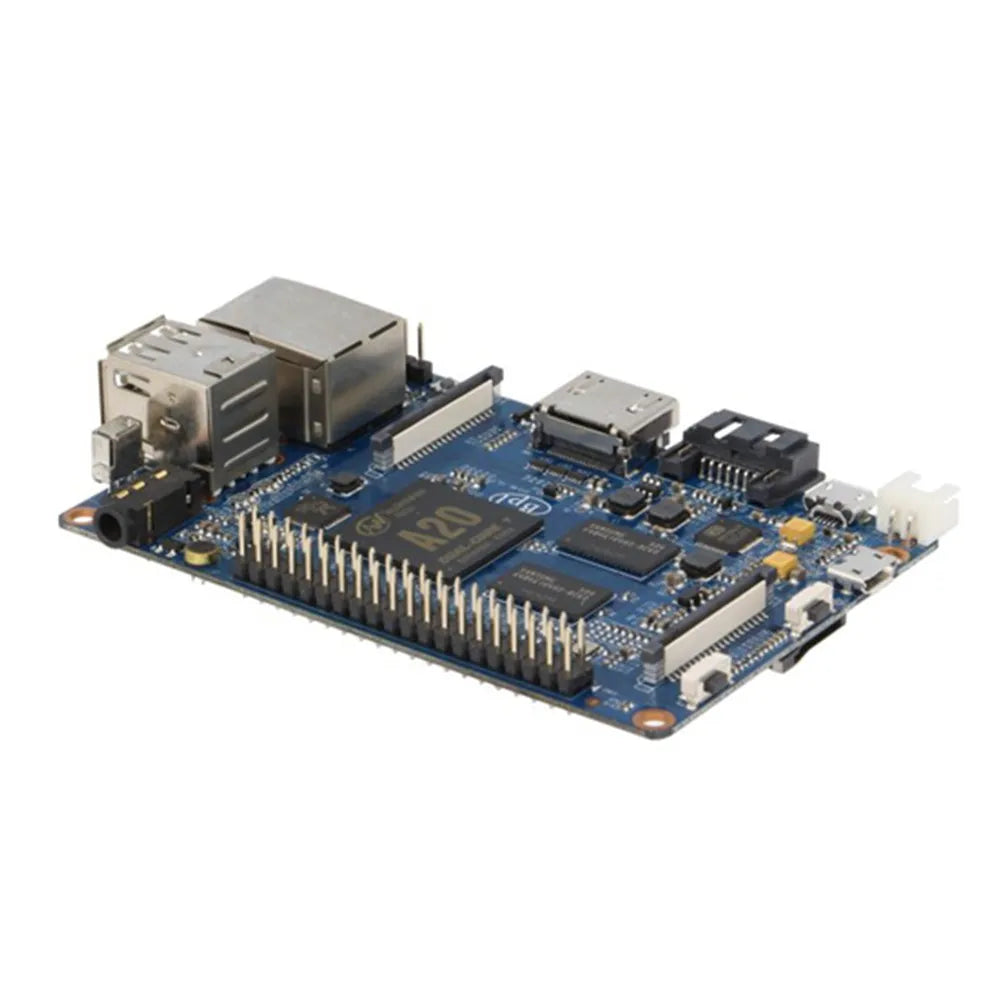

Banana Pi A20 BPI M1 Plus single board computer



This is singal board price ,if you need,  you can choose accories as follow :

 BPI OV5640 camera, 7 inch touch screen, USB power connector (5V 2A)

​Epacket logistics is expected to be 15-30 working days,and slow update of logistics informations, If you mind ,please choose the fast logistics channel . Thank you : )



Introduction:

Banana PI BPI-M1+ is an Open Source hardware platform . Banana PI a dual core, 4.4,linux system support product which is much betterthan the Raspberry Pi.

BPI-M1+ have SDIO WiFi module on board and have 40 PIN as rasbperry pi.

The Banana Pi BPI-M1+ hardware runs , Debian Linux, Ubuntu Linux,OpenSuse linux and images that run on the Raspberry Pi and Cubieboard.

Banana PI BPI-M1+ has a Gigabit Ethernet port and a SATA Socket. It can run with 4.4 smoothly. The size of Banana PI BPI-M1+ is about the same size as a credit card,

It can easily run games as it supports 1080P high definition video output. The is compatible with Raspberry Pi 2 and can run Raspberry Pi images directly.



Key Features

  • Allner A20 Dual-core 1.0GHz CPU
  • Mali-400 MP2 with Open GL ES 2.0/1.1.
  • 1 GB DDR3 memory.
  • Wifi &BT support onboard
  • 1x SATA interface.
  • 1x Gigabit LAN
  • 1x USB and 2x USB 2.0
  • 1X MIC
  • AV out
  • out
  • IR
  • CSI camera interface
  • DSI display interface
  • 40 PIN
  • 3.7V lithium battery interface




Hardware

Hardware interfact



Hardware spec

  Banana Pi M1+
CPU A20 ARM Cortex -A7 Dual-Core
GPU ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory 1GB DDR3
Network 10/100/1000 Ethernet
wifi&BT Wifi & BT 4.0 support onboard
Video Input A CSI input connector allows for the connection of a designed camera module
Video Outputs , CVBS, LVDS/RGB
o Outputs 3.5mm jack and
Power Source 5V/2A via Micro USB (DC in only) and / or Micro USB
USB 2.0 ports 2(direct from Allner A20 chip)
, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND
LED Power Key & 8P8C
Storage SATA 2.0
OS 4.4, 4.2, Raspbian, Lubuntu, Open Suse, Debian



define:

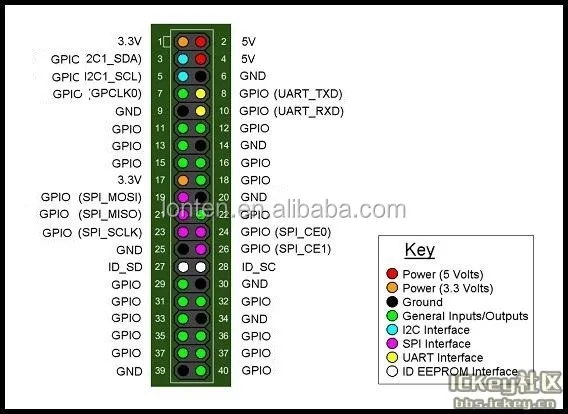

M1+ 40 Pin

40 PIN of Banana pi BPI-M1+
Pin Name Default Function Function2：
CON3-P01 VCC-3V3
CON3-P02 VCC-DC
CON3-P03 TWI2-SDA PB21
CON3-P04 VCC-DC
CON3-P05 TWI2-SCK PB20
CON3-P06 GND
CON3-P07 PWM1 PI3
CON3-P08 UART3\_TX PH0
CON3-P09 GND
CON3-P10 UART3\_RX PH1
CON3-P11 UART2\_RX PI19
CON3-P12 PH2 PH2
CON3-P13 UART2\_TX PI18
CON3-P14 GND
CON3-P15 UART2\_CTS PI17
CON3-P16 CAN\_TX PH20
CON3-P17 VCC-3V3
CON3-P18 CAN\_RX PH21
CON3-P19 SPI0\_MOSI PI12
CON3-P20 GND
CON3-P21 SPI0\_MISO PI13
CON3-P22 UART2\_RTS PI16
CON3-P23 SPI0\_CLK PI11
CON3-P24 SPI0\_CS0 PI10
CON3-P25 GND
CON3-P26 SPI0\_CS1 PI14
CON3-P27 TWI3-SDA PI1
CON3-P28 TWI3-SCK PI0
CON3-P29 I2S\_MCLK PB5
CON3-P30 GND
CON3-P31 I2S\_BCLK PB6
CON3-P32 I2S\_DI PB12
CON3-P33 I2S\_LRCK PB7
CON3-P34 GND
CON3-P35 I2S\_DO0 PB8
CON3-P36 UART7\_RX PI21
CON3-P37 IR0\_TX PB3
CON3-P38 UART7\_TX PI20
CON3-P39 GND
CON3-P40 SPDIF\_DO PB13

CSI Camera Connector specification:

The CSI Camera Connector is a 40-pin FPC connector which can connect external camera module with proper signal pin mappings.The pin definitions of the CSI interface are shown as below. This is marked on the Banana Pi board as “CON1″.

CSI PIN of Banana pi BPI-M1+
CSI Pin Name Default Function Pin name Function2：
CON1 P01 LINEINL
CON1 P02 LINEINR
CON1 P03 VCC-CSI
CON1 P04 ADC\_X1
CON1 P05 GND
CON1 P06 ADC\_X2
CON1 P07 FMINL
CON1 P08 ADC\_Y1
CON1 P09 FMINR
CON1 P10 ADC\_Y2
CON1 P11 GND
CON1 P12 CSI-FLASH PH17
CON1 P13 LRADC0
CON1 P14 TWI1-SDA PB19
CON1 P15 LRADC1
CON1 P16 TWI1-SCK PB18
CON1 P17 CSI-D0 PE4
CON1 P18 CSI0-STBY-EN PH19
CON1 P19 CSI0-D1 PE5
CON1 P20 CSI-PCLK PE0
CON1 P21 CSI-D2 PE6
CON1 P22 CSI0-PWR-EN PH16
CON1 P23 CSI-D3 PE7
CON1 P24 CSI0-MCLK PE1
CON1 P25 CSI-D4 PE8
CON1 P26 CSI0-RESET\# PH14
CON1 P27 CSI-D5 PE9
CON1 P28 CSI-VSYNC PE3
CON1 P29 CSI-D6 PE10
CON1 P30 CSI-HSYNC PE2
CON1 P31 CSI-D7 PE11
CON1 P32 CSI1-STBY-EN PH18
CON1 P33 AP-RESET\#
CON1 P34 CSI1-RESET\# PH13
CON1 P35 CSI-IO0 PH11
CON1 P36 R
CON1 P37 L
CON1 P38 IPSOUT
CON1 P39 GND
CON1 P40 IPSOUT

LVDS \(LCD display interface\)

The LVDS Connector is a 40-pin FPC connector which can connect external LCD panel \(LVDS\) and touch screen \(I2C\) module as well.The pin definitions of this connector are shown as below. This is marked on the Banana Pi board as “CON2″.

LVDS PIN of Banana pi BPI-M1+
LVDS Pin Default Function Function2 Function3：
CON2 P01 IPSOUT\(5V output\)
CON2 P02 TWI3-SDA   PI1
CON2 P03 IPSOUT\(5V output\)
CON2 P04 TWI3-SCK   PI0
CON2 P05 GND
CON2 P06 LCD0-IO0   PH7
CON2 P07 LCDIO-03   PH12
CON2 P08 LCD0-IO1   PH8
CON2 P09 LCD0-D0 LVDS0-VP0 PD0
CON2 P10 PWM0   PB2
CON2 P11 LCD0-D1 LVDS0-VN0 PD1
CON2 P12 LCD0-IO2
CON2 P13 LCD0-D2 LVDS0-VP1 PD2
CON2 P14 LCD0-DE   PD25
CON2 P15 LCD0-D3 LVDS0-VN1 PD3
CON2 P16 LCD0-VSYNC   PD27
CON2 P17 LCD0-D4 LVDS0-VP2 PD4
CON2 P18 LCD0-HSYNC   PD26
CON2 P19 LCD0-D5 LVDS0-VN2 PD5
CON2 P20 LCD0-CS
CON2 P21 LCD0-D6 LVDS0-VPC PD6
CON2 P22 LCD0-CLK   PD24
CON2 P23 LCD0-D7 LVDS0-VNC PD7
CON2 P24 GND
CON2 P25 LCD0-D8 LVDS0-VP3 PD8
CON2 P26 LCD0-D23   PD23
CON2 P27 LCD0-D9 LVDS0-VN3 PD9
CON2 P28 LCD0-D22   PD22
CON2 P29 LCD0-D10   PD10
CON2 P30 LCD0-D21   PD21
CON2 P31 LCD0-D11   PD11
CON2 P32 LCD0-D20   PD20
CON2 P33 LCD0-D12   PD12
CON2 P34 LCD0-D19   PD19
CON2 P35 LCD0-D13   PD13
CON2 P36 LCD0-D18   PD18
CON2 P37 LCD0-D14   PD14
CON2 P38 LCD0-D17   PD17
CON2 P39 LCD0-D15   PD15
CON2 P40 LCD0-D16   PD16

UART specification:

The jumper J11header CON4 is the UART interface.For developers of Banana Pi, this is an easy way to get the UART console output to check the system status and log mage.



UART de PIN of Banana pi BPI-M1+
Pin Name Default Function
CON4 P03 UART0-TXD PB22
CON4 P02 UART0-RXD PB23
CON4 P01
