Custom original 1280*800 LCD Screen 10.1 Touch Screen Panel 10 Inch TFT LCD Module Manufacturer
Custom original 1280*800 LCD Screen 10.1 Touch Screen Panel 10 Inch TFT LCD Module Manufacturer
Regular price
$90.00 USD
Regular price
$90.00 USD
Sale price
$90.00 USD
Unit price
per
Couldn't load pickup availability

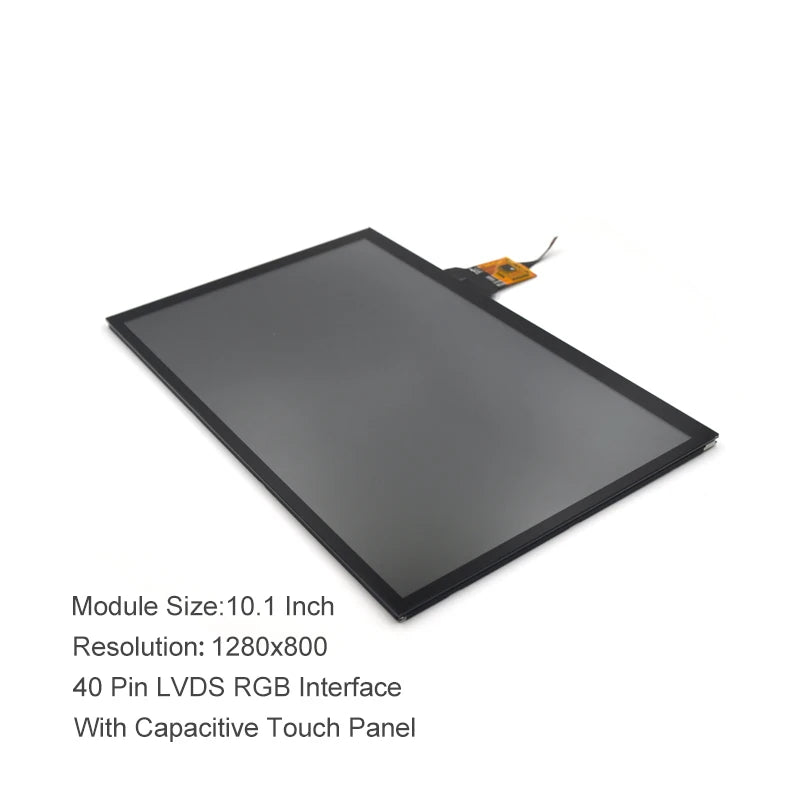

1280*800 LCD Screen 10.1 Touch Screen Panel 10 Inch TFT LCD Module
| Product Name | 1280*800 LCD Screen 10.1 Touch Screen Panel 10 Inch TFT LCD Module |
|---|---|
| LCD Size | 10.1 Inch TFT LCD Display Module |
| Display Mode | IPS |
| Resolution | 1280x800 |

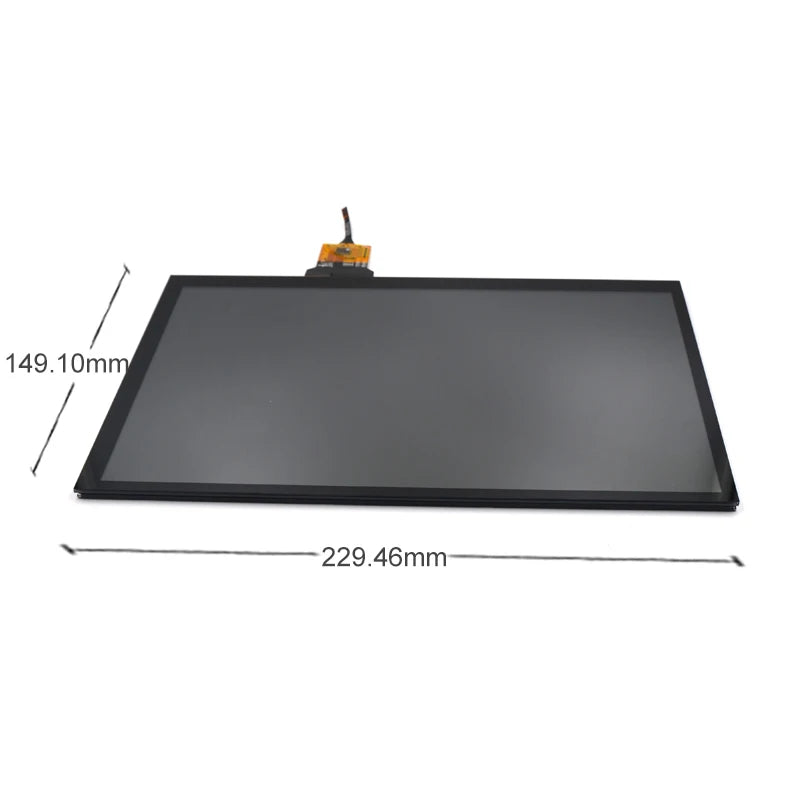

| Outline Dimension (mm) | 229.46x149.10x4.90 |
| Active Area (mm) | 216.96x135.60 |
| Dot pitch (mm) | 0.1695x0.1695 |
| Viewing Direction | All |
| Interface | LVDS Interface, 40 Pin |
| Surface Hardness | 6H |
| Brightness (Cd/m2) | 350 |
| Contrast Ratio | 800:1 |
| Backlight | 30 White LED |
| Backlight Supply (Current/Voltage) | 200mA 8.8V |
| Touch Screen | With Capacitive Touch Panel |
* KWH101KQ07-C01 is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.
* It is 1280x800 resolution TFT LCD module.
* Backlight with different brightness options from 250 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
