Optical Power Meter Tester Handheld PON Optical Power Meter TLD607P Used in FTTH digital system of communication devices
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much
Product Attributes

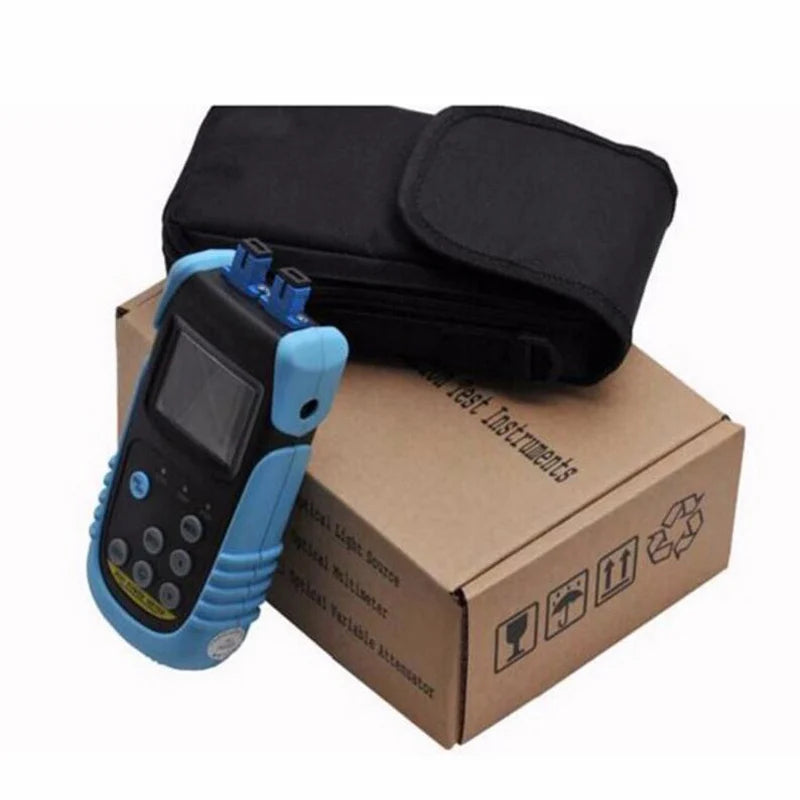

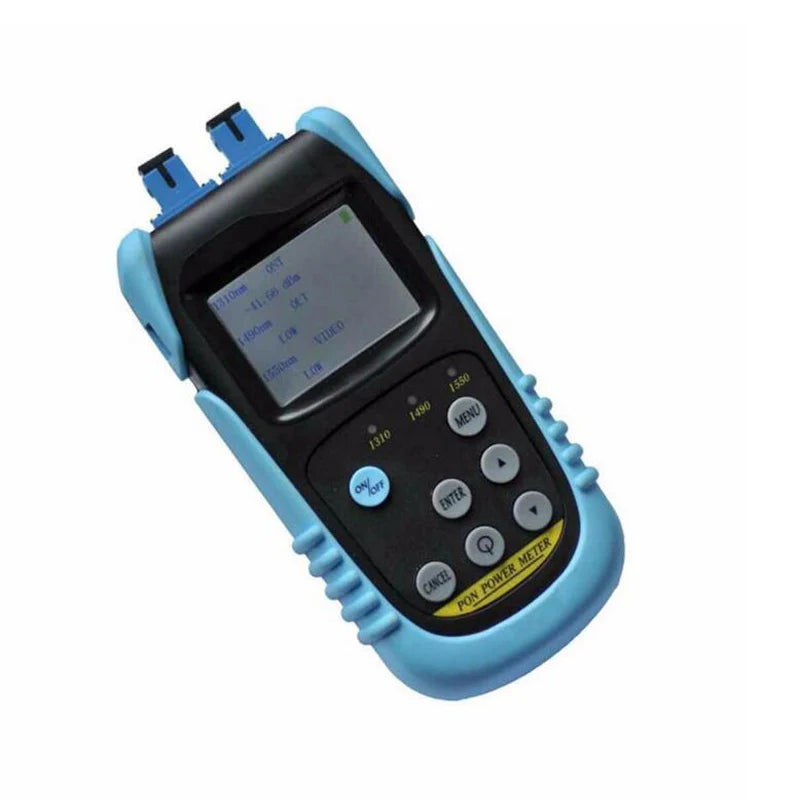

Handheld PON Optical Power Meter TLD607P
Description
PON optical power meter is a tester designed for design, operation and maintenance of FTTX network. It is able to concurrently measure the optical power values of voice, data and video signals. It is an ideal choice for the construction and maintenance of FTTX network works.
Features
- Providing simultaneous measurement at all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
- Used in Burst mode measurement of 1310nm upstream

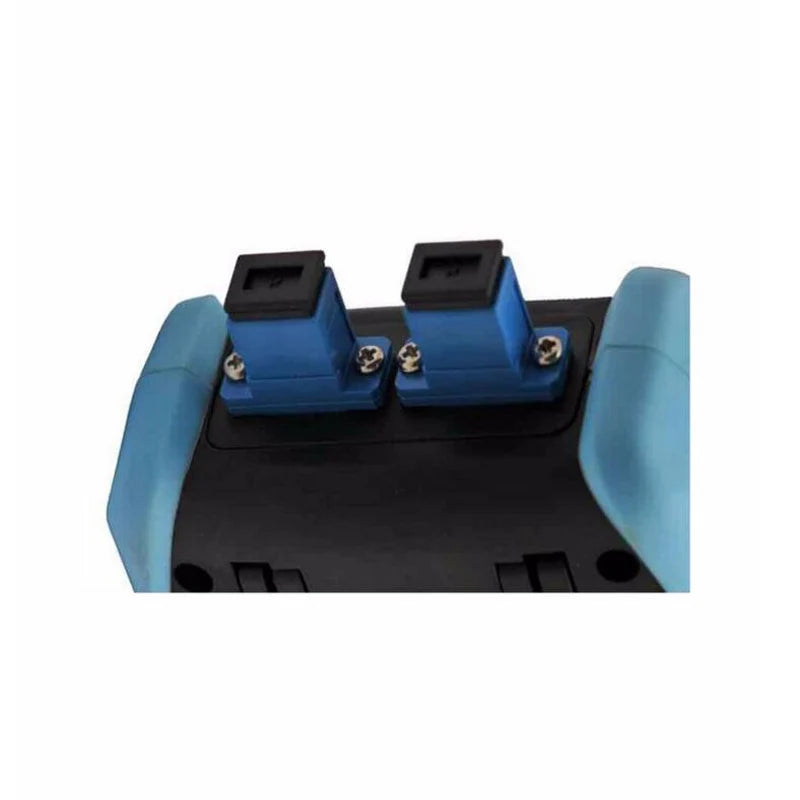

- Dual-port through the design, guarantee the full communication testing from the OLT to the ON

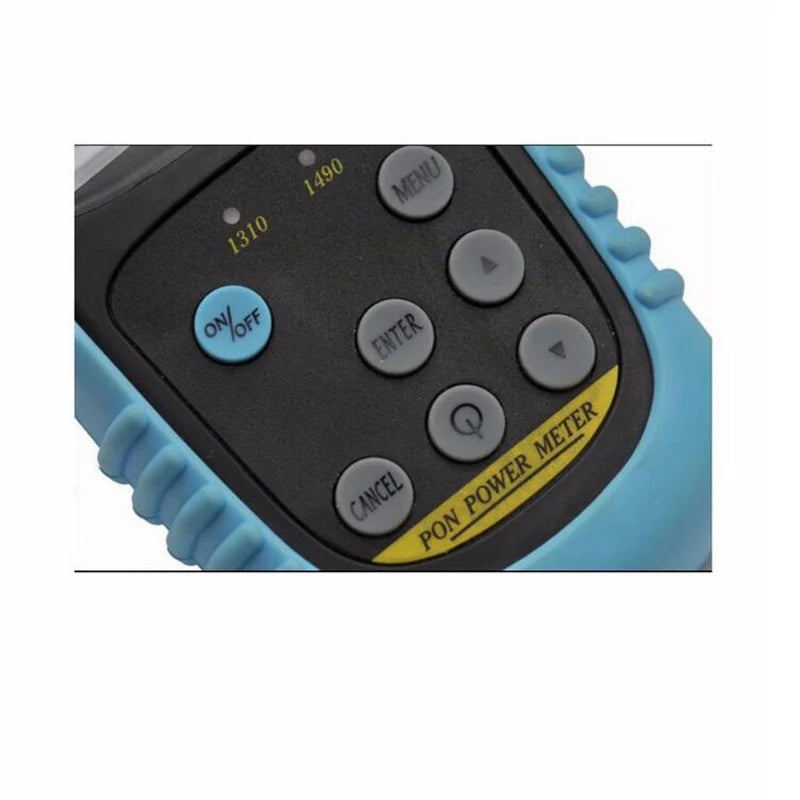

- Three status LEDs represents different optical signal conditions of Pass, Warn and Fail respectively
- Easy to use, simply connect the fiber to read the results
- HD TFT color LCD
- USB communication port enables data transfer ,easy and quick
- 200 measurement items can be saved in PON power meter or computer for data review
- Through the background software setting threshold, upload data,calibration wavelength
- Auto power off function, and time settings on the device,the threshold setting
Applications
- FTTx / PON opening: In the opening stage of all PON signals are measured to verify and ensure that meet network standards
- FTTx / PON maintenance: routine maintenance of various transport issues, such as: connector end surface contamination, fiber macro bending, breaking, Optical fault, etc.; that will have a loss of signal or transmission performance simultaneously measure and display 1310 upstream, 1490 downstream and 1550 downstream the power of three wavelength values.
Specifications
| Type | TLD607P | ||
| Calibrating wave length | 1310 upstream measurement | 1490 downstream measurement | 1550 downstream measurement |
| Pass zone(nm) | 1260~1360 | 1470~1505 | 1535~1570 |
| Measurement range(dBm) | -40~+10 | -40~+10 | -40~+20 |
| Isolation 1310nm(dB) | - | >40 | >40 |
| Isolation 1490nm(dB) | >40 | - | >30 |
| Isolation 1550nm(dB) | >40 | >40 | - |
| Measurement accuracy | |||
| Connatural uncertainty(dB) | +0.5 | ||
| PDL(dB) | <+0.25 | ||
| Linearity(dB) | +0.1 | ||
| Pass through insertion loss(dB) | <1.5 | ||
| General Indicators | |||
| Display | LCD:128x64 | ||
| Unit | dB dBm xW | ||
| Resolution | 0.01dB | ||
| Input voltage | DC 6.5V~8.5V | ||
| Rechargeable battery | 9V battery | ||
| AC adapter | 9V | ||
| Type of optical fibre | Single mode optical fibre | ||
| Working temperature | -10~60oc | ||
| Storage temperature | -25~70oc | ||
| Dimensions(CM) | 16.5 x 8.0 x 3.5 | ||
