Custom Official Pi 5 M.2 HAT+ Gen2 Gen3 NVME M.2 SSD 2230/2242 Size M Key PCI Express GPIO Expansion Board for RPI5 Pi5

Custom Official Pi 5 M.2 HAT+ Gen2 Gen3 NVME M.2 SSD 2230/2242 Size M Key PCI Express GPIO Expansion Board for RPI5 Pi5

$19.86 USD
$36.79 USD $19.86 USD
Sale Sold out
color

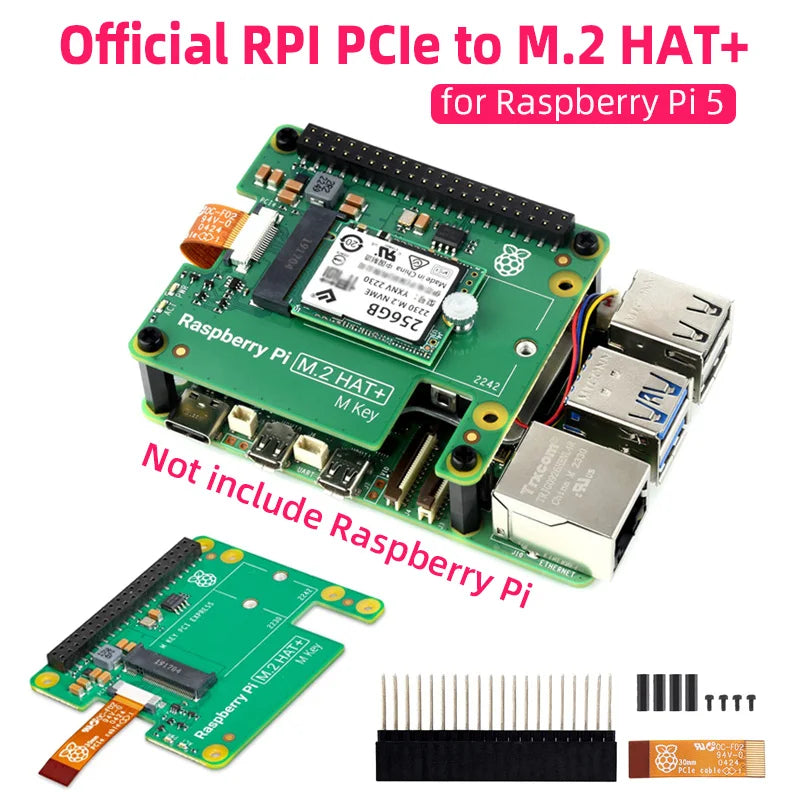

Official Raspberry Pi PCIe To M.2 HAT, Designed For Raspberry Pi 5, High-Speed Reading/Writing, HAT + Standard, Supports NVMe Protocol M.2 Solid State Drive, Raspberry Pi 5 HAT

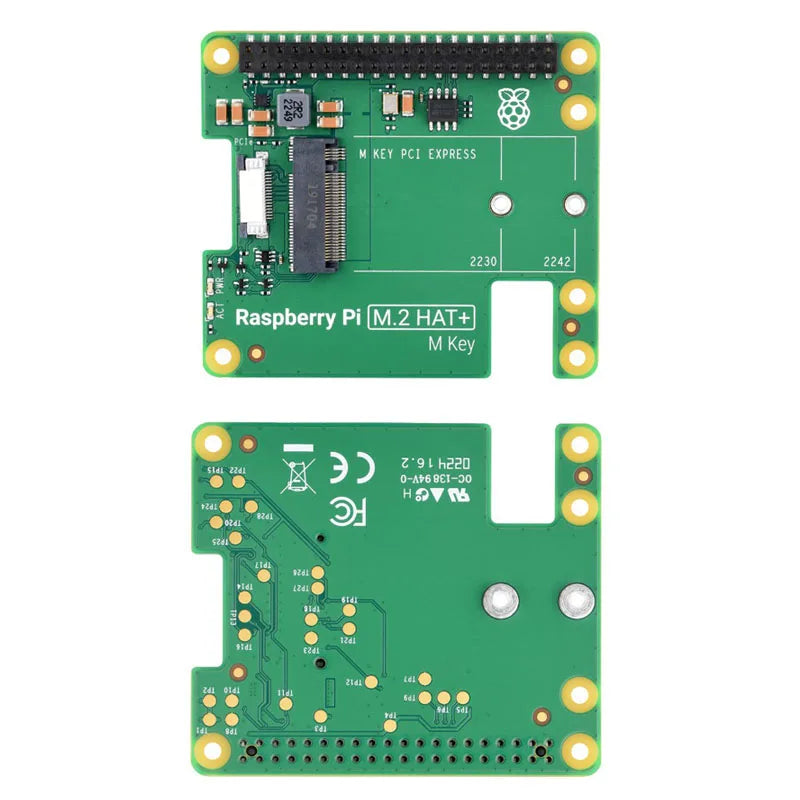

Raspberry Pi M.2 HAT+

Official Raspberry Pi PCIe To M.2 HAT, Designed For Raspberry Pi 5

Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing


Suitable For Raspberry Pi 5

Comes With Official 16PIN PCIe Cable For Connecting The HAT To PI5

* for reference only, theRaspberry Pi 5,cooling fanand Solid State Drive are not included


NVMe Drive Protocol Support

Compatible With 2230/2242 Size M.2 Solid State Drive
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

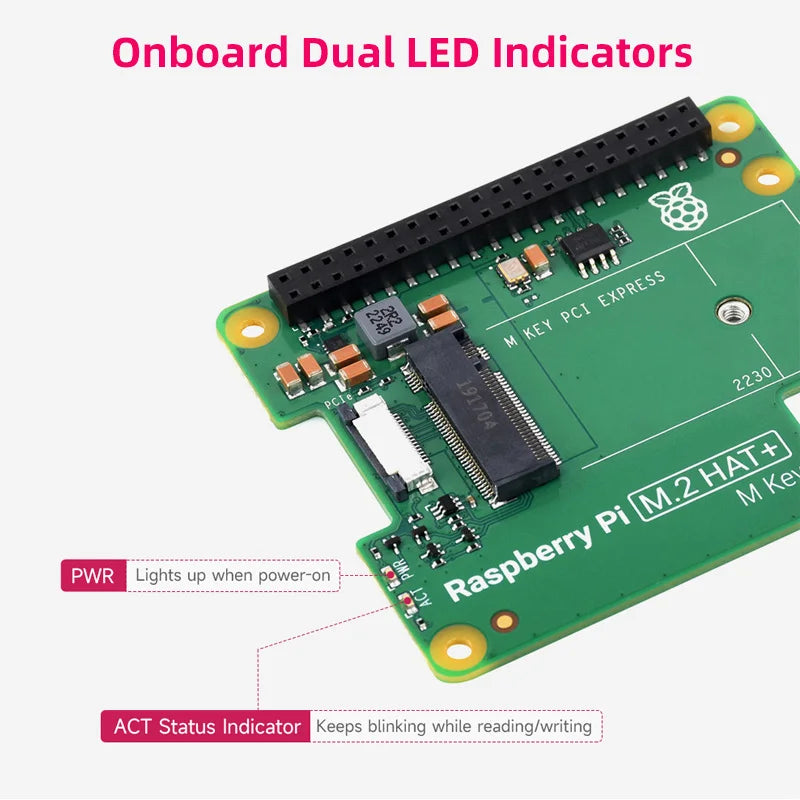

Onboard Dual LED Indicators

Easy To Monitor The Working Status

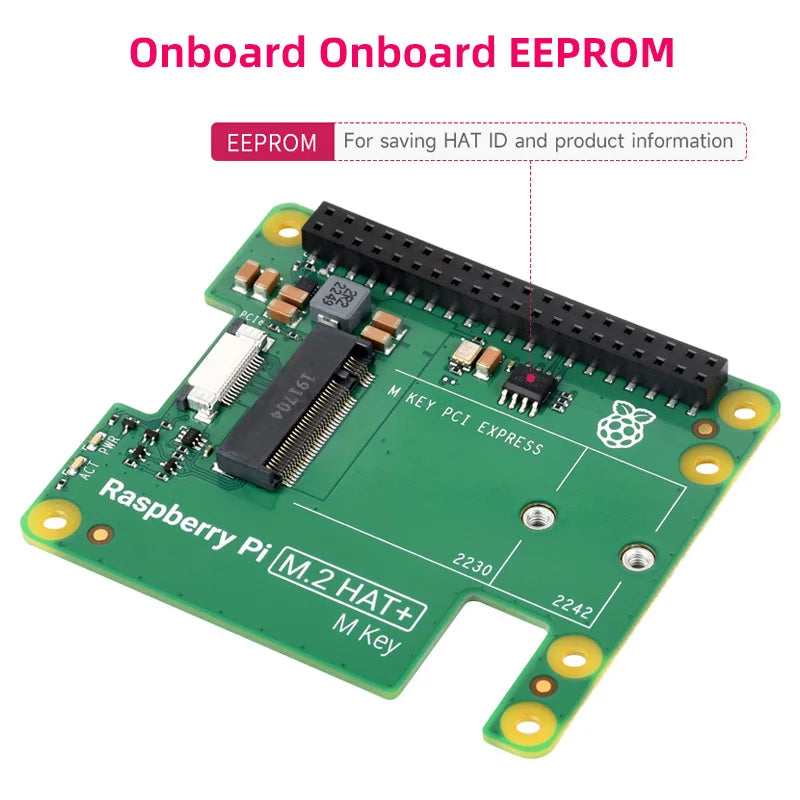

Onboard EEPROM

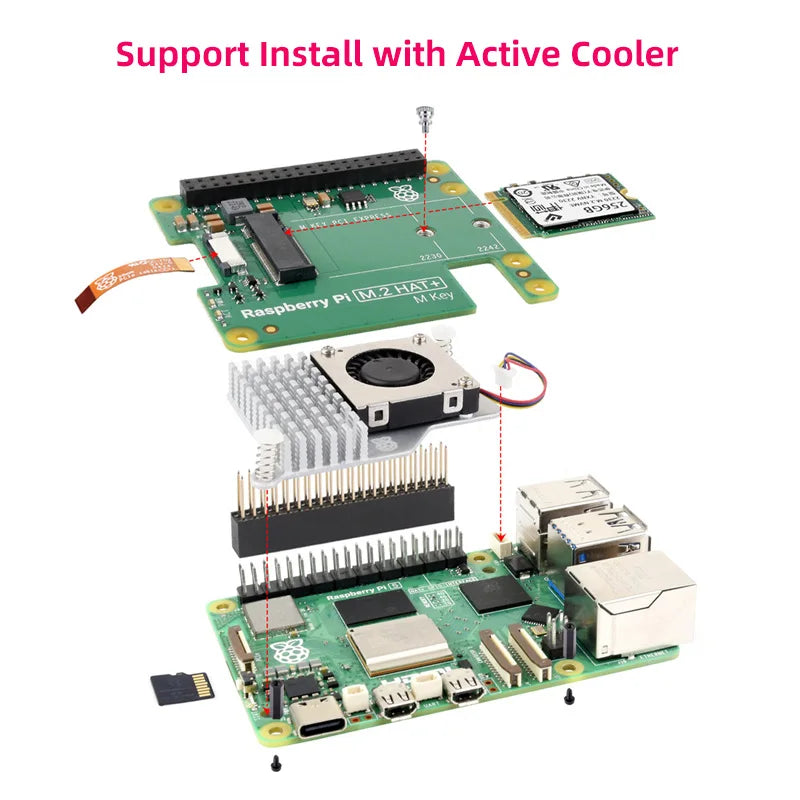

How To Install
* for reference only, the Solid State Drive,Raspberry Pi 5,cooling fanandTF cardare NOT included, please refer to the Package Content for detailed part list

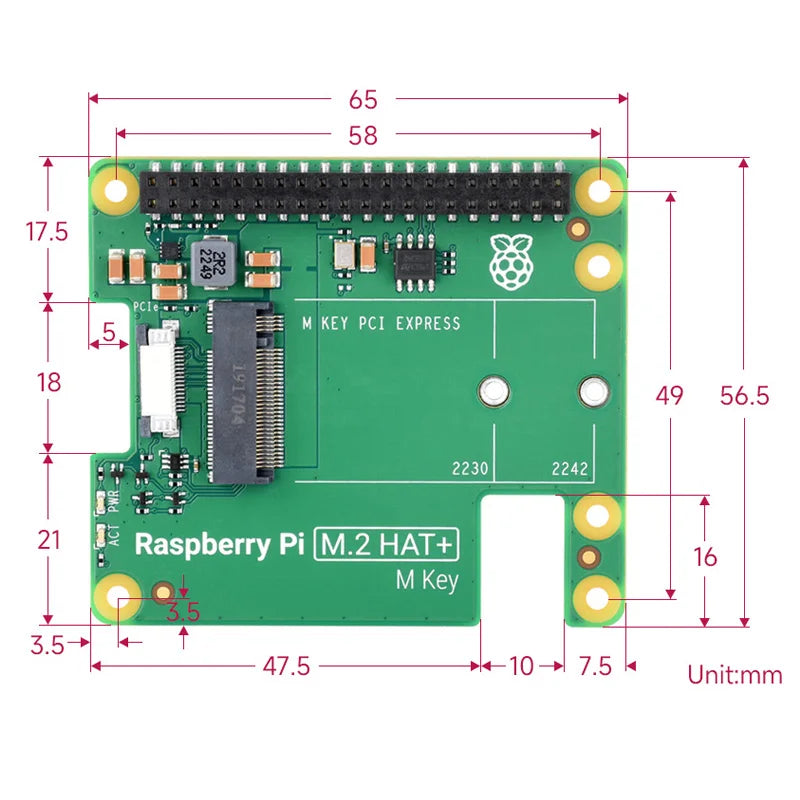

Outline Dimensions

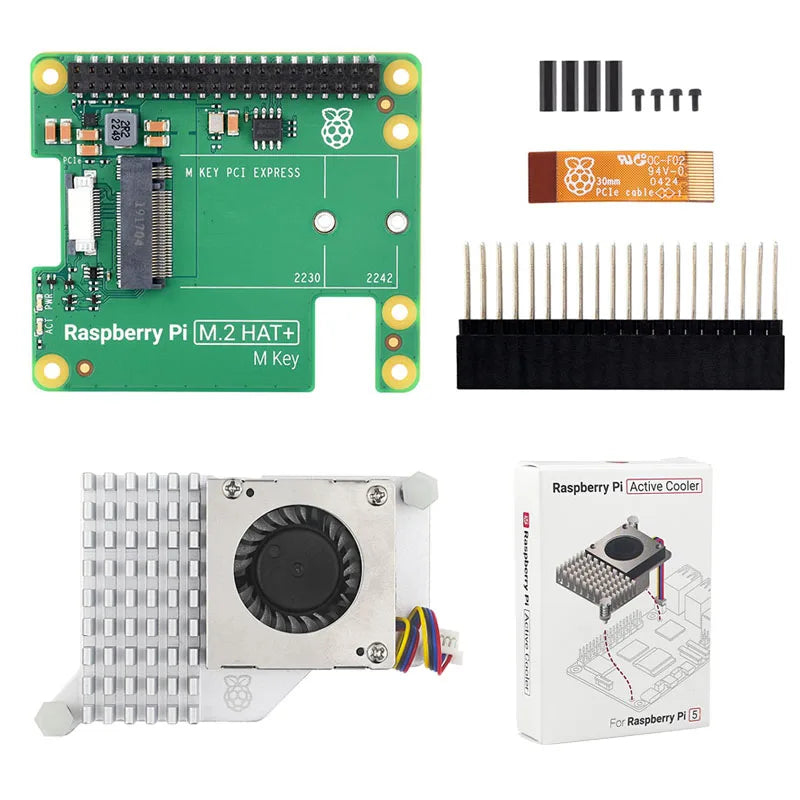

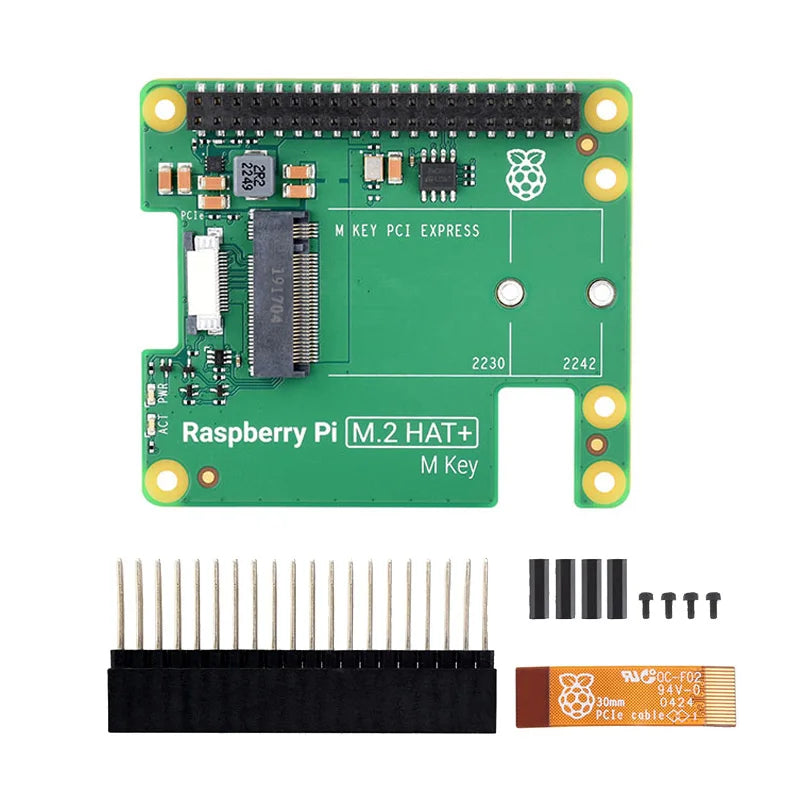

Packing List


Weight:0.022 kg

Raspberry Pi M.2 HAT+ x1

GPIO Header x 1

Flat Cable x 1

Screws Set x 1
