Custom OEM TB409*1+TB408*1 DC 12V Trigger Touch Sensor Key Adjustable Time Delay Relay Switch Kit for LED Motor Car Manufacturer
Custom OEM TB409*1+TB408*1 DC 12V Trigger Touch Sensor Key Adjustable Time Delay Relay Switch Kit for LED Motor Car Manufacturer
Regular price
$9.59 USD
Regular price
$9.59 USD
Sale price
$9.59 USD
Unit price
per
Couldn't load pickup availability
welcome OEM ,ODM,for more please contact.
Typical applications:
Automotive electronics
Motor
LED
Smart Home
Emergency lighting
Product Name:TB409*1+TB408*1 DC 12V Trigger Touch Sensor Key Adjustable Time Delay Relay Switch Kit for LED Motor Car

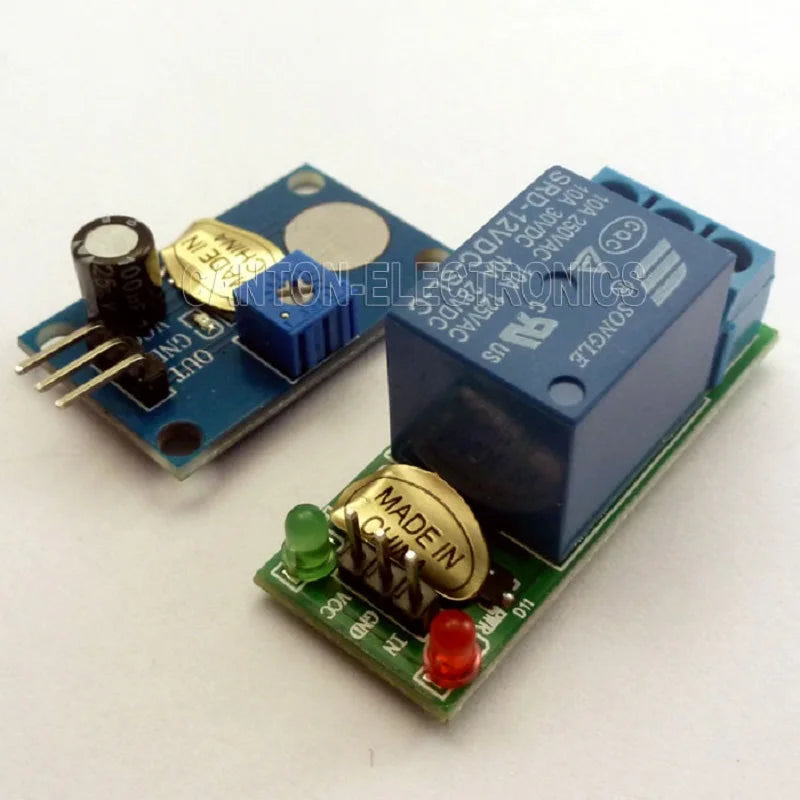

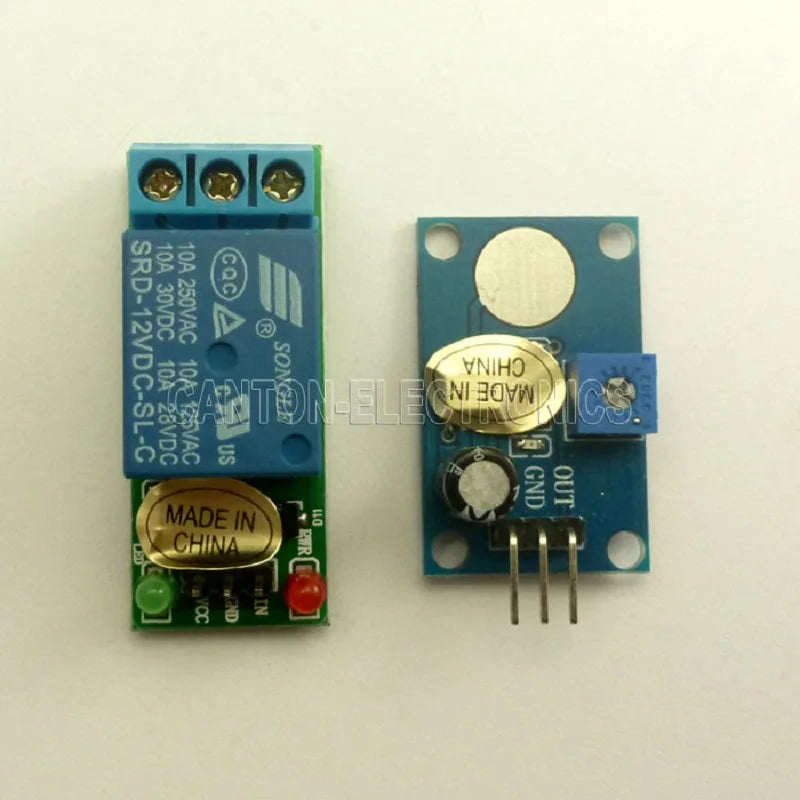

Packing list:
1 pcs DC 12V Touch Module 0-130s Delay Timer Button Board
1 pcs 1 Channel DC 12V Relay Module
Description:

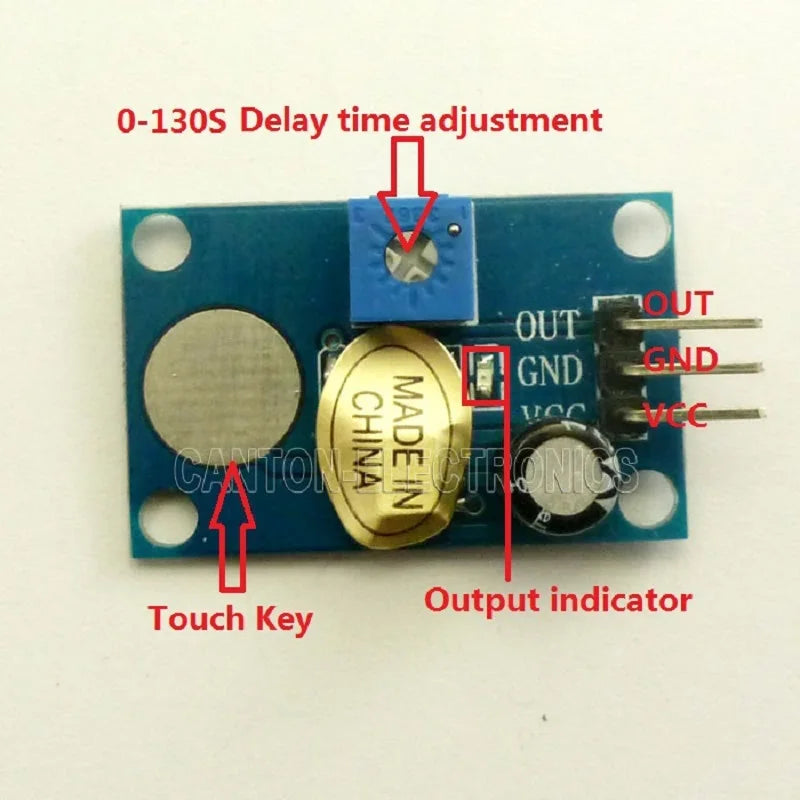

DC 12V Touch Module 0-130s Delay Timer Button Board:

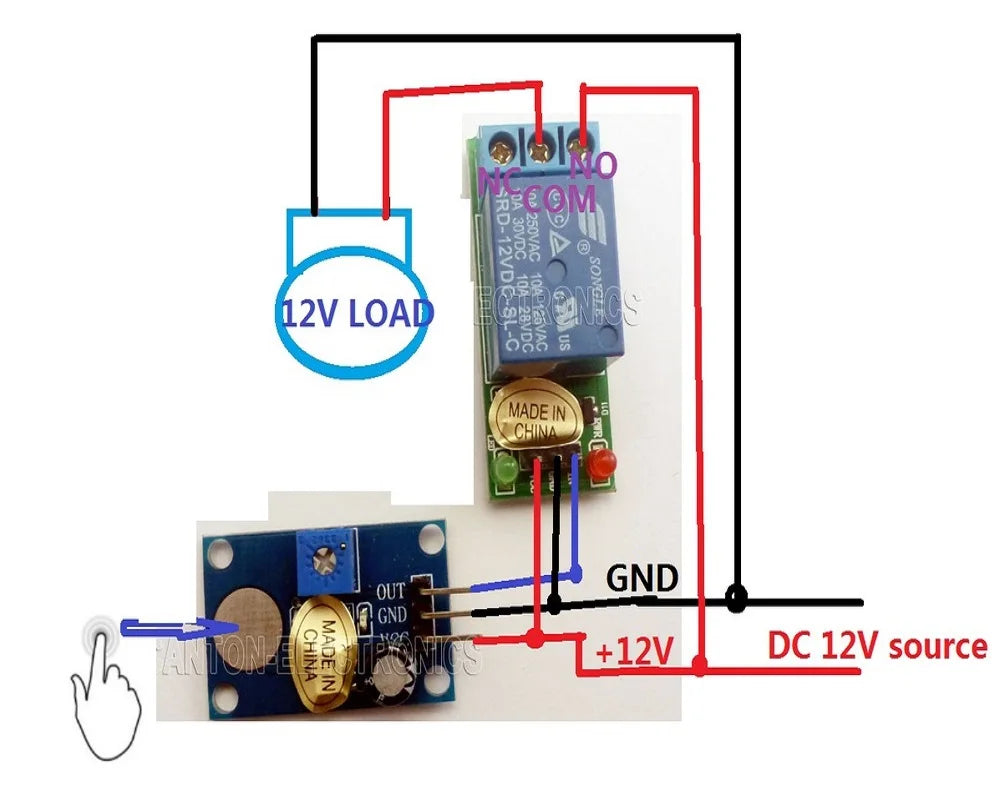

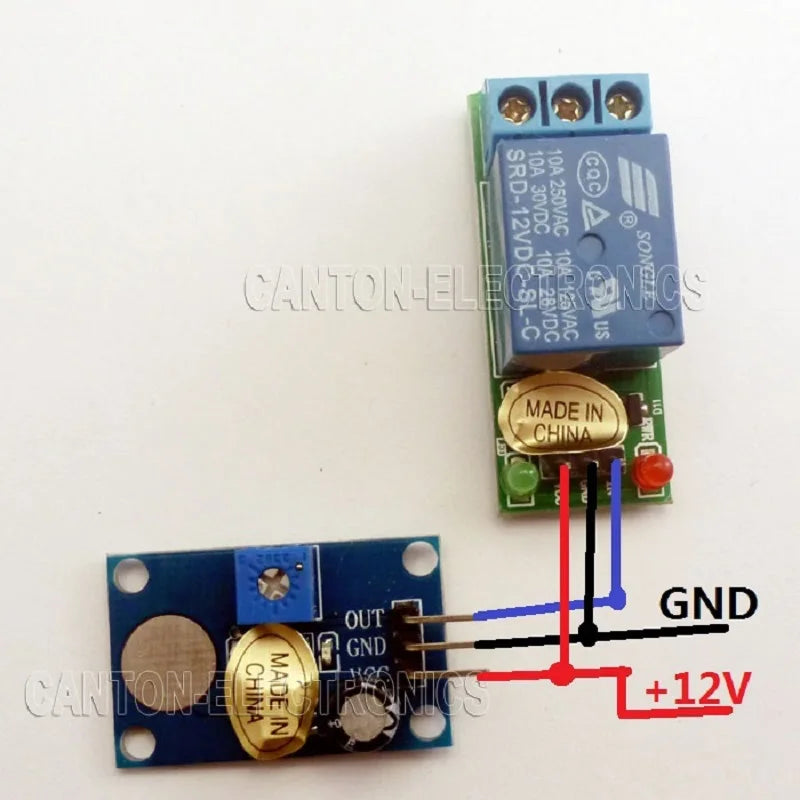

Click the "touch key" with your finger,Then "OUT pin" output high after the delay 0-130 seconds to restore low
Time delay 0-130 seconds adjustable
2.54mm pin
PCB Size : 32MM X 20MM X 13MM
VCC : 5V-12V Power supply positive
GND : Power supply negative
OUT : Trigger Output(4V-11V,VCC-1V)

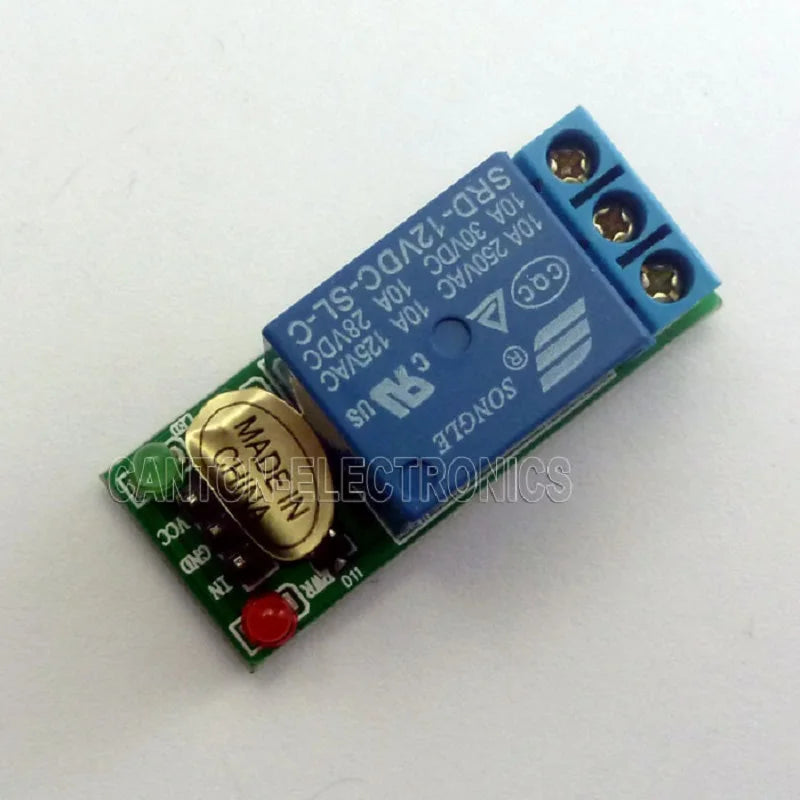

1 Channel DC 12V Relay Module:
High level trigger
Size : 40MM X 17MM X 18MM
Weight : 15g
Maximum load : 120W
VCC : 12V Power supply positive
GND : Power supply negative
IN : Trigger input( High level trigger)
