Custom OEM TB408 DC 5V-12V Touch Module 0-130s Delay Timer Button Board for Relay raspberry pi Manufacturer
Custom OEM TB408 DC 5V-12V Touch Module 0-130s Delay Timer Button Board for Relay raspberry pi Manufacturer
Regular price
$2.69 USD
Regular price
$2.69 USD
Sale price
$2.69 USD
Unit price
per
Couldn't load pickup availability
welcome OEM ,ODM,for more please contact.
Typical applications:
Arduiuo UNO MEGA2560 Pro mini DUE
ARM MCU FPGA/CPLD Development Board
raspberry pi
5V/12V Relay Module
Product Name:TB408 DC 5V-12V Touch Module 0-130s Delay Timer Button Board for Relay raspberry pi
Packing list:
1 pcs DC 5V 12V Touch Module 0-130s Delay Timer Button Board
Description:

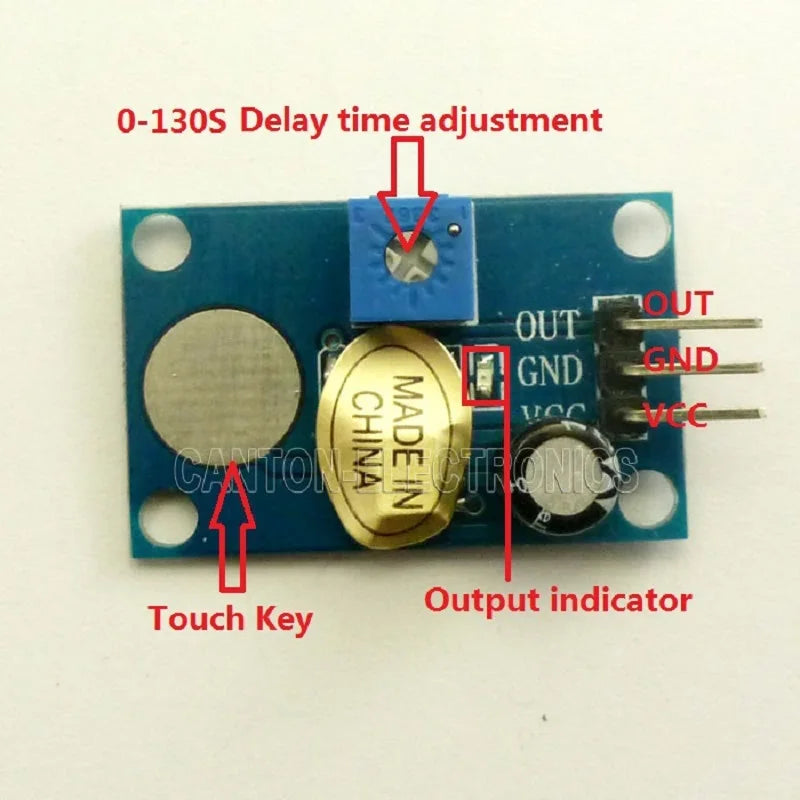

Click the "touch key" with your finger,Then "OUT pin" output high after the delay 0-130 seconds to restore low
Time delay 0-130 seconds adjustable
2.54mm pin
PCB Size : 32MM X 20MM X 13MM
VCC : 5V-12V Power supply positive
GND : Power supply negative
OUT : Trigger Output(4V-11V,VCC-1V)
Connected with the 12V relay module:
