Custom OEM TB300*1+TB299*1 Xilinx USB Platform Cable & SPARTAN-6 XC6SLX9 FPGA core Board spartan 6 programmer Downloader kit CPLD Manufacturer
Custom OEM TB300*1+TB299*1 Xilinx USB Platform Cable & SPARTAN-6 XC6SLX9 FPGA core Board spartan 6 programmer Downloader kit CPLD Manufacturer
Regular price
$77.89 USD
Regular price
$77.89 USD
Sale price
$77.89 USD
Unit price
per
Couldn't load pickup availability
welcome OEM ,ODM,for more please contact.
Product Name:TB300*1+TB299*1 Xilinx USB Platform Cable & SPARTAN-6 XC6SLX9 FPGA core Board spartan 6 programmer Downloader kit CPLD

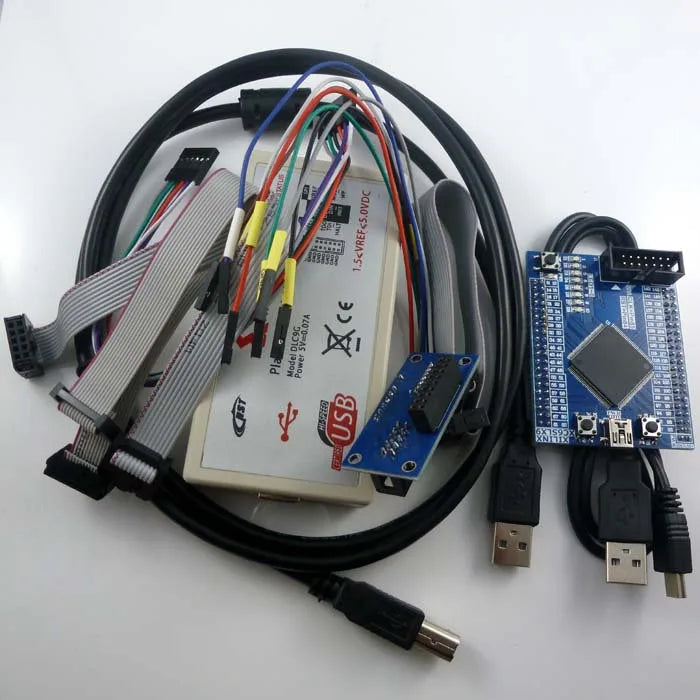

Packing list:
1 PCS XILINX XC6SLX9 FPGA Board
1 PCS USB to mini USB Power Wire
1 x Xilinx Platform Cable USB Downloader
1 x 2.54MM pitch adapter plate(Three kinds of interfaces)
1 x 7PIN 2.54MM DuPont wire
1 x 6PIN 2.54MM DuPont wire
1 x 14PIN 2.0mm pitch cable
1 x 14PIN 2.54mm pitch cable
1 x 10PIN 2.54mm pitch cable
1 x USB2.0 cable

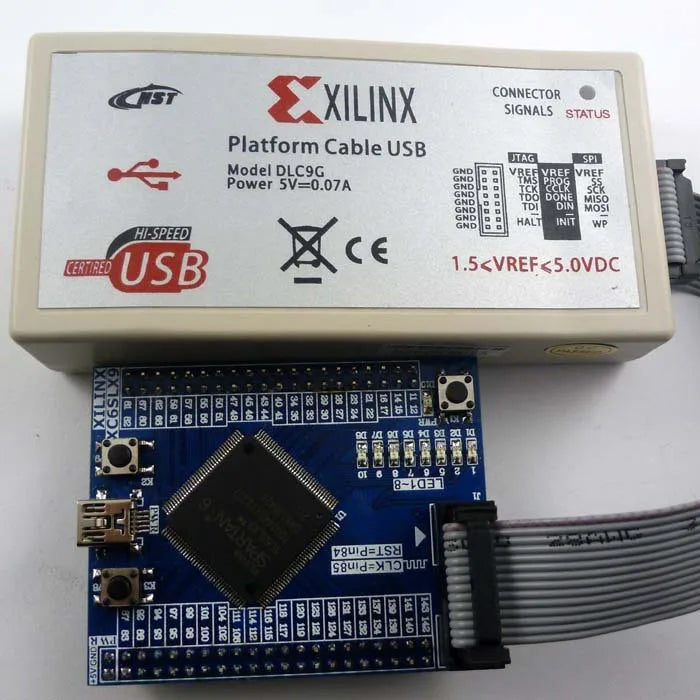

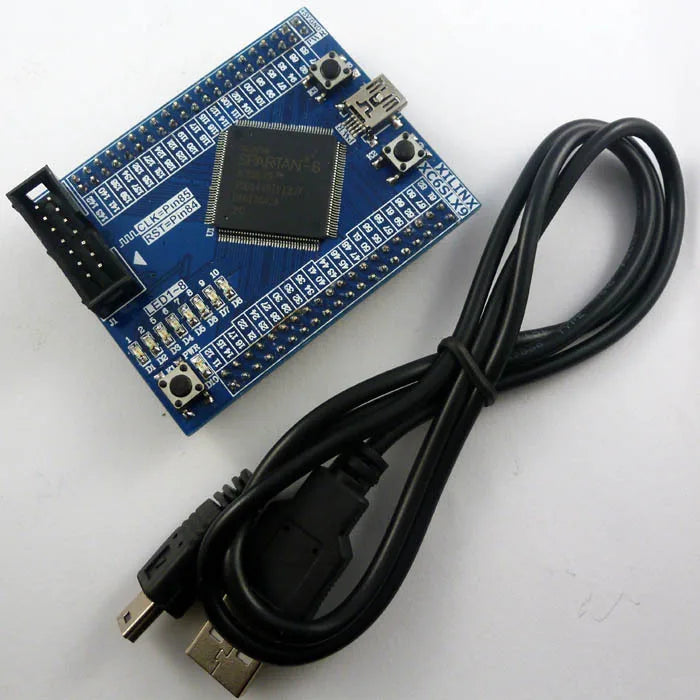

XC6SLX9 FPGA Board
Description:
1.Based on XILINX SPARTAN-6 XC6SLX9-TQG144 FPGA Chip;
2.Configuration Flash chip M25P40(Or compatible chip), 4M bit;
3.Onboard 25MHz active patch oscillator;
4.Onboard 8 IO control LEDs,1 power LED,1 Reset button,2 IO control button;
5.Leads the remaining IO, JTAG download port;
6.DC5V power supply;
7.Low-cost and efficient power supply design;
8.High-quality tantalum capacitor power supply filtering;
9.Development of embedded CPU support MicroBlaze;
10.2.54mm header pitch design, suitable for being plugged-in your application system;
11.Board size: 65*50MM;
Diagram : Please contact me on ebay message for diagram after your order !

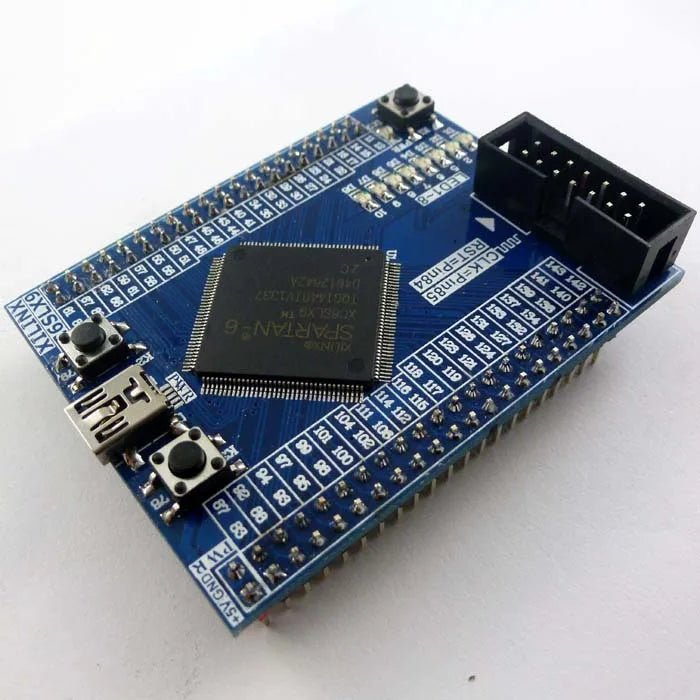

front :
Back :

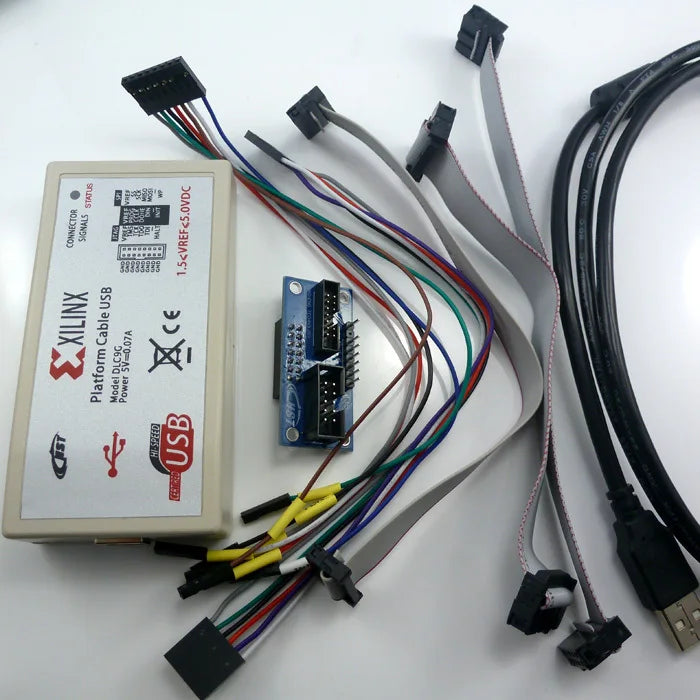

Xilinx Platform Cable USB Downloader
Description:
Performance:
Using CY7C68013A+XC2C256 solution, fully compatible with the original XILINX Platform Cable USB
Supports all Xilinx devices,FPGA/CPLD/3D IC/Soc/PROM
Supports JTAG, Slave-Serial and SPI
Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
Selectable target clock frequency, supports software automatic frequency adjustment
Supported Software:
Vivado Design Suite
Xilinx ISE Design Suite
iMPACT
ChipScope Pro
