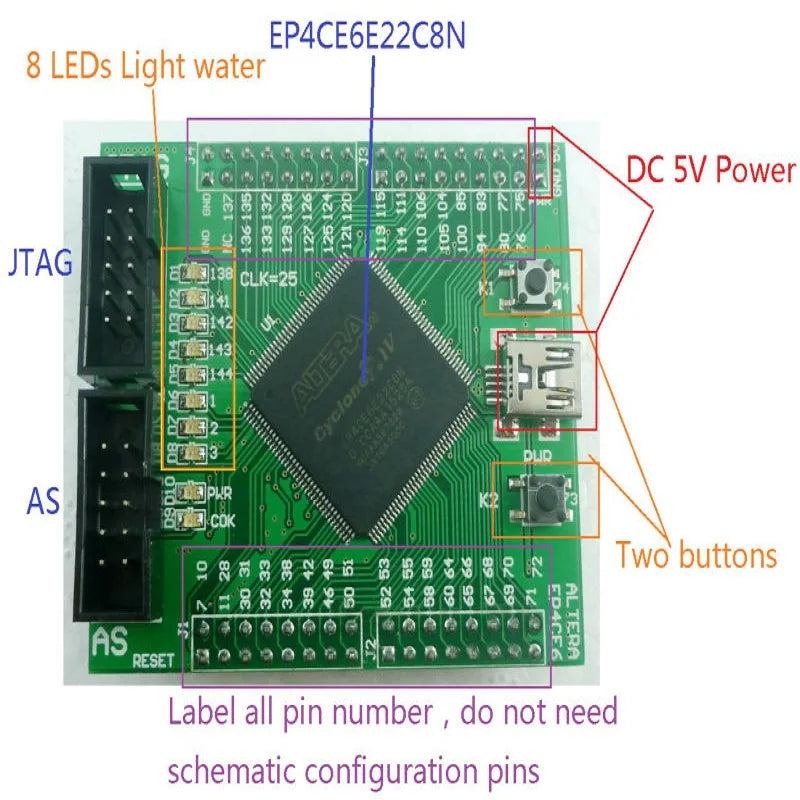

1.Based on Altera Cyclone IV EP4CE6E22C8N FPGA Chip;
2. Configuration Flash chip M25P40(Fully compatible EPCS4 ), size :4M bit;
3.Onboard 50MHz active patch oscillator;
4.Onboard 8 LEDs and 2 Buttons.
5.Leads the remaining IO, JTAG and AS download port;
6.USB Power, DC5V supply;
7.Low-cost and efficient power supply design;
8.High-quality tantalum capacitor power supply filtering;
9.Development of embedded CPU support NiosII;
10.2.54mm header pitch design, suitable for being plugged-in your application system;
11.Board size: 60*52MM;
Diagram : Please contact me on ebay message for diagram after your order !

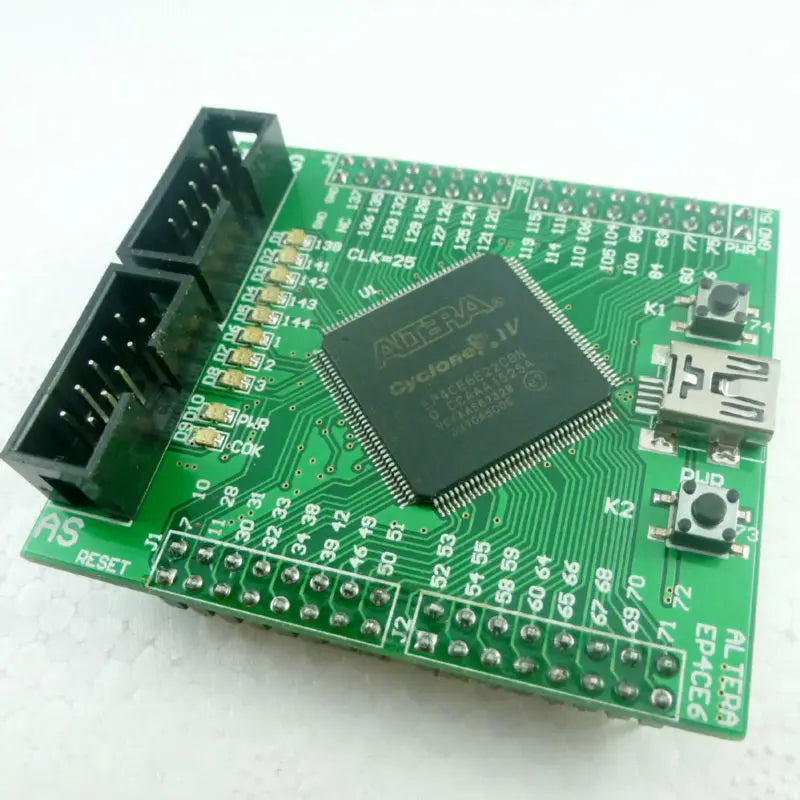

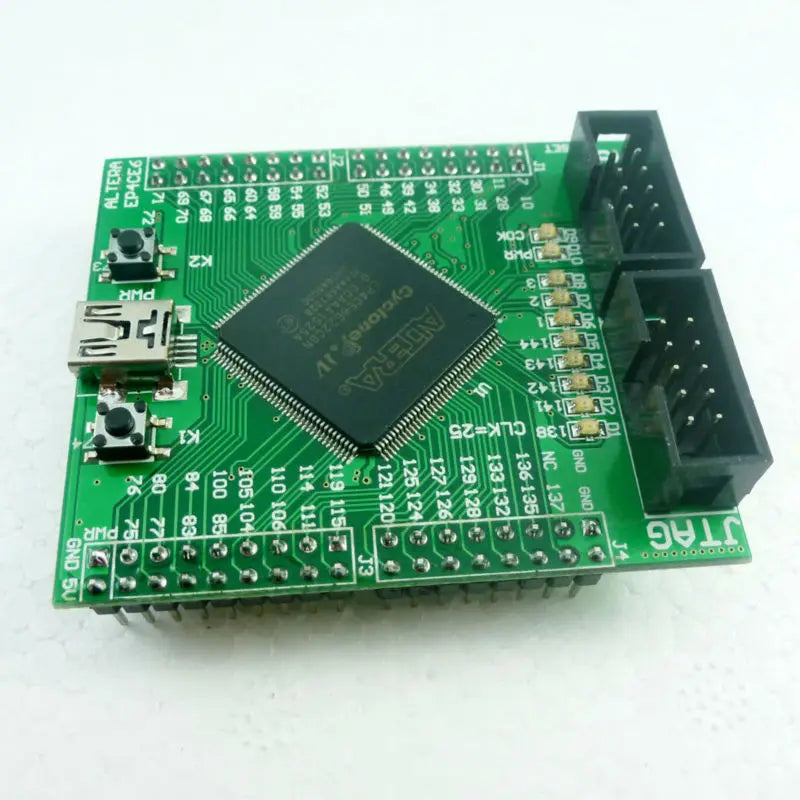

front :

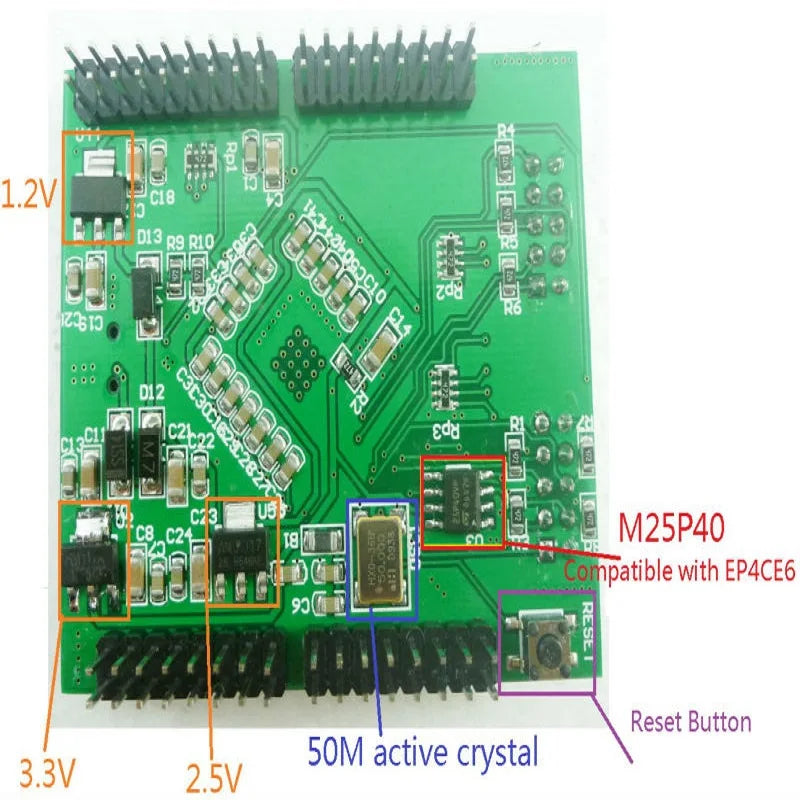

Back :

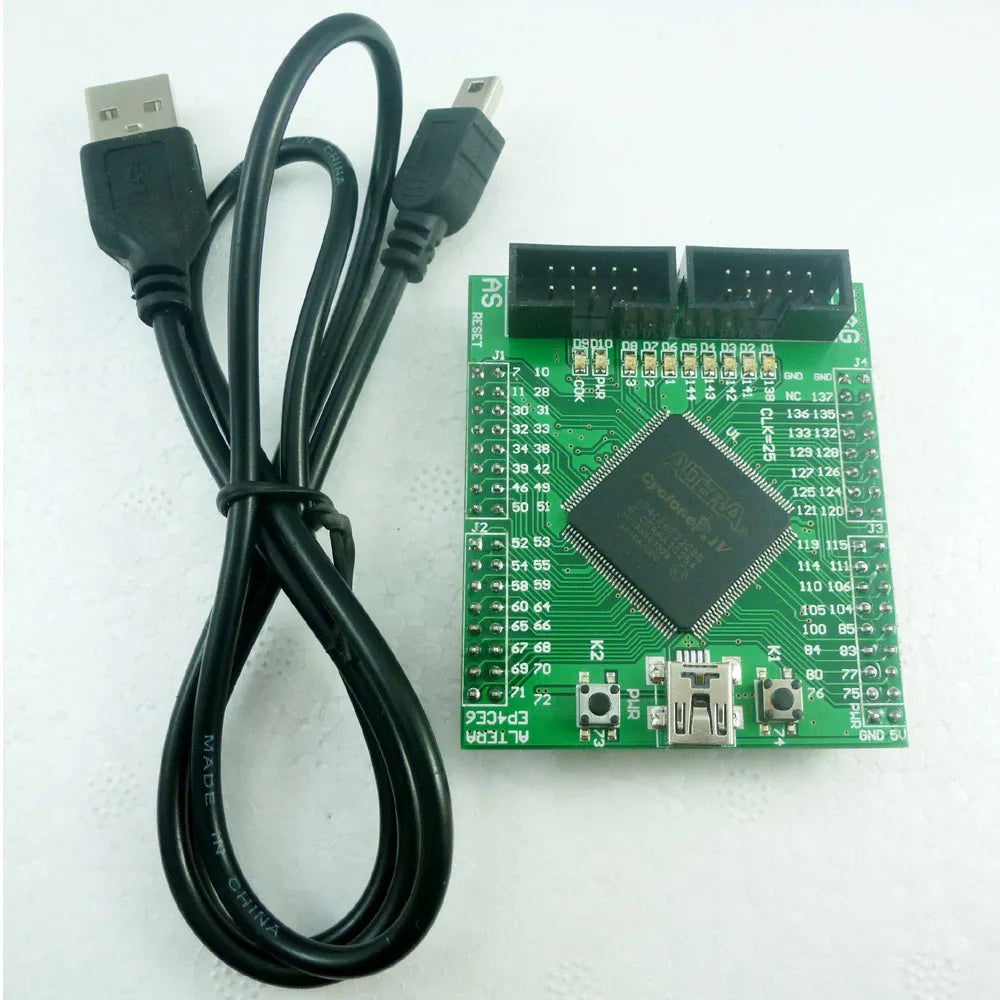

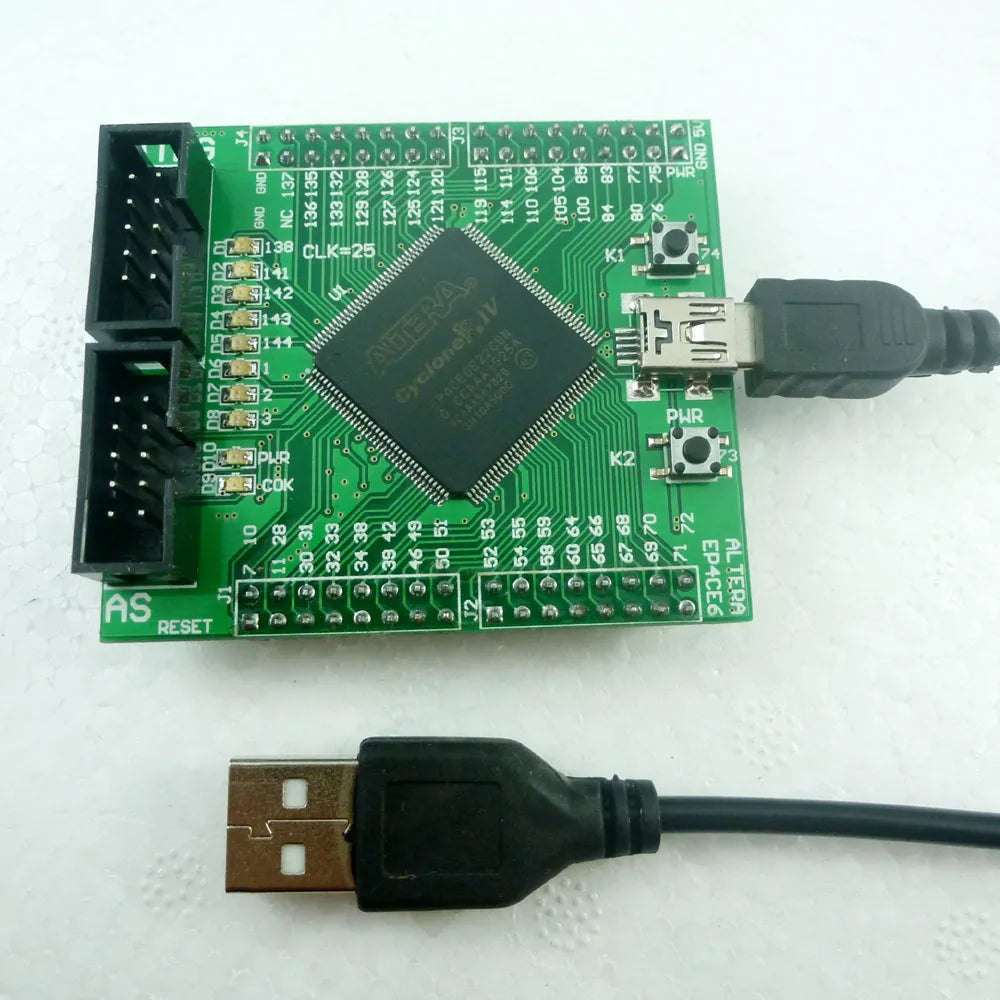

Accessories: 1 pcs USB to Mini 5P power wire ;
