welcome OEM ,ODM,for more please contact.
Product Name:TB276*8 8pcs/lot EP4CE6 ALTERA Cyclone IV FPGA Development Board EP4CE6E22C8N Cyclone4 CPLD ASIC surpass EP1C3 EP2C5T144 EP2C8 ep2c20
Module No.: TB276
Packing list:
8 PCS EP4CE6 FPGA board;
8 pcs USB to Mini 5P wire .
Description:
1.Based on Altera Cyclone IV EP4CE6E22C8N FPGA Chip;
2. Configuration Flash chip M25P40(Fully compatible EPCS4 ), size :4M bit;
3.Onboard 50MHz active patch oscillator;
4.Onboard 8 LEDs and 2 Buttons.
5.Leads the remaining IO, JTAG and AS download port;
6.USB Power, DC5V supply;
7.Low-cost and efficient power supply design;
8.High-quality tantalum capacitor power supply filtering;
9.Development of embedded CPU support NiosII;
10.2.54mm header pitch design, suitable for being plugged-in your application system;
11.Board size: 60*52MM;
Diagram : Please contact me on ebay message for diagram after your order !

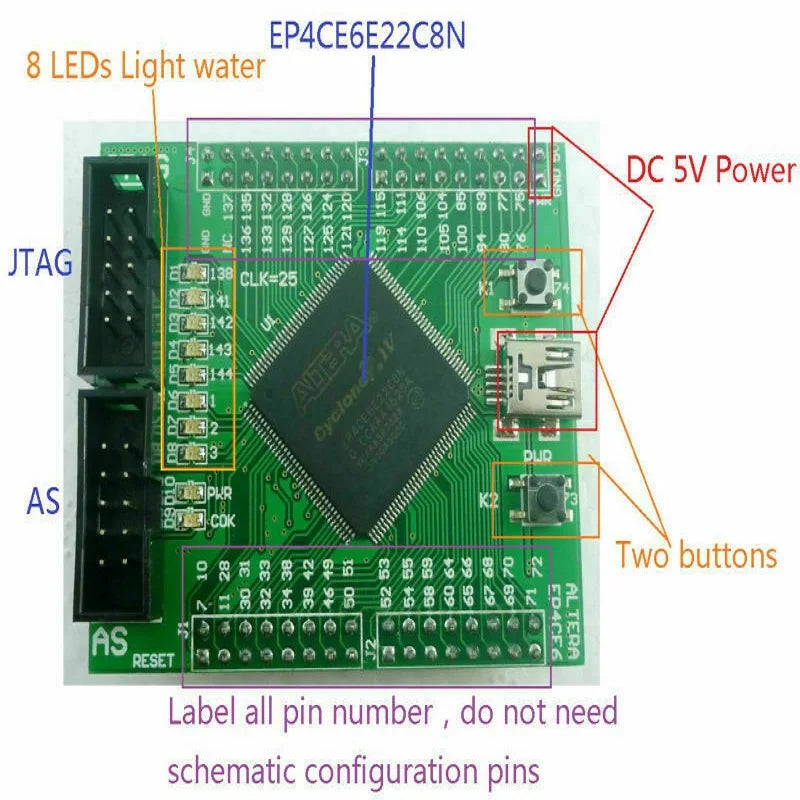

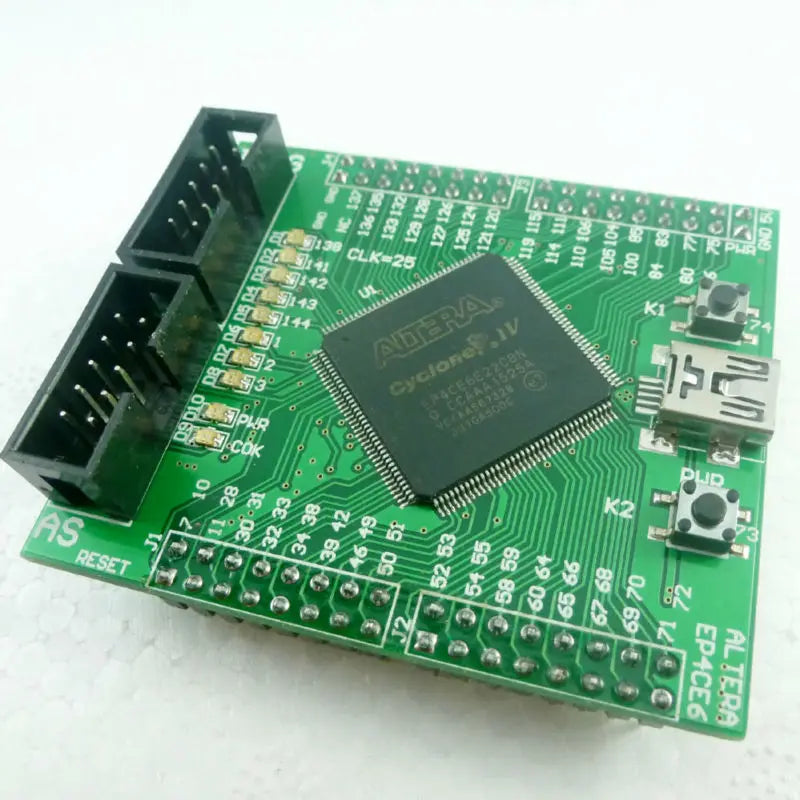

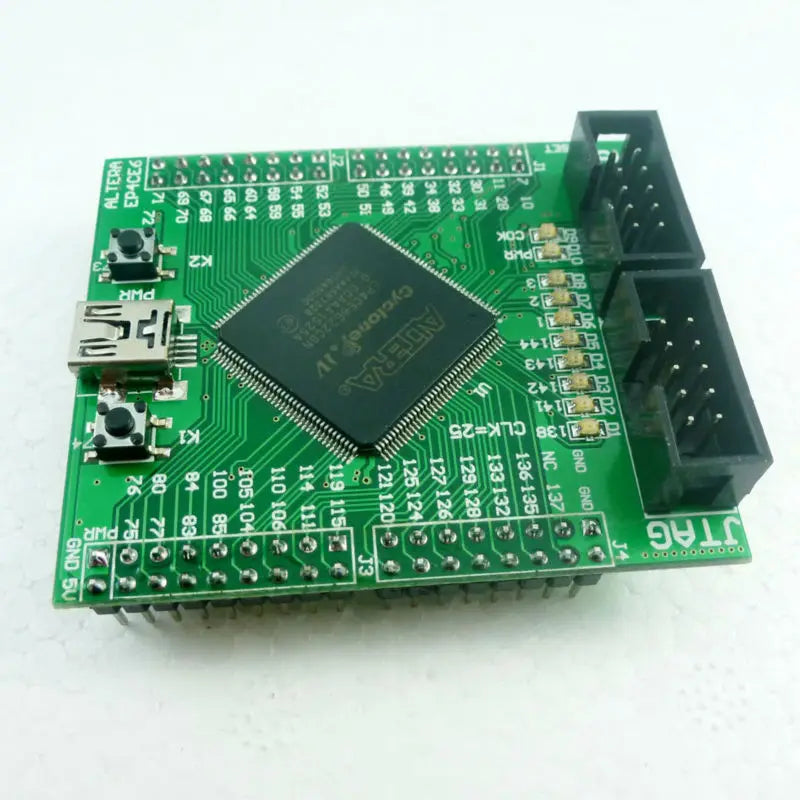

front :

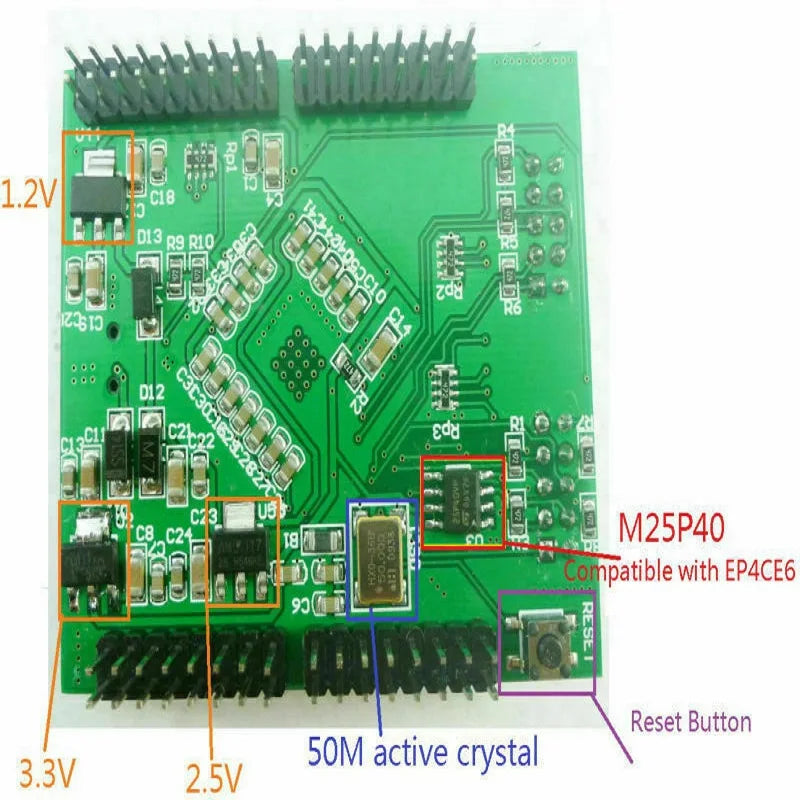

Back :

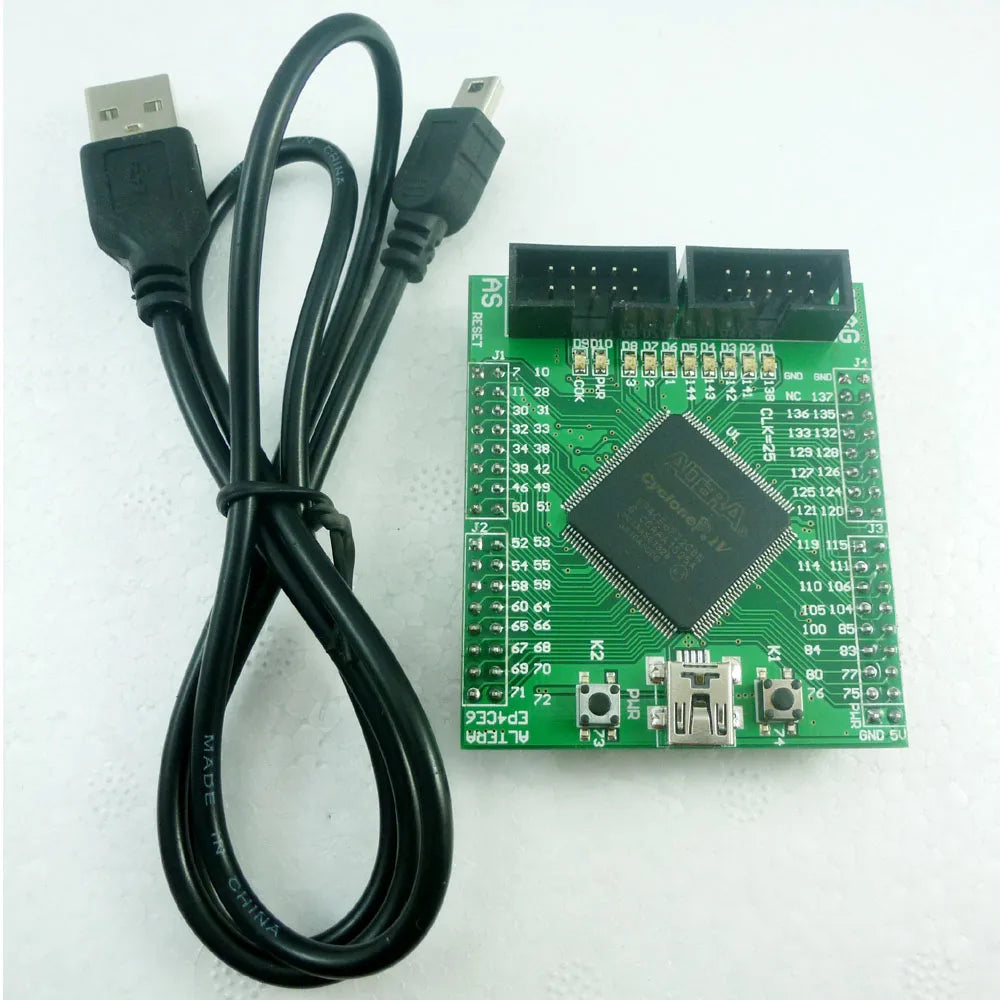

Accessories: 1 pcs USB to Mini 5P power wire ;
Typical Application (USB Blaster Downloader , Click here):
