Custom OEM R411A01_5V mini Automatic control SP485 IC 5V RS485 TO TTL 232 Module UART Serial Port to 485 BUS Converter for UNO MEGA MCU Manufacturer
Custom OEM R411A01_5V mini Automatic control SP485 IC 5V RS485 TO TTL 232 Module UART Serial Port to 485 BUS Converter for UNO MEGA MCU Manufacturer
Regular price
$1.89 USD
Regular price
$1.89 USD
Sale price
$1.89 USD
Unit price
per
Couldn't load pickup availability
welcome OEM ,ODM,for more please contact.
Product Name: mini Automatic control 5V RS485 TO TTL 232 Module UART Serial Port to 485 BUS Converter for UNO MEGA MCU AVR
Package inlcuded:
1 x DC 5V RS485 to TTL 232 converter
Description:
Read and write automatic control RS485 TO RS232(5V TTL Logic level) converter
Operating Voltage : DC 5V
Logic level : 5V TTL
RS485 BUS IC : SP485

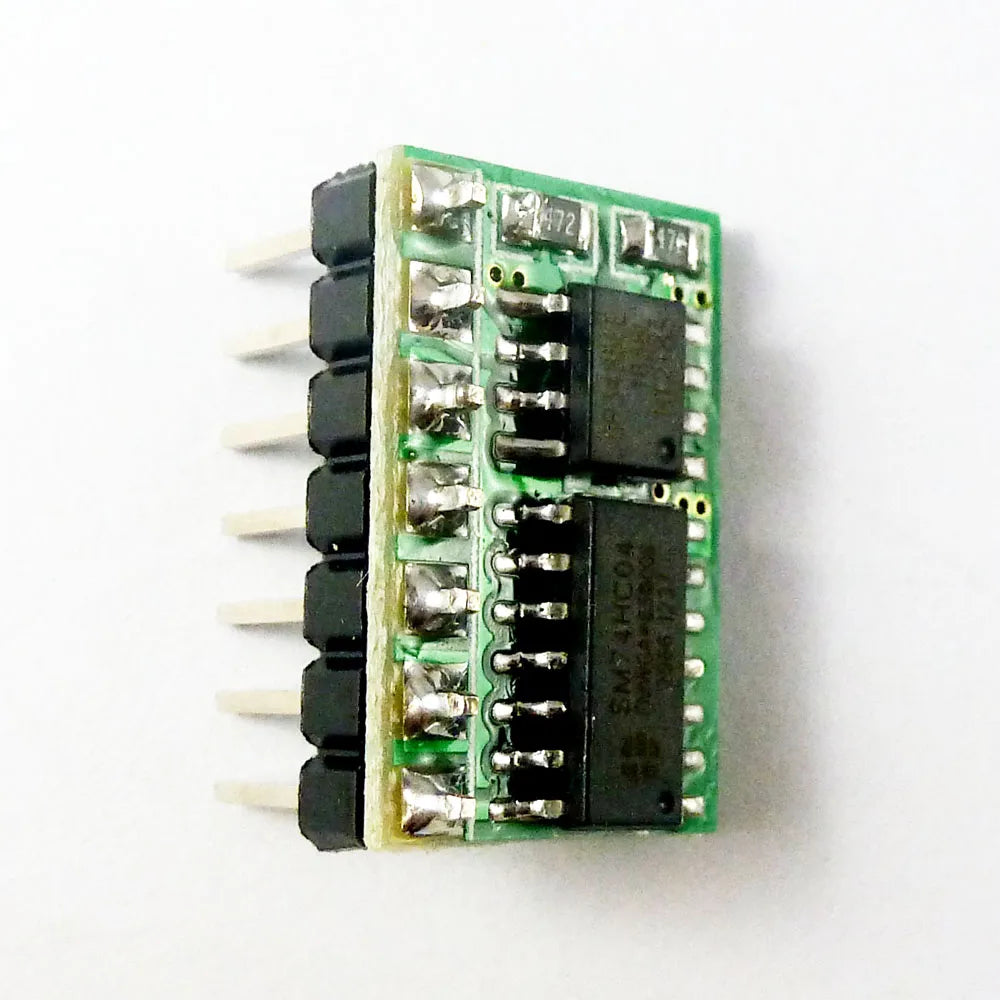

Read and write automatic control IC :SM74HC04
7x 2.54MM pin,mini size.

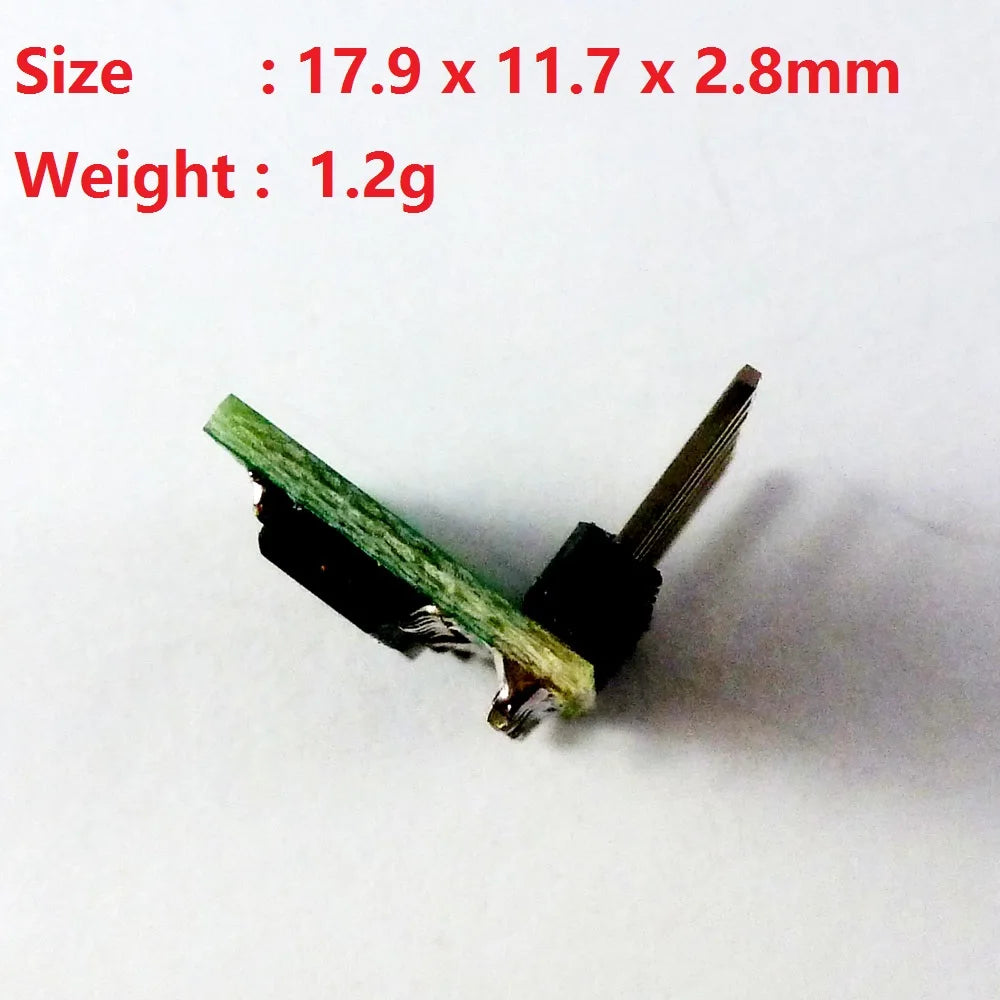

Size(Does not include pin) : 17.9x11.7x2.8mm(very small)
Weight :1.2g(Very light)
Application
RS485 Temperature and humidity sensor
PTZ camera
LED controller
MODBUS RTU
RS485 Relay
automated manufacturing line

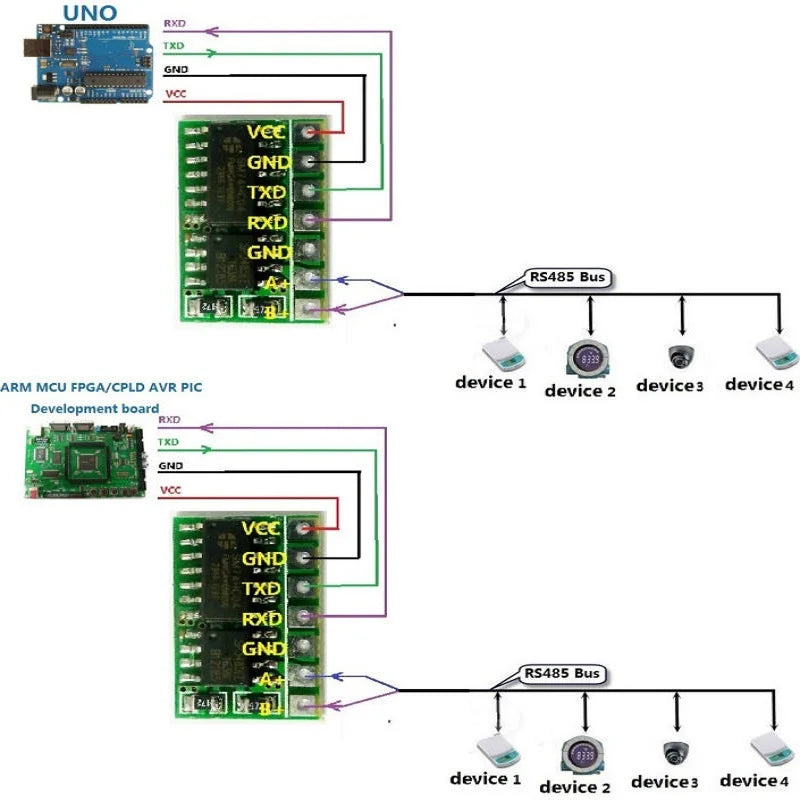

Wiring Diagram:
