Custom OEM IO25A01 5V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low pulse trigger Board for ardui Smart home LED Mot Manufacturer

Custom OEM IO25A01 5V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low pulse trigger Board for ardui Smart home LED Mot Manufacturer

Regular price $1.99 USD
Regular price $1.99 USD Sale price $1.99 USD
Sale Sold out

welcome OEM ,ODM,for more please contact.


Product Name:mini 5V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low pulse trigger Board for Arduiuo Smart home LED  Motor


Packing list:

1 pcs   1 Channel DC 5V  Self-locking  Relay Module
aeProduct.getSubject()





Description:

If you need 6-24V version, click here

Working voltage: DC 5V
Working current: 70MA
Standby current: 1UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger

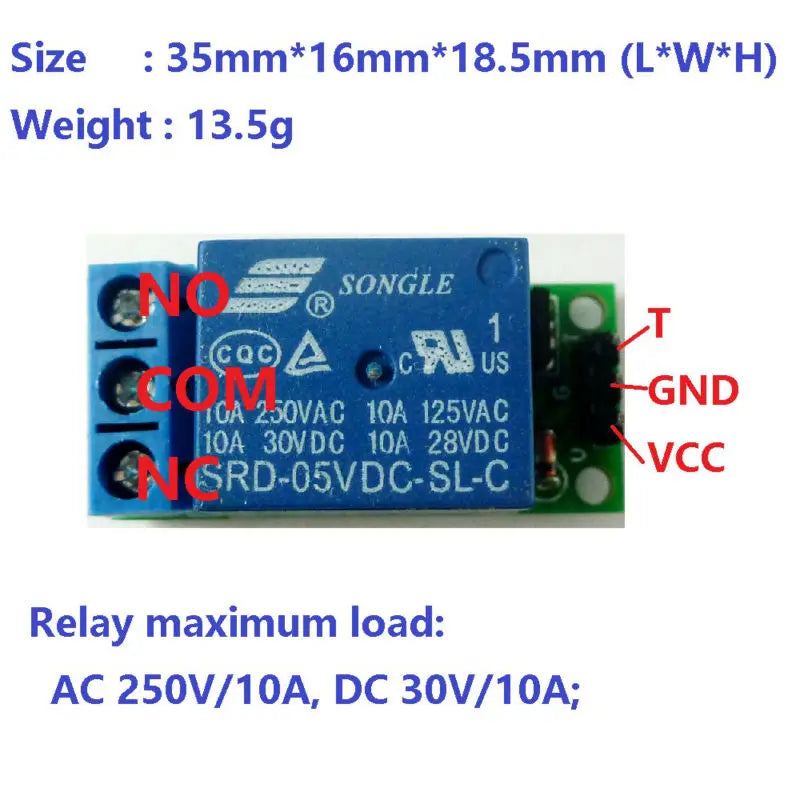

Size: 35mm * 16mm  * 18.5mm (L * W * H),  Very small size
Weight: 13.5 g

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T  : Low pulse trigger

Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

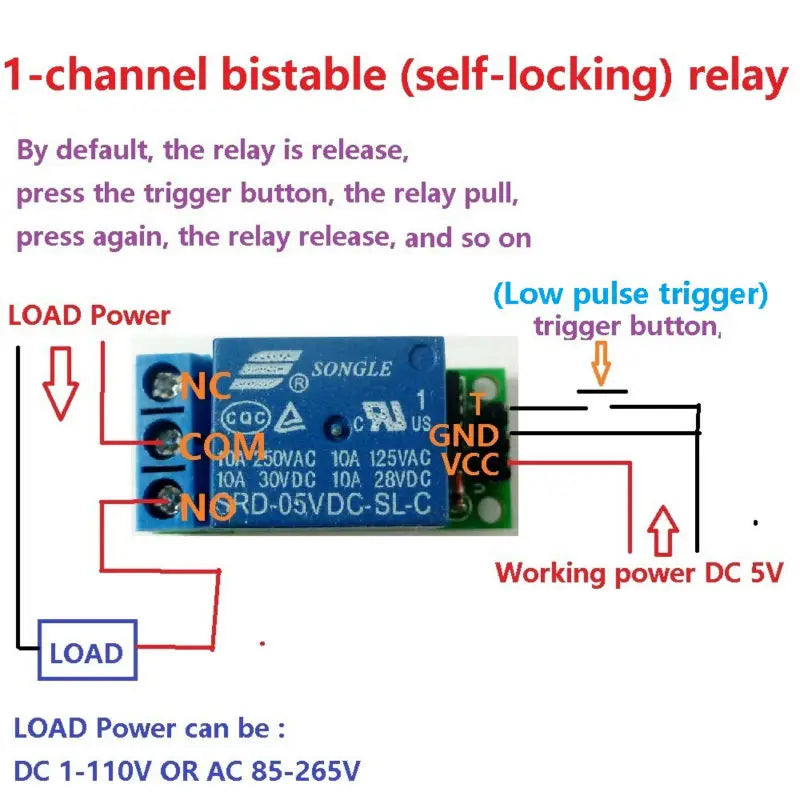

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Typical applications:
Automotive electronics
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
aeProduct.getSubject() aeProduct.getSubject()



aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()




 Welcome Customize Order!
