Custom OEM DR21B01 DC 5V DPDT Signal Relay Module Dual Channel selector switch Board for LED MCU Motor Toy car boat model aircraft Manufacturer
Custom OEM DR21B01 DC 5V DPDT Signal Relay Module Dual Channel selector switch Board for LED MCU Motor Toy car boat model aircraft Manufacturer
Regular price
$3.79 USD
Regular price
$3.79 USD
Sale price
$3.79 USD
Unit price
per
Couldn't load pickup availability
welcome OEM ,ODM,for more please contact.
Typical applications:
Automotive electronics
o and video equipment
lithium battery 18650
Motor,Toy car, boat, model aircraft
Emergency lighting
Product Name : DR21B01 DC 5V DPDT Signal Relay Module Dual Channel selector switch Board for LED MCU Motor Stereo o Switch
Packing list:
1 PCS DR21B01 one Channel DC 5V DPDT Relay Module
Description:
DR21B01 5VDC one Channel DPDT Relay Board
Operating Voltage : DC 4.5-5.5V(5V)
Operating Current(Relay ON): 36MA
Standby Current(Relay OFF) : <1MA
Input control signal voltage:
0V - 0.6V Low stage (relay is OFF),
0.6V – 2.5V (unknown state).
2.5V - 24V High state (relay is ON).
Input control signal high state current:
2.5V: 0.15mA
5V: 0.4mA
12V: 1.2mA
20V: 2mA
Relay Load : 1A 125VAC;2A 30VDC

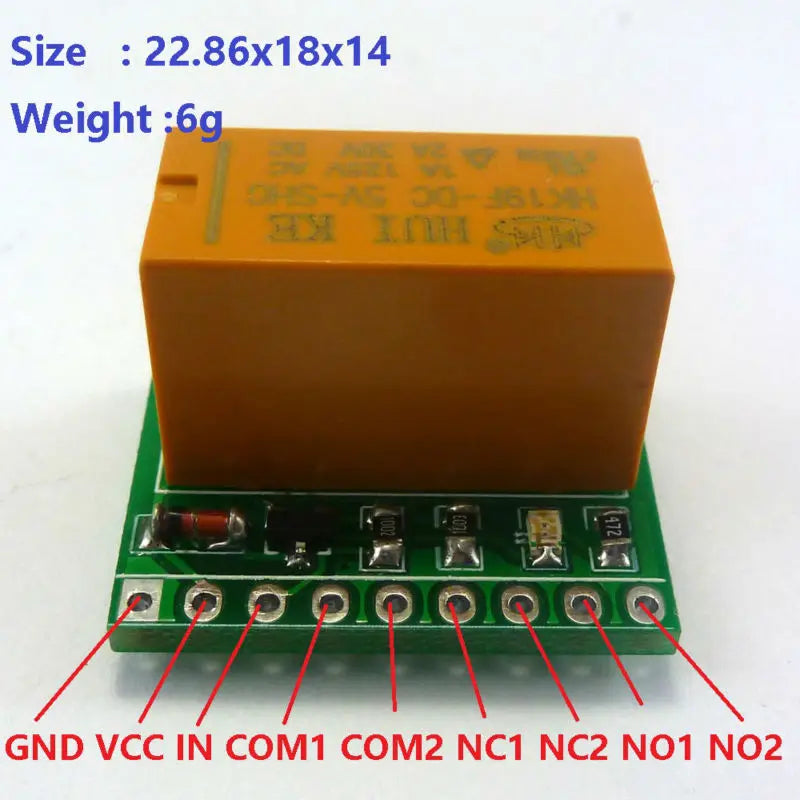

Size : 22.86x18x14
Weight :6g

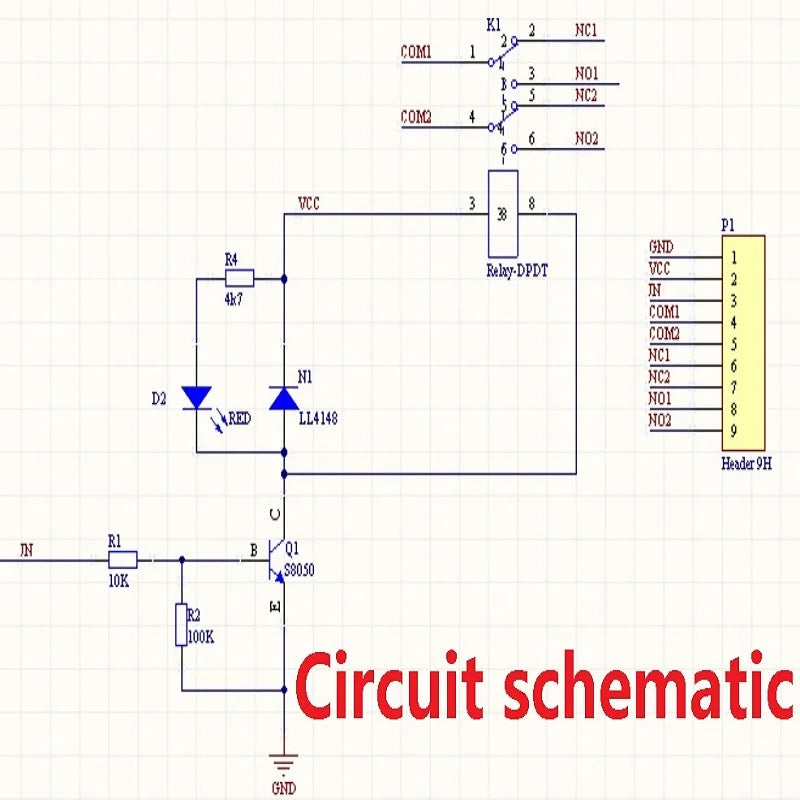

Schematic:
