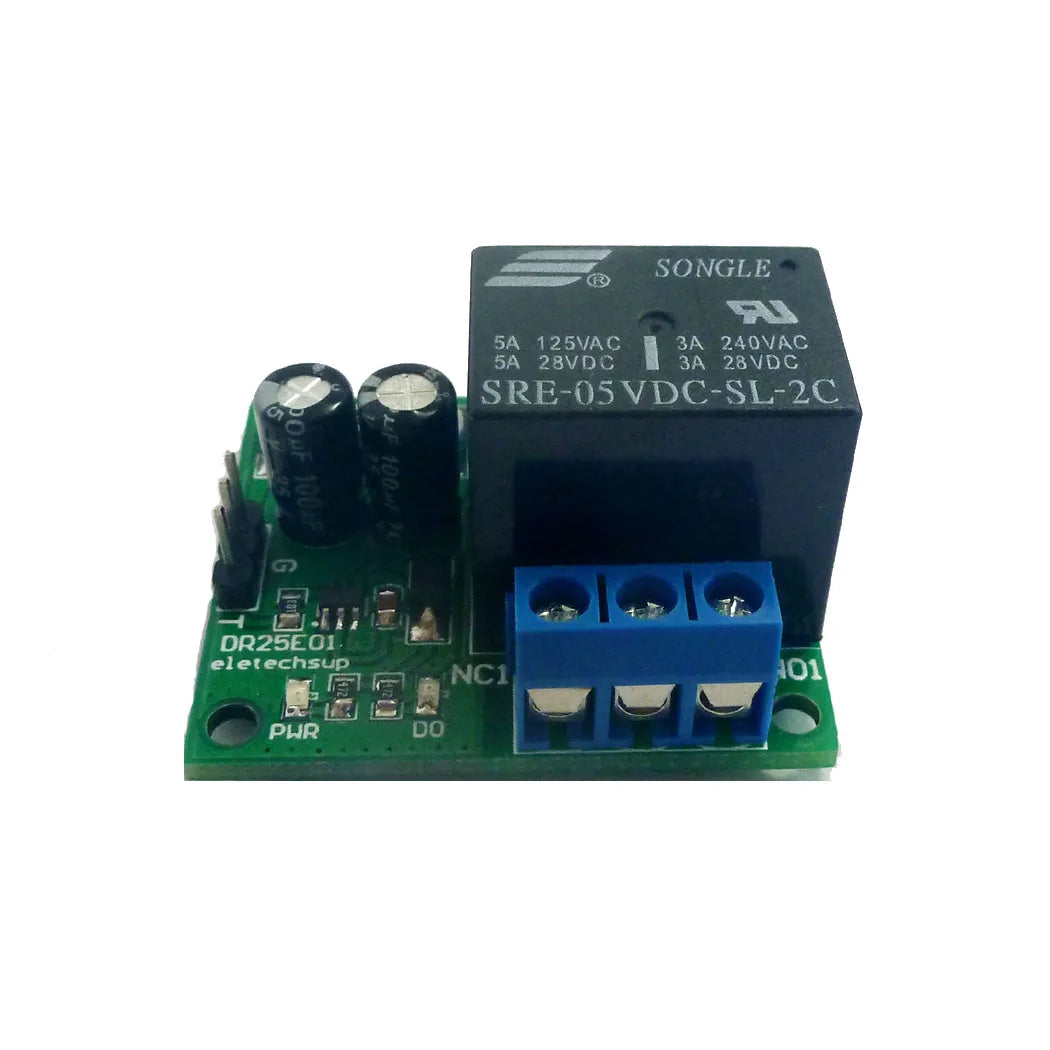

Product Name:DC 6V 9V 12V 24V 3-5A Flip-Flop Latch DPDT Relay Module Bistable Self-locking Switch Low pulse trigger Board for Motor LED PLC
Package inlcuded:
1 PCS 3A-5A DC 5V-24V Self-locking (bistable) DPDT Relay controller
Description:
3A Self-locking (bistable) DPDT(Double pole double throw)Relay controller
1 Input Voltage: DC 5V(5V version); DC 6-24V(12V version)
2 Module working current:Standby 1-2ma;Relay is on: 60-71MA;
3 Load current: Maximum 5A(Motor <=3A)

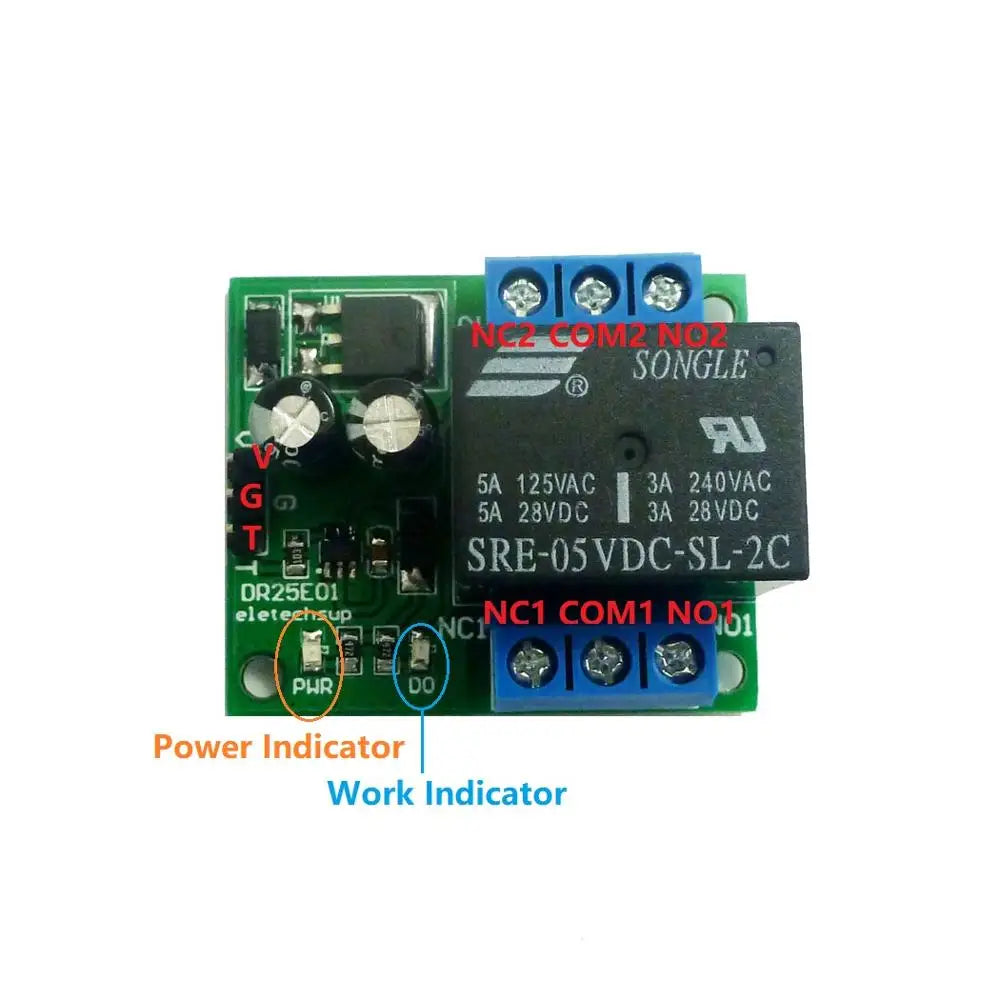

4 Power indicator AND Working indicator
5 Control method : low pulse trigger
6 Size: 39.5mm X 33.3mm X 23.3mm
7 Weight: 23 g
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

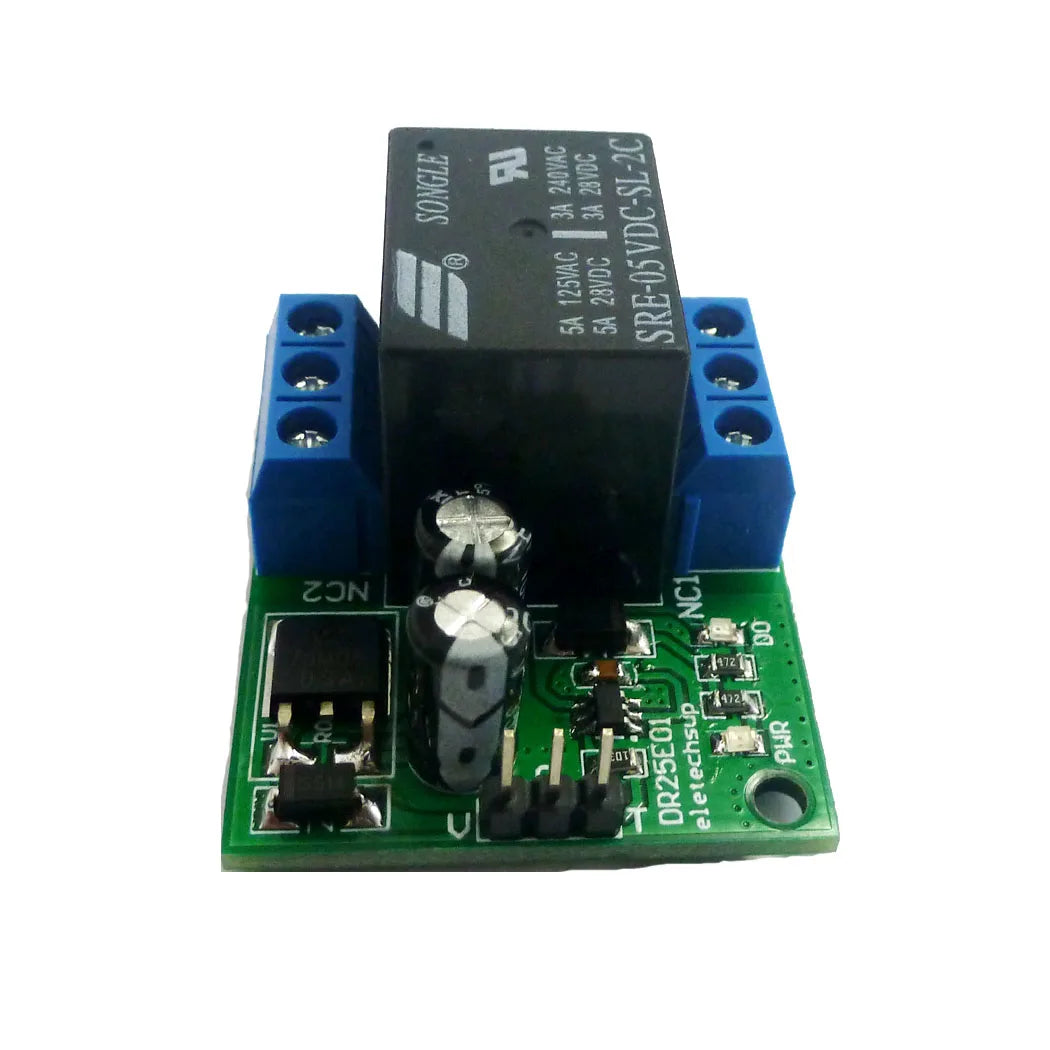

Module interface:
1. V positive power supply (VCC)
2. G negative power supply (GND)
3. T : Low pulse trigger(0.2-2 second low pulse trigger)

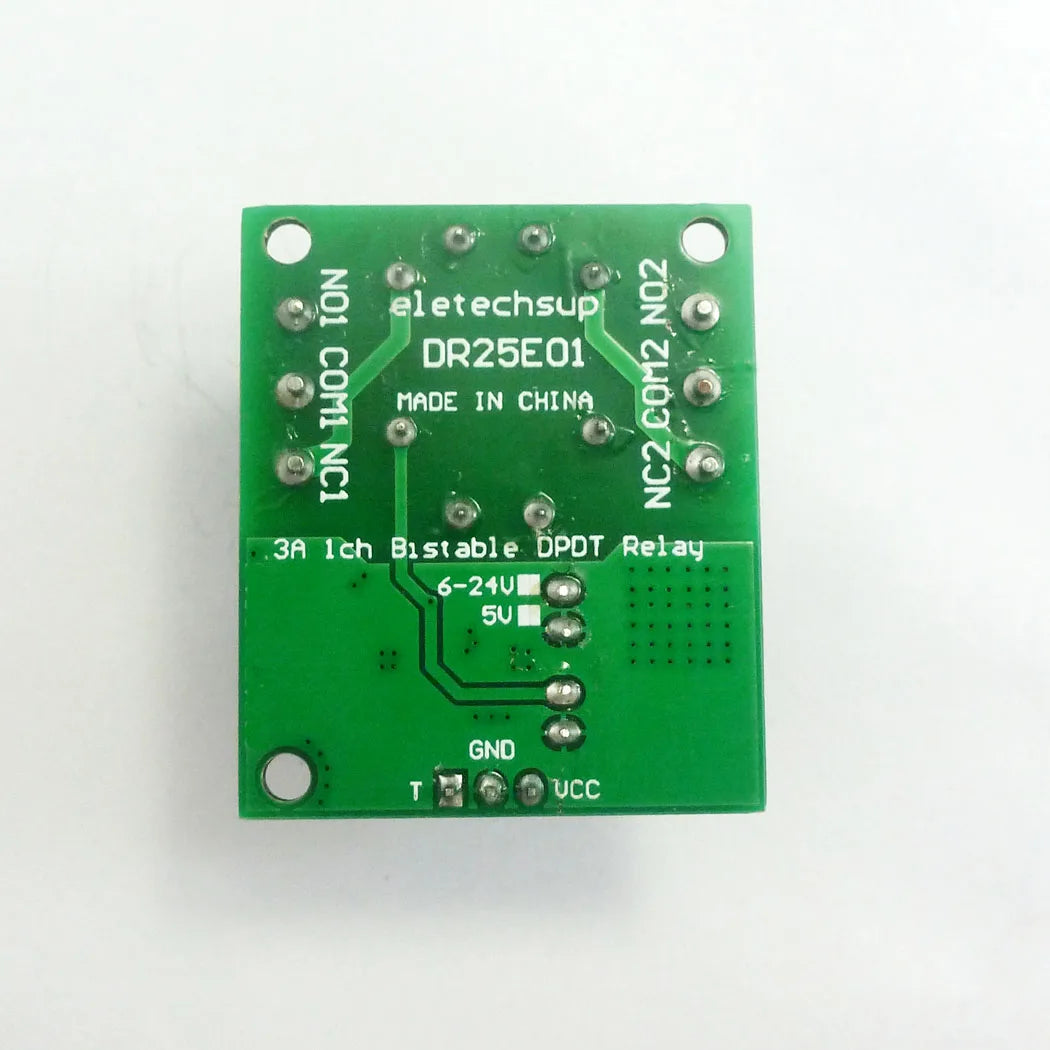

DPDT Relay outputs:
1. NO1: normally open relay interface
2. COM1: Common Interface Relays
3. NC1: normally closed relay interface
4. NO2: normally open relay interface
5. COM2: Common Interface Relays
6. NC2: normally closed relay interface
How to use:

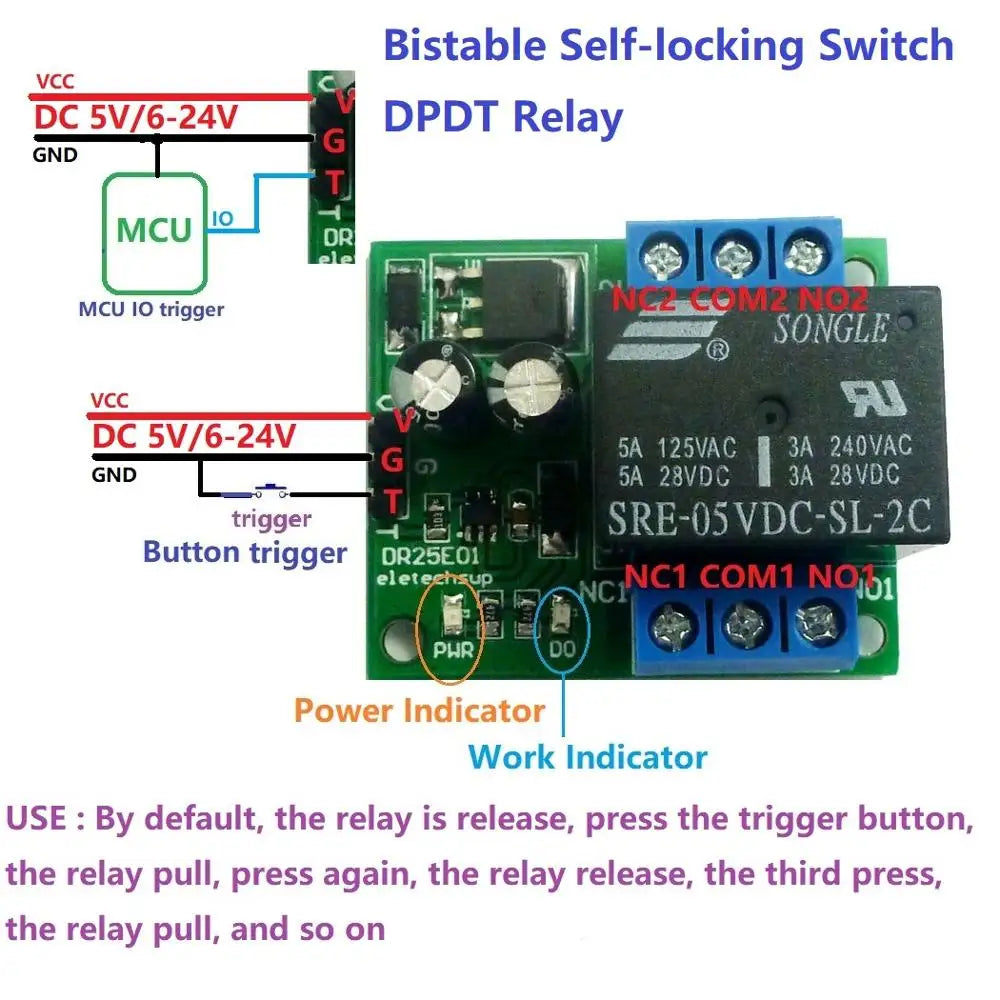

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
1 Input Voltage: DC 5V(5V version); DC 6-24V(12V version)
2 Module working current:Standby 1-2ma;Relay is on: 60-71MA;
3 Load current: Maximum 5A(Motor <=3A)
4 Power indicator AND Working indicator
5 Control method : low pulse trigger
6 Size: 39.5mm X 33.3mm X 23.3mm
7 Weight: 23 g
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1. V positive power supply (VCC)
2. G negative power supply (GND)
3. T : Low pulse trigger(0.2-2 second low pulse trigger)
DPDT Relay outputs:
1. NO1: normally open relay interface
2. COM1: Common Interface Relays
3. NC1: normally closed relay interface
4. NO2: normally open relay interface
5. COM2: Common Interface Relays
6. NC2: normally closed relay interface
How to use:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
Automotive electronics
Industrial equipment
AC DC Motor
LED lighting
Smart Home / Home Automation
Emergency lighting
MCU development board
Toy car
PLC
Automotive electronics
Industrial equipment
AC DC Motor
LED lighting
Smart Home / Home Automation
Emergency lighting
MCU development board
Toy car
PLC

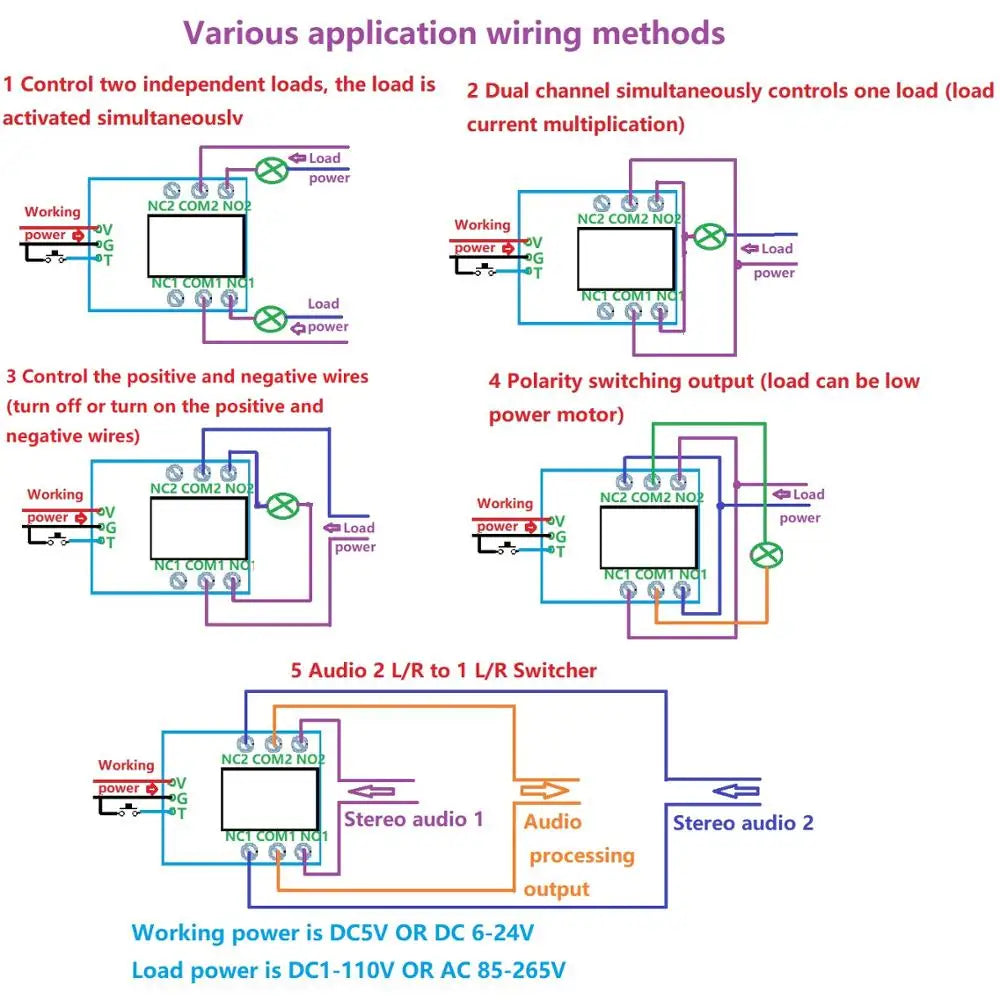

5 wiring methods:
1 Control two independent loads, the load is activated simultaneously
2 Dual channel simultaneously controls one load (load current multiplication)
3 Control the positive and negative wires (turn off or turn on the positive and negative wires)
4 Polarity switching output (load can be low power motor)
5 o 2 L/R to 1 L/R Switcher
