Custom OEM CE033A*1+CJ002*4 1-5000 seconds Adjustable Wireless Delay Switch Smart Home Kit ( DC 12V RF Relay Timer + 4x 433M EV1527 Key Manufacturer

Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lamp, fans, motors and other DC AC equipment

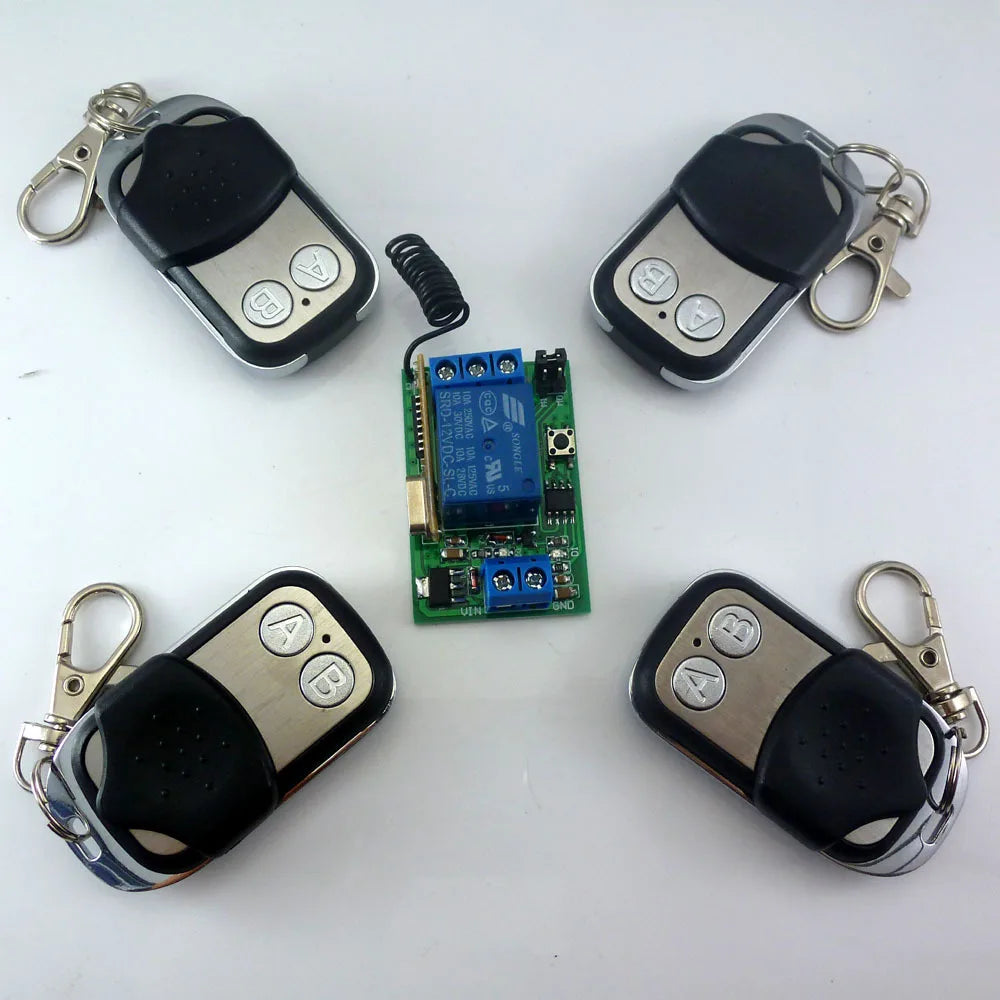

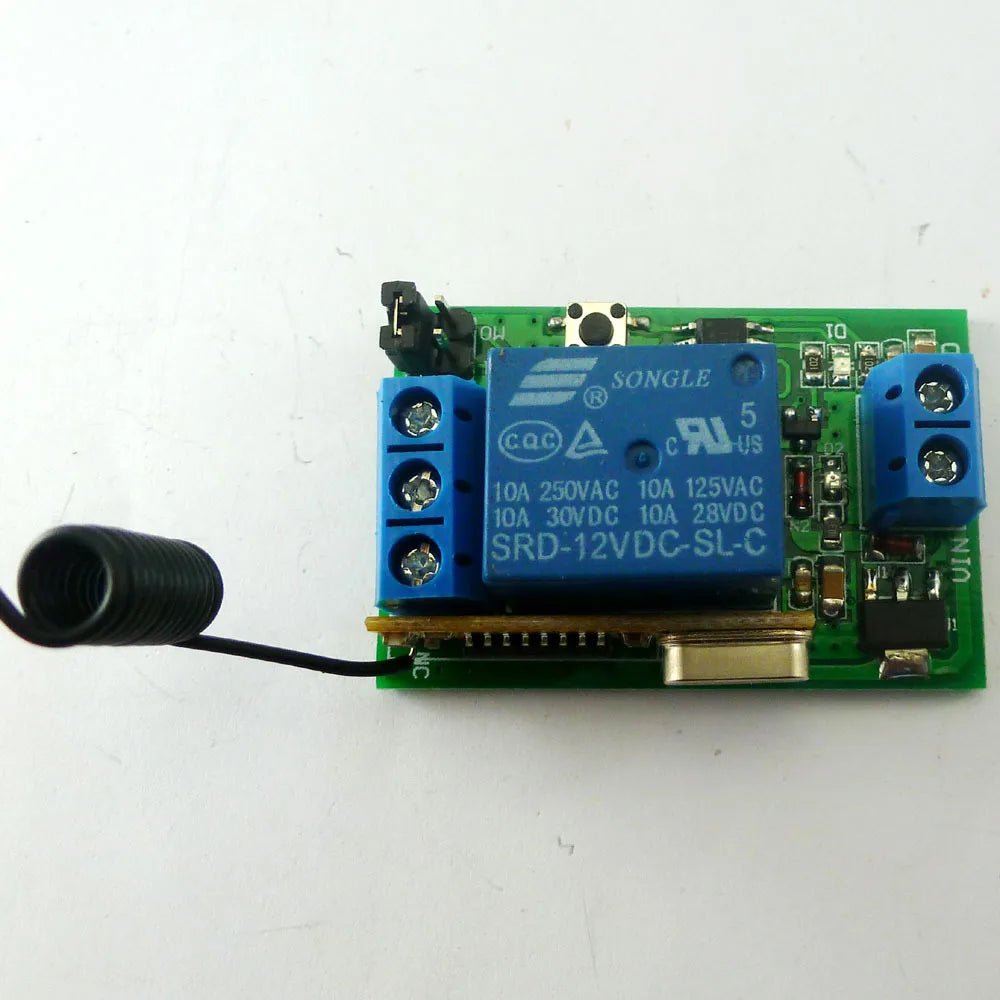

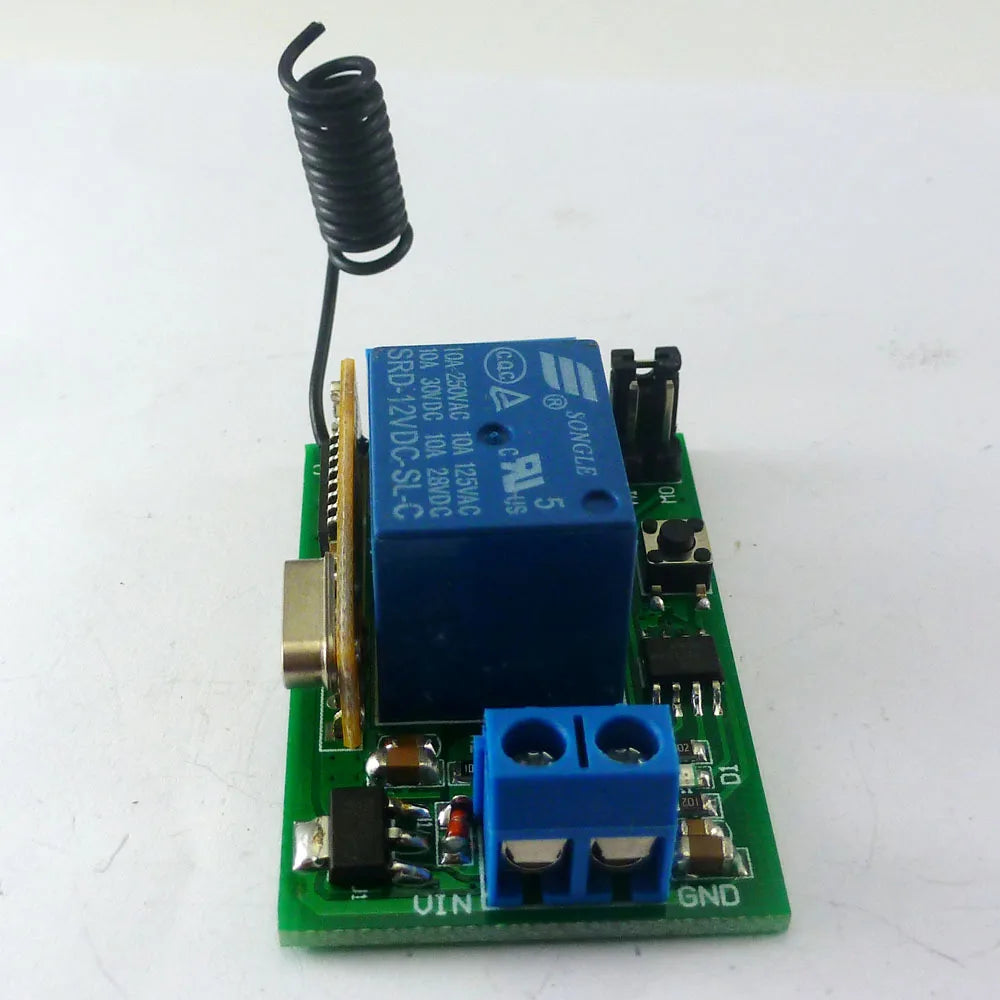

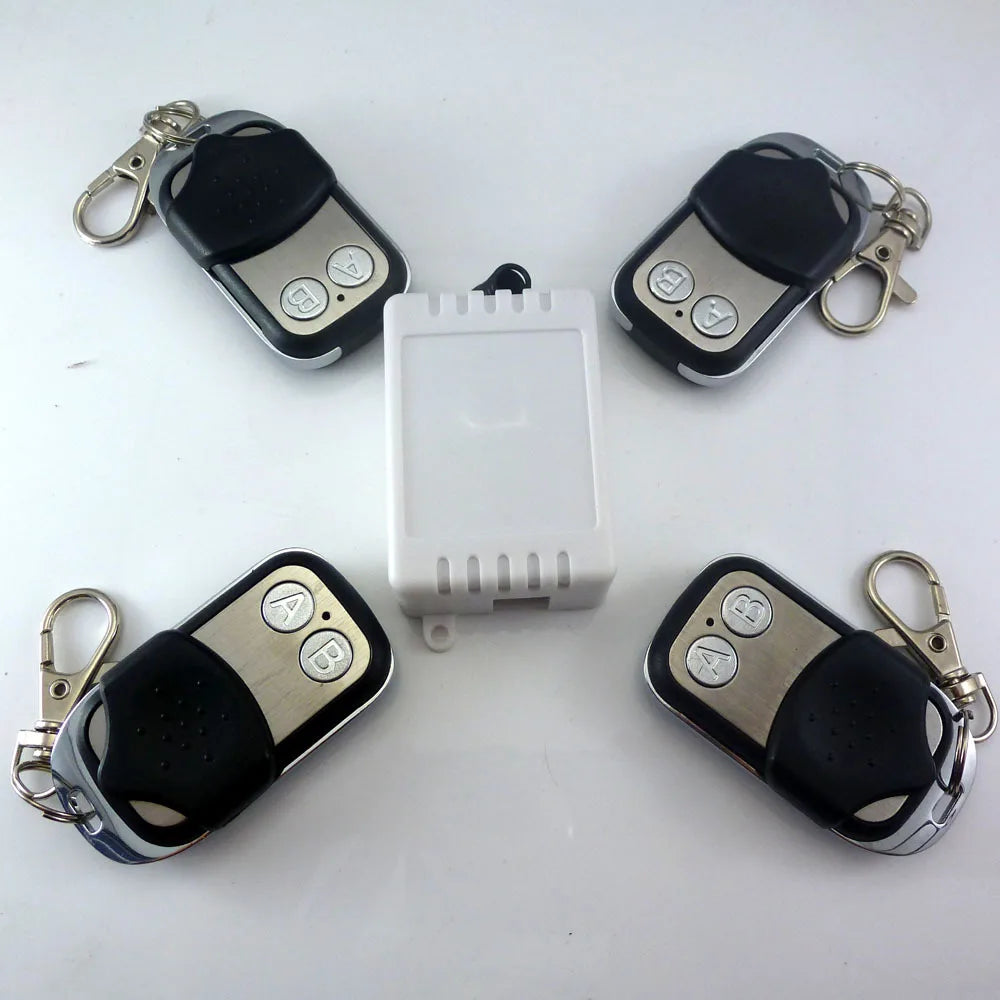

Product Name : CE033A*1+CJ002*4 1-5000 seconds Adjustable Wireless Delay Switch Smart Home Kit ( DC 12V RF Relay Timer + 4x 433M EV1527 Keyfob )

Packing list:





Work mode

NO          : Relay normally open contact

COM       : Relay common contact

NC          : Relay normally closed contact

Open       : NO connection COM, NC disconnect COM

Close      : NO disconnect COM, NC connection COM

Momentary  : Press the Transmitter button , the receiver relay is Open, release button;the relay  is Close;

Toggle        : Press transmitter button for 1 time , the receiver relay is Open, press button again, the relay  is Close;

Latched       : Press transmitter button A, the receiver relay is Open  Press transmitter button B, the receiver relay is Close.

Delay           : Press the Transmitter button, the receiver relay Open,After a set time delay, the receiver relay  is Close;



If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold  the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close



Adapter remote control (learning remote control):

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes



Clean code: press the key and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)



Step 1 (into the learning mode): Press the key (about 1 second), LED off;

Step 2 (adapter button): Then press the utton on the remote control, LED flashes four times on, then learning the button value



Note:

Only the Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch) mode to a "clear code" and " learning " action

 In the "delay" mode can only set the delay time





Delay setting:

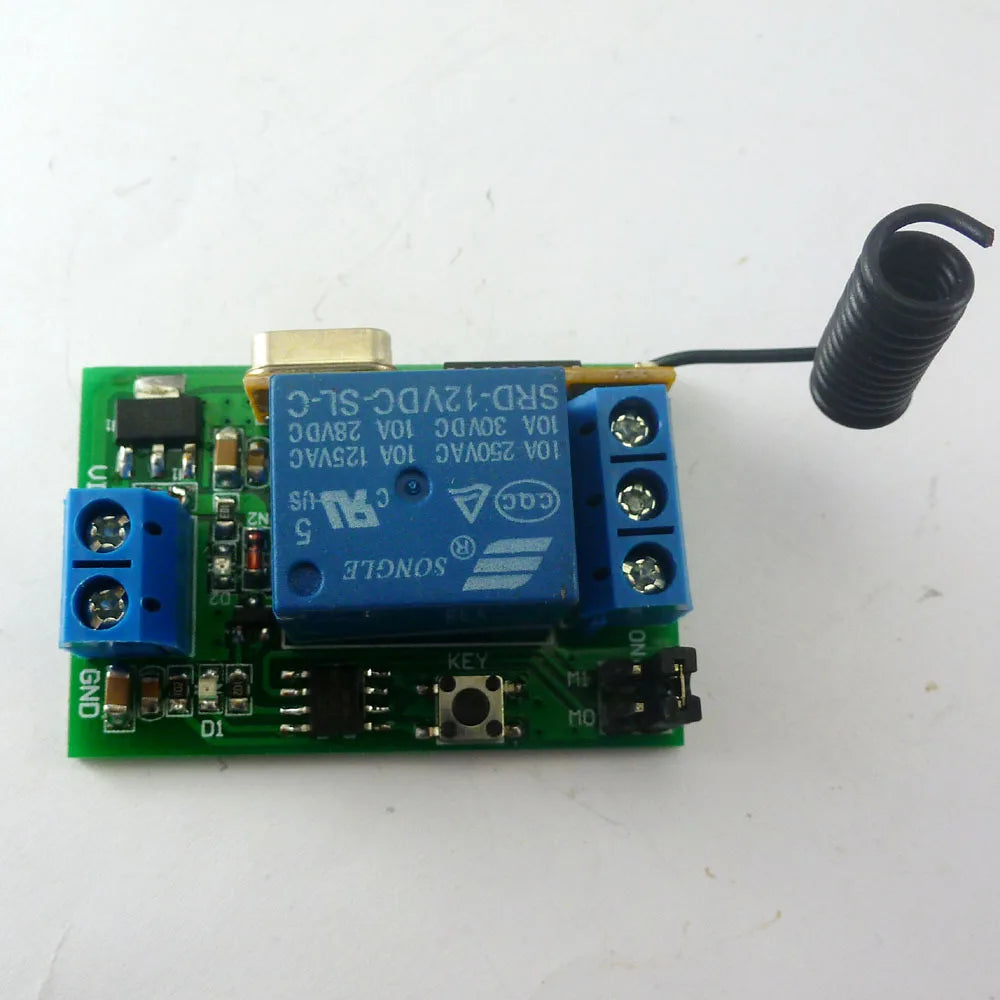

Step 1, the mode is set to "delay" mode (jumper cap on the M1 into two rows of pins)

Step 2, press the key until the LED is off

Step 3. Click the key again, LED flashes

Step 4. Click the key again after a period of time, LED light

LED blinking time is the delay time.





Power supply : 12V 27A battery   replacable  . (This remote doesnot have a battery , Please buy in your local market )

Operating current:  ≤ 12mA ;

Oscillation mode:  SAW resonator ;

Oscillation resistor : 330K

Modulation mode: ASK OOK ;

Operating frequency: 433.92MHz  ;

Frequency dev iation: ±0.2MHz ;

Encoding format: Million  Group Code (  EV1527 ) ;

Transmit power: 10 mW.

Data Rate : 50~60KHZ;
