Product Name: 8ch 12VDC DTMF Relay MT8870 Decoder Phone Remote Control switch for AC DC Motor LED CNC Smart Home PLC

Packing list :

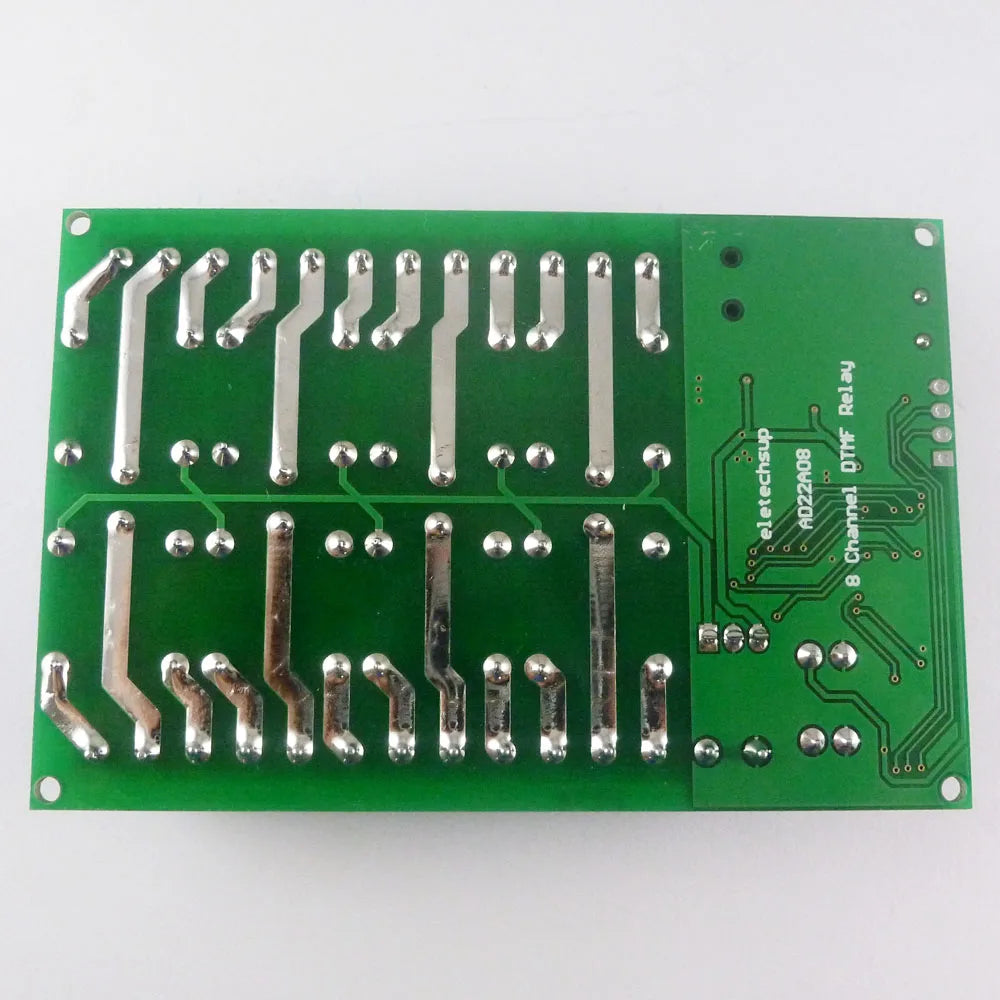

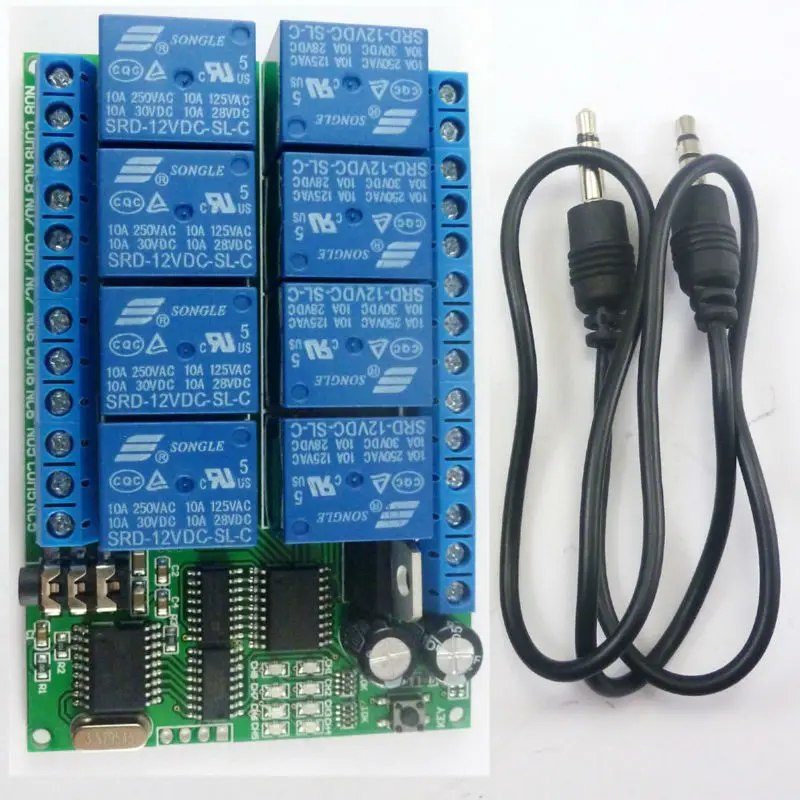

1 PCS DC 12V 8 Channels DTMF Decoder Relay Board ;

1 PCS 50cm Male to Male o wire (3.5mm jack );

Functional characteristics:

1 Product model: AD22A08

2.working voltage DC 12V, with reverse polarity protection

3.Operating Current: Standby 11-13 MA, 1 relay "open" 44MA, 2 relays "Open" 77MA, 3 relays "Open" 110MA, 4 relays"open" 140MA, 5 relays open 170MA,6 relays open 197MA,7 relays open 223MA,8 relays open 247MA.

4 Eight modes of operation:Non-locking (Momentary ), self-locking (Toggle),inter-locking (Latch), 5/20/60/120/250-second delay

5 The default control command is 1/2/3/4/5/6/7/8.Example: Dial 1 to control relay 1, dial 2 to control relay 2, dial 3 to control relay 3, dial 4 to control relay 4; control commands can be changed any 1-4 bits. (For more details, refer to " AD22A08_8 channel DTMF controller commands setting manual ").

6 Size: 94 * 62 * 19.5mm

7 Weight: 114 grams

8 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Note:

1 Please use a small ripple DC power supply (Recommended: Power with earth wire)

2 Please adjust the sound output to 80-90%

Typical applications:

Home lighting system

DTMF Remote control switch

Smart Home / Home Automation

DC 12V LED lighting

Fluorescent lamp

12V DC Motor

Fluorescent lamp

Automotive electronics

Industrial automation and control

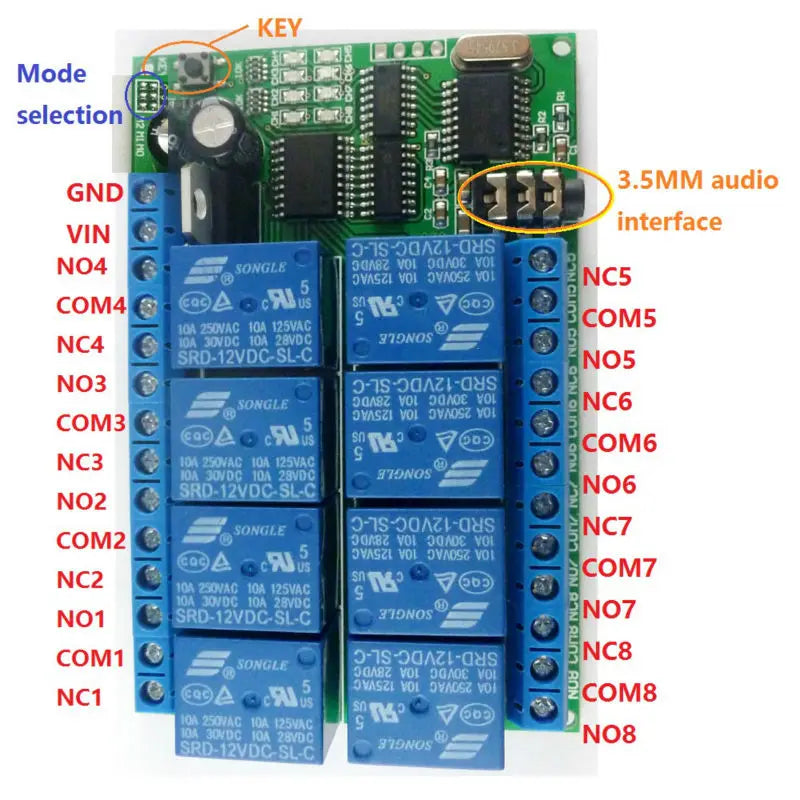

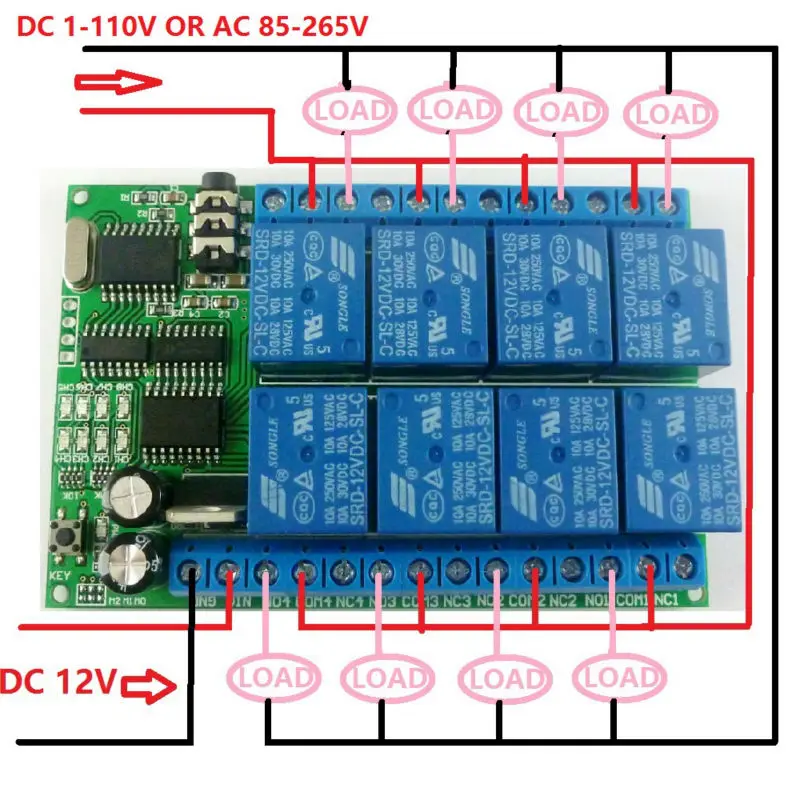

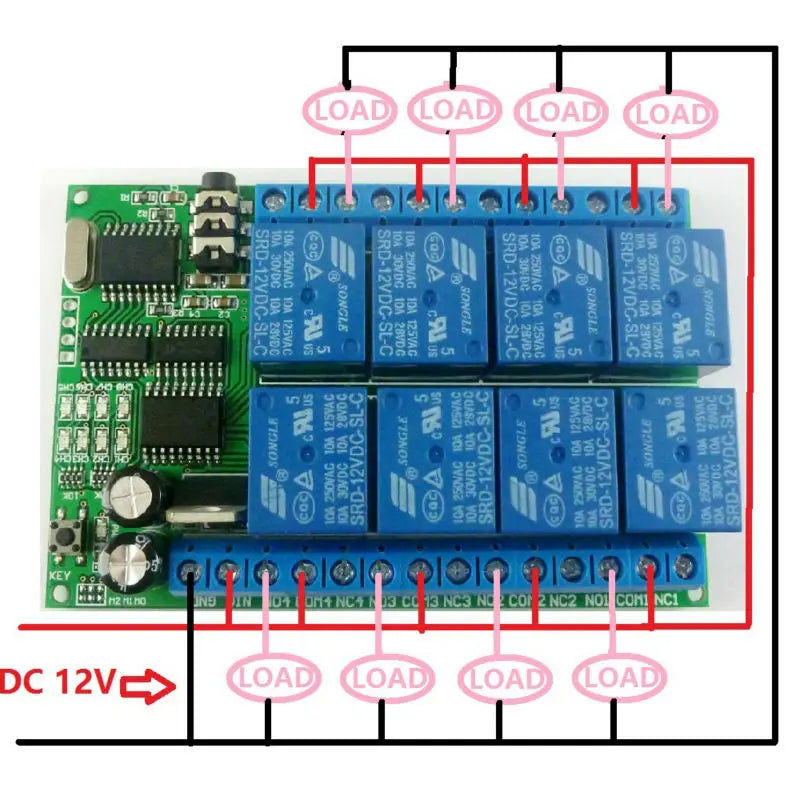

Control 8 Channel DC 12V electrical equipment: LED / Automotive electronics

General electrical equipment control:DC 1-110V or AC 85-265V

Use Method:

This is the DTMF o controller with four channels, any phone or fixed telephone with DTMF key code remotely controls product relay "open" and "close".(the majority of smartphones and functions machine are DTMF code). Our software "DTMF Dial" (installed in a computer) can be also provided to control relays.

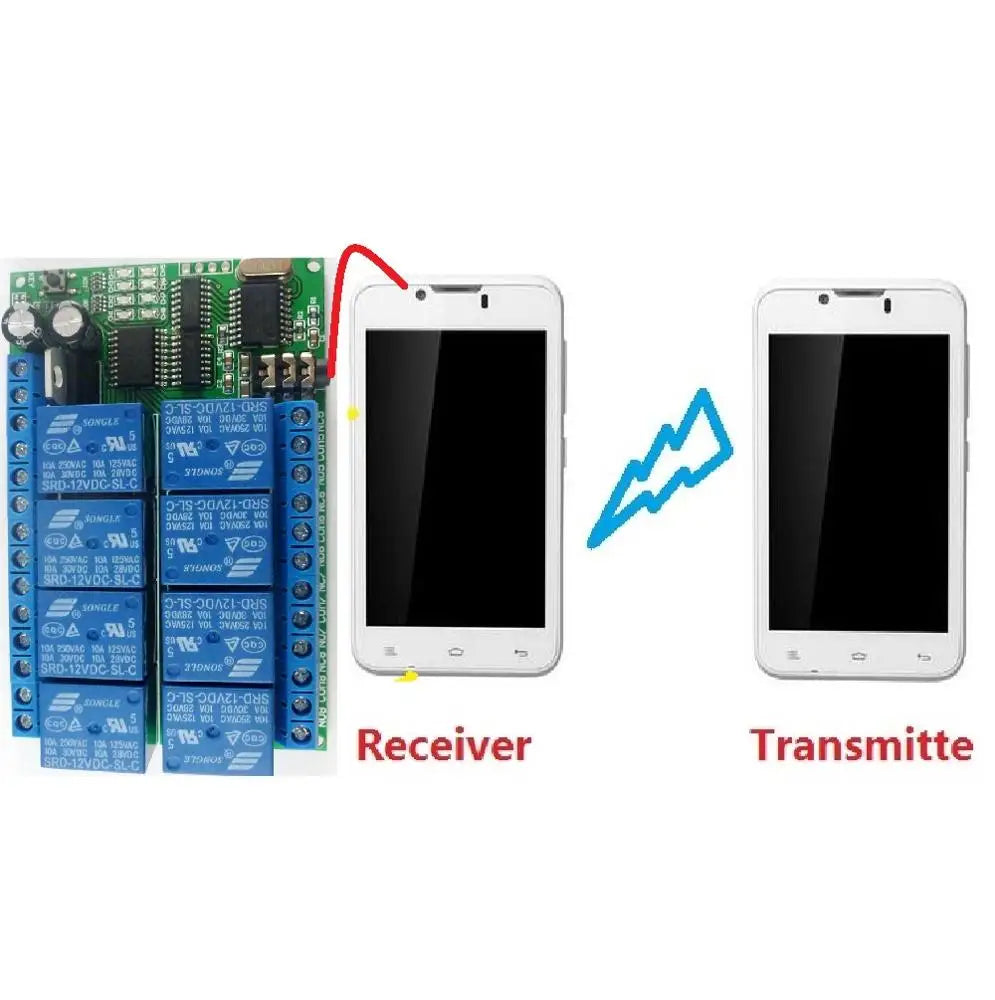

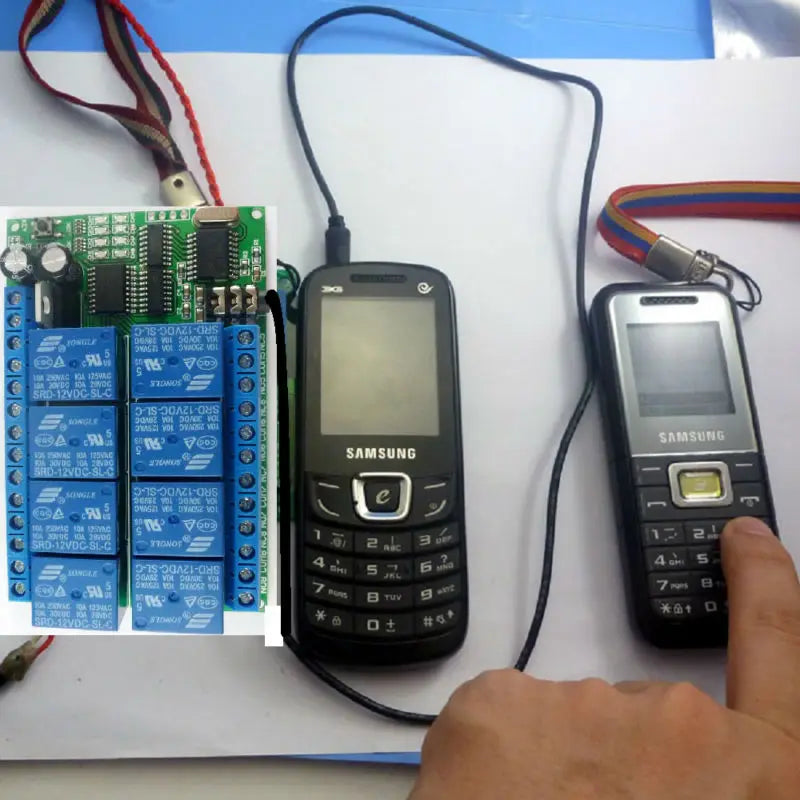

AD22A08_7 As shown above, by phone remote control relay. You need two phones, one as a receiver (phone_1), the other one as a transmitter (phone_2); mobile phone_1 connected by DTMF o cable 3.5MM o controller (the controller to be powered), and then using phone_2 ( may be a fixed telephone) call the phone_1, phone_1 answered, so that two phone call each other; then dial 1/2/3/4 by phone_2 keypad to control four relays .

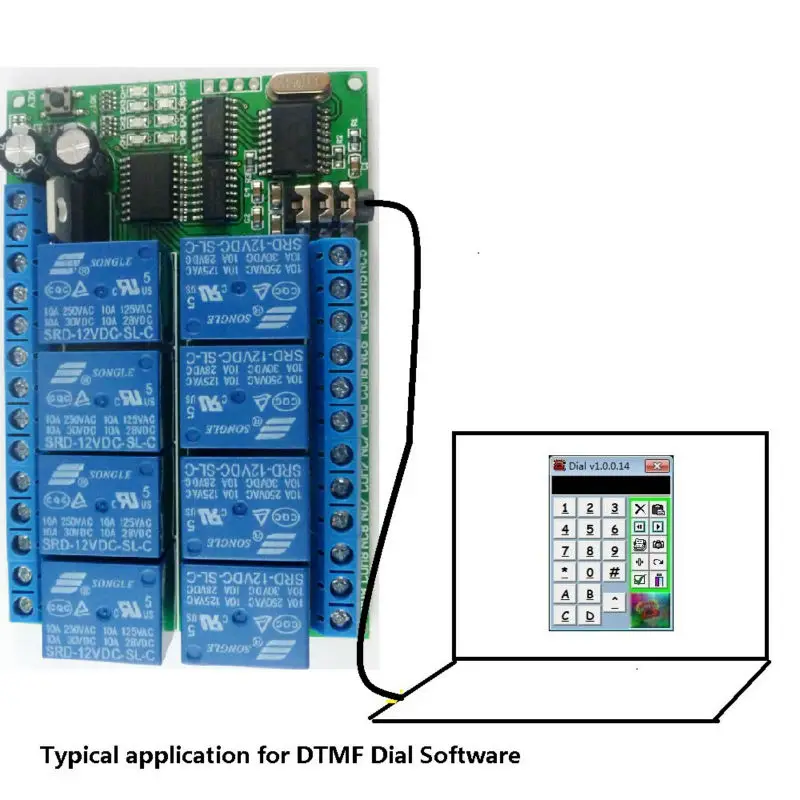

As shown above, you can install one of our "DTMF Dial" software in your computer, through the software control DTMF o controller. At first, use 3.5MM o cable to the computer video port and o port controller, then click on the software to control relays 1/2/3/4.

Caution:

1 DTMF o controller must use stable work of DC 12V power supply (recommendations 1A or above the power adapter)

2 remote control the controller by a mobile phone, the receiver must be the phone with 3.5MM o interface, the transmitter can be a cell phone or landline

3 as a receiver of the phone or a computer installed the "DTMF Dial" software must output a sound (not muted), or they will not control relays.

Glossary:

NO: Normal open

COM: Common terminal

NC: Normal Connect

Relay open: COM connected NO but disconnected NC

Relay close: COM disconnected NO but NC connected COM.

Non-locking (Momentary ): Dial 1 (2/3/4 is the same), relay 1 "Open", relay close after 1 second delay

Self-locking: Dial 1, relay 1 "Open", dial 1 again, relay 1 "off", and so on

Inter-lock: Dial 1, relay 1 "Open", other relays "Off"; dial 2, relay 2 "Open", other relays "off", and so on

"Delay": Dial 1, relay 1 "Open", relay 1 "Close" after a time

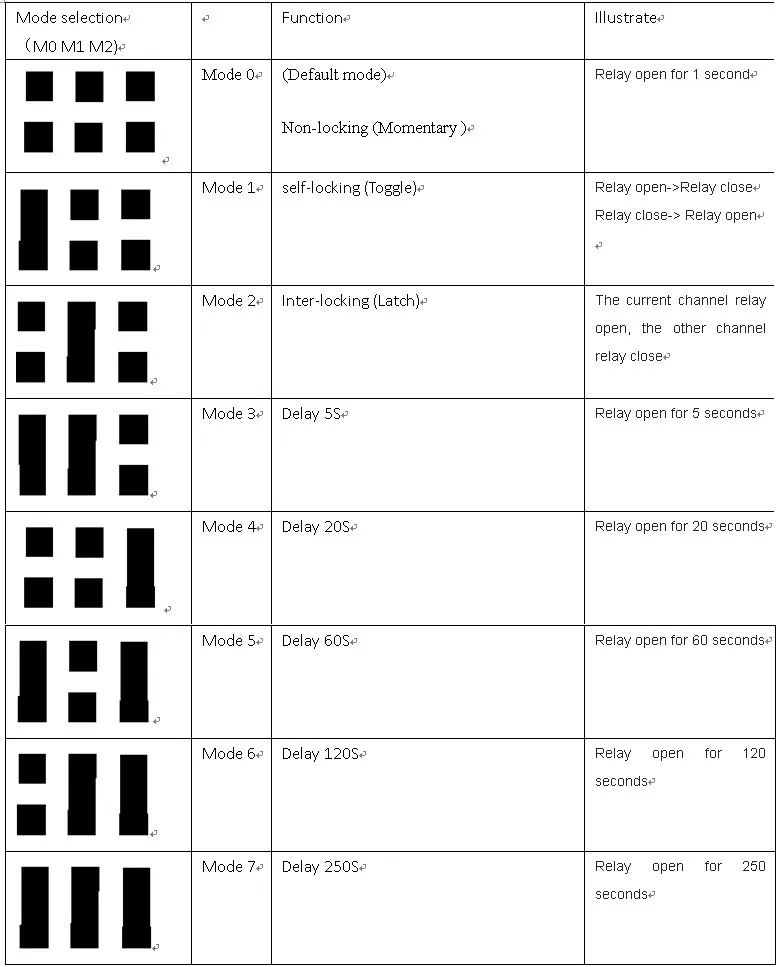

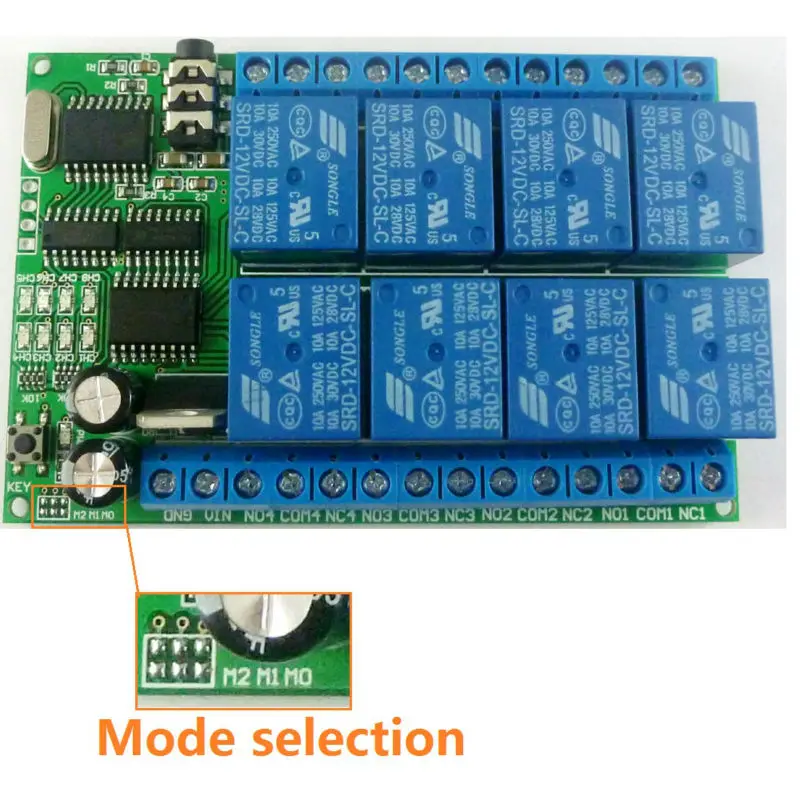

Mode selection:
